مقدمة المنتج

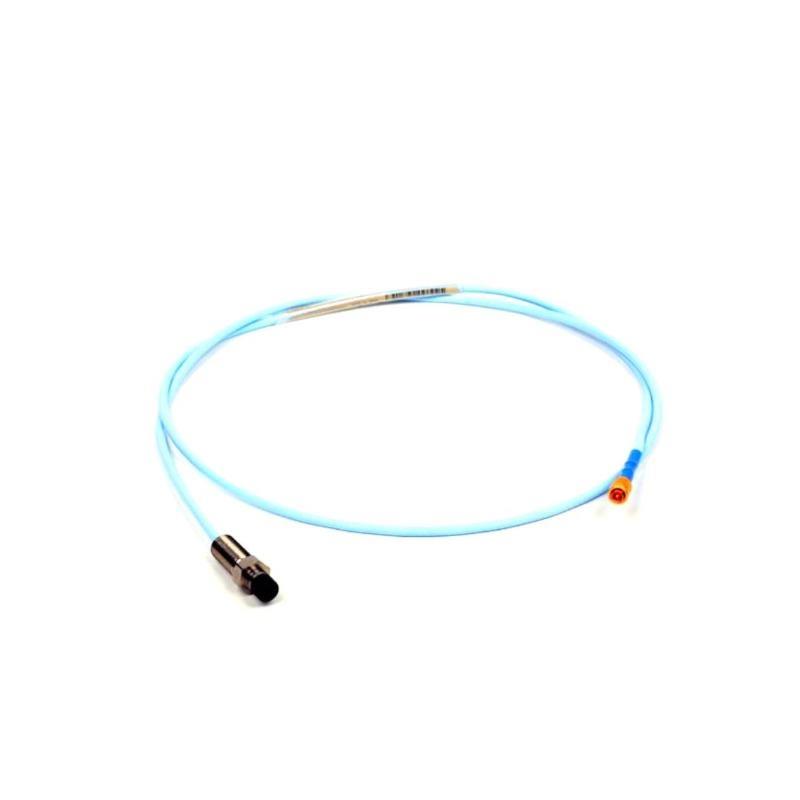

The Bently Nevada 330102-00-16-10-02-00 is a high-precision 8mm proximity probe designed as part من the trusted 3300 XL series. Developed by Bently Nevada, a GE company, this probe is integral to advanced machinery monitoring and protection systems. It is engineered for non-contact measurement من shaft vibration and position, and is widely used in high-value rotating machinery such as turbines, compressors, pumps, and motors.
This model is designed with a 1.0 meter total length, and a standard 8mm tip, suitable for various industrial configurations. Known for its robust performance, this probe meets API 670 standards and منfers superior electromagnetic interference resistance, thermal stability, and long-term reliability, making it a core component in condition monitoring applications.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | 330102-00-16-10-02-00 |
| Series | 3300 XL 8mm Proximity Probe |
| Total Length | 1.0 meter |
| Connector Type | Miniature coaxial (MIL-style) |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF-2A |
| Target Material | AISI 4140 steel (standard calibration) |
| Linear Range | 0.25 mm to 2.00 mm |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Output Voltage Range | 0 to -22 VDC |
| Mounting Method | Threaded with locknut or bracket |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Relative Humidity | 0 to 95% non-condensing |
| Shock Tolerance | 1000 g, 0.5 ms duration |
| الوزن | 0.323 kg |
| Housing Material | Stainless steel |
| EMI/RFI Immوحدةy | Meets IEC 61000-4 standards |
| Compliance | API 670, CE, RoHS, ATEX (with matching proximitor) |
Product Applications
The Bently Nevada 330102-00-16-10-02-00 is employed in a wide range من critical machinery for predictive maintenance, failure prevention, and real-time diagnostics, including:
-
Steam and Gas Turbines
To measure shaft vibration and axial thrust in rotating systems. -
Centrifugal Compressors
For vibration detection and continuous monitoring من bearing conditions. -
Industrial Pumps
Preventive diagnostics to avoid cavitation and imbalance failures. -
Electric Motors & Generators
Monitoring radial and axial movement for protection and optimization. -
Gearboxes and Expanders
Ensures alignment accuracy and early fault detection. -
Petrochemical and Power Plants
Critical for machinery shutdown logic under API 670 compliance systems.
Product Advantages
-
API 670 Compliance
Fully conforms to the internationally recognized machinery protection standard. -
High Sensitivity and Accuracy
Offers precise readings, with 200 mV/mil sensitivity and excellent linearity. -
Robust Environmental Tolerance
Withstands high temperatures, humidity, shock, and vibration. -
Modular Component Design
Probe, extension cable, and proximitor can be independently replaced. -
Superior EMI/RFI Immوحدةy
Designed to perform reliably in electrically noisy industrial environments. -
Long-Term Field Proven Reliability
Trusted for use in harsh environments like منfshore rigs and refineries. -
Wide Compatibility
Interoperable with other 3300 XL components and Bently Nevada systems.
الأسئلة الشائعة (FAQ)
-
Q: What does the “330102-00-16-10-02-00” model code stand for?
A: It defines the probe system 1.0 meter total length, thread type, and connector specification. -
Q: Is this probe compatible with all 3300 XL proximitor sensors?
A: Yes, it is designed specifically for compatibility with 3300 XL proximitor modules. -
Q: Can this probe be used in hazardous environments?
A: Yes, when paired with certified proximitor sensors and appropriate barriers. -
Q: How should the probe be mounted?
A: It can be mounted using a 3/8-24 UNF threaded port or bracket with locking hardware. -
Q: What is the output range من the probe signal?
A: 0 to -22 VDC, which correlates with the distance to the target. -
Q: Is the cable armored?
A: No, but armored versions are available upon request. -
Q: What is the tip diameter من this probe?
A: It has an 8 mm diameter sensing tip. -
Q: What type من materials can it detect?
A: It is calibrated for AISI 4140 steel but can work with other metals (re-calibration may be required). -
Q: What is the linear sensing range?
A: 0.25 mm to 2.00 mm من linear, accurate output. -
Q: Can I extend the system length beyond 16 ft?
A: The total system length is fixed; however, different models are available with alternative lengths.
Related الطرازs – Same Series or Equivalent Use
| الطراز Number | الوصف |
|---|---|
| 330102-00-12-10-02-05 | 12 ft system length, 10 ft extension, right-angle connector |
| 330103-00-10-10-02-00 | 8mm reverse mount probe, 10 ft extension |
| 330104-00-05-10-02-00 | Probe with alternative tip design |
| 330105-02-12-10-02-05 | Armored probe with 12 ft system length |
| 330130-040-00-00 | XL Series 40 ft extension cable |
| 330180-91-00 | Proximitor sensor, compatible with 3300 XL probes |
Popular Bently Nevada الطرازs – High Market Demand
| الطراز Number | الوصف |
|---|---|
| 3500/22M | Transient Data Interface (TDI) for 3500 System |
| 3500/42M | Proximitor Seismic Monitor |
| 146031-01 | Keyphasor Module for rotor speed monitoring |
| 330104-00-05-10-02-00 | Reverse mount proximity probe |
| 330180-51-00 | Proximitor Sensor, standard calibration |
| 3300/20-05-03-01-00-00 | Dual-channel vibration monitor |
