Product الوصف

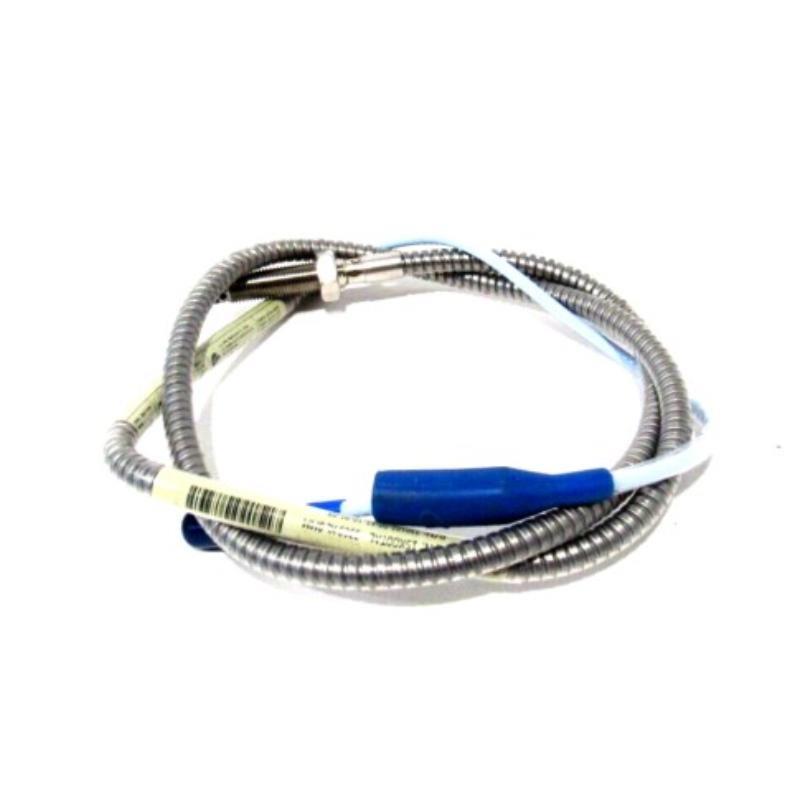

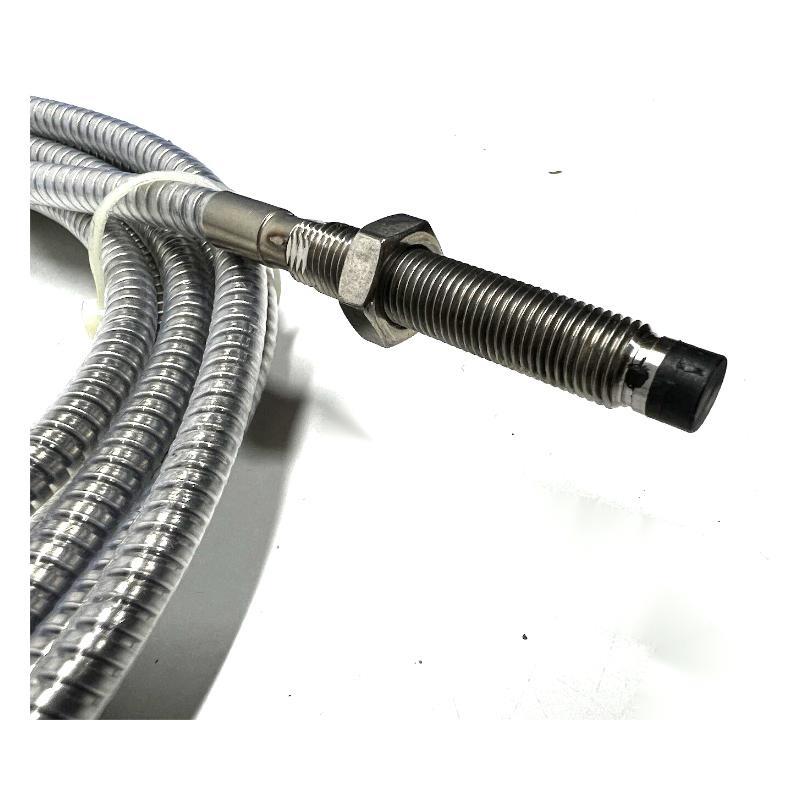

The Bently Nevada 330102-00-12-05-02-05 is part من the 3300 XL 8 mm Proximity Transducer System. This armored probe delivers accurate static (position) and dynamic (vibration) measurements, fully compliant with API 670. It is designed for fluid-film bearing machines, Keyphasor reference, and speed measurements. The system ensures high reliability, robust construction, and interchangeability among components.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | 3300 XL 8 mm with Armor |
| Thread | 3/8-24 UNF |
| Total Length | 0.5 meter (1.6 ft) |
| الوزن | 0.162 kg |
| Cable Type | FluidLoc optional, armored construction |
| Operating Temp. Range | -52°C to +177°C (standard) |
| Storage Temp. Range | -52°C to +177°C |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Linear Range | 0.25 mm to 2.3 mm |
| Recommended Gap | 1.27 mm (50 mils) |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel (AISI 303 or 304) |
| Output Signal | 7.87 V/mm ±5% over linear range |
Applications
-
Vibration and position monitoring on turbines, compressors, pumps, and motors.
-
Keyphasor reference for rotational speed.
-
Overspeed protection systems.
-
Suitable for harsh environments requiring armored cables.
Advantages
-
Fully API 670 compliant for mechanical, linearity, and temperature specifications.
-
Armored cable for superior mechanical protection.
-
Interchangeable with other 3300 XL 8 mm and 5 mm components.
-

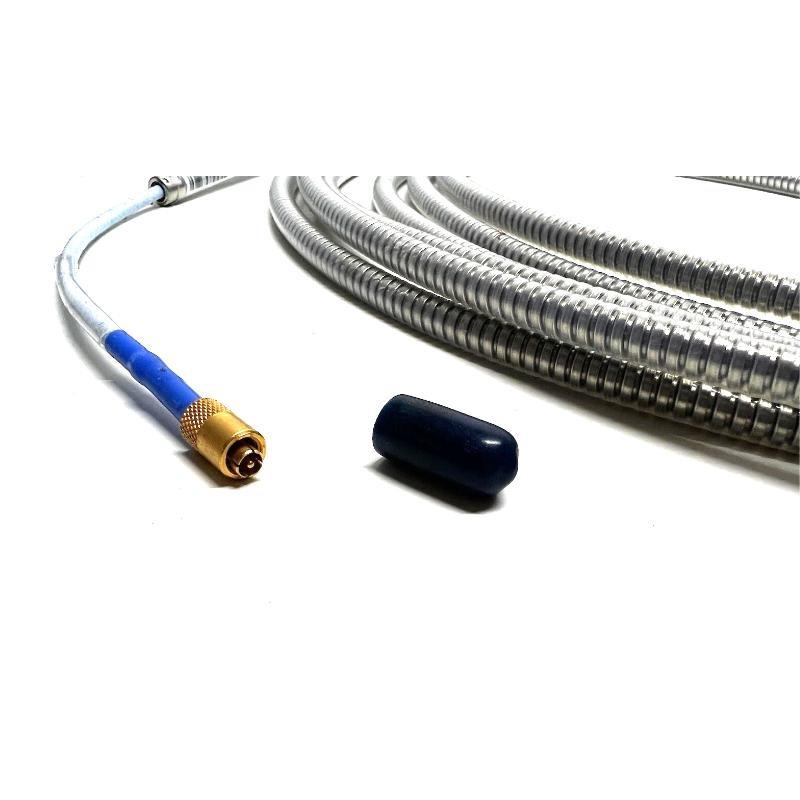

ClickLoc connectors for secure, tool-free connection.
-
Optional FluidLoc feature to prevent oil ingress through cable.
-
Backward compatibility with non-XL 3300 systems.
الأسئلة الشائعة (FAQ)
Q1: What is the total length من this probe?
A1: The total length is 0.5 meter (1.6 feet).
Q2: Is the probe armored?
A2: Yes, this model comes with an armored cable for enhanced protection.
Q3: What environments is the probe suitable for?
A3: It is designed for industrial environments, compliant with hazardous area certifications (CSA, ATEX, IECEx).
Q4: Does it meet API 670 standards?
A4: Yes, the probe is fully compliant with API 670 standards.
Q5: Can the probe be used with older 3300 series systems?
A5: Yes, it is electrically and mechanically backward compatible.
Q6: What is the recommended shaft diameter for installation?
A6: Minimum shaft diameter recommended is 76.2 mm (3 in) for optimal performance.
Q7: Is the connector tool-free?
A7: Yes, it uses ClickLoc connectors that tighten securely by hand.
Q8: What is the maximum operating temperature?
A8: For the standard probe, it is +177°C (+350°F).
Q9: What material is the probe tip made من?
A9: The probe tip is made من PPS (Polyphenylene Sulfide).
Q10: Does the probe include FluidLoc?
A10: FluidLoc is optional; this specific configuration includes standard features with armor.
Recommended Related الطرازs (Same Series)
| الطراز | الوصف | Length | الوزن |
|---|---|---|---|
| 330101-00-08-05-02-05 | 3300 XL 8 mm Probe, unarmored | 0.5 m | 0.148 kg |
| 330103-00-02-10-02-05 | 3300 XL 8 mm Metric Thread, unarmored | 1.0 m | 0.152 kg |
| 330104-01-05-50-02-00 | 3300 XL 8 mm Metric Thread, armored | 5.0 m | 0.260 kg |
| 330105-02-12-10-02-05 | 3300 XL 8 mm Reverse Mount, armored | 1.0 m | 0.160 kg |
| 330191-00-12-05-02-05 | 3300 XL 8 mm ETR, unarmored | 0.5 m | 0.162 kg |
| 330192-00-12-05-02-05 | 3300 XL 8 mm ETR, armored | 0.5 m | 0.170 kg |
Popular Bently Nevada الطرازs
| الطراز | الوصف | Length | الوزن |
|---|---|---|---|
| 3300/16-XX-XX-XX | Proximitor Monitor | N/A | 1.2 kg |
| 3300/20-XX-XX-XX | Vibration Monitor | N/A | 1.3 kg |
| 3500/22M-01-XX-XX | Transient Data Interface Module | N/A | 1.0 kg |
| 3500/42M-01-XX-XX | Proximitor Seismic Monitor | N/A | 1.1 kg |
| 3500/32M-01-XX-XX | Relay Module | N/A | 0.8 kg |
| 3500/93-01-XX-XX | LCD Display Module | N/A | 1.5 kg |
