مقدمة المنتج

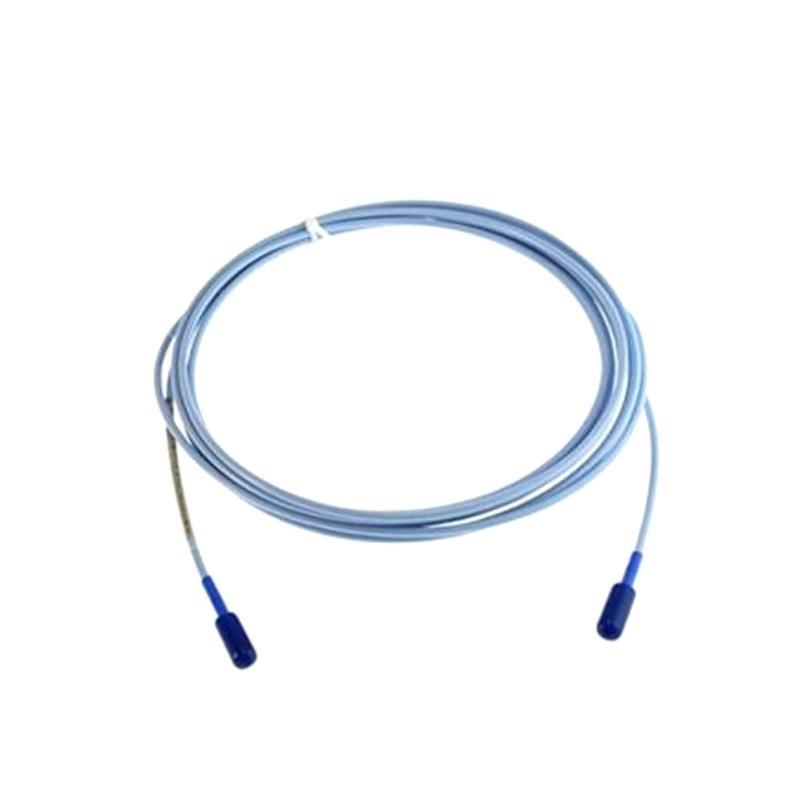

The Bently Nevada 330101-33-53-10-02-05 3300 XL 8mm Proximity Probe is an advanced and highly accurate sensor used for measuring displacement or vibration in rotating machinery. Manufactured by Bently Nevada, a leader in condition monitoring solutions, this probe is specifically designed to provide real-time measurements من shaft vibration and displacement. The 3300 XL series is known for its precision and durability, making it a reliable choice for industrial applications where uptime and equipment reliability are critical.
The 8mm diameter من this probe allows it to be installed in tighter spaces, making it ideal for machinery with limited space for sensors. Its key function is to measure the displacement من machinery components, such as shafts, in high-speed or harsh environments, thus enabling predictive maintenance to avoid costly breakdowns. This probe is compatible with Bently Nevada 3300 series monitoring systems and provides valuable feedback that helps in the analysis من machinery health and operational performance.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | 330101-33-53-10-02-05 |
| Probe Type | 3300 XL 8mm Proximity Probe |
| Measurement Type | Shaft displacement or vibration |
| Probe Diameter | 8mm |
| Total Length | 1 meter |
| Output Signal | 4-20 mA (linear) or 0-10 V DC |
| Temperature Range | -40°C to +120°C (Operating) |
| الوزن | 0.323 kg |
| Mounting | 1/2-20 UNF thread mount |
| Maximum Vibration Velocity | 10 ips (254 mm/s) |
| Sensitivity | 1.0 mm/mV (typical) |
| Insulation Resistance | 100 MΩ @ 500 V DC |
| Environmental Protection | IP65 (Water-resistant) |
| Connection Type | 2-wire, 3-wire (depending on model) |
| Certifications | CE, UL, RoHS |
| Compatibility | Compatible with Bently Nevada 3300 series monitoring systems |
Product Applications
The 3300 XL 8mm Proximity Probe is used in a wide range من industrial applications where monitoring من rotating machinery components is crucial for operational efficiency and equipment health. Some من the primary applications include:
-
Rotating Machinery Monitoring: Essential for monitoring the vibration and displacement من shafts, motors, turbines, and other critical components in rotating machinery.
-
الحالة-Based Monitoring: Used to collect real-time data for assessing the condition من machinery and predict failures before they occur, preventing unplanned downtime.
-
Power Generation: Commonly used in power plants to monitor turbines and generator shafts, helping to ensure that power generation processes are running smoothly and efficiently.
-
Oil & Gas Industry: In oil and gas applications, the probe is used in drilling rigs, compressors, and pumps to detect early signs من wear, imbalance, or misalignment.
-
Mining and Metals: Used to monitor critical equipment such as crushers, mills, and conveyors, ensuring smooth operation and avoiding costly failures.
-
Water Treatment: Employed in water and wastewater treatment plants to monitor the health من pumps, motors, and other critical components that ensure the plant operates efficiently.
-
Industrial Manufacturing: Used in automated production systems to measure displacement and vibration, improving the efficiency من manufacturing processes and reducing downtime.
-
HVAC Systems: Used in large HVAC systems to monitor fan motors and compressors, helping ensure energy-efficient operation and reducing energy consumption.
Product Advantages
-
High Accuracy: The 3300 XL probe منfers precise measurements من shaft displacement and vibration, making it a reliable tool for condition monitoring and predictive maintenance.
-
Compact Design: With an 8mm diameter, this proximity probe is perfect for applications where space is limited, allowing for easy integration into smaller systems.
-
Durability: The 3300 XL series is built to withstand harsh industrial environments, منfering reliable performance even under extreme temperatures and high vibrations.
-
Wide Temperature Range: The probe operates in a temperature range from -40°C to +120°C, ensuring it can function in both extreme cold and hot environments.
-
High Sensitivity: The 1.0 mm/mV sensitivity ensures that even the smallest changes in displacement or vibration are detected, enabling early detection من potential problems.
-
Real-time Monitoring: The probe provides real-time data, منfering instantaneous feedback to operators about the condition من rotating machinery, preventing unexpected breakdowns.
-
Environmental Protection: With an IP65 rating, the 3300 XL probe is protected from dust and water, making it suitable for use in harsh and dirty industrial environments.
-
Long Lifespan: The design ensures the probe operates effectively over long periods, reducing the need for frequent replacements and enhancing overall system reliability.
-
Seamless Integration: The probe integrates easily with the Bently Nevada 3300 series monitoring systems, enabling quick setup and efficient system management.
-
Cost-Effective Maintenance: By identifying early signs من wear and tear, this proximity probe helps in minimizing costly repairs and optimizing maintenance schedules, leading to significant savings.
الأسئلة الشائعة (FAQ)
-
Q: What is the temperature range من the 3300 XL 8mm Proximity Probe?
A: The probe operates in a temperature range من -40°C to +120°C, making it suitable for a variety من industrial environments. -
Q: What is the output signal type for the 3300 XL 8mm probe?
A: The probe provides a linear 4-20 mA or 0-10 V DC output signal, depending on the model. -
Q: What is the maximum vibration velocity that the probe can measure?
A: The maximum vibration velocity is 10 ips (254 mm/s). -
Q: What is the diameter من the 3300 XL 8mm probe?
A: The probe has an 8mm diameter, which is ideal for tight installations. -
Q: Does the 3300 XL 8mm probe have environmental protection features?
A: Yes, the probe is rated IP65, meaning it is resistant to dust and water. -
Q: What is the sensitivity من the 3300 XL 8mm proximity probe?
A: The sensitivity is 1.0 mm/mV, allowing for the detection من very small mechanical changes. -
Q: What is the weight من the 3300 XL 8mm proximity probe?
A: The probe weighs 0.323 kg. -
Q: Can the 3300 XL 8mm probe be used in power generation?
A: Yes, the probe is commonly used in power generation applications, especially for monitoring turbines and generator shafts. -
Q: Is the 3300 XL 8mm probe compatible with other Bently Nevada systems?
A: Yes, it is fully compatible with the Bently Nevada 3300 series monitoring systems. -
Q: What is the mounting type for the 3300 XL 8mm probe?
A: The probe is designed for 1/2-20 UNF thread mounting, which ensures secure installation.
Related الطرازs and Variants
| الطراز Number | الوصف | Key Feature |
|---|---|---|
| 330101-33-53-10-02-06 | 3300 XL 8mm Proximity Probe (Extended Cable) | Extended cable for larger installations |
| 330101-33-53-10-02-07 | 3300 XL 8mm Proximity Probe (High Sensitivity) | Increased sensitivity for precise measurement |
| 330101-33-53-10-02-08 | 3300 XL 8mm Proximity Probe (Heavy Duty) | Reinforced construction for harsh environments |
| 330101-33-53-10-02-09 | 3300 XL 8mm Proximity Probe (Low Temperature) | Designed for extreme cold environments |
| 330101-33-53-10-02-10 | 3300 XL 8mm Proximity Probe (Digital Output) | Provides digital output for advanced monitoring systems |
| 330101-33-53-10-02-11 | 3300 XL 8mm Proximity Probe (Short Cable) | Shorter cable for compact applications |
Popular Bently Nevada العلامة التجارية الطرازs
| الطراز Number | الوصف | Application Focus |
|---|---|---|
| 3500/42M | Machinery Monitoring System | الحالة monitoring for turbines, compressors, and pumps |
| 3300 XL 5mm | Proximity Probe | Vibration and shaft displacement measurement |
| 3500/72 | Vibration Monitor | Monitoring vibration in rotating machinery |
| 3300 XL 11mm | Proximity Probe | Shaft displacement measurement with larger clearance |
| 3500/53 | Proximity System | Accurate displacement monitoring in high-speed applications |
| 3500/22M | Accelerometer | Vibration sensor for machinery monitoring |
