Product الوصف

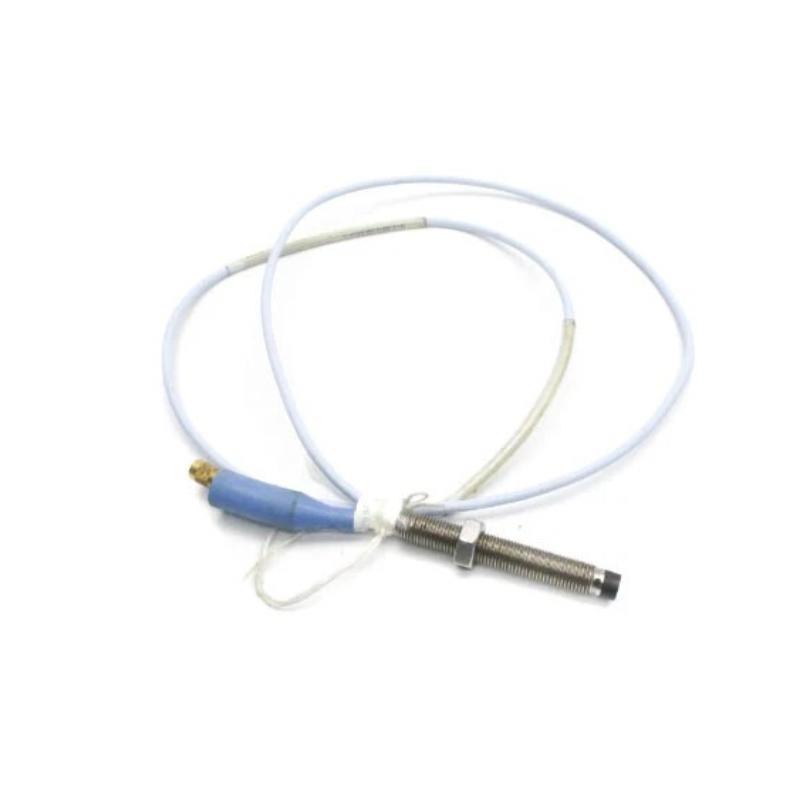

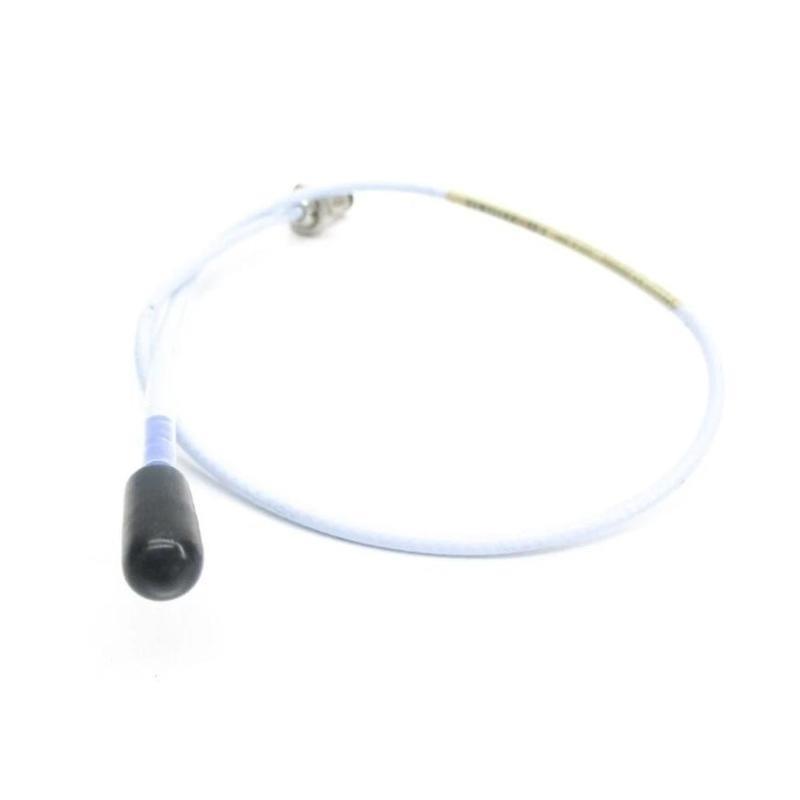

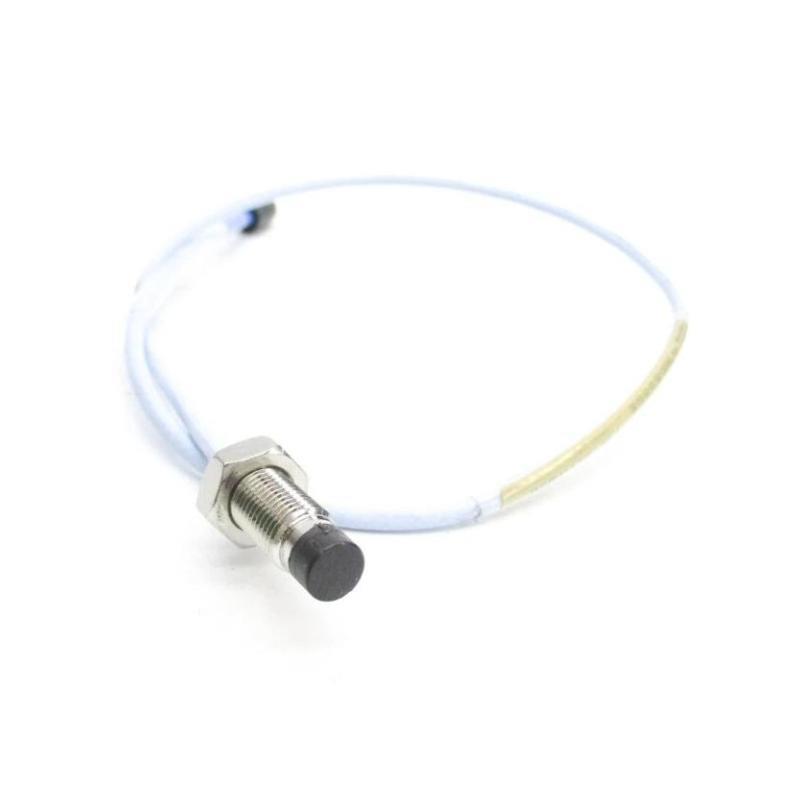

The Bently Nevada 330101-00-63-10-02-00 is part من the 3300 XL 8 mm Proximity Transducer System, combining a non-contact probe, extension cable, and Proximitor Sensor to measure both static (position) and dynamic (vibration) signals. Designed for use in harsh industrial environments, it is primarily used on rotating machinery with fluid-film bearings for vibration monitoring and shaft position measurement.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز | 330101-00-63-10-02-00 |
| System | 3300 XL 8 mm Proximity Transducer |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Case Material | Stainless Steel AISI 303/304 |
| Total Length | 1.0 meter |
| الوزن | 0.323 kg |
| Cable Type | 75Ω triaxial FEP-insulated |
| Gap Measurement Range | 0.25 mm – 2.3 mm (10 – 90 mils) |
| Incremental Scale Factor | 7.87 V/mm ±5% (standard systems) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -52°C to +177°C (standard probe) |
| Humidity Tolerance | ≤ 3% deviation in 93% RH for 56 days |
| Mounting Thread | 3/8-24 UNF |
| Connector Type | Miniature coaxial ClickLoc |
| Compliance | API 670, CE, RoHS, FCC, SIL 2/3, ATEX/IECEx certified |
Applications
-
Vibration monitoring on critical rotating machinery
-
Shaft position and radial displacement measurement
-
Keyphasor speed referencing
-
Overspeed protection systems (with appropriate barriers)
-
Monitoring in hazardous environments (Zone 0 and Zone 2 certified)
Product Advantages
-
API 670 Compliance: Meets stringent mechanical and performance standards
-
Rugged Construction: TipLoc and CableLoc design ensures enhanced mechanical durability
-
High Accuracy: ±5% system accuracy and full interchangeability
-
Wide Temperature Range: Operates from -52°C to +177°C (standard)
-
Compact & Flexible: متاح in various lengths with optional armor and FluidLoc protection
-
EMI/RFI Resistant: Enhanced immوحدةy for reliable operation in noisy environments
الأسئلة الشائعة (FAQ)
Q1: What is the primary function من the 330101-00-63-10-02-00 probe?
A1: It measures the distance between the probe tip and a conductive surface to monitor shaft vibration and position.
Q2: Is this probe compatible with older 3300 series components?
A2: Yes, it is backward compatible and interchangeable with non-XL 3300 series 5 mm and 8 mm systems.
Q3: Can this model be used in high-temperature environments?
A3: Yes, the standard probe operates up to +177°C. For higher temperatures, use the Extended Temperature Range (ETR) version.
Q4: Does this probe require bench calibration before use?
A4: No, it supports full component interchangeability without the need for calibration.
Q5: What kind من connectors are used in this probe?
A5: It features gold-plated miniature coaxial ClickLoc connectors that are tool-free and secure.
Q6: Can I use this probe in hazardous areas?
A6: Yes, it is certified for use in Zone 0 and Zone 2 hazardous environments (ATEX/IECEx, CSA).
Q7: What is the recommended gap setting?
A7: Approximately 1.27 mm (50 mils), corresponding to -9 Vdc output.
Q8: How accurate is the system with this probe?
A8: System accuracy is typically within ±5% من scale factor over the linear range.
Q9: What is the total system length supported by this model?
A9: This specific configuration supports a 1.0-meter length without an extension cable.
Q10: Is this probe suitable for marine applications?
A10: Yes, it meets maritime standards for منfshore and onboard classification conditions.
Related الطرازs from the Same Series
| الطراز Number | الوصف | Length | Armor | Temperature Range |
|---|---|---|---|---|
| 330101-00-20-10-02-00 | Standard 8 mm Probe, 2.0 m, ClickLoc | 2.0 meters | No | Standard |
| 330102-00-20-10-02-00 | Armored 8 mm Probe, 2.0 m, ClickLoc | 2.0 meters | Yes | Standard |
| 330103-00-05-10-02-00 | Metric M10 Thread, 0.5 m, ClickLoc | 0.5 meters | No | Standard |
| 330104-00-06-10-02-00 | Metric M10 Thread, 0.6 m, Armored | 0.6 meters | Yes | Standard |
| 330191-00-20-10-02-00 | ETR 8 mm Probe, 2.0 m, High Temp | 2.0 meters | No | Extended |
| 330192-00-20-10-02-00 | ETR Armored 8 mm Probe, 2.0 m, High Temp | 2.0 meters | Yes | Extended |
Popular الطرازs from Bently Nevada
| الطراز Number | الوصف | Application Area | Temp Range | Length |
|---|---|---|---|---|
| 330104-00-06-10-02-00 | 8 mm Probe with M10 Thread, Armored | General Machinery | Standard | 0.6 meters |
| 330130-040-00-00 | 3300 XL Extension Cable 4.0 m | Extension Cable | Standard | 4.0 meters |
| 330180-50-05 | 3300 XL Proximitor Sensor, Panel Mount 5 m | Signal Conversion | Standard | 5.0 meters |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | Vibration Monitoring | N/A | N/A |
| 330106-05-30-10-02-00 | Reverse Mount Probe, M10, 1.0 m | Limited Space Applications | Standard | 1.0 meters |
| 3300 NSv | Narrow Side View Probe System | Tight Clearance Applications | Standard | Various |
