Product Overview

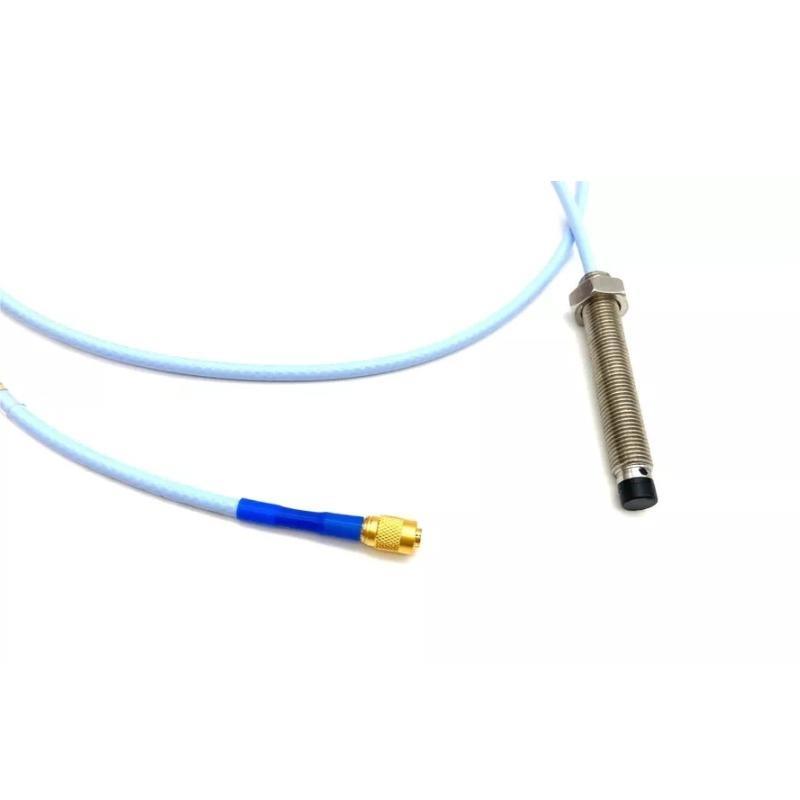

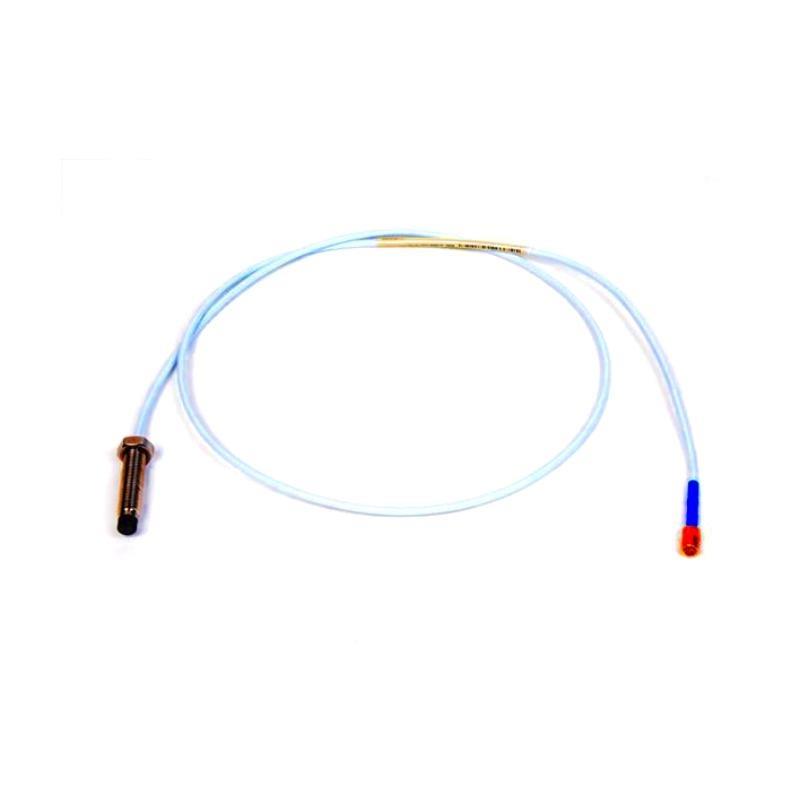

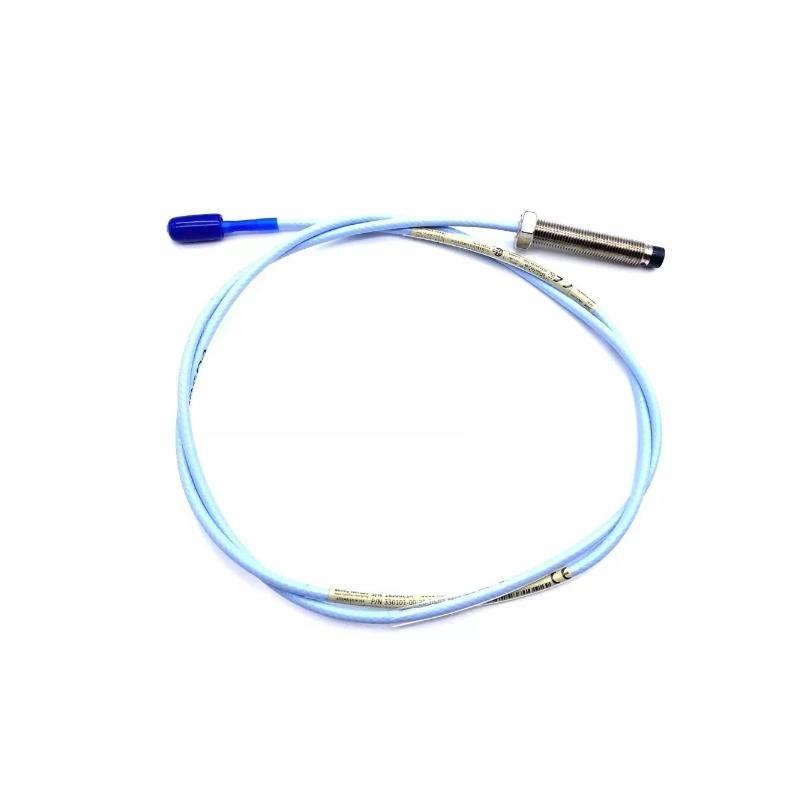

The Bently Nevada 330101-00-35-05-02-05 is part من the 3300 XL 8 mm Proximity Transducer System. It is designed for use in harsh industrial environments to monitor shaft vibration and position in rotating machinery. With robust construction and high reliability, it ensures accurate non-contact measurements.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز Number | 330101-00-35-05-02-05 |
| Series | 3300 XL 8 mm |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 0.5 meter |
| الوزن | 0.162 kg |
| Cable Length | 5.0 meters |
| Connector Type | Miniature coaxial connector |
| Tip Material | Polyphenylene sulfide (PPS) |
| Operating Temperature | -35°C to +177°C |
| Mounting | Threaded with lock nut |
| Target Material | 4140 steel or equivalent conductive metal |
Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Motors and generators
-
Gearboxes and fans
-
Centrifugal equipment
-
Industrial machinery requiring precise shaft position monitoring
Product Advantages
-
Resistant to high temperatures and harsh environments
-
Precise non-contact measurements
-
Standardized system compatible with 3300 XL Proximitor
-
Durable construction for long operational life
-
Reliable performance in continuous vibration monitoring systems
الأسئلة الشائعة (FAQ)
Q1: What is the purpose من the 330101-00-35-05-02-05 probe?
A1: It measures shaft vibration and axial position in rotating equipment without physical contact.
Q2: Is the probe suitable for high-temperature environments?
A2: Yes, it operates reliably in temperatures from -35°C to +177°C.
Q3: What is the length من the probe and the cable?
A3: The probe is 0.5 meters long, and the cable is 5.0 meters.
Q4: Which transducer system is this probe compatible with?
A4: It is compatible with the Bently Nevada 3300 XL Proximitor system.
Q5: What material is used for the probe tip?
A5: The probe tip is made from Polyphenylene sulfide (PPS), ensuring durability and stability.
Q6: Can the probe be used in corrosive environments?
A6: Yes, the probe is built with corrosion-resistant materials for harsh industrial settings.
Q7: What is the weight من the probe?
A7: The weight من the probe is 0.162 kg.
Q8: What type من connector does the probe use?
A8: It uses a miniature coaxial connector.
Q9: Is this probe compatible with other Bently Nevada systems?
A9: It is mainly designed for 3300 XL systems but may integrate with other Bently setups using adaptors.
Q10: How is the probe mounted?
A10: It is mounted using a threaded body with a lock nut for secure positioning.
Related or Same Series الطرازs
| الطراز Number | Cable Length | Probe Length | الوزن | Connector Type |
|---|---|---|---|---|
| 330101-00-25-10-02-00 | 10.0 m | 0.25 m | 0.175 kg | Coaxial |
| 330101-00-30-10-02-00 | 10.0 m | 0.30 m | 0.180 kg | Coaxial |
| 330101-00-50-10-02-00 | 10.0 m | 0.50 m | 0.190 kg | Coaxial |
| 330101-00-80-05-02-00 | 5.0 m | 0.80 m | 0.210 kg | Coaxial |
| 330101-00-100-05-02-00 | 5.0 m | 1.00 m | 0.230 kg | Coaxial |
| 330104-00-06-10-11-00 | 9.0 m | 0.60 m | 0.200 kg | Coaxial |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Application | الوزن |
|---|---|---|---|
| 330104-00-05-10-02-00 | 3300 XL 8 mm Proximity Probe | General machinery monitoring | 0.180 kg |
| 330106-05-30-10-02-00 | 3300 XL NSv Probe | Small target applications | 0.160 kg |
| 330130-080-00-00 | Extension Cable 8 m | Probe system extension | 0.250 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | Proximity transducer interface | 0.320 kg |
| 330400-01-05 | Velomitor Piezo-velocity Sensor | Vibration velocity monitoring | 0.300 kg |
| 190501-00-00 | Accelerometer | Machine vibration diagnostics | 0.150 kg |
