Product الوصف

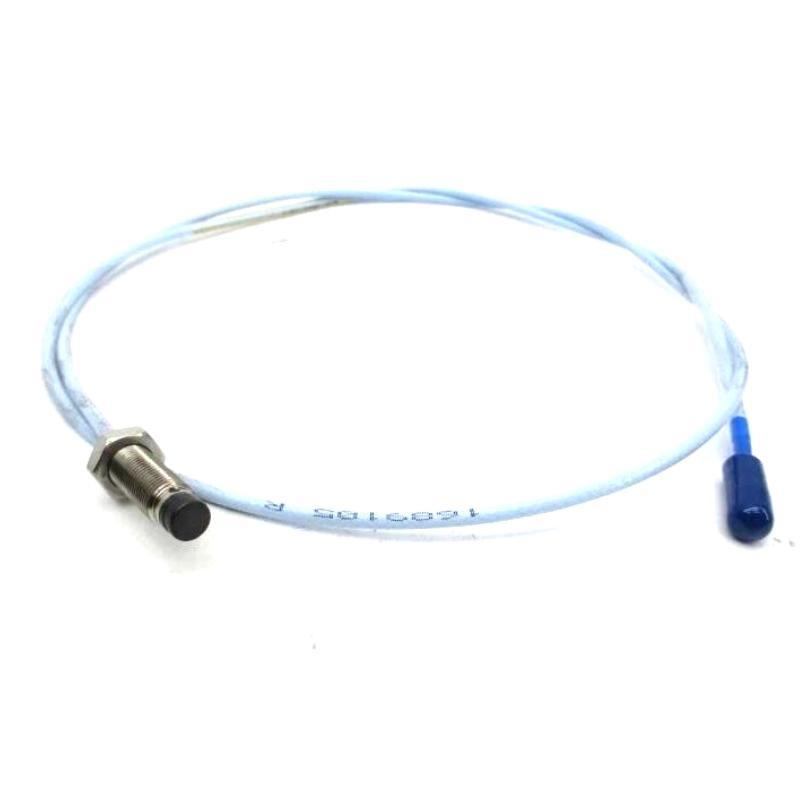

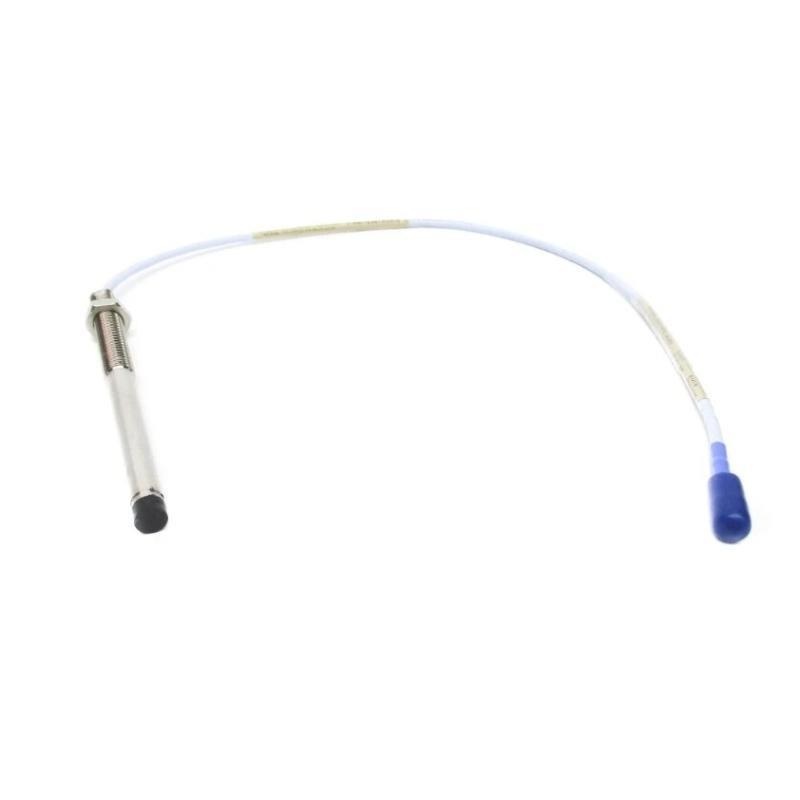

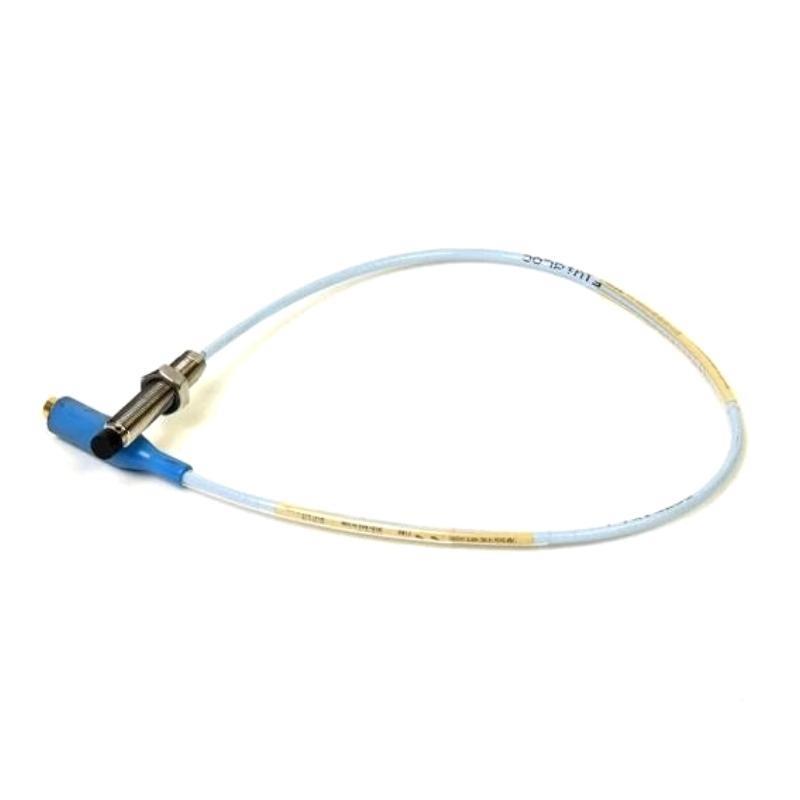

The Bently Nevada 330101-00-28-10-12-CN is a high-precision 8 mm proximity probe from the 3300 XL series. Designed for accurate vibration and position measurements, it is ideal for fluid-film bearing machinery. The probe delivers reliable static and dynamic measurements, supporting both Keyphasor and speed detection applications. Equipped with a miniature coaxial ClickLoc connector and FluidLoc cable, it ensures optimal performance in industrial environments, including hazardous areas.
Technical Specifications
| Parameter | Specification |
|---|---|
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 2.8 inches |
| Total Length | 1.0 meter |
| الوزن | 0.323 kg |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | FluidLoc cable |
| Linear Range | Typically 1.27 mm (50 mils) |
| Frequency Response | Up to 10 kHz |
| Temperature Stability | Wide temperature operational range |
| Compliance | API 670 standard compliant |
| Hazardous Area Rating | ATEX/IECEx, NEPSI |
Applications
-
Vibration monitoring من rotating machinery
-
Shaft position measurement
-
Fluid-film bearing condition monitoring
-
Keyphasor and speed signal acquisition
-
Machine health diagnostics in petrochemical and power industries
Advantages
-
High accuracy with stable temperature performance
-
Robust design for industrial and hazardous environments
-
Quick and secure connection with ClickLoc interface
-
Compatible with Bently Nevada 3300 XL Proximitor sensors and extension cables
-
Long linear range ensures reliable vibration and position data
FAQ
1. What is the primary use من this proximity probe?
It measures shaft vibration and position in fluid-film bearing machinery.
2. What is the linear range من this probe?
Typically 1.27 mm (50 mils), suitable for precise measurements.
3. What type من connector is used?
Miniature coaxial ClickLoc connector for secure attachment.
4. Can it operate in hazardous areas?
Yes, it is ATEX/IECEx and NEPSI rated.
5. What is the maximum frequency response?
Up to 10 kHz, depending on system configuration.
6. What is the probe’s total length and weight?
Total length: 1.0 meter; الوزن: 0.323 kg.
7. What type من cable does the probe use?
FluidLoc cable designed to prevent fluid leakage.
8. Is the probe compliant with industry standards?
Yes, it complies with API 670 for linearity, accuracy, and temperature stability.
9. What types من machinery are suitable for this probe?
Rotating machines with fluid-film bearings, including turbines, compressors, and pumps.
10. Can it be used with other Bently Nevada 3300 XL sensors?
Yes, it is fully compatible with 3300 XL Proximitor sensors and extension cables.
Related or Series الطرازs
| الطراز Number | Thread Type | Length | الوزن | Connector |
|---|---|---|---|---|
| 330101-00-28-10-02-CN | 3/8-24 UNF | 1.0 m | 0.323 kg | ClickLoc |
| 330101-00-28-20-02-CN | 3/8-24 UNF | 1.0 m | 0.323 kg | ClickLoc |
| 330104-00-06-10-11-00 | 8 mm | 1.0 m | 0.320 kg | ClickLoc |
| 330104-00-06-50-01-00 | 8 mm | 1.0 m | 0.320 kg | ClickLoc |
| 330180-91-CN | 8 mm | 0.8 m | 0.280 kg | ClickLoc |
| 330101-00-28-10-12-02 | 3/8-24 UNF | 1.0 m | 0.323 kg | ClickLoc |
Popular Bently Nevada الطرازs
| الطراز Number | Type | Length | الوزن | Connector |
|---|---|---|---|---|
| 3300 XL Proximitor Sensor | Sensor | 0.5 m | 0.500 kg | ClickLoc |
| 3300 XL 8 mm Proximity Probe | Probe | 1.0 m | 0.323 kg | ClickLoc |
| 3300 XL Extension Cable | Extension Cable | 1.0 m | 0.400 kg | ClickLoc |
| 3300 XL Keyphasor | Keyphasor | 0.6 m | 0.350 kg | ClickLoc |
| 3300 XL 5 mm Probe | Probe | 1.0 m | 0.300 kg | ClickLoc |
| 3300 XL 12 mm Probe | Probe | 1.2 m | 0.400 kg | ClickLoc |
