الوصف

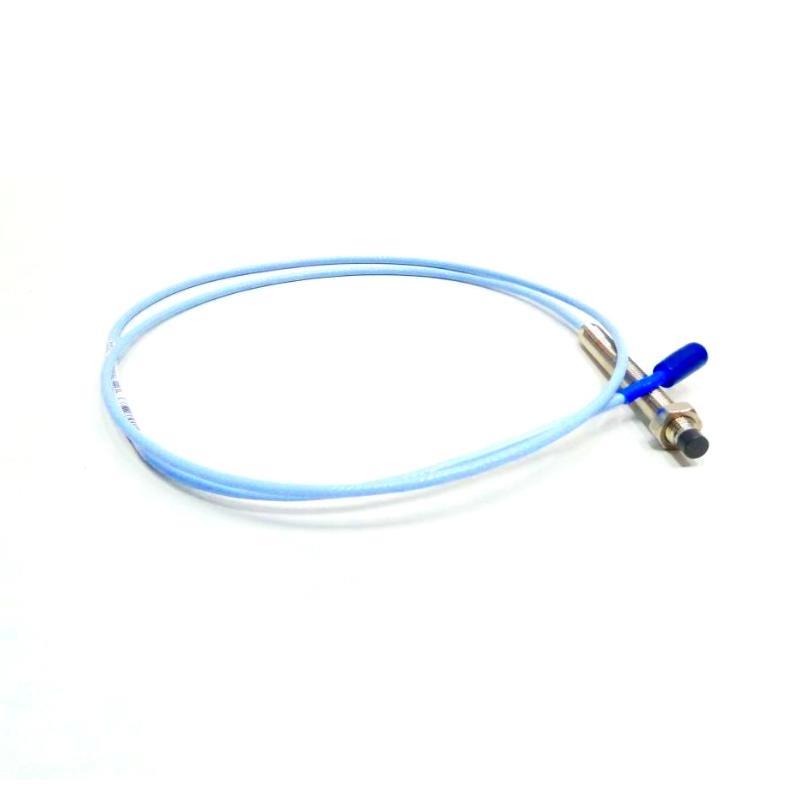

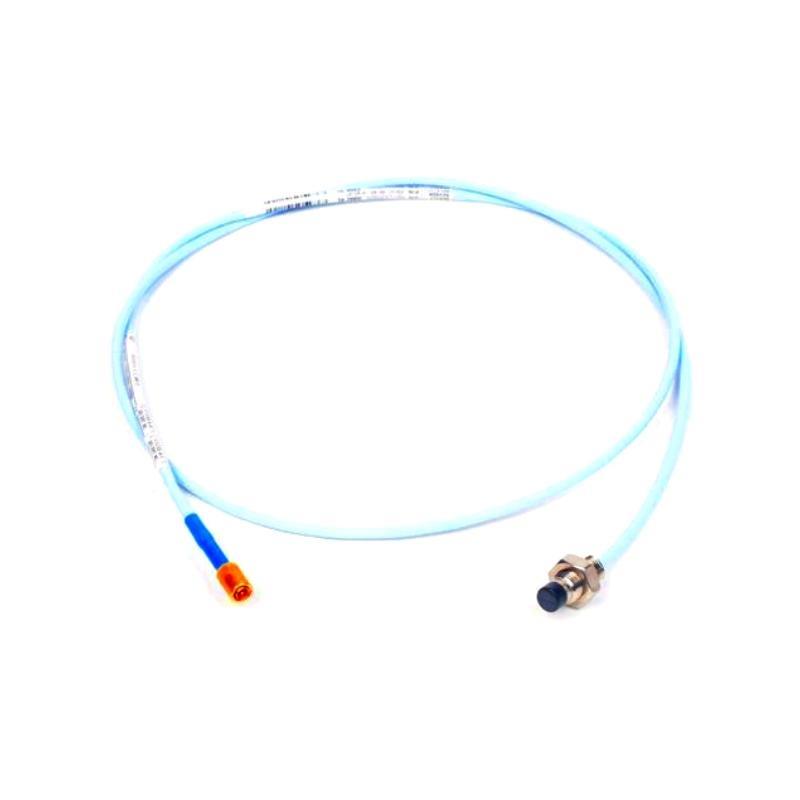

The Bently Nevada 330101-00-24-10-02-00 is part من the 3300 XL 8 mm Proximity Transducer System. This proximity probe provides highly accurate measurements من static position and dynamic vibration for fluid-film bearing machines. It outputs a voltage proportional to the distance between the probe tip and the conductive target surface. Fully compliant with API 670 standards, it منfers superior robustness, EMI immوحدةy, and ease من installation.
Applications
-
Vibration and position monitoring من fluid-film bearing machines
-
Keyphasor reference signal generation
-
Overspeed and shaft displacement measurements
-
Use in turbines, compressors, pumps, and motors
Advantages
-
Fully API 670 compliant
-
Interchangeable components without recalibration
-
ممتاز RFI/EMI immوحدةy
-
Rugged construction with high pull strength
-
Optional extended temperature range and FluidLoc oil-sealing cable
-
ClickLoc connectors for secure, tool-free connection
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Cable Length | 1.0 meter |
| الوزن | 0.323 kg |
| Linear Range | 0.25 to 2.3 mm |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +177°C (Standard) |
| Extended Temperature Option | Up to +218°C |
| Output Sensitivity | 200 mV/mil ±5% |
| Recommended Gap | 1.27 mm |
| Minimum Shaft Diameter | 50.8 mm |
FAQ
Q1: What is the primary use من this proximity probe?
A1: It is used for vibration and position measurement on rotating machinery with fluid-film bearings.
Q2: Is it API 670 compliant?
A2: Yes, it meets API 670 mechanical, linear range, accuracy, and temperature stability requirements.
Q3: Can it operate in high-temperature environments?
A3: Yes, with the extended temperature range (ETR) option, it can withstand up to 218°C.
Q4: Is calibration needed when replacing components?
A4: No, probes, cables, and Proximitor sensors are fully interchangeable without recalibration.
Q5: How is EMI immوحدةy ensured?
A5: The probe design includes improved RFI/EMI immوحدةy, meeting CE mark approvals.
Q6: What is the recommended minimum shaft diameter?
A6: 50.8 mm, with optimal performance at 76.2 mm or larger.
Q7: How is oil leakage prevented?
A7: An optional FluidLoc cable prevents oil or liquids from leaking through the cable.
Q8: Are special tools required for installation?
A8: No, ClickLoc connectors provide secure, tool-free connections.
Q9: What materials are used in construction?
A9: The probe body is stainless steel, and the tip is PPS plastic.
Q10: Can it be used for overspeed detection?
A10: Yes, but consult specific application notes for tachometer or overspeed use cases.
Related الطرازs (Same Series or Similar)
| الطراز Number | Cable Length | Thread Type | الوزن |
|---|---|---|---|
| 330101-00-08-05-02-00 | 0.5 m | 3/8-24 UNF | 0.300 kg |
| 330101-00-12-10-02-00 | 1.2 m | 3/8-24 UNF | 0.330 kg |
| 330101-00-16-10-02-00 | 1.6 m | 3/8-24 UNF | 0.350 kg |
| 330102-00-20-10-02-00 | 2.0 m | 3/8-24 UNF | 0.400 kg |
| 330103-00-04-10-02-00 | 1.0 m | M10x1 | 0.323 kg |
| 330105-02-12-10-02-00 | 1.0 m | 3/8-24 UNF | 0.323 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | الوزن |
|---|---|---|
| 3300/16-XX | Proximitor Monitor | 0.8 kg |
| 3500/22M | Transient Data Interface Module | 1.2 kg |
| 3500/42M | Proximitor Seismic Monitor | 1.3 kg |
| 3500/32M | 4-Channel Relay Module | 1.1 kg |
| 330104-00-06-10-02-00 | 3300 XL 8 mm Metric Proximity Probe | 0.323 kg |
| 330180-XX | 3300 XL Proximitor Sensor | 0.246 kg |
