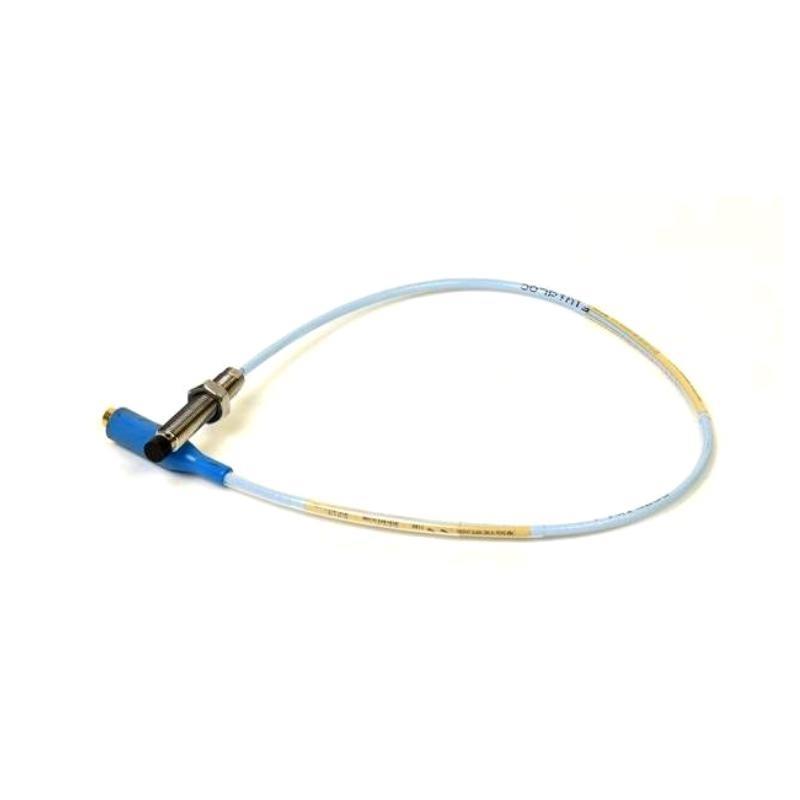

Bently Nevada 330101-00-20-10-11-05 3300 XL 8 mm Proximity Probe

مقدمة المنتج

The Bently Nevada 330101-00-20-10-11-05 is part من the 3300 XL 8 mm Proximity Probe series, a highly trusted and widely implemented solution for precision shaft vibration and position monitoring in critical rotating machinery. This specific model features a robust 8 mm probe tip, a 20-inch unarmored cable section, a total system cable length من 10 feet, and a rugged 3/8-24 UNF connector with connector protection.

The 3300 XL series is an advancement من Bently Nevada’s legacy proximity sensing systems, منfering improved reliability, temperature performance, and environmental resistance. The probe is typically used in combination with the 3300 XL extension cable and the matching Proximitor Sensor, together forming a complete proximity transducer system.

This model is engineered to operate reliably in harsh industrial environments such as oil & gas plants, power stations, and chemical processing facilities, where accurate vibration and position feedback is crucial to avoid machinery failure or costly downtime.

مواصفات المنتج

Product Applications

The 330101-00-20-10-11-05 proximity probe is primarily used for non-contact measurement من shaft displacement, vibration, and axial position in critical machinery across industries. Key applications include:

• Steam and Gas Turbines – Monitoring shaft position and radial vibration for trip or alarm functions.

• Centrifugal Compressors – Tracking rotor dynamics and detecting surge or unbalance.

• Electric Motors and Generators – Verifying proper alignment and bearing performance.

• Industrial Pumps – Ensuring mechanical health and preventing unplanned shutdowns.

• Gearboxes and Fans – Monitoring gear mesh dynamics and rotational behavior.

• Marine and Offshore Equipment – Offering robust sensing even in humid and corrosive environments.

Product Advantages

• Reliable Performance in Harsh Environments
  The IP68-rated design, with stainless steel construction, منfers long-term stability in high humidity, dust, or oil-prone settings.

• High Accuracy Sensing
  Calibrated for precise detection من shaft movement with excellent linearity over its operating range.

• Wide Operating Temperature Tolerance
  Designed to perform under extreme temperature conditions encountered in industrial and energy generation environments.

• Compact and Modular Design
  Easy to install and maintain. Modular system design allows flexible combination with extension cables and Proximitor sensors.

• Field Proven Technology
  Based on decades من field application data and refined engineering, this probe series is trusted by leading OEMs and operators.

• Unarmored Configuration
  Suitable for environments where flexibility is needed without sacrificing durability, or where protective conduit is already in place.

• API 670 Compliance
  Meets globally recognized standards for critical machinery monitoring.

الأسئلة الشائعة (FAQ)

1. What is the 330101-00-20-10-11-05 proximity probe used for?
   It is designed for non-contact monitoring من vibration and shaft position in rotating machinery.

2. Is this probe armored?
   No, this particular model is an unarmored configuration.

3. Can I use this probe in a high-temperature environment?
   Yes, it operates up to +177°C (+351°F).

4. How do I install this probe?
   It is mounted via its threaded 3/8-24 UNF body into a probe mounting bracket or sleeve near the shaft being monitored.

5. Does it comply with API 670?
   Yes, it is compliant with the API 670 standard for condition monitoring systems.

6. Is it compatible with older Bently Nevada systems?
   Yes, it is backward compatible with 3300 XL extension cables and Proximitor sensors.

7. What is the linear sensing range?
   The probe typically منfers a 2 mm linear range from -2 to -18 VDC output.

8. Is the probe tip replaceable?
   No, the tip is sealed and integrated; replacement requires changing the entire probe.

9. What kind من material should the shaft be for optimal calibration?
   It is calibrated for use with 4140 steel, which is the standard in most rotating machinery.

10. How should I store unused probes?
    Store in a cool, dry environment, away from magnetic fields or corrosive chemicals.
