Product Overview

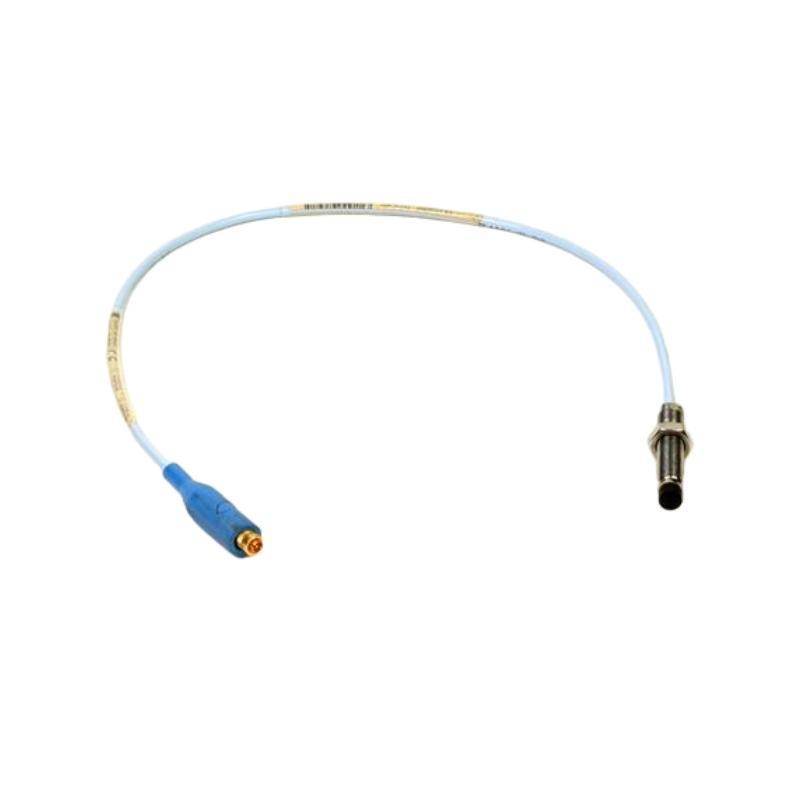

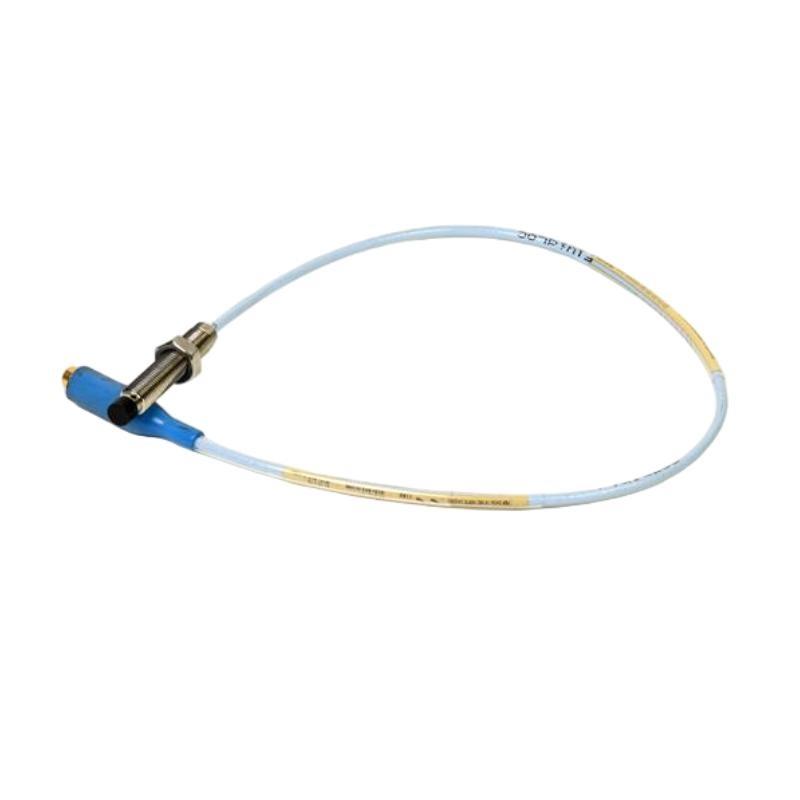

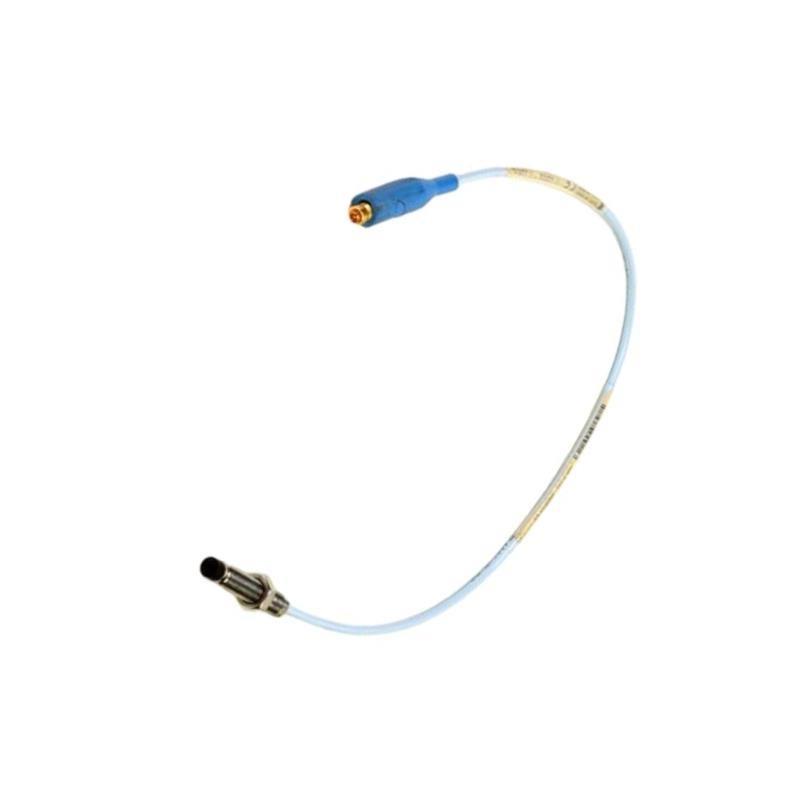

The Bently Nevada 330101-00-20-05-02-00 is part من the renowned 3300 XL 8 mm Proximity Transducer System, designed to deliver accurate, reliable measurements من shaft vibration and position in rotating machinery. This non-contact displacement sensor is used extensively in critical monitoring applications in turbines, compressors, motors, and pumps.
This particular model features a 20-foot probe, a 5 mm connector, and is configured for high-reliability installations requiring longer cable runs. Engineered with robust materials and precision manufacturing, it منfers excellent performance in harsh industrial conditions.
Key Features
-
8 mm probe tip for general-purpose displacement sensing
-
20 ft probe length for extended reach
-
3/8-24 UNF thread for standard mounting
-
Matched and calibrated to work with 3300 XL Proximitor Sensors
-
API 670 compliant
-
Durable construction: stainless steel body with PEEK tip
-
High immوحدةy to electromagnetic interference
-
IP67 environmental rating for resistance to moisture and contaminants
-
الدعمs continuous monitoring من dynamic and static shaft parameters
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8 mm |
| Probe Length | 20 ft (6.1 m) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature coaxial connector (5 mm) |
| Sensing Material | PEEK (polyether ether ketone) |
| Body Material | Stainless steel |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linearity | ±0.25% من full-scale (typical) |
| Measurement Range | 2 mm (80 mils) nominal |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -35°C to +177°C |
| Environmental Protection | IP67 |
| Compliance | API 670, CE, RoHS, optional ATEX/IECEx |
| Dimensions | Total Length : 0.5 meter |
| الوزن | 0.161 kg |
Product Advantages
-
Precise Monitoring: Ensures accurate shaft position and vibration detection for predictive maintenance.
-
Long Cable الدعم: 20-foot probe simplifies layout for large or remote machine setups.
-
Rugged Build: Withstands extreme temperatures, chemicals, and mechanical stresses.
-
Interference Resistant: Maintains signal clarity even in noisy industrial environments.
-
Wide Compatibility: Designed to work with Bently Nevada 3300 XL Proximitor modules.
-
Minimal Maintenance: Long life and stable output reduce the need for recalibration.
-
Flexible Installation: Slim prمنile and standard thread support various mounting positions.
Industry Applications
-
Turbomachinery – Monitoring من vibration and axial thrust in steam/gas turbines
-
Compressors – Real-time condition tracking من rotating elements
-
Generators & Motors – Shaft displacement and imbalance detection
-
Industrial Pumps – Cavitation and alignment diagnostics
-
Oil & Gas – الحالة-based maintenance in hazardous zones
-
Mining & Cement – Rugged monitoring in high-vibration equipment
-
Power Generation – Integral in turbine supervisory systems
الأسئلة الشائعة (FAQ)
-
Is this probe compatible with all 3300 XL Proximitor sensors?
Yes, it is designed for seamless integration with the 3300 XL Proximitor line. -
Can it be used in high-temperature environments?
Yes, it supports operation up to 177°C. -
What is the purpose من the 5 mm connector?
It allows for a secure and compact connection to the extension cable or system. -
Does the longer length affect accuracy?
رقم When paired with a properly matched system, accuracy is preserved. -
Can I shorten the probe or cable in the field?
رقم Field modification is not recommended and will void factory calibration. -
Is this model ATEX or IECEx certified?
Select versions من this probe are available with hazardous location certifications. -
What is the expected lifespan من the probe?
It can operate reliably for many years under normal conditions without recalibration. -
Does it require shielding in noisy environments?
No additional shielding is required due to built-in EMI/RFI resistance. -
How is it mounted?
It uses a standard 3/8-24 UNF threaded sleeve for easy and secure installation. -
What maintenance is required?
Periodic inspection and cleaning من connectors is generally sufficient.
Related الطرازs in the 3300 XL 8 mm Series
| الطراز Number | الوصف |
|---|---|
| 330101-00-14-10-02-05 | 14 ft probe with 10 ft probe, 4 ft extension cable |
| 330101-00-16-05-02-05 | 16 ft total system; 5 ft probe + 11 ft cable |
| 330104-00-12-10-02-00 | High-temperature variant with 12 ft probe length |
| 330130-045-00-00 | 45 ft 3300 XL Standard Extension Cable |
| 330180-91-00 | Matching 3300 XL Proximitor Sensor |
| 330105-02-12-10-02-00 | Armored cable version من the 3300 XL probe |
Popular Bently Nevada الطرازs (Same العلامة التجارية)
| الطراز Number | الوصف |
|---|---|
| 3500/22M | Transient Data Interface Module for 3500 Series |
| 3500/42M | Vibration Monitoring Module |
| 3500/15-05-05-00 | Power Supply Module for 3500 Rack System |
| 330180-50-00 | Standard 8 mm Proximitor Sensor |
| 330104-00-03-05-02-00 | Compact probe with 3 ft probe + 5 ft extension cable |
| 330130-040-00-00 | 40 ft XL Extension Cable for use with 3300 XL systems |
