Product الوصف

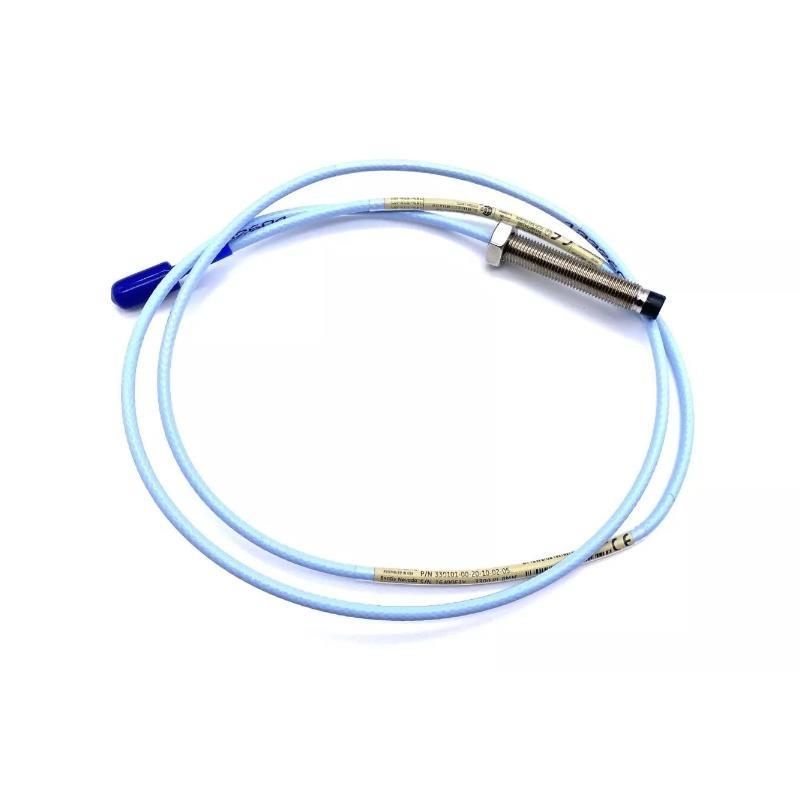

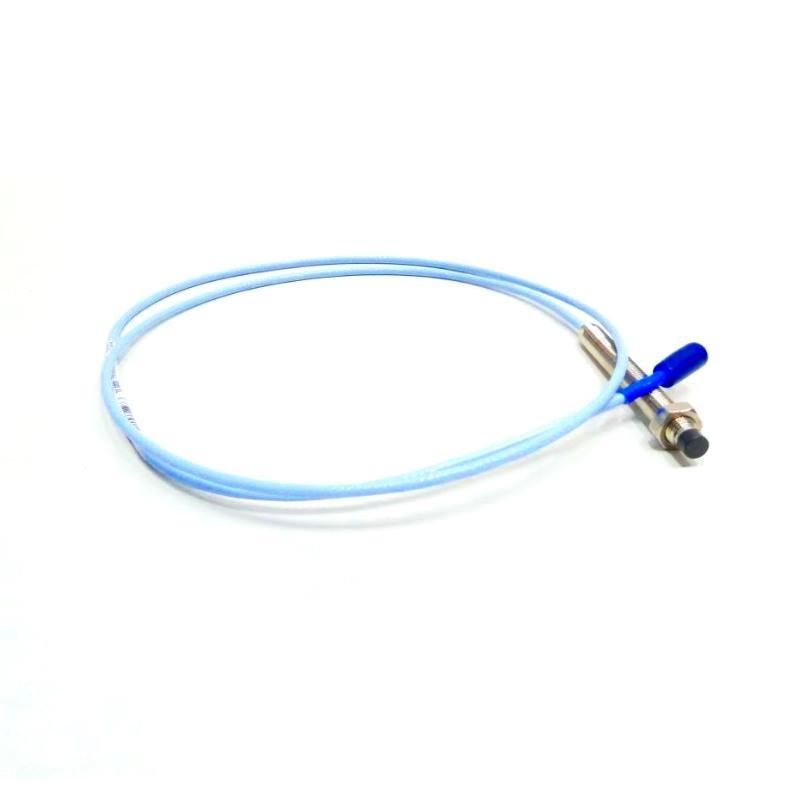

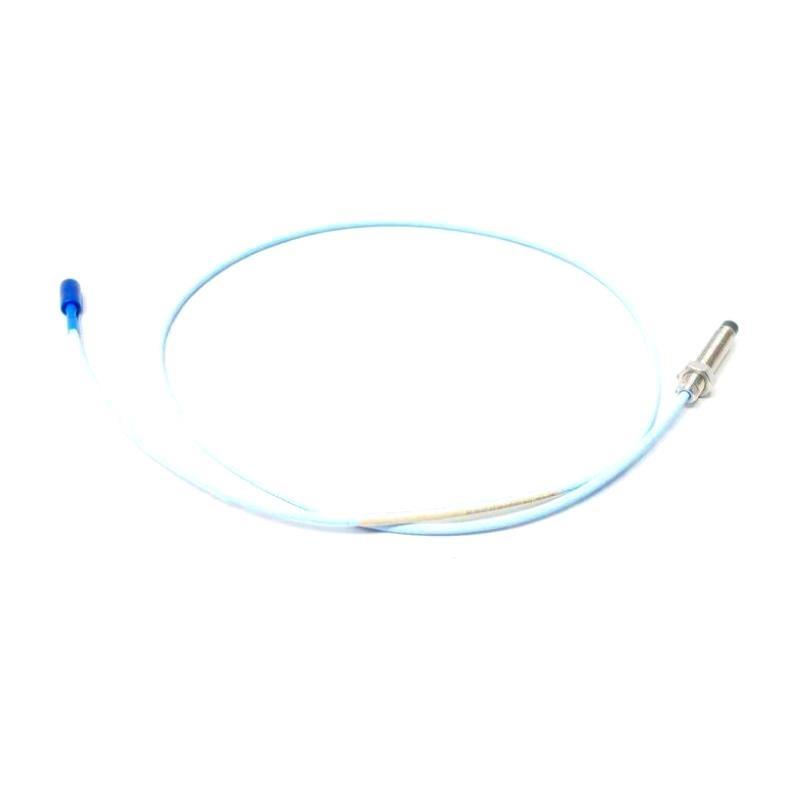

The Bently Nevada 330101-00-12-15-02-00 is a high-reliability 3300 XL 8 mm proximity probe. Designed for precise shaft position and vibration monitoring, it provides accurate, stable output even in harsh industrial environments.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز Number | 330101-00-12-15-02-00 |
| Type | 3300 XL 8 mm Proximity Probe |
| Tip Diameter | 8 mm |
| Total Length | 1.5 meters |
| الوزن | 0.484 kg |
| Thread Size | 3/8-24 UNF |
| Sensing Range | -2 to +2 mm |
| Operating Temperature | -35°C to +175°C |
| Connector Type | Male Miniature Coaxial |
| Cable Type | Armored / Unarmored |
Applications
-
Monitoring rotating machinery shaft vibration
-
Detecting shaft position and runout
-
Critical turbo machinery protection
-
Industrial compressors, pumps, and motors
Advantages
-
Proven reliability in extreme conditions
-
ممتاز linearity and repeatability
-
Rugged design with corrosion-resistant materials
-
Easy installation and interchangeability
FAQ
Q1: What is the sensing range من this probe?
A1: The sensing range is approximately ±2 mm.
Q2: What is the thread size من the probe?
A2: The probe has a 3/8-24 UNF thread.
Q3: What is the temperature rating?
A3: The operating temperature range is -35°C to +175°C.
Q4: Is the cable armored?
A4: It can be ordered with either armored or unarmored cable.
Q5: What is the connector type?
A5: It uses a male miniature coaxial connector.
Q6: Can this probe be used outdoors?
A6: Yes, it is designed to withstand harsh environments including outdoor conditions.
Q7: How long is the probe cable?
A7: The standard length for this model is 1.5 meters.
Q8: Is it compatible with 3300 XL systems?
A8: Yes, it is fully compatible with Bently Nevada 3300 XL monitoring systems.
Q9: What material is used for the probe tip?
A9: The probe tip is made من corrosion-resistant stainless steel.
Q10: Can it detect both vibration and position?
A10: Yes, it accurately measures both shaft vibration and position.
Recommended Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330101-00-10-10-02-00 | 3300 XL 8 mm, 1.0 m, unarmored |
| 330101-00-20-10-02-00 | 3300 XL 8 mm, 2.0 m, unarmored |
| 330101-00-05-10-02-00 | 3300 XL 8 mm, 0.5 m, unarmored |
| 330101-00-15-10-02-00 | 3300 XL 8 mm, 1.5 m, unarmored |
| 330101-00-12-15-05-00 | 3300 XL 8 mm, 1.5 m, armored |
| 330101-00-12-10-02-00 | 3300 XL 8 mm, 1.2 m, unarmored |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف |
|---|---|
| 3300 XL 5 mm Probe | Proximity probe, 5 mm tip |
| 3300 XL NSv Probe | Narrow sensing, vibration probe |
| 3500/42M | Proximitor Seismic Monitor |
| 3500/44M | Aeroderivative GT Vibration Monitor |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | 4-Channel Relay Module |
