مقدمة المنتج

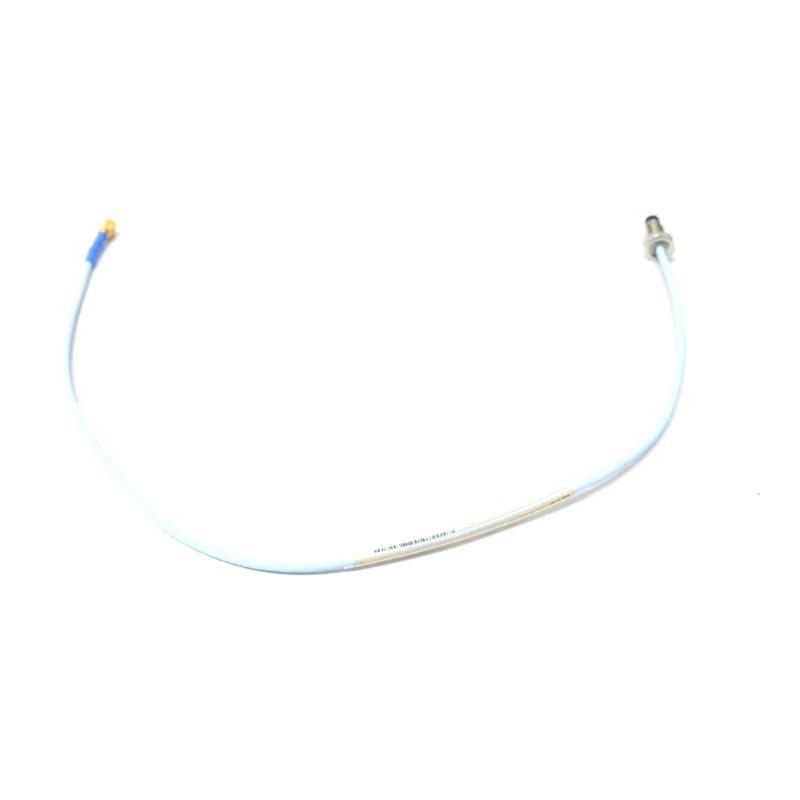

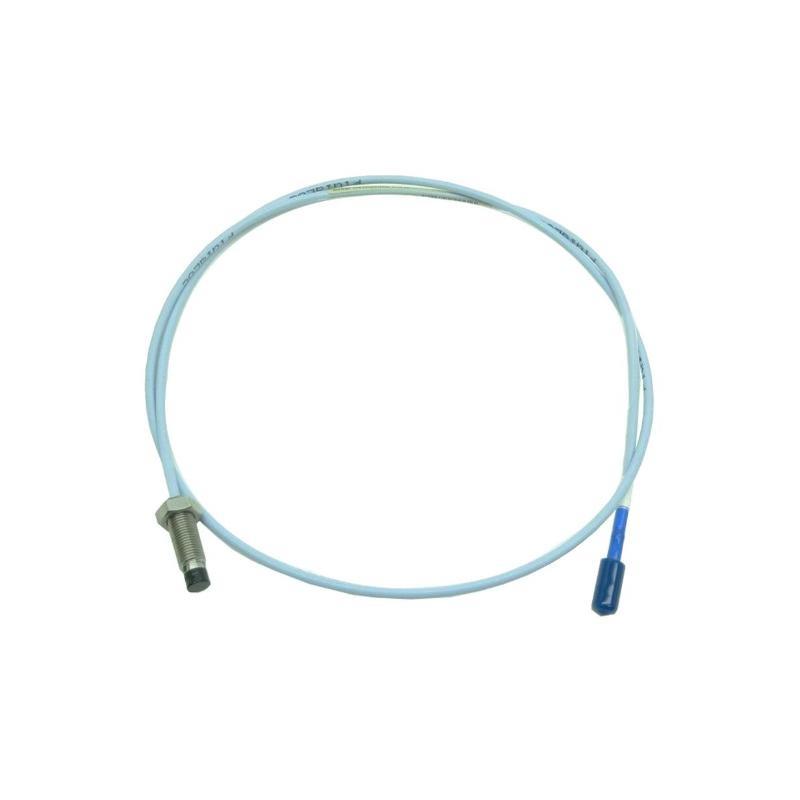

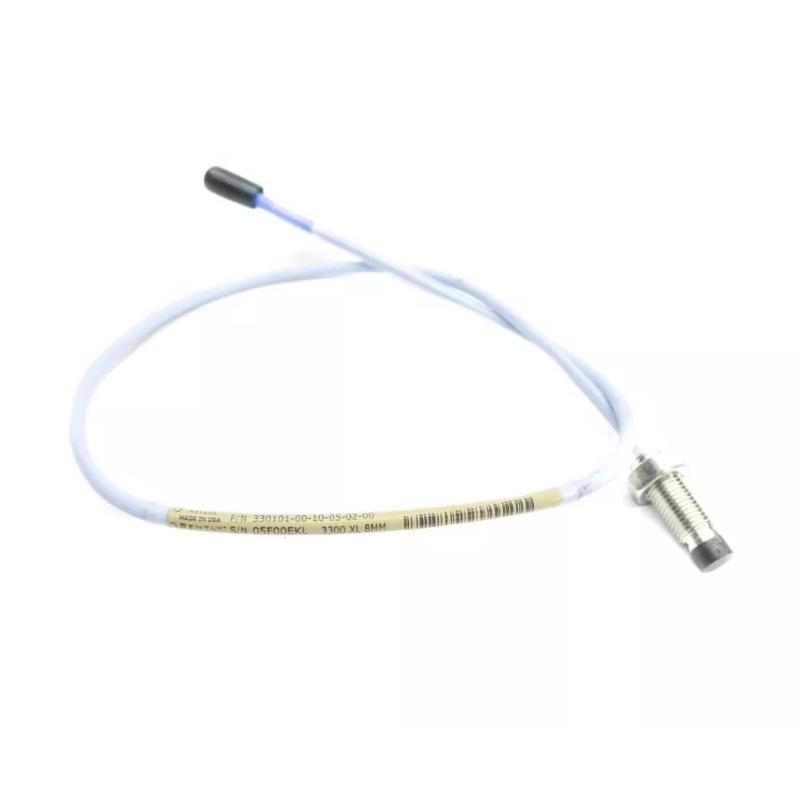

The Bently Nevada 330101-00-03-05-02-05 is an 8 mm proximity probe from the 3300 XL series, engineered for high-precision vibration and position monitoring من industrial machinery. It utilizes eddy current technology to provide accurate and stable output over a wide temperature range. Its robust construction and advanced connector design make it ideal for harsh industrial environments.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm Proximity Probe |
| Series | 3300 XL |
| Total Length | 0.5 meter |
| الوزن | 0.162 kg |
| Operating Temperature | Standard: -40°C to 177°C (ETR Option up to 218°C) |
| Output Signal | Voltage proportional to gap distance |
| Connector Type | Gold-plated ClickLoc |
| Housing Material | Molded PPS plastic |
| Compatibility | Backward compatible with other 3300 series probes |
| Application | Vibration, speed, and position monitoring |
| Cable Rating | Up to 260°C for ETR cable option |
Applications
-
Fluid-film bearing vibration monitoring
-
Shaft position measurement
-
Keyphasor speed reference
-
Rotating machinery diagnostics
-
Harsh industrial environments requiring robust probes
Advantages
-
Robust Design: Thick encapsulation and larger probe body provide mechanical strength for demanding conditions.
-
High Accuracy: Eddy current technology ensures precise and stable readings.
-
Extended Temperature Options: ETR version supports high-temperature operations.
-
Advanced Connector: Finger-tight, gold-plated ClickLoc connectors prevent loosening and corrosion.
-
Interchangeable Components: Compatible with other 3300 series components for flexible system integration.
الأسئلة الشائعة (FAQ)
1. What is the primary measurement capability من this probe?
It measures both vibration and shaft position using eddy current technology.
2. Can this probe operate in high-temperature environments?
Yes, the standard probe supports up to 177°C, and the ETR version can handle up to 218°C.
3. Is the probe compatible with existing 3300 series systems?
Yes, it is backward compatible with other 3300 series probes.
4. How does the ClickLoc connector improve installation?
It is gold-plated, finger-tight, and has a locking mechanism to prevent loosening without special tools.
5. What is the cable temperature rating?
Standard cable is rated up to 177°C; ETR extension cable is rated up to 260°C.
6. What is the probe’s material and mechanical robustness?
The probe tip is molded PPS plastic with thick encapsulation for enhanced durability.
7. Can this probe be used for speed monitoring?
Yes, it provides Keyphasor signals for speed reference.
8. What is the output signal type?
The probe outputs a voltage proportional to the gap between the probe and target surface.
9. Is this probe suitable for vibration monitoring in harsh environments?
Yes, its robust design and connector make it ideal for industrial conditions.
10. How long is the standard probe cable?
The standard probe comes with a 0.5-meter cable, extendable with compatible extension cables.
Related الطرازs (Same Series / Related 3300 XL)
| الطراز | Type | Total Length | الوزن |
|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | 0.5 m | 0.162 kg |
| 330104-00-06-50-01-00 | 8 mm Proximity Probe | 0.5 m | 0.162 kg |
| 330101-00-03-05-01-05 | 8 mm Proximity Probe | 0.5 m | 0.162 kg |
| 330101-00-03-05-02-01 | 8 mm Proximity Probe | 0.5 m | 0.162 kg |
| 330104-00-06-05-11-00 | 8 mm Proximity Probe | 0.5 m | 0.162 kg |
| 330101-00-03-05-01-01 | 8 mm Proximity Probe | 0.5 m | 0.162 kg |
Popular Bently Nevada الطرازs
| الطراز | Type | Total Length | الوزن |
|---|---|---|---|
| 3300 XL Proximitor Sensor | Sensor | N/A | 0.2 kg |
| 3300 XL 5 mm Proximity Probe | Probe | 0.5 m | 0.145 kg |
| 330104-00-06-20-01-00 | 8 mm Probe | 0.5 m | 0.162 kg |
| 330101-00-02-05-01-01 | 8 mm Probe | 0.5 m | 0.162 kg |
| 3300 XL Extension Cable | Cable | 2 m | 0.5 kg |
| 3500/22-00-00-00-00-00 | Vibration Monitor | N/A | 1.0 kg |
