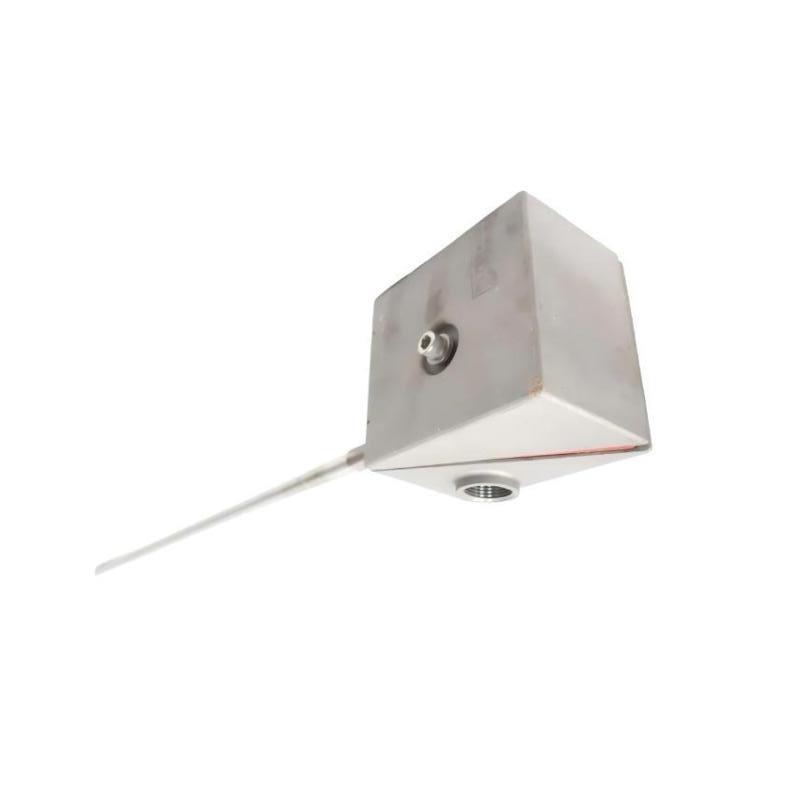

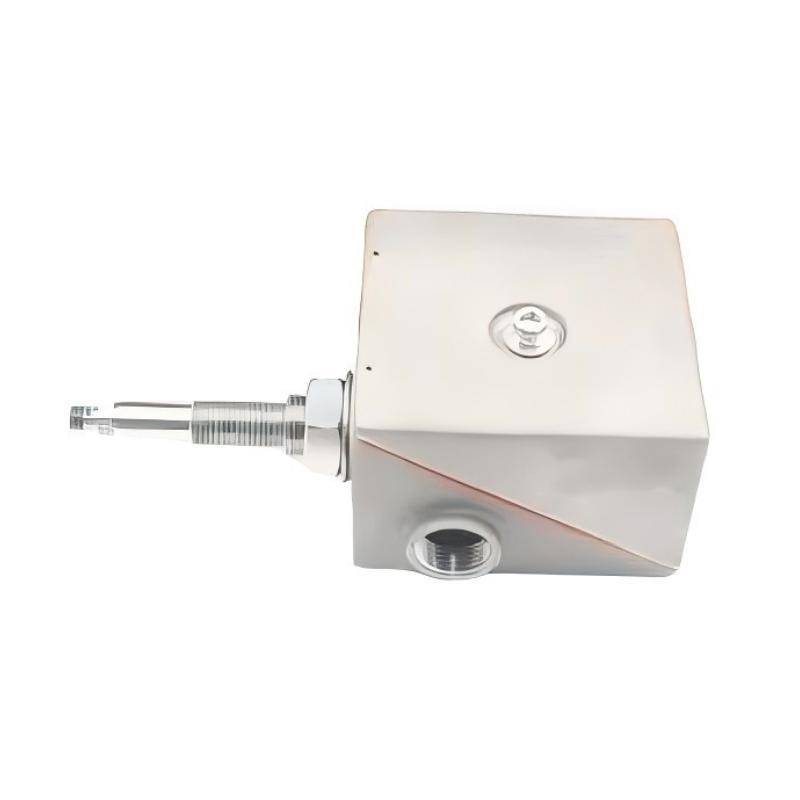

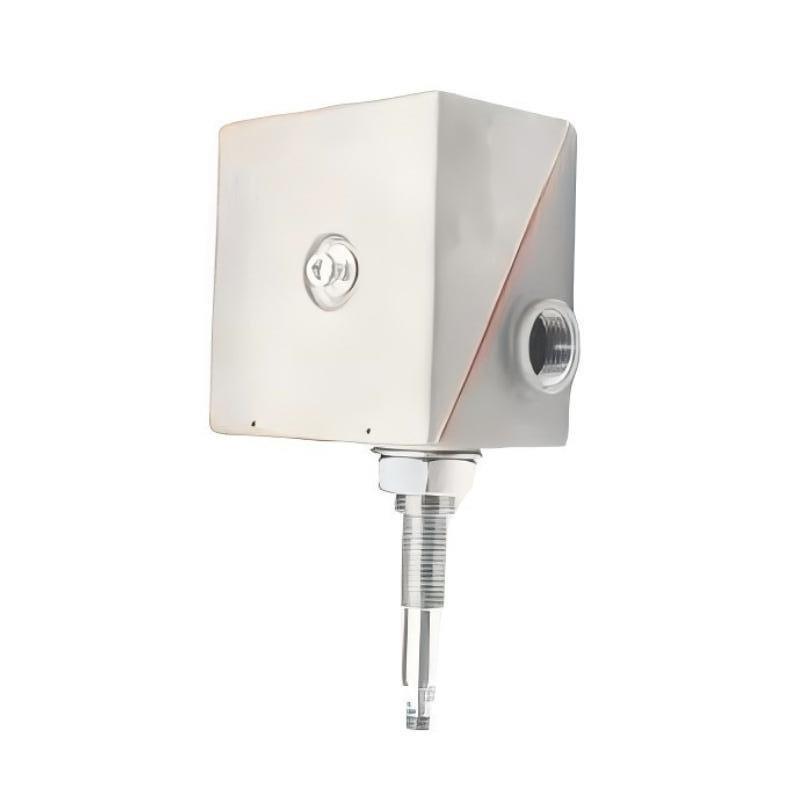

Bently Nevada 26530-12-10-03-018-225-22-04-00 Dual Probe Transducer System

مقدمة المنتج

The Bently Nevada 26530-12-10-03-018-225-22-04-00 Dual Probe Transducer System is a precision vibration and displacement measurement system designed to monitor critical rotating equipment such as turbines, compressors, and high-speed industrial motors. This system integrates two independent probes into a single assembly, providing dual-channel redundancy for accurate, real-time shaft vibration and radial displacement data.

The 26530-12-10-03-018-225-22-04-00 system belongs to Bently Nevada’s well-known 26530 series, recognized for its high accuracy, reliability, and long-term stability in harsh environments. The dual probe configuration enhances diagnostic reliability by providing independent verification من measurement results, making it ideal for applications where uninterrupted monitoring and data integrity are essential.

Its 1.0-meter probe lead length منfers installation flexibility, while the robust stainless-steel housing and industrial polymer insulation ensure mechanical durability and resistance to environmental factors such as oil mist, vibration, and electromagnetic interference. This model provides differential voltage output for superior signal integrity when integrated with Bently Nevada’s 3300 or 3500 monitoring systems.

Technical Specifications

Applications

The 26530-12-10-03-018-225-22-04-00 Dual Probe Transducer System is specifically designed for demanding industrial environments that require continuous monitoring من vibration and displacement parameters. Common applications include:

• Steam and Gas Turbines: Continuous measurement من rotor vibration, eccentricity, and shaft position.

• Compressors and Pumps: Early detection من imbalance, misalignment, and bearing wear.

• Electric Generators: Monitoring من shaft movement and bearing performance.

• Industrial Fans and Motors: Tracking من vibration amplitude to prevent mechanical failure.

• Petrochemical Processing Equipment: Real-time vibration diagnostics for rotating machinery.

• Predictive Maintenance Systems: Integration with plant monitoring systems for early fault identification and maintenance optimization.

These applications highlight the system’s versatility and reliability across different industries where mechanical performance and uptime are critical.

Advantages

• Dual Redundant Measurement: Two independent probes ensure uninterrupted operation even if one probe fails, providing maximum data integrity.

• High Accuracy: Nominal sensitivity من 50 mV/mil guarantees precise displacement readings.

• Broad Frequency Range: Effective operation from DC to 10 kHz captures both slow and fast vibration events.

• Superior Signal Integrity: Differential voltage output minimizes interference in high-EMI environments.

• Industrial Durability: Stainless steel housing and sealed connectors resist oil, dust, and vibration.

• Thermal Stability: Operates reliably from –40°C to +120°C, suitable for high-temperature machinery.

• Low Power Requirement: Efficient design consuming only 2 W for continuous monitoring.

• Plug-and-Play Compatibility: Fully compatible with Bently Nevada’s 3300 and 3500 monitoring platforms.

• Predictive Maintenance الدعم: Enables trend analysis and early detection من mechanical anomalies.

• Ease من Installation: 1.0-meter lead length provides convenient probe positioning during setup.

FAQ

1. What is the function من the 26530-12-10-03-018-225-22-04-00 Dual Probe Transducer System?
   It measures shaft vibration and radial displacement to provide real-time data for machinery protection and condition monitoring.

2. Why does this system use a dual probe configuration?
   The dual configuration provides redundant measurements for improved accuracy and reliability, ensuring continuous monitoring even in case من a single probe fault.

3. What type من output signal does this system generate?
   It outputs a differential voltage signal, which provides excellent noise rejection and stable data transmission.

4. Is it compatible with Bently Nevada 3500 monitoring systems?
   Yes, it integrates seamlessly with both 3300 and 3500 series systems.

5. What is the nominal sensitivity من the transducer?
   The nominal sensitivity is 50 mV/mil, منfering precise and consistent measurement results.

6. How does the system maintain immوحدةy to electromagnetic interference?
   It uses shielded twisted-pair cables and differential output design to minimize the effects من EMI.

7. Can the probe operate under oil-contaminated or vibration-rich conditions?
   Yes, its IP65-rated enclosure and robust mechanical design allow it to function reliably in harsh industrial environments.

8. What is the required power supply for proper operation?
   The system operates from a +24 VDC supply with typical power consumption من 2 W.

9. What is the usable frequency range for vibration measurement?
   The system can measure vibrations from DC up to 10 kHz, allowing detection من both low- and high-frequency phenomena.

10. Which materials provide optimal measurement performance?
    Ferromagnetic metals such as steel, iron, and nickel-based alloys provide the most accurate readings.
