مقدمة المنتج

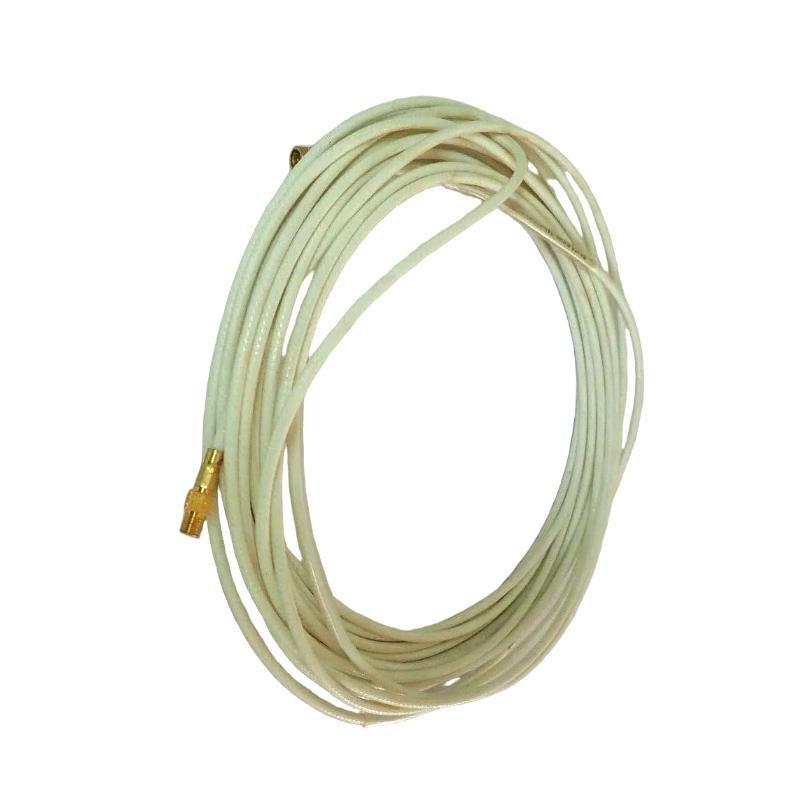

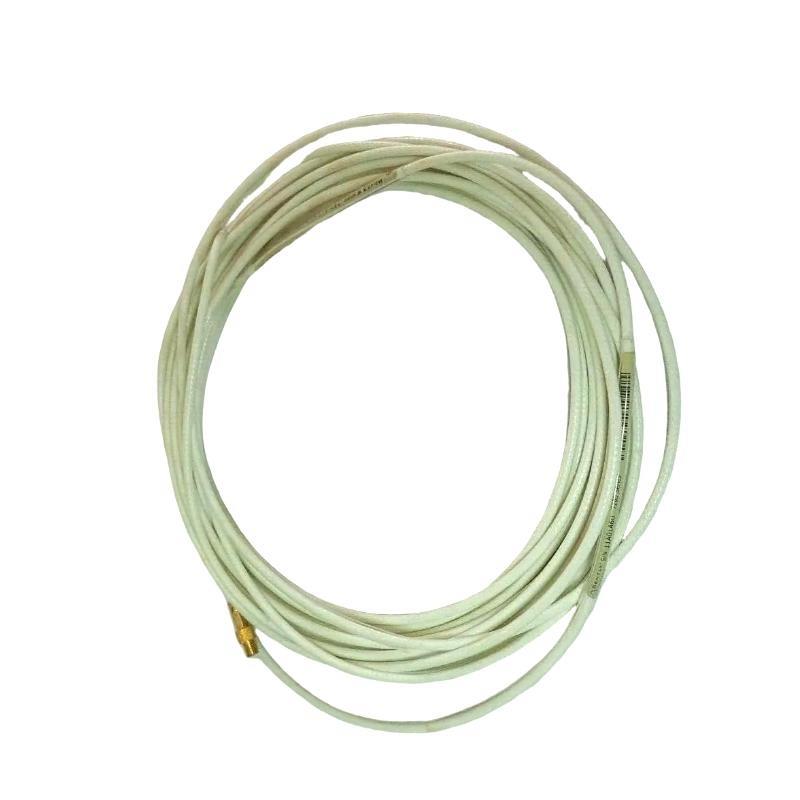

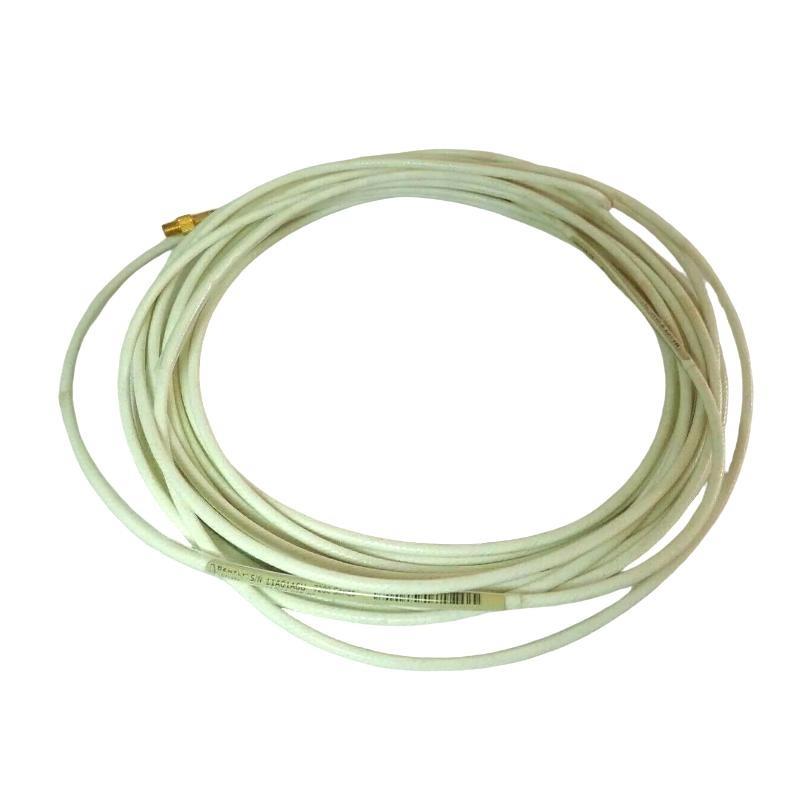

The Bently Nevada 21747-075-00 Proximitor Probe Extension Cable is designed to extend the connection between a proximitor probe and the monitoring system while maintaining signal integrity. Engineered for industrial environments, this extension cable ensures reliable AC signal transmission from rotating machinery probes to Bently Nevada monitoring devices. Its robust construction minimizes electrical interference, maintains signal stability, and allows flexible installation in complex industrial setups. Ideal for use with Bently Nevada 7200, 3300, and 2150 series probes, this cable is a critical component for ensuring accurate condition monitoring in turbines, compressors, and generators.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | 21747-075-00 |
| Cable Type | Proximitor Probe Extension Cable |
| Compatible Series | 7200, 3300, 2150 |
| Output Signal | AC Voltage |
| Connector Type | Coaxial Connectors (Probe end and monitor end) |
| Cable Length | 7.5 m |
| Operating Temperature | -40°C to +105°C |
| Jacket Material | Flexible, industrial-grade insulation |
| Shielding | Braided and foil shielding for EMI protection |
| الوزن | 3 kg |
Applications
The 21747-075-00 extension cable is utilized across various industrial monitoring scenarios:
-
Turbomachinery Monitoring: Extends proximitor probes to monitoring systems in turbines.
-
Compressor and Generator Protection: Ensures accurate signal transmission for fault detection and early warning systems.
-
Industrial Machinery الحالة Monitoring: Provides reliable connection in high-vibration environments.
-
Test and R&D Applications: Extends probe reach for laboratory testing or rotor dynamics analysis.
-
Harsh Environment Operations: Durable construction allows use in high-temperature, high-vibration, and industrial contaminant-rich conditions.
Advantages
-
Signal Integrity: Maintains precise AC signal transmission without degradation over the 7.5 m length.
-
Rugged Design: Industrial-grade insulation and shielding provide resistance against EMI and mechanical stress.
-
Flexible Installation: Allows probes to be positioned at optimal locations without altering system accuracy.
-
Wide Temperature Range: Operates reliably from -40°C to +105°C.
-
Series Compatibility: Designed for seamless integration with Bently Nevada 7200, 3300, and 2150 series probes.
-
Durable Construction: Braided shielding and flexible jacket resist wear and physical damage.
FAQ
-
What type من signal does the 21747-075-00 cable transmit?
It transmits an AC voltage signal from the proximitor probe to the monitoring system. -
Is this cable compatible with all Bently Nevada probes?
It is compatible with 7200, 3300, and 2150 series proximitor probes. -
What is the operating temperature range?
The cable operates reliably between -40°C and +105°C. -
Does the cable provide shielding against electrical interference?
Yes, it features braided and foil shielding for EMI protection. -
Can the cable be used in high-vibration environments?
Yes, the robust design ensures stable signal transmission in vibrating machinery setups. -
What type من connectors does the cable have?
It has coaxial connectors compatible with Bently Nevada probes and monitoring devices. -
Is the cable flexible enough for complex routing in industrial setups?
Yes, the cable is designed with a flexible jacket for easy installation and routing. -
What is the signal integrity over the 7.5 m length?
The cable preserves signal quality without significant attenuation over the full length. -
Can this cable be used outdoors or in wet environments?
While primarily designed for industrial indoor use, the jacket provides some protection against moisture and contaminants; additional sealing may be needed for fully outdoor exposure. -
Does the cable require grounding or special installation procedures?
No special grounding is required beyond normal Bently Nevada system installation; proper connector and shielding usage ensures optimal performance.
Related الطرازs / Extension Cables
| الطراز | Compatible Series | Cable Length | Notes |
|---|---|---|---|
| 21747-030-00 | 7200, 3300 | 3 m | Shorter extension for compact installations |
| 21747-050-00 | 7200, 3300 | 5 m | Standard extension length |
| 21747-100-00 | 7200, 3300 | 10 m | Long-distance installations |
| 21747-150-00 | 7200, 3300 | 15 m | Extended length for large equipment rooms |
| 21747-075-01 | 2150, 7200 | 7.5 m | Alternative shielding variant |
| 21747-050-01 | 2150, 7200 | 5 m | Enhanced mechanical protection |
Popular Bently Nevada الطرازs
| الطراز | Series | Measurement Range | Application |
|---|---|---|---|
| 330130-040-00 | 3300 | 0–13 mm | Turbomachinery monitoring |
| 330600-00-02 | 3300 | 0–6 mm | Generator protection |
| 7200-00-12-05 | 7200 | 0–5 mm | Industrial probe |
| 21502-01 | 2150 | 0–8 mm | Standard industrial probe |
| 3300XL-00-12 | 3300XL | 0–12 mm | High-speed rotor measurement |
| 3300XL-00-15 | 3300XL | 0–15 mm | Large turbine shaft monitoring |
