Product الوصف

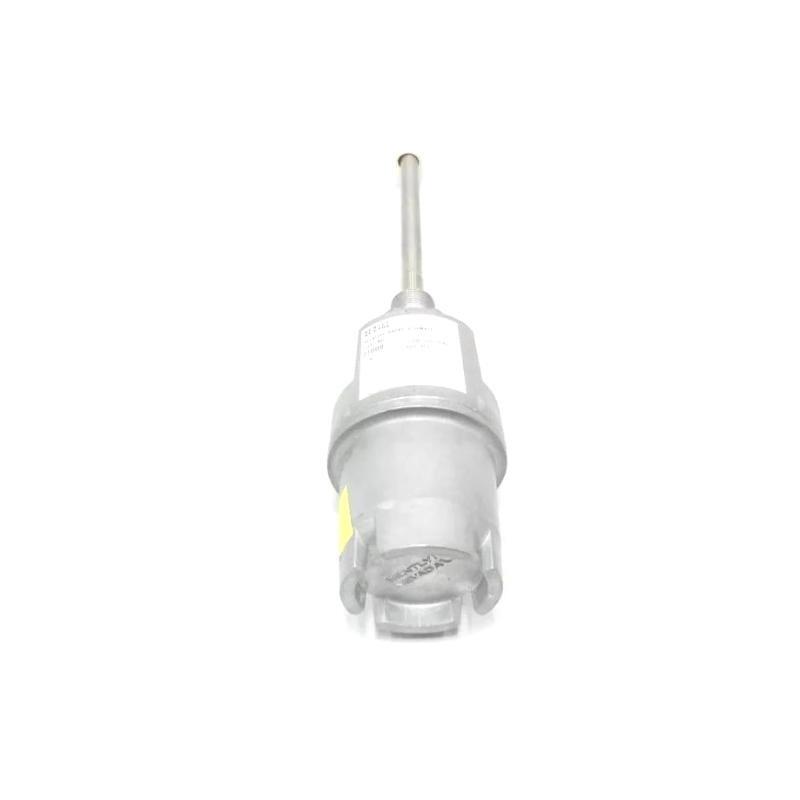

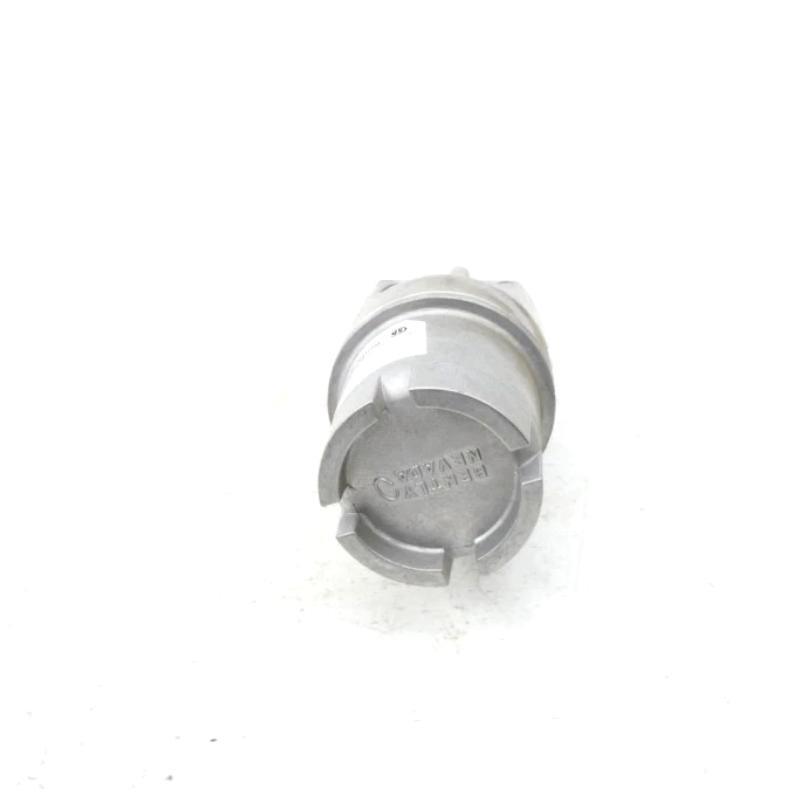

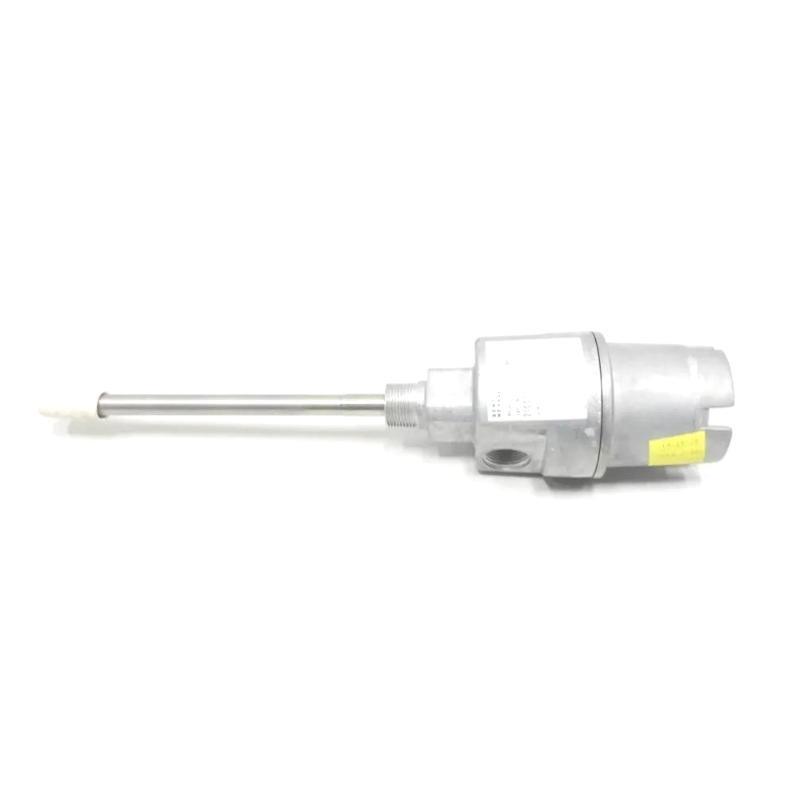

The Bently Nevada 21000-16-10-00-120-04-02 is an aluminum proximity probe housing assembly designed for external mounting من reverse-mount proximity probes in demanding industrial environments. It منfers protection, stability, and compliance with API 670 and CSA hazardous area certifications. This housing supports various probe configurations, lengths, and penetration options.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | 21000-16-10-00-120-04-02 |
| Housing Material | Aluminum (Body), 304 Stainless Steel (Sleeve) |
| Compatible Probes | 3300 XL 8mm |
| Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Explosion Proمن | CSA Certified (Class I, II, III; Div 1 & 2) |
| Environmental Protection | CSA Type 4 Enclosure |
| Sleeve الدعم Requirement | Required if penetration > 304 mm (12 in) |
| Housing Body Diameter | 83.3 mm |
| Overall Housing Length | Approx. 161.6 mm |
| الوزن | 1.1 kg |
Applications
-
Turbomachinery condition monitoring
-
Power generation equipment
-
Oil & gas machinery
-
Chemical and refining plant rotating assets
-
Compressors and large industrial pumps
-
Hazardous environments requiring explosion-proمن monitoring solutions
Product Advantages
-
Compliant with API 670 standards
-
CSA certified for hazardous areas (Class I, II, III)
-
Modular design with selectable probe, cable length, standمنf, and penetration options
-
Durable aluminum housing with stainless steel sleeve
-
Compatible with 3300 XL 8mm reverse-mount probes
-
Reliable performance in harsh environments (up to 177°C)
-
Ideal for installations with conduit fittings and protection requirements
الأسئلة الشائعة (FAQ)
Q1: What probe type is compatible with the 21000-16-10-00-120-04-02 housing?
A1: It is designed for use with the 3300 XL 8mm reverse-mount proximity probe.
Q2: Is this housing explosion-proمن?
A2: Yes, it is CSA-certified for Class I, II, and III Division 1 and 2 hazardous locations.
Q3: What is the housing material?
A3: The body is made من aluminum and the sleeve is 304 stainless steel.
Q4: What temperature range can this assembly handle?
A4: It operates between -51°C and +177°C.
Q5: Can this housing be used in intrinsically safe applications?
A5: Yes, it is suitable for intrinsically safe installations per CSA certification.
Q6: What is the weight من the 21000 housing?
A6: The typical weight is 1.1 kg without fittings.
Q7: What is the maximum allowable probe sleeve length?
A7: Probe sleeve lengths over 304 mm (12 in) require additional support.
Q8: Does this product comply with API standards?
A8: Yes, it complies with API 670 for externally mounted proximity probe housings.
Q9: Is it possible to order the وحدة with or without conduit fittings?
A9: Yes, fittings are optional and configurable per the order code.
Q10: Can the housing accommodate different mounting thread types?
A10: Yes, options include 3/4-14 NPT and other standard thread types.
Related الطرازs (Same Series or Functionally Similar)
| الطراز Number | الوصف | Material | Diameter | الوزن |
|---|---|---|---|---|
| 21000-28-05-15-120-02-02 | Housing w/ 3300 XL 8mm probe | Aluminum/Steel | 83.3 mm | 1.1 kg |
| 21000-34-10-20-160-01-02 | With connector protector | Aluminum/Steel | 83.3 mm | 1.1 kg |
| 21000-29-10-15-180-04-02 | For 11mm probe | Aluminum/Steel | 83.3 mm | 1.1 kg |
| 24701-16-10-15-120-02-02 | Stainless steel version | Stainless Steel | 78.2 mm | 1.8 kg |
| 31000-28-10-20-150-03-02 | New gen with better resistance | Aluminum/Composite | N/A | 1.2 kg |
| 164818-02-10-060-01-01-05-01 | Compact housing for tight installations | Various | Varies | 1.0 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Function | الوزن | Dimensions (Approx.) |
|---|---|---|---|---|
| 3500/22M-01-01 | Transient Data Interface Module | Data Interface Module | 0.5 kg | 150 x 25 x 125 mm |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | 0.45 kg | 150 x 25 x 125 mm |
| 330104-00-06-10-11-00 | 3300 XL 8mm Proximity Probe | Probe | 0.09 kg | 8 mm diameter, length varies |
| 330180-91-CN | 3300 XL Proximitor Sensor | Proximity Transducer | 0.2 kg | 80 x 35 x 25 mm |
| 3500/15E | Power Supply Module | Rack Power Supply | 0.9 kg | 100 x 25 x 175 mm |
| 330730-040-00-00 | NSv Proximitor Sensor | Narrow Gap Vibration Sensor | 0.2 kg | 70 x 30 x 25 mm |
