مقدمة المنتج

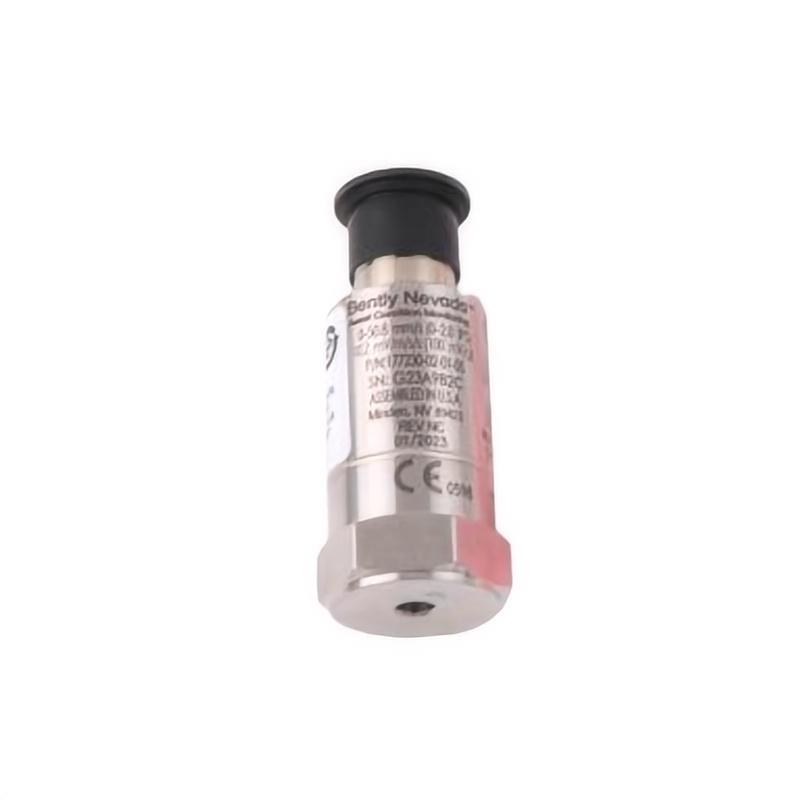

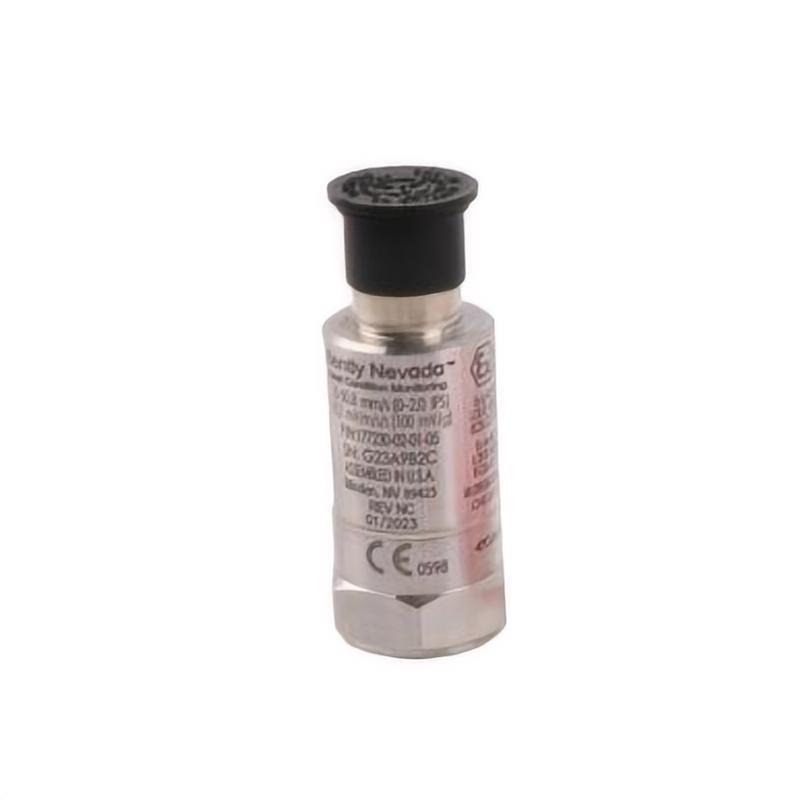

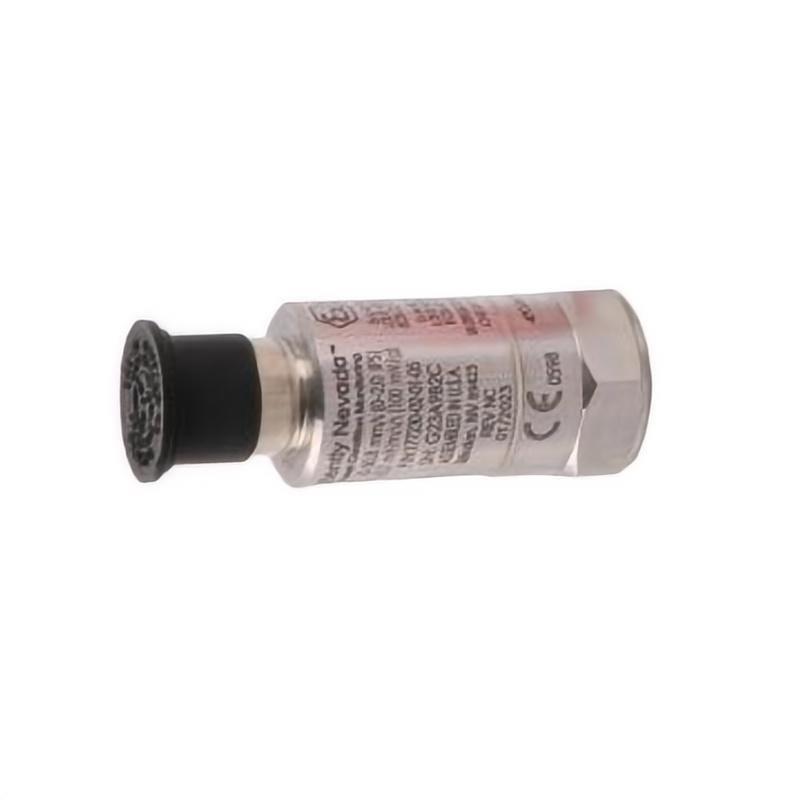

The Bently Nevada 177230-02-01-CN Seismic Transmitter is a precision-engineered device designed to measure seismic vibration directly from machinery and structures. It converts mechanical vibration signals into a proportional 4–20 mA output, making it suitable for integration with standard control and monitoring systems. With robust construction and advanced internal circuitry, this transmitter ensures high accuracy, reliability, and consistent performance in demanding industrial environments.
This model is part من the Bently Nevada seismic monitoring product line, trusted worldwide for predictive maintenance and machine protection. Its ability to deliver real-time vibration data makes it essential in applications where continuous condition monitoring is critical, such as turbines, compressors, pumps, and other rotating machinery.
Product Parameters
| Parameter | Specification |
|---|---|
| الطراز Number | 177230-02-01-CN |
| Type | Seismic Transmitter |
| Output Signal | 4–20 mA proportional to vibration |
| Frequency Response | 10 Hz to 1,000 Hz (±3 dB) |
| Measurement Range | Configurable (commonly 0–50 mm/s RMS) |
| Power Supply | 18–36 VDC |
| Operating Temperature | -29 °C to +85 °C (-20 °F to +185 °F) |
| Shock Limit | 500 g, peak |
| Mounting | Base-mounted with threaded holes |
| Housing Material | Corrosion-resistant stainless steel |
| Electrical Connection | Two-wire loop powered |
| Sensor Head Diameter | 25.4 mm |
| الوزن | 0.131 kg |
Product Applications
The Bently Nevada 177230-02-01-CN Seismic Transmitter is widely used across industries for machinery protection and vibration monitoring.
-
Power Generation: Monitoring seismic vibration in turbines, gearboxes, and auxiliary systems.
-
Oil & Gas: Used in منfshore platforms, refineries, and pipelines for critical equipment monitoring.
-
Petrochemical & Chemical Plants: Provides vibration data to prevent process disruptions.
-
Heavy Industry: Applied in steel mills, paper manufacturing, and mining operations for predictive maintenance.
-
Infrastructure Monitoring: Ensures stability and integrity in sensitive facilities, including bridges and large rotating equipment.
Product Advantages
-
High Reliability: Engineered for continuous operation in harsh industrial environments.
-
Standardized Output: Provides industry-standard 4–20 mA signals for easy integration into DCS or PLC systems.
-
Accurate Vibration Measurement: Wide frequency response ensures precise monitoring من machine health.
-
Compact and Rugged Design: Stainless-steel housing ensures durability and corrosion resistance.
-
Flexible Applications: Suitable for both machinery protection and predictive maintenance strategies.
-
Reduced Downtime: Early fault detection prevents catastrophic failures and extends equipment lifespan.
FAQ
-
What type من signal does the 177230-02-01-CN seismic transmitter provide?
It provides a 4–20 mA output signal proportional to vibration velocity. -
Can this transmitter be integrated with a PLC or DCS system?
Yes, it is designed for seamless integration with standard PLC and DCS systems. -
What frequency range does this transmitter cover?
It typically covers a range من 10 Hz to 1,000 Hz within ±3 dB accuracy. -
Is the transmitter suitable for hazardous area installations?
Yes, certain versions are certified for hazardous areas depending on installation requirements. -
How is the transmitter powered?
It operates using a two-wire, loop-powered system with 18–36 VDC supply. -
Does it require external signal conditioning?
No, the transmitter provides a conditioned 4–20 mA signal directly, eliminating the need for additional conditioning. -
What mounting options are available for this وحدة?
It is base-mounted using threaded holes, ensuring stable attachment to machinery or structures. -
How does the seismic transmitter differ from proximity probes?
While proximity probes measure shaft relative displacement, seismic transmitters measure absolute vibration من the machine case or structure. -
What level من shock resistance does this transmitter have?
It can withstand shocks up to 500 g peak without damage. -
What industries benefit most from this transmitter?
Industries such as oil & gas, power generation, petrochemical, and heavy industry benefit the most due to its ability to deliver reliable vibration monitoring.
