مقدمة المنتج

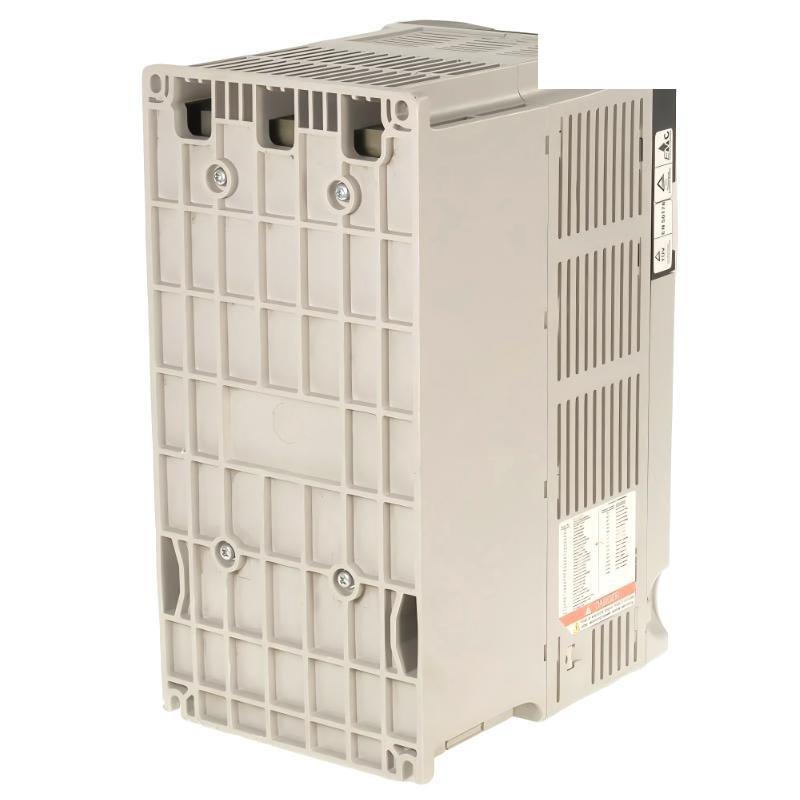

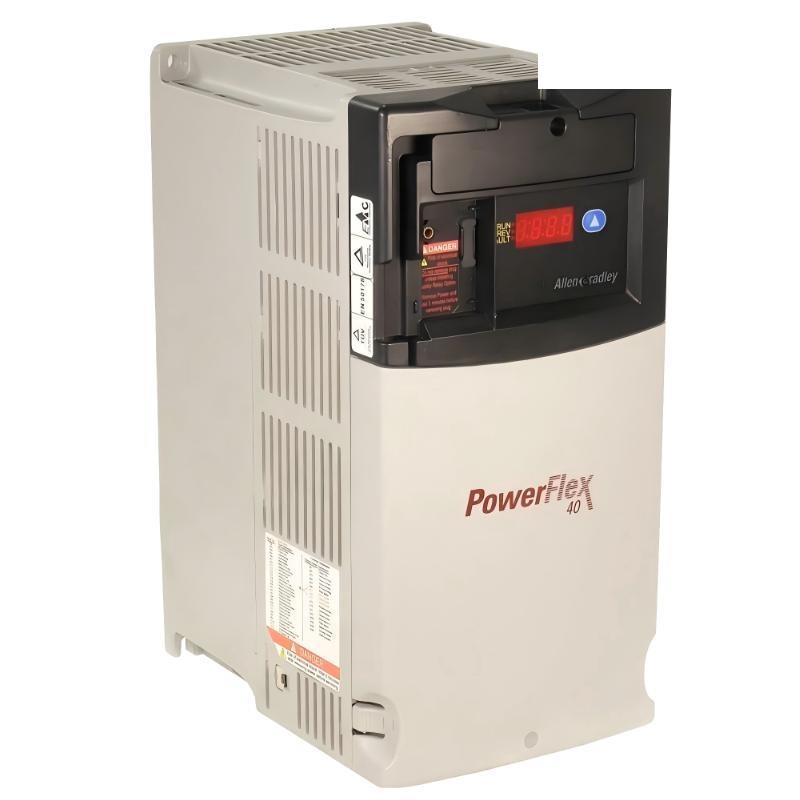

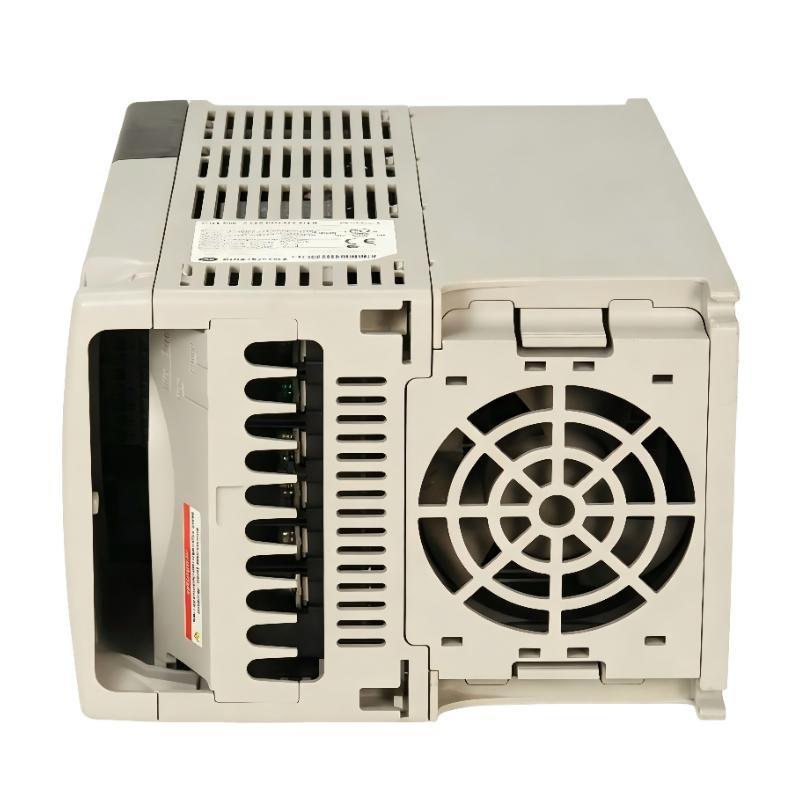

The Allen-Bradley 22D-D024N104 PowerFlex 40P AC Drive is a high-capacity variable frequency drive designed for demanding industrial motor control applications that require strong torque performance and stable speed regulation. As part من the PowerFlex 40P series, it delivers enhanced control characteristics compared to standard models, making it suitable for heavier-duty machinery and continuous industrial operation.
This drive operates on a three-phase 480V AC supply and supports motors up to 15 HP. It is engineered to maintain consistent performance under higher load conditions, ensuring smooth acceleration, stable running behavior, and controlled deceleration. The design focuses on reliable motor operation with simplified configuration and robust system integration capability.
The وحدة is built in a Frame Size C panel-mount enclosure, optimized for installation inside industrial control cabinets. The reset-only display provides basic operational feedback, while RS485 communication enables integration with PLC systems and supervisory networks. The non-filtered configuration allows flexibility for external EMC design based on site requirements.
مواصفات المنتج
| Parameter | Value |
|---|---|
| الطراز | 22D-D024N104 |
| Series | PowerFlex 40P |
| Input Voltage | 480V AC |
| Phase | 3-Phase |
| Output Current | 24 A |
| Power Rating | 11 kW / 15 HP |
| Frame Size | C |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 (NEMA Type Open) |
| Display Type | Reset Only Display |
| Communication | RS485 |
| Filter | Without CE Compliant Filter |
| Control Method | Enhanced V/Hz Control |
| Brake Function | Standard |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 260 × 130 × 180 mm |
| الوزن | 4.3 kg |
Applications
● Heavy Conveyor Systems
Provides stable torque output for transporting heavy loads with smooth acceleration and deceleration control.
● Industrial Pumping Systems
الدعمs high-capacity flow regulation, improving efficiency in water and process pumping applications.
● HVAC Fan and Air Systems
Enables precise airflow control, optimizing energy consumption in large ventilation systems.
● Mixing and Processing Equipment
Maintains consistent motor performance under heavy and variable load conditions in industrial mixing.
● Material Handling Machinery
Ensures reliable operation in cranes, hoists, and transport systems requiring controlled movement.
● General Heavy-Duty Automation
Suitable for industrial systems with higher power demand and continuous operating cycles.
Advantages
● High Power Capability
Designed for 15 HP applications, supporting heavier industrial loads with stable performance.
● Enhanced Control Performance
The 40P control structure improves torque response and stability under dynamic load conditions.
● Simple Operational Interface
The reset-only display design focuses on essential operation, reducing configuration complexity.
● Flexible System Integration
RS485 communication enables easy connection to PLCs and industrial control systems.
● Stable Heavy-Duty Operation
Ensures smooth motor behavior even under fluctuating or high load conditions.
● Compact Cabinet Design
The Frame Size C structure allows efficient installation in standard industrial panels.
