مقدمة المنتج

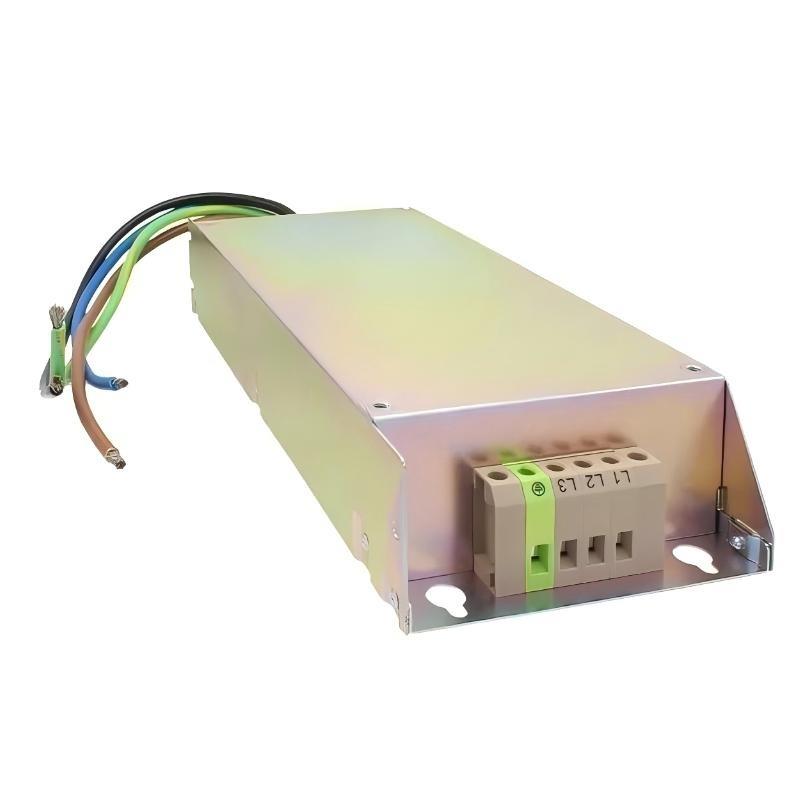

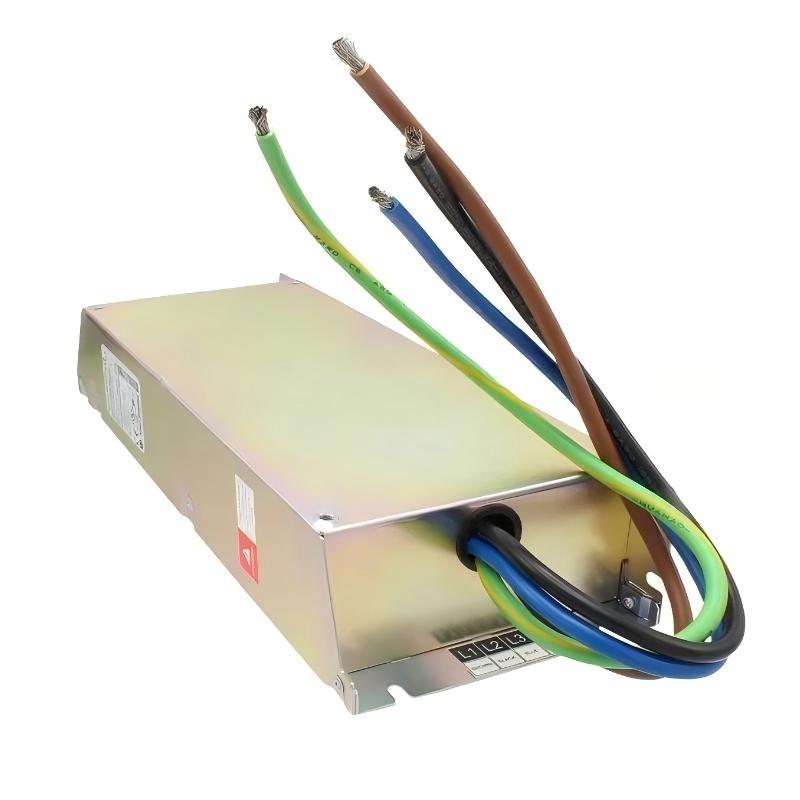

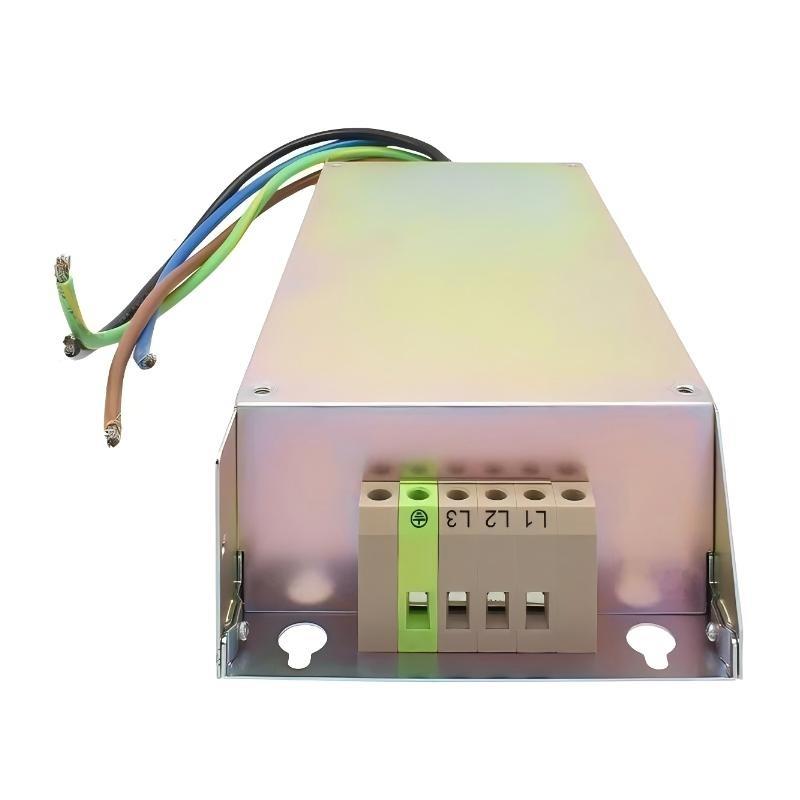

The Allen Bradley 22-RF018-CS PowerFlex 4 Class EMC Line Filter is designed to provide effective suppression من electromagnetic interference (EMI) for industrial AC drive systems. It is specifically compatible with PowerFlex 4 AC Drives, ensuring reliable operation and protection من sensitive equipment against both conducted and radiated EMI.
This S-Type EMC filter is ideal for high-performance applications, delivering optimal filtering for drives operating in 380–480V AC, 3-phase, 50/60 Hz systems with a maximum current من 18 A. The compact, panel-mountable design with a short cable length allows easy integration into industrial control panels while maintaining compliance with EMC standards. This filter enhances equipment reliability, reduces electrical disturbances, and ensures smoother operation من connected machinery.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Filter Type | S-Type EMC Line Filter |
| Compatible Drives | PowerFlex 4 AC Drives |
| Input Voltage | 380–480V AC, 3-Phase, 50/60 Hz |
| Current Rating | 18 A |
| Max Output Power | 10 HP / 7.5 kW |
| Cable Length | Short |
| Mounting Type | Panel Mount |
| Protection Rating | IP20 |
| Dimensions | 309 × 60 × 130 mm |
| الوزن | 1.5 kg |
Applications
• EMI Suppression: Reduces conducted and radiated electromagnetic interference from AC drives.
• PowerFlex 4 AC Drives: Provides reliable filtering for compatible drives in industrial environments.
• Industrial Control Panels: Compact size and short cable length allow easy integration into control cabinets.
• Sensitive Equipment Protection: Prevents interference with sensors, communication networks, and other critical devices.
• EMC Compliance: Ensures installations meet electromagnetic emissions standards.
Advantages
• Effective EMI Filtering: S-Type design minimizes interference and ensures smooth drive operation.
• Compact and Lightweight: Panel-mountable design at 1.5 kg for convenient installation.
• Short Cable Length: Simplifies wiring and reduces control panel clutter.
• High-Performance Rating: الدعمs 18 A and up to 10 HP / 7.5 kW motors.
• Frame Size Compatibility: Fits standard PowerFlex 4 drive configurations.
• Reliable Operation: Maintains consistent performance من drives and connected equipment.
