مقدمة المنتج

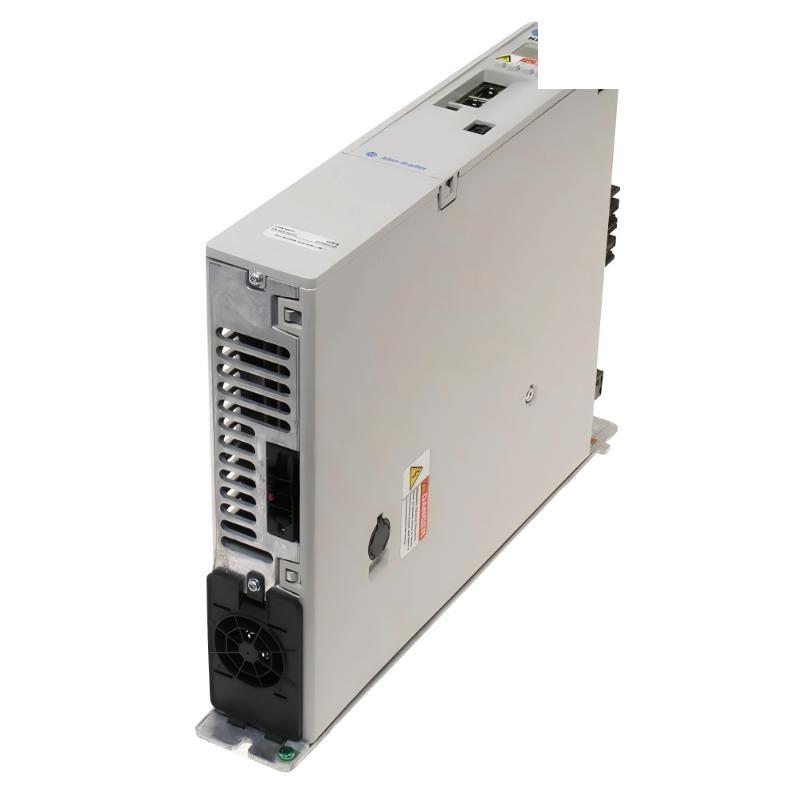

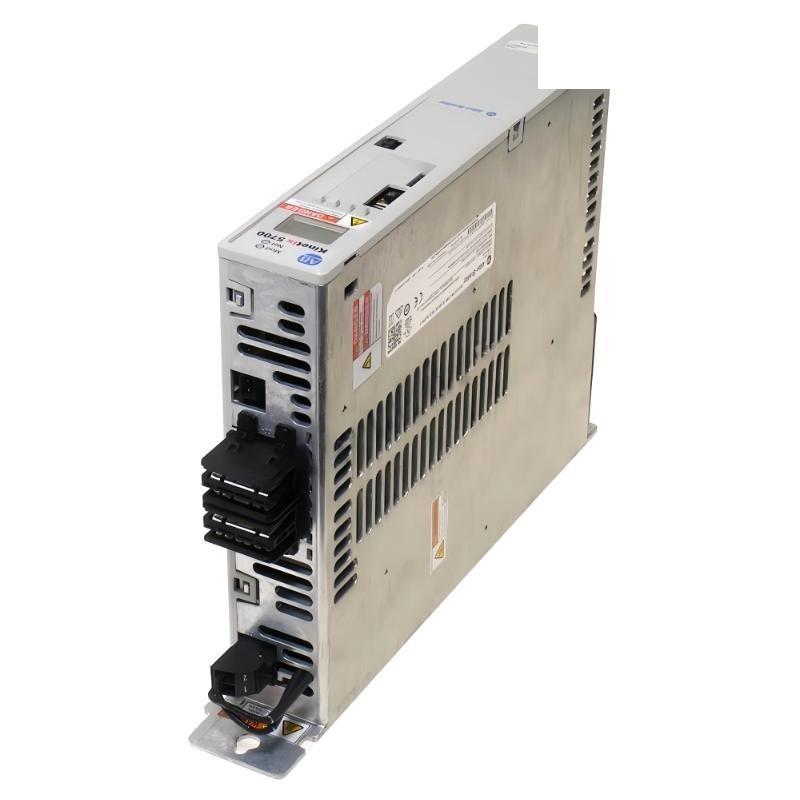

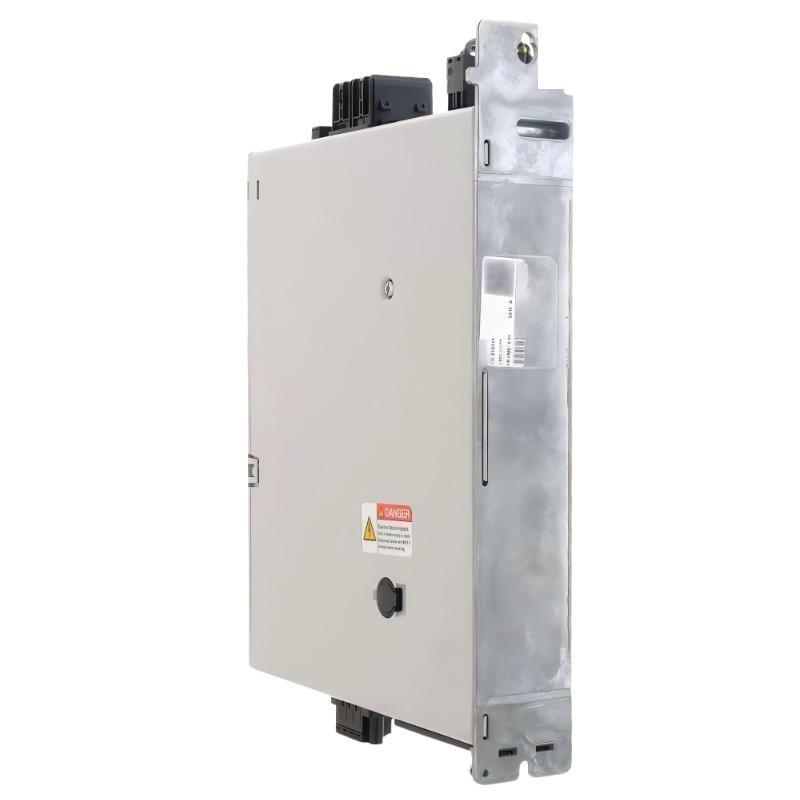

The Allen-Bradley 2198-P070 Kinetix 5700 DC Bus Power Supply is a high-performance power module designed to provide stable DC bus power for Kinetix 5700 servo drive systems. It serves as the central power conversion وحدة, transforming three-phase AC input into a regulated DC bus that supplies multiple servo drives within a shared motion control architecture.
This power supply is engineered for medium-to-high power motion systems where multiple axes are coordinated through a common DC bus. By sharing energy across connected drives, it improves overall system efficiency and reduces energy waste during braking or deceleration events.
Designed for industrial automation environments, the 2198-P070 supports high dynamic performance applications such as packaging lines, material handling systems, and multi-axis synchronized machinery. Its robust design ensures stable operation under continuous industrial loads.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product الطراز | 2198-P070 |
| الشركة المصنعة | Rockwell Automation (Allen-Bradley) |
| Product Series | Kinetix 5700 |
| Product Type | DC bus power supply |
| Input Power | 3-phase AC |
| Input Voltage | 380–480 VAC |
| Frequency | 50 / 60 Hz |
| Input Current | 25.5 A |
| DC Bus Output Capability | 70 A peak |
| Function | AC to DC bus power conversion |
| System Role | مشاركةd DC bus supply for servo drives |
| Protection Rating | IP20 |
| Mounting Type | Panel-mounted |
| Application Role | Motion system power supply |
| Dimensions | 358 × 55 × 264 mm |
| الوزن | 4.42 kg |
Applications
● Multi-axis servo drive systems
Provides centralized DC power for multiple Kinetix 5700 servo drives in coordinated motion systems.
● Packaging and automation machinery
Used in synchronized production lines requiring stable and shared power distribution.
● Material handling systems
الدعمs conveyor systems and multi-motor setups with energy-efficient power sharing.
● High-performance motion control systems
Enables stable operation in fast-changing load conditions across multiple axes.
● Energy-efficient industrial systems
Allows energy regeneration and sharing between drives connected to the DC bus.
Advantages
● Centralized DC bus architecture
Supplies multiple drives from a single power وحدة, reducing system complexity.
● Improved energy efficiency
Enables energy sharing between drives, reducing power waste during braking.
● High peak current capability
Delivers up to 70 A peak DC bus output for dynamic motion demands.
● Stable industrial performance
Ensures consistent power delivery for high-speed, multi-axis motion systems.
● Reduced wiring and hardware requirements
Simplifies system design by minimizing individual power supplies per drive.
● Robust industrial design
Built for continuous operation in demanding automation environments.
