مقدمة المنتج

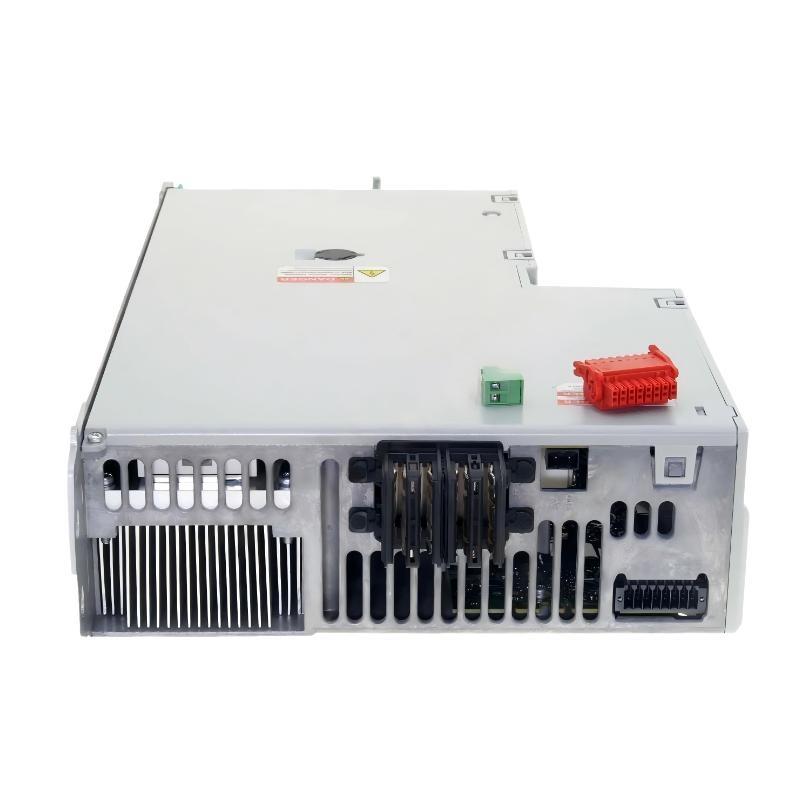

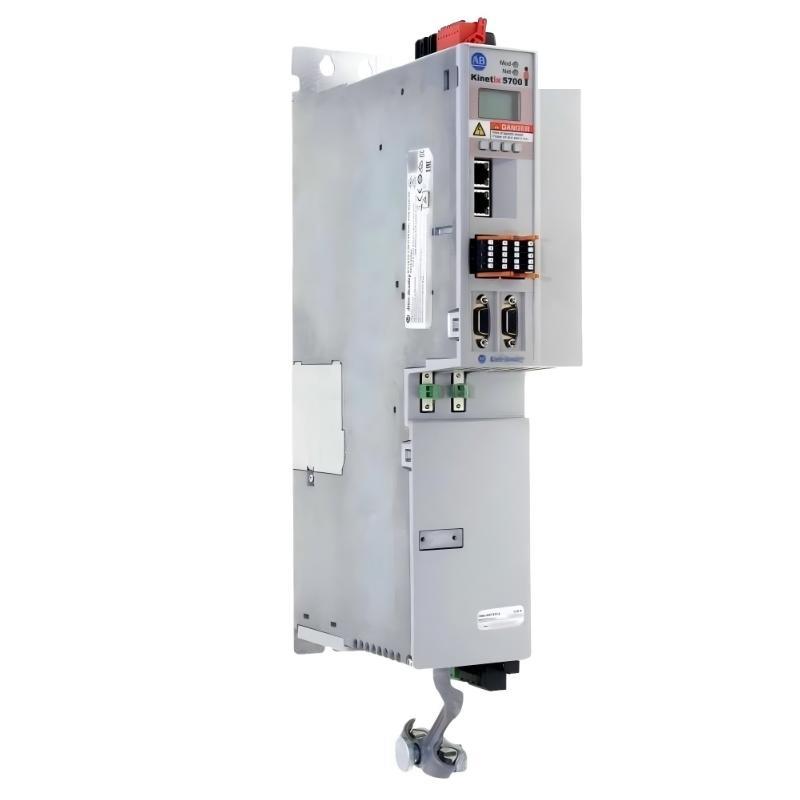

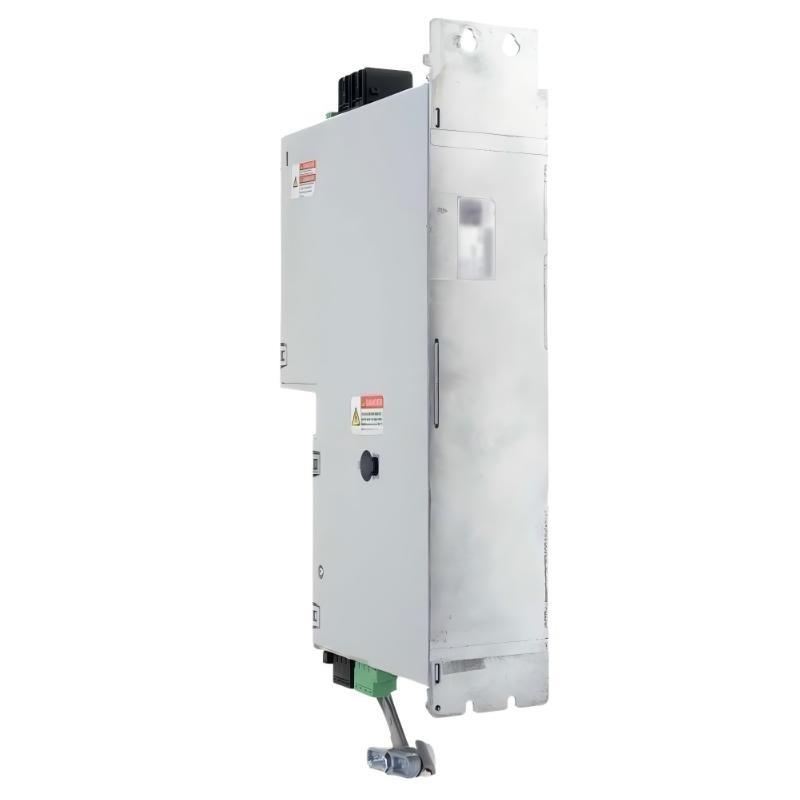

The Allen-Bradley 2198-D057-ERS4 Kinetix 5700 Dual Axis Safe Speed Drive is a high-capacity servo drive engineered for demanding multi-axis motion applications that require both performance and integrated safety. As part من the Kinetix 5700 family, it supports integrated motion over EtherNet/IP and incorporates Safe Speed functionality, enabling controlled machine operation under defined safety conditions.
This dual-axis drive combines two high-power servo channels into a single module, reducing system footprint and simplifying wiring. It is designed for applications where high torque, fast acceleration, and synchronized motion are essential, such as heavy-duty packaging, converting, and material handling systems.
With continuous output current من 23 A per axis and peak current up to 57 A, the 2198-D057-ERS4 delivers strong dynamic performance. It supports operation across different voltage classes, providing up to 8.0 kW at 240V RMS and up to 15.9 kW at 480V RMS, making it suitable for a wide range من industrial power requirements.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product الطراز | 2198-D057-ERS4 |
| الشركة المصنعة | Rockwell Automation (Allen-Bradley) |
| Product Series | Kinetix 5700 |
| Product Type | Dual-axis safe speed servo drive |
| Number من Axes | 2 |
| Control Type | Integrated motion over EtherNet/IP |
| Safety Function | Safe Speed |
| Input Power | 3-phase AC |
| Output Power | 8.0 kW @ 240V / 15.9 kW @ 480V |
| Continuous Current | 2 × 23.0 ARMS |
| Peak Current | 2 × 57.0 ARMS |
| Rated Output (Per Axis) | 15 kW continuous (max capability context) |
| Function | Dual servo motor control with safety |
| Mounting Type | Panel-mounted |
| Application Role | High-power multi-axis motion control |
| Dimensions | 526 × 85 × 267.5 mm |
| الوزن | 6.76 kg |
Applications
● Heavy-duty multi-axis machinery
Designed for high-power systems requiring synchronized dual-axis control.
● Packaging and converting equipment
الدعمs high-speed and high-torque applications with precise motion coordination.
● Material handling systems
Used in conveyors, lifting systems, and automated transport requiring strong dynamic response.
● Automated production lines
Ensures consistent and accurate motion in demanding industrial environments.
● Safety-integrated automation systems
Ideal for applications where Safe Speed functionality is required during operation or maintenance.
Advantages
● High power density
Delivers up to 15.9 kW output, suitable for demanding industrial applications.
● Dual-axis design
Reduces panel space and simplifies system architecture by combining two drives into one وحدة.
● Safe Speed functionality
Allows machines to operate safely at reduced speeds, minimizing downtime during maintenance.
● Strong current capability
Provides 23 A continuous and 57 A peak per axis, enabling high torque and fast acceleration.
● Flexible voltage operation
الدعمs both 240V and 480V systems, increasing application versatility.
● Integrated EtherNet/IP communication
Ensures seamless coordination with modern motion control systems.
