مقدمة المنتج

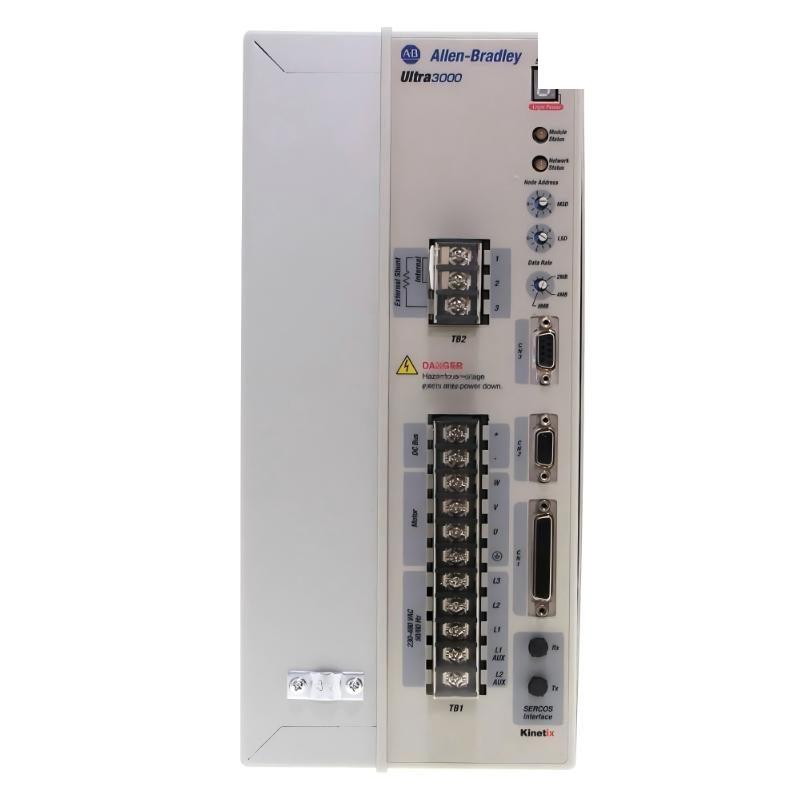

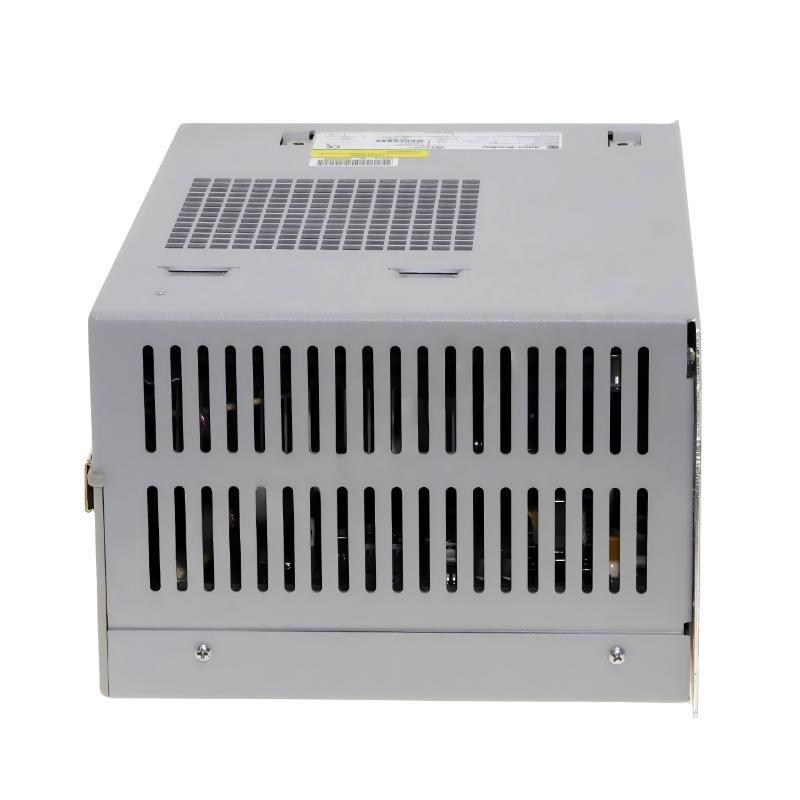

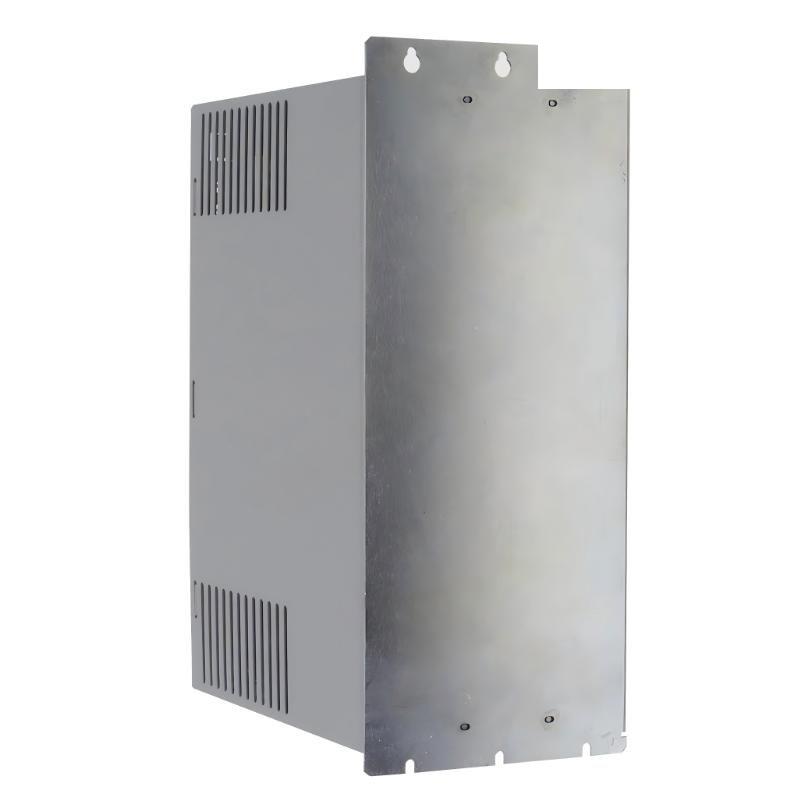

The Allen Bradley 2098-DSD-HV150-SE Ultra3000 Digital Servo Drive is a high-power motion control solution designed for advanced industrial automation systems that require high torque output, precise positioning, and reliable multi-axis synchronization. As part من the Ultra3000 high-voltage series, this drive integrates digital servo control technology with SERCOS communication to achieve deterministic, high-speed motion performance across complex machine architectures.
With a 10 kW-class power platform and enhanced current handling capability, the HV150-SE is engineered for heavy-duty applications such as large CNC machining centers, industrial robotics, metal processing equipment, and high-inertia conveyor systems. It operates on a 230/460V AC input and delivers 34A continuous output current with 68A intermittent capability, ensuring strong dynamic response during acceleration, deceleration, and load variation conditions. Its robust construction and advanced control performance make it suitable for continuous industrial duty in demanding environments.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | 2098-DSD-HV150-SE |
| Series | Ultra3000 |
| Type | High Voltage Digital Servo Drive |
| Communication | SERCOS Interface |
| Input Voltage | 230/460V AC |
| Frequency | 50/60 Hz |
| Control Supply Voltage | 12/24 VDC |
| Power Rating | 10 kW (class) |
| Continuous Output Current | 34 A |
| Intermittent Output Current | 68 A |
| Control Modes | Position, Velocity, Torque |
| Motor Compatibility | Allen-Bradley Servo Motors |
| Protection Features | Overcurrent, Overvoltage, Thermal Protection, Fault Diagnostics |
| Cooling Method | Forced Air Cooling |
| Environmental Rating | IP20 |
| Dimensions | 360.7 × 151.6 × 242.2 mm |
| الوزن | 10.44 kg |
Applications
• Heavy-duty CNC machining systems, supporting high-torque cutting, milling, and precision fabrication processes.
• Large-scale industrial robotics, enabling synchronized motion control for welding, assembly, and material handling tasks.
• High-load automation lines, ensuring stable motion performance under variable load conditions.
• Metal forming and processing equipment, where high intermittent torque is required for demanding production cycles.
• Material handling and conveyor systems, providing reliable servo control for large-scale logistics and transport automation.
Advantages
• Very high dynamic torque capability (68A intermittent) supports demanding acceleration and peak load conditions.
• Strong continuous output (34A) ensures stable performance in heavy industrial operations.
• SERCOS communication interface enables precise real-time synchronization in multi-axis systems.
• Flexible 230/460V AC input supports global industrial power infrastructure.
• Robust industrial design ensures durability under continuous high-load operation.
• Advanced digital servo control provides smooth motion, fast response, and high positioning accuracy.
