مقدمة المنتج

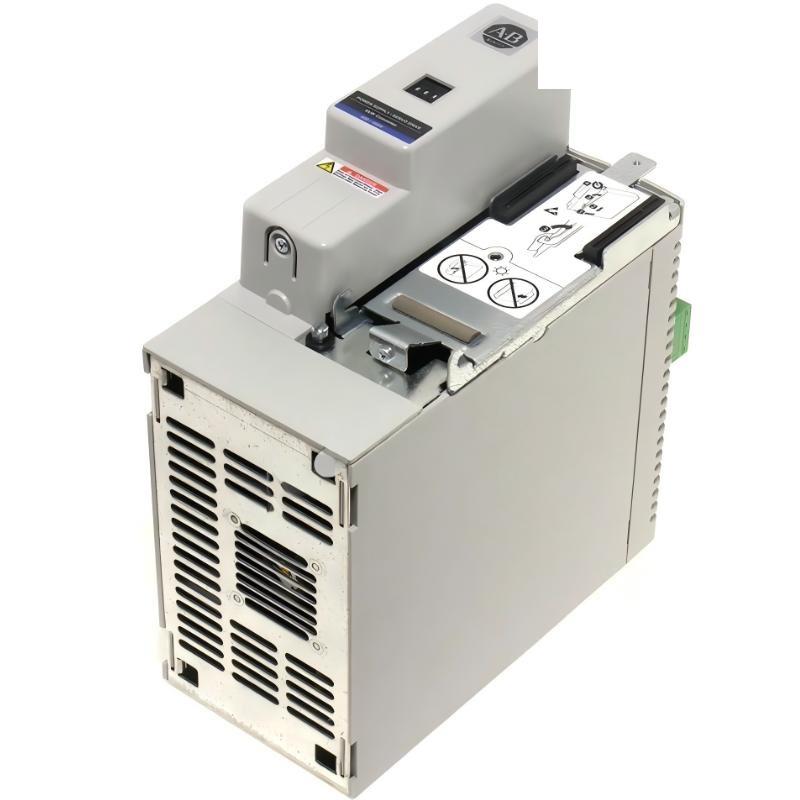

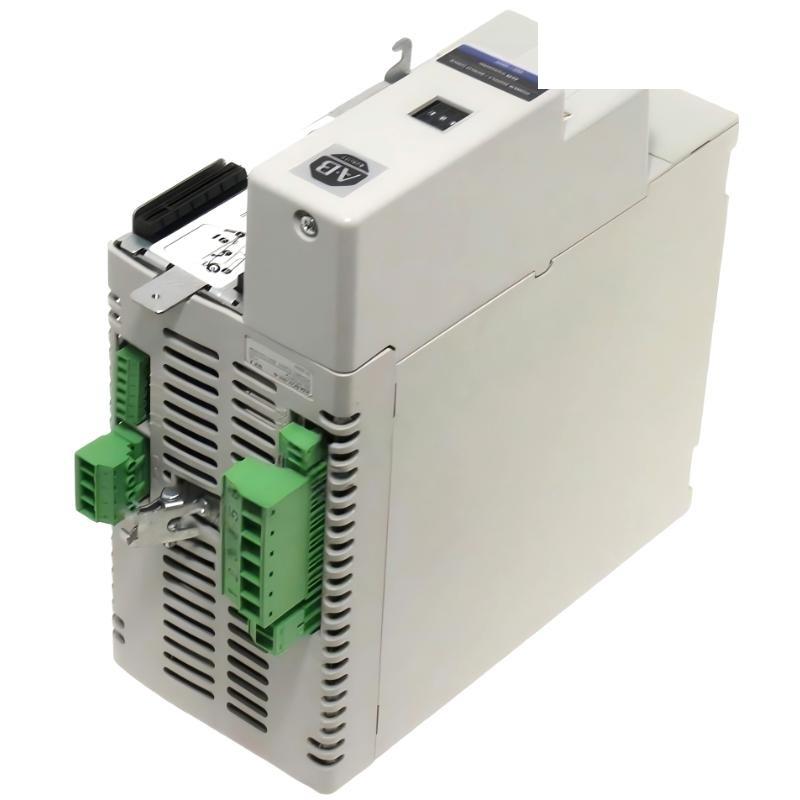

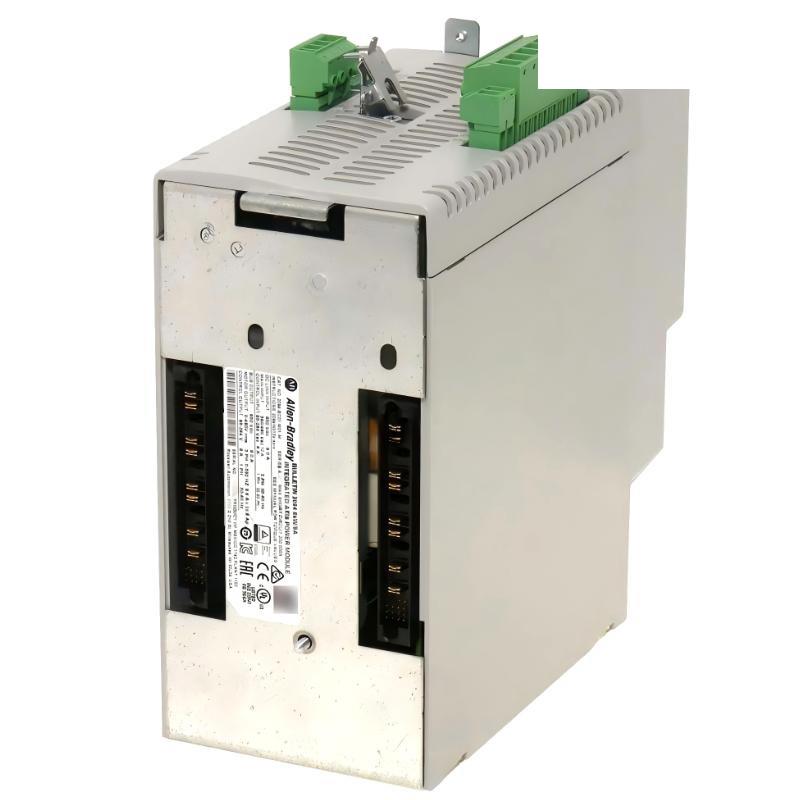

The Allen-Bradley 2094-BC01-M01-M Kinetix integrated axis module is a high-performance motion control component designed for use in Kinetix 6200 and Kinetix 6500 servo drive systems. It combines both converter and inverter functionality within a single module, providing a compact and efficient solution for controlling servo motors in demanding industrial applications.
This module operates on a 360/480 VAC input and delivers a 6 kW converter output along with a 3.9 kW inverter output. It is engineered to provide precise motion control, high dynamic response, and stable performance in multi-axis systems. The integrated Safe Torque-Off (STO) feature enhances system safety by removing motor torque without disconnecting power, supporting modern safety requirements in industrial automation.
With its robust construction and integrated design, the 2094-BC01-M01-M simplifies system architecture, reduces wiring complexity, and improves overall system efficiency. It is widely used in applications that require coordinated motion control, high precision, and reliable operation.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز Number | 2094-BC01-M01-M |
| Product Type | Integrated Axis Module |
| Series | Kinetix 6200 / 6500 |
| Input Voltage | 360 / 480 VAC |
| Converter Power | 6 kW |
| Converter Current | 9 A |
| Inverter Power | 3.9 kW |
| Inverter Current | 8.6 A |
| Safety Feature | Safe Torque-Off (STO) |
| Function | Combined converter and inverter module |
| Application Type | Servo motion control |
| Control Capability | Multi-axis coordinated motion |
| Installation Type | Panel mounted in drive system |
| Design Type | Integrated compact module |
| Dimensions | 290 x 125 x 285 mm |
| الوزن | 5.67 kg |
Applications
• Multi-Axis Motion Systems – Provides synchronized control for coordinated servo axes.
• Packaging Machinery – Ensures precise positioning and high-speed operation in automated lines.
• Material Handling Equipment – Controls conveyors, lifts, and robotic movement systems.
• CNC and Machine Tools – Delivers accurate motion control for cutting and machining processes.
• Automated Assembly Systems – الدعمs complex motion sequences with high repeatability.
• Industrial Robotics – Enables smooth and responsive servo motor control.
Advantages
• Integrated Converter and Inverter – Reduces system complexity and minimizes wiring requirements.
• High Power Performance – الدعمs demanding motion applications with stable output.
• Safe Torque-Off Function – Enhances machine safety without removing power from the system.
• Compact Design – Optimizes cabinet space while maintaining high performance.
• Reliable Motion Control – Ensures precise and consistent servo operation.
• Efficient System Integration – Designed for seamless use with Kinetix 6200/6500 systems.
• Industrial Durability – Built for continuous operation in demanding environments.
