مقدمة المنتج

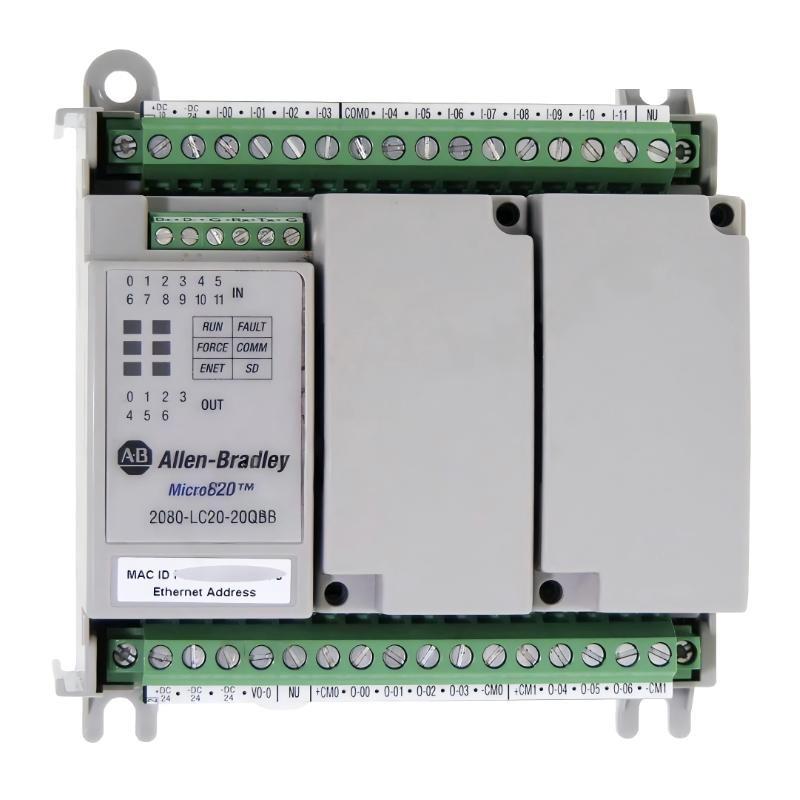

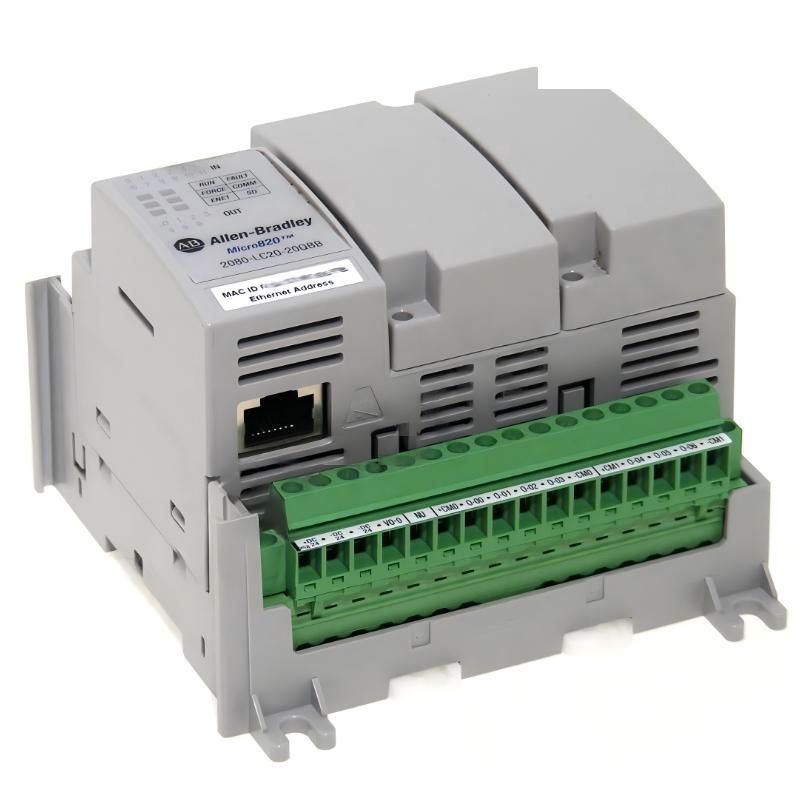

The Allen Bradley 2080-LC20-20QBBR Micro820 Programmable Controller is a compact, feature-rich programmable logic controller (PLC) designed for small-scale automation and smart control applications. As part من the Micro800 family, it integrates digital and analog I/O, communication interfaces, and advanced embedded features into a single, space-saving وحدة.
This controller is equipped with an embedded Ethernet port and a non-isolated RS-232/485 serial interface, enabling flexible connectivity with HMIs, drives, sensors, and supervisory systems. It supports 24 V DC digital inputs and source-type outputs, along with configurable analog inputs and a dedicated analog output channel, allowing it to handle both discrete and process control tasks efficiently.
Additional features such as an embedded real-time clock (RTC), MicroSD card support, and plug-in expansion slots enhance its versatility. The removable terminal block design simplifies installation and maintenance, making the 2080-LC20-20QBBR an ideal choice for OEM equipment and compact automation systems requiring reliable and scalable control.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز | 2080-LC20-20QBBR |
| العلامة التجارية | Allen-Bradley |
| Series | Micro820 (Micro800 Family) |
| Controller Type | Programmable Logic Controller (PLC) |
| Power Supply | 24 V DC |
| Digital Inputs | 12 × 24 V DC Inputs |
| Digital Outputs | 7 × 24 V DC Source Outputs |
| Analog Inputs | 4 Configurable Inputs (with Thermistor Voltage Reference Out) |
| Analog Output | 1 Output |
| Communication Ports | Embedded Ethernet Port |
| RS-232/485 Non-isolated Serial Port | |
| Expansion Capability | 2 Plug-In Slots |
| Memory Expansion | MicroSD Card الدعم |
| RTC | Embedded Real-Time Clock |
| Terminal Type | Removable Terminal Block |

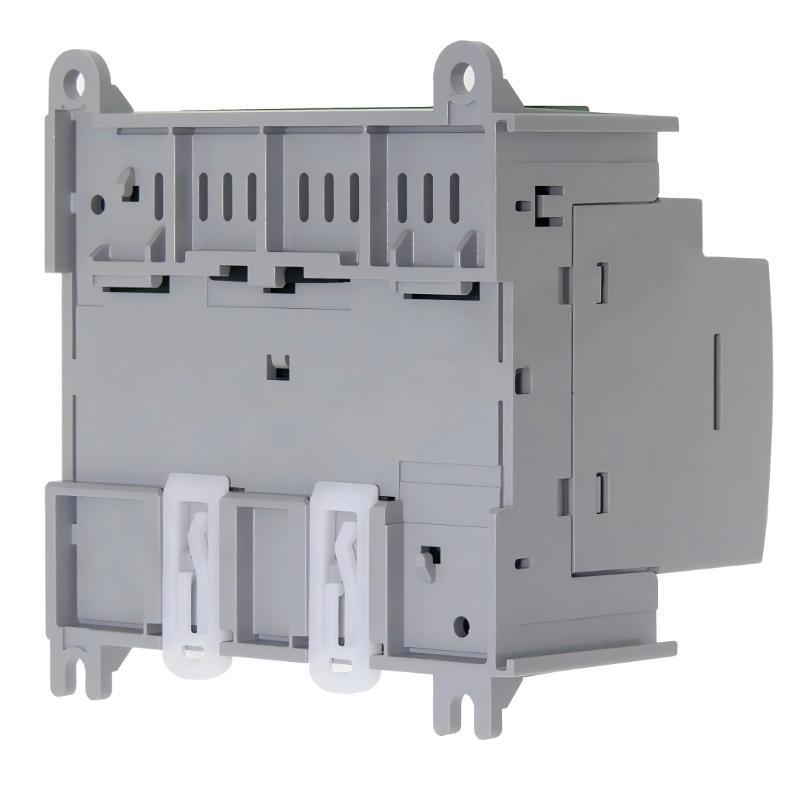

| Mounting Type | DIN Rail / Panel Mount |
| Application Scope | Small to Medium Automation Systems |
| Dimensions | 104 × 75 × 90 mm |
| الوزن | 0.38 kg |
Applications
• Used in compact machine automation systems such as packaging, material handling, and small assembly equipment
• Applicable in building automation and utility control including HVAC systems, lighting control, and energy monitoring
• Ideal for remote monitoring applications leveraging Ethernet connectivity for data exchange with SCADA or HMI systems
• الدعمs temperature and process control systems with thermistor input capability and analog signal handling
• Suitable for OEM equipment integration where space, cost, and functionality must be balanced
Advantages
• Integrated communication interfaces including Ethernet and serial ports enable flexible system connectivity
• Compact all-in-one controller design reduces panel space requirements and simplifies system architecture
• Configurable analog inputs with thermistor support expand application possibilities for temperature-based control
• Embedded RTC and MicroSD support allow data logging, time-based control, and easy program backup
• Removable terminal blocks improve wiring convenience and reduce maintenance time
• Expandable design with plug-in slots provides flexibility for future system enhancements
