مقدمة المنتج

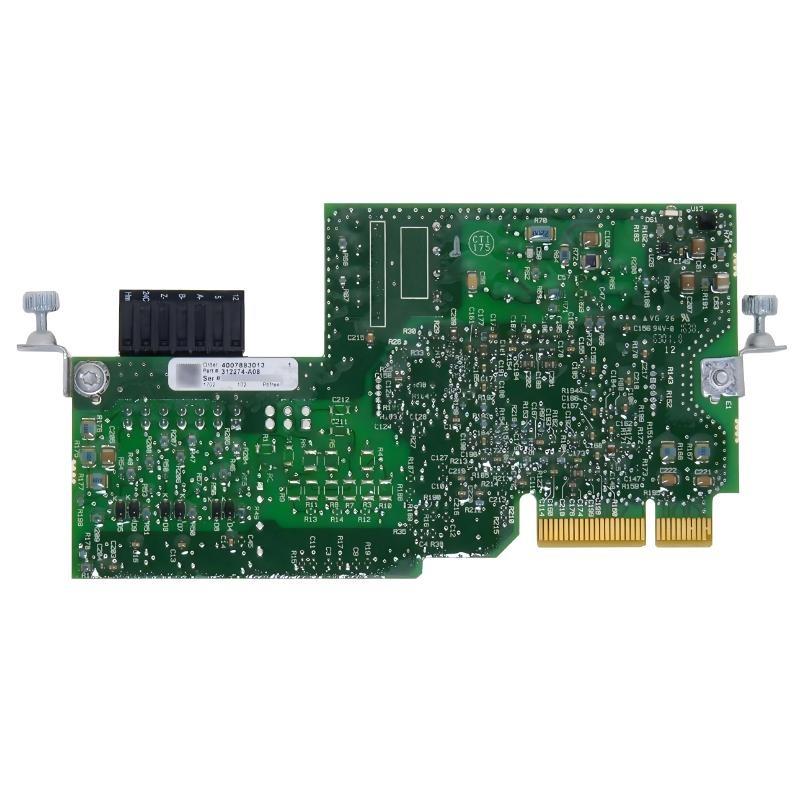

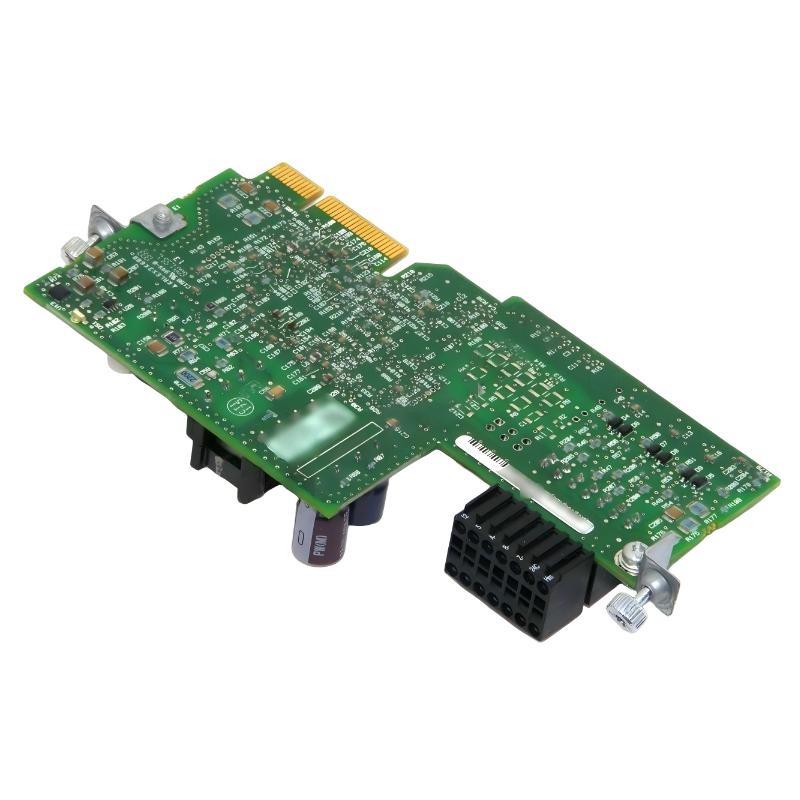

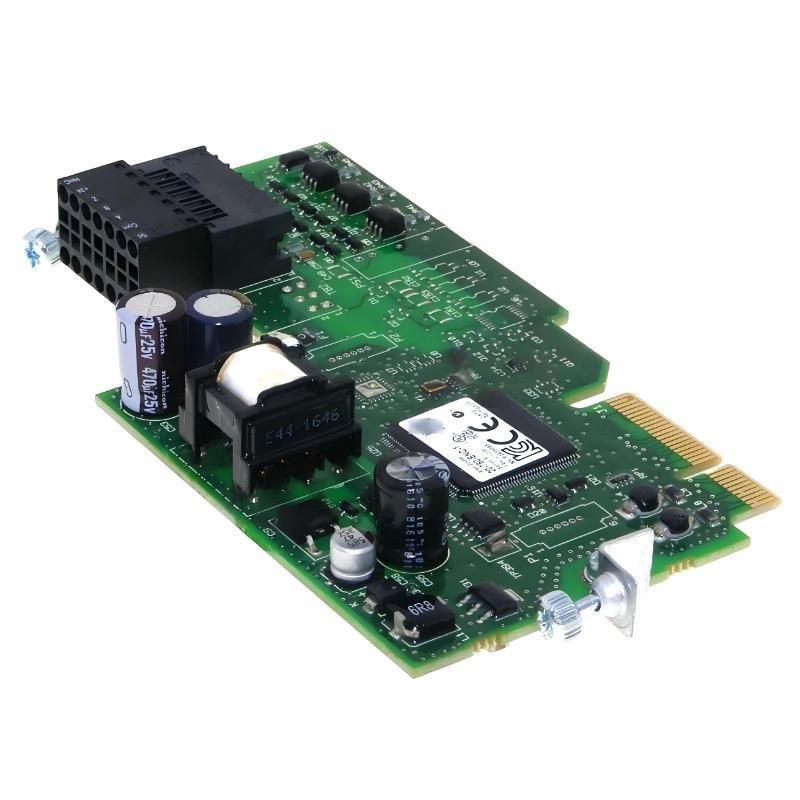

The Allen-Bradley 20-750-ENC-1 PowerFlex 750 Incremental Encoder Module is a dedicated feedback interface designed for PowerFlex 750 series drives. It provides accurate speed and position feedback by processing signals from incremental encoders, enabling precise motor control in industrial automation systems.
This module is used in applications where closed-loop control is required, such as positioning systems, synchronized drives, and high-precision speed regulation. It supports both differential and single-ended encoder inputs, منfering flexibility for different field wiring configurations.
The module operates with constant current sink input logic and is compatible with a wide range من industrial encoder signal levels. It is designed to integrate directly into the PowerFlex 750 drive architecture, ensuring stable and real-time feedback processing without external signal conditioning devices.
With support for extended cable lengths and robust electrical characteristics, the 20-750-ENC-1 is suitable for demanding industrial environments requiring reliable motion feedback.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product الطراز | 20-750-ENC-1 |
| الشركة المصنعة | Rockwell Automation (Allen-Bradley) |
| Product Type | Incremental encoder feedback module |
| Compatible Drives | PowerFlex 750 series |
| Encoder Type | Incremental encoder |
| Input Operation | Differential or single-ended |
| Input Voltage Range | 5V DC (min) to 15V DC (max) |
| Input Current | Approx. 10 mA (sinking) |
| High الولاية Voltage | Minimum 3.5V DC |
| Low الولاية Voltage | Maximum 0.4V DC |
| Cable Length الدعم | 30 m at 5V, 183 m at 12V |
| Mounting Type | Drive control pod mount |
| Function | Motor speed and position feedback |
| Dimensions | 150 × 26 × 68 mm |
| الوزن | 0.068 kg |
Applications
● Closed-loop motor control systems
Provides real-time feedback for speed and position regulation in industrial drives.
● High-precision positioning systems
Used in applications requiring accurate movement control such as conveyors and automation machinery.
● Synchronized multi-drive systems
Enables multiple drives to operate in coordinated motion control environments.
● Industrial motion control applications
الدعمs stable encoder feedback for manufacturing and processing equipment.
● Variable speed control systems
Improves speed stability by continuously monitoring motor shaft rotation.
Advantages
● High compatibility with PowerFlex 750 drives
Designed specifically for seamless integration with PowerFlex 753 and 755 systems.
● Flexible encoder input support
Accepts both differential and single-ended encoder signals, increasing application flexibility.
● Long-distance signal transmission
الدعمs up to 183 m cable length at 12V, reducing installation constraints.
● Stable electrical performance
Maintains reliable signal integrity with defined voltage thresholds for noise immوحدةy.
● Simple drive integration
Direct installation into the drive control pod eliminates the need for external modules.
● Industrial-grade reliability
Built for stable operation in harsh industrial environments with continuous duty cycles.
