Product Introduction

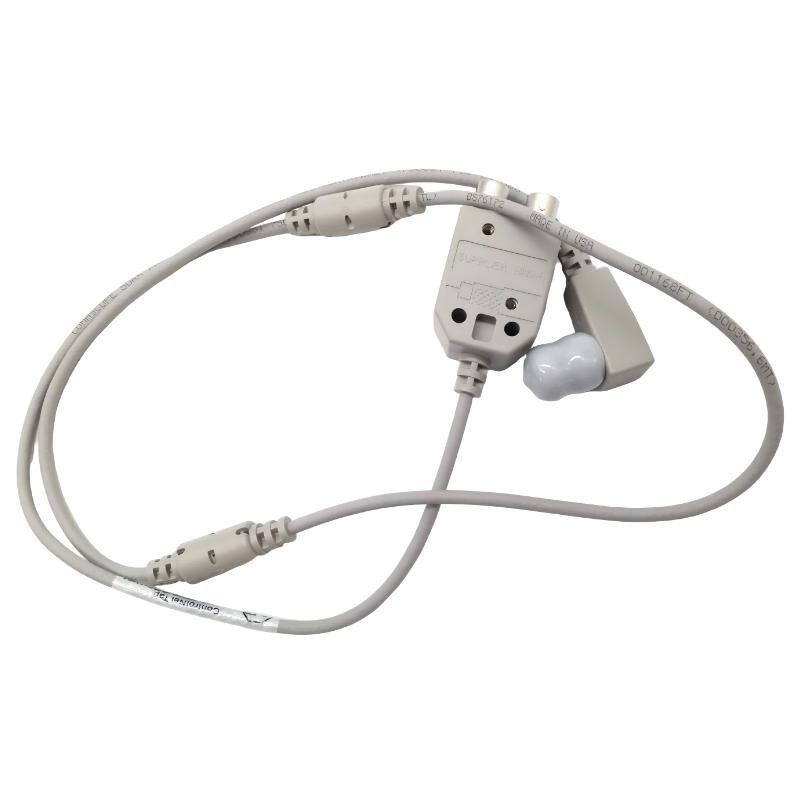

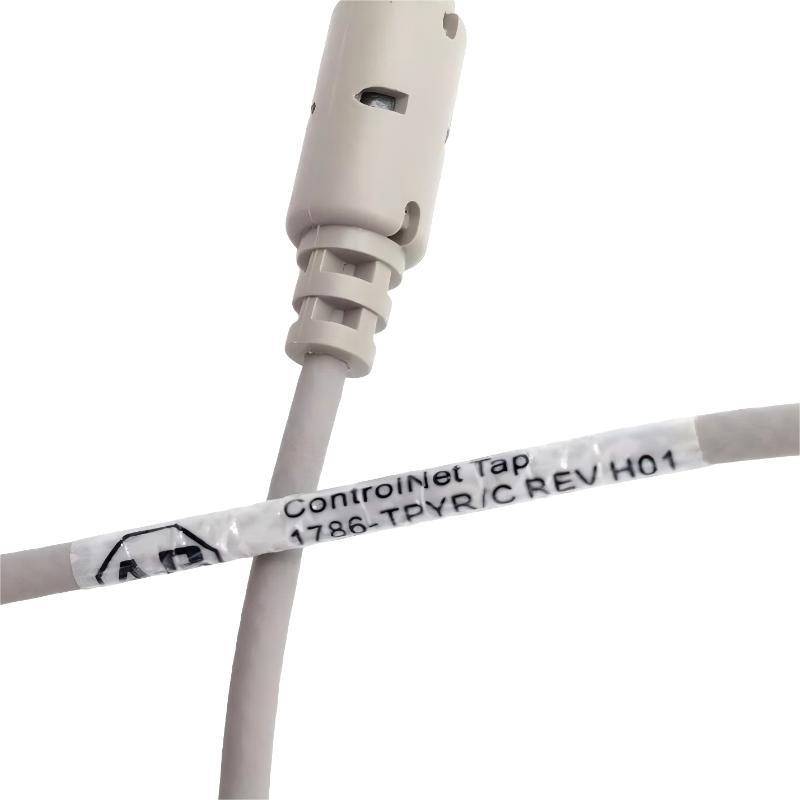

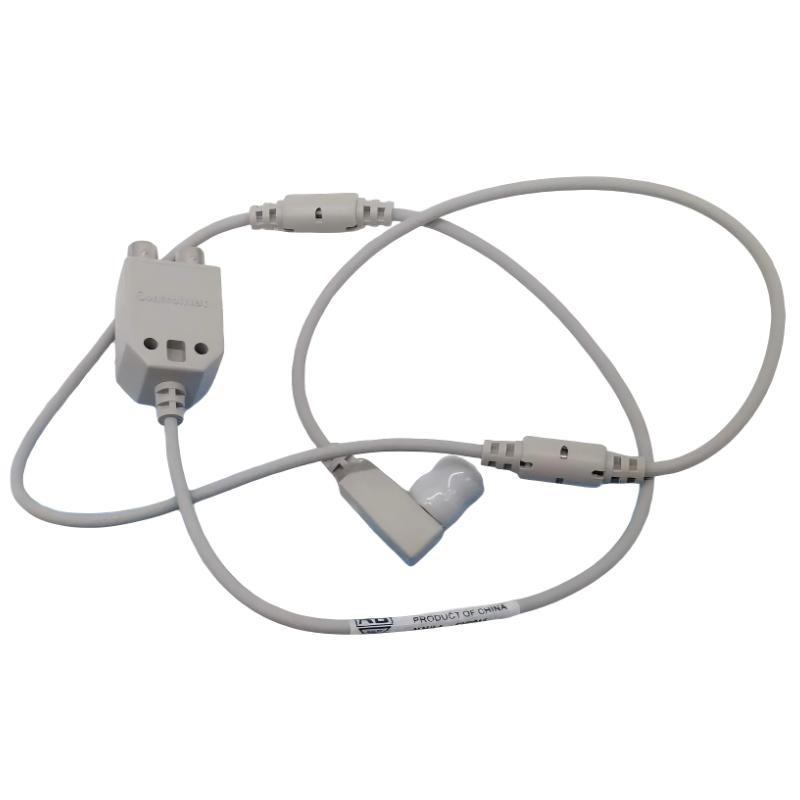

The Allen Bradley 1786-TPYR ControlNet Coaxial Tap Cable is a network connection component designed for ControlNet coaxial communication systems. It allows devices to connect to the main network trunk via a Y-Tap connection with a right-angle BNC connector, enabling multiple network nodes to access the ControlNet system without disrupting signal integrity.
This tap cable is commonly used in industrial automation networks to provide a reliable connection for controllers, remote I/O modules, and communication adapters. Its design supports easy installation in tight spaces due to the right-angle connector, making it ideal for control cabinets or network panels. The 1786-TPYR operates in industrial environments and features an IP20 enclosure rating, منfering protection suitable for indoor automation applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ControlNet Coaxial Tap Cable |
| الشركة المصنعة | Allen Bradley |
| الطراز Number | 1786-TPYR |
| Network Type | ControlNet |
| Connector Type | Right-angle BNC |
| Cable Type | Coaxial Tap Cable |
| Connection Type | Y-Tap |
| Cable Length | 1 m |
| Enclosure Rating | IP20 |
| Operating Temperature | −20 to 70 °C |
| Installation Type | ControlNet network device connection |
| Application | Coaxial network access for devices |
| Industrial Usage | Automation network wiring |
| الشحن الوزن | 3 kg |
Applications
● ControlNet Device Connectivity
Connects PLCs, communication modules, and remote I/O to the main network trunk.
● Industrial Automation Networks
Ensures stable signal transmission in industrial control systems.
● Control Cabinet Installations
Right-angle connector allows installation in tight spaces inside control panels.
● Distributed Control Systems
Provides reliable network access for devices spread across the plant.
● Network Expansion and Configuration
Enables flexible connection for adding new nodes without disrupting existing network signals.
● Factory Automation Networks
Maintains deterministic communication between devices within production facilities.
Advantages
● Y-Tap with Right-Angle Connector
الدعمs multiple network nodes while saving space in control cabinets.
● Reliable Communication
Ensures stable signal transmission between devices and the ControlNet trunk.
● Industrial Temperature Range
Operates from −20 to 70 °C for demanding industrial environments.
● IP20 Enclosure Rating
Suitable for indoor installations and protected automation environments.
● Flexible Network Installation
1-meter cable provides convenience for connecting devices to the network trunk.
● Easy Integration
Plug-and-play design simplifies connection من devices to ControlNet networks.
