Product Introduction

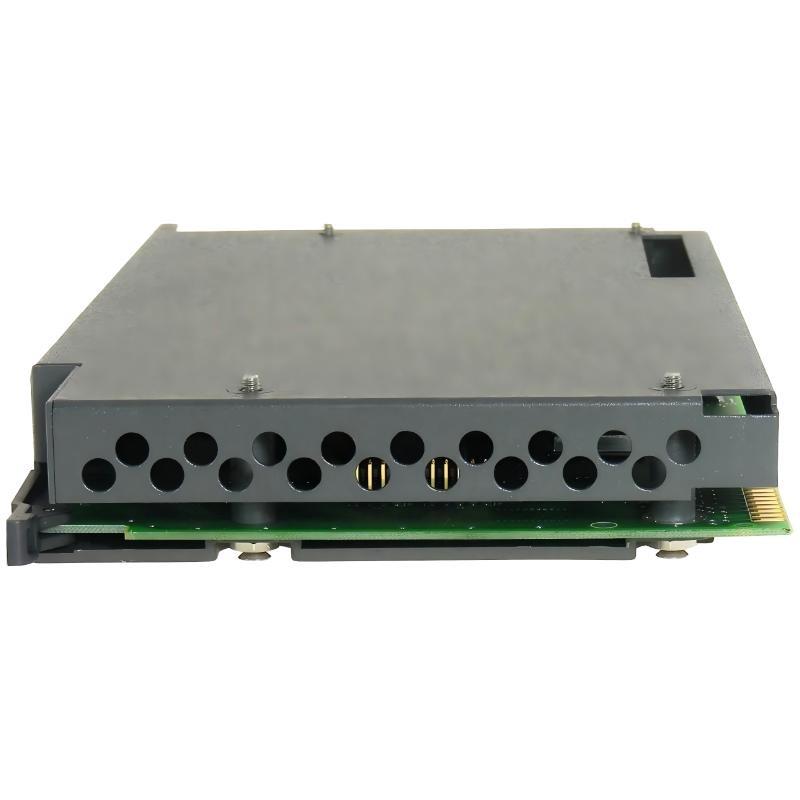

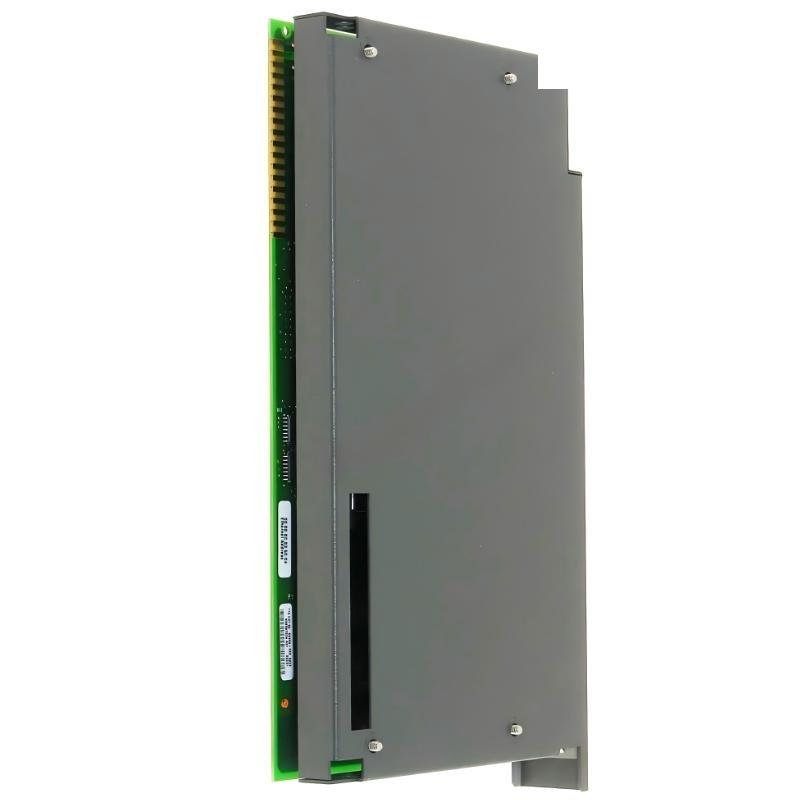

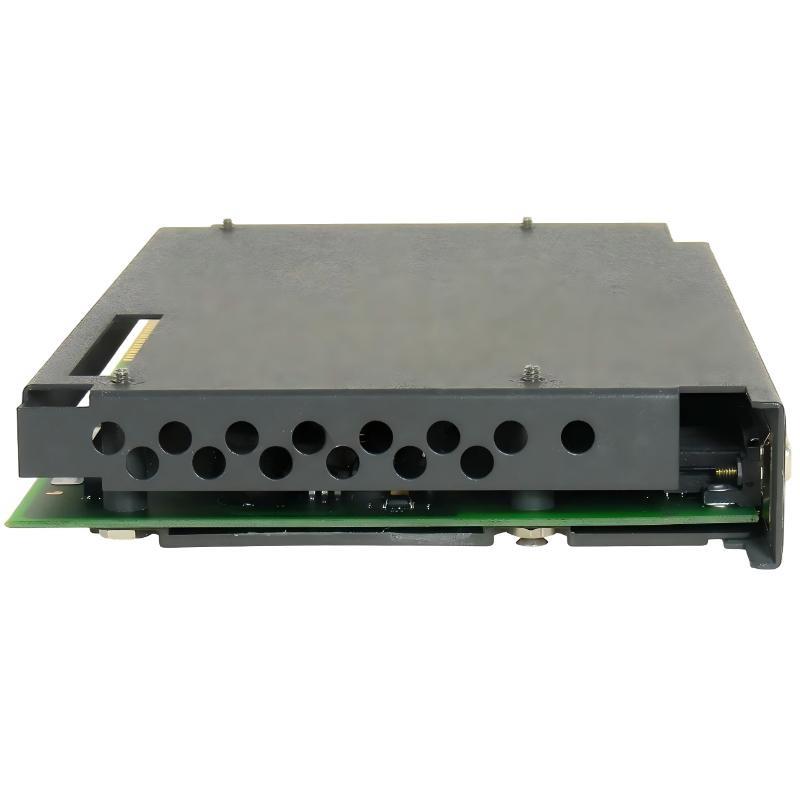

The Allen Bradley 1785-ENET Ethernet Interface Module is an industrial communication module designed to enable Ethernet connectivity for PLC-5 controllers. Developed by Rockwell Automation under the Allen-Bradley product family, this module allows PLC-5 processors to communicate with other controllers, supervisory systems, and industrial networks through Ethernet technology.
The 1785-ENET provides 10/100 Mbps Ethernet communication, allowing efficient data exchange between PLC systems and industrial devices such as HMIs, SCADA platforms, and programming workstations. Installed directly into the PLC-5 rack, the module enables reliable integration من legacy PLC-5 systems into Ethernet-based automation networks.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Ethernet Interface Module |
| الشركة المصنعة | Rockwell Automation |
| العلامة التجارية | Allen-Bradley |
| Compatible Controller | PLC-5 |
| Network Type | Industrial Ethernet |
| Transmission Speed | 10/100 Mbps |
| Backplane Current | 1 Amp @ 5 VDC |
| Maximum Modules per System | 4 |
| Power Dissipation | 5 W |
| PLC Current Requirement | 2.2 Amp |
| Mounting Type | PLC-5 Rack Installation |
| Dimensions | 165 × 51 × 89 mm |
| الوزن | 0.95 kg |
Applications
• PLC-5 Ethernet networking, enabling controllers to communicate with plant-wide Ethernet systems.
• SCADA and monitoring systems, connecting PLC-5 processors with supervisory control platforms.
• Industrial automation networks, supporting communication between controllers, HMIs, and engineering workstations.
• Factory information systems, integrating PLC data into production monitoring and reporting systems.
• Control system upgrades, allowing legacy PLC-5 installations to operate on modern Ethernet networks.
• Remote programming and diagnostics, enabling engineers to access PLC-5 systems through Ethernet connections.
Advantages
• High-speed Ethernet communication, supporting 10/100 Mbps data transmission.
• Seamless PLC-5 integration, allowing legacy systems to connect to modern Ethernet networks.
• Multiple module support, up to four modules can be installed within a single system.
• Stable rack-mounted installation, ensuring reliable operation within PLC-5 chassis environments.
• Efficient power management, with controlled backplane current consumption.
• Industrial reliability, designed for continuous operation in demanding automation systems.
