Product Introduction

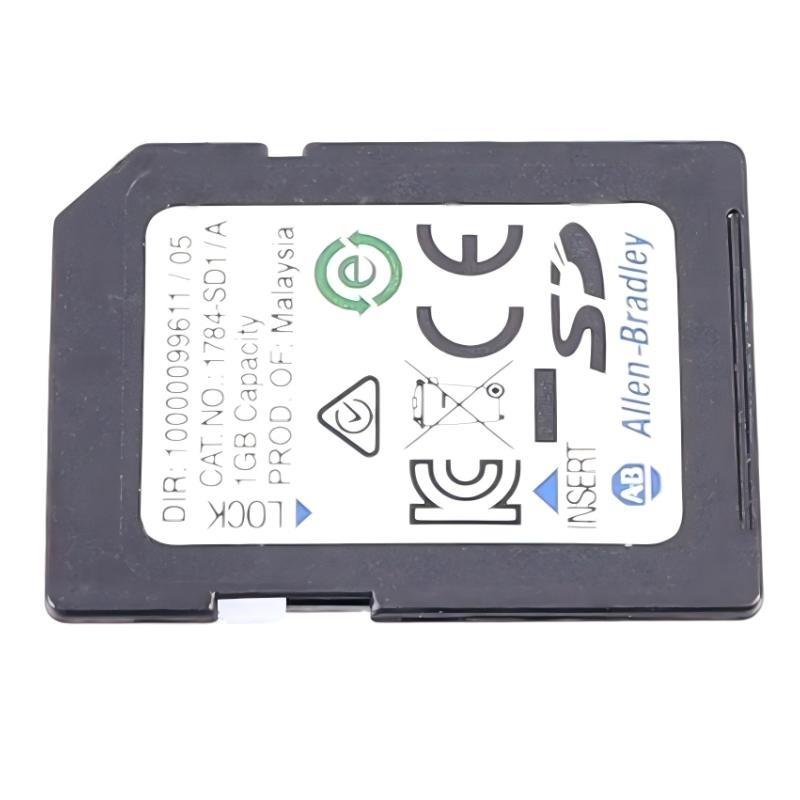

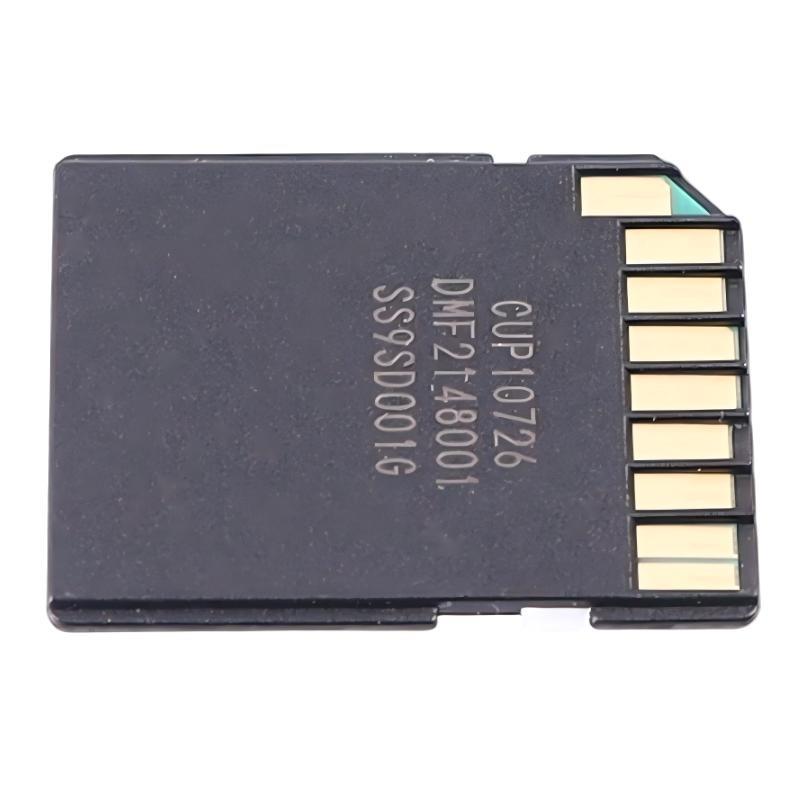

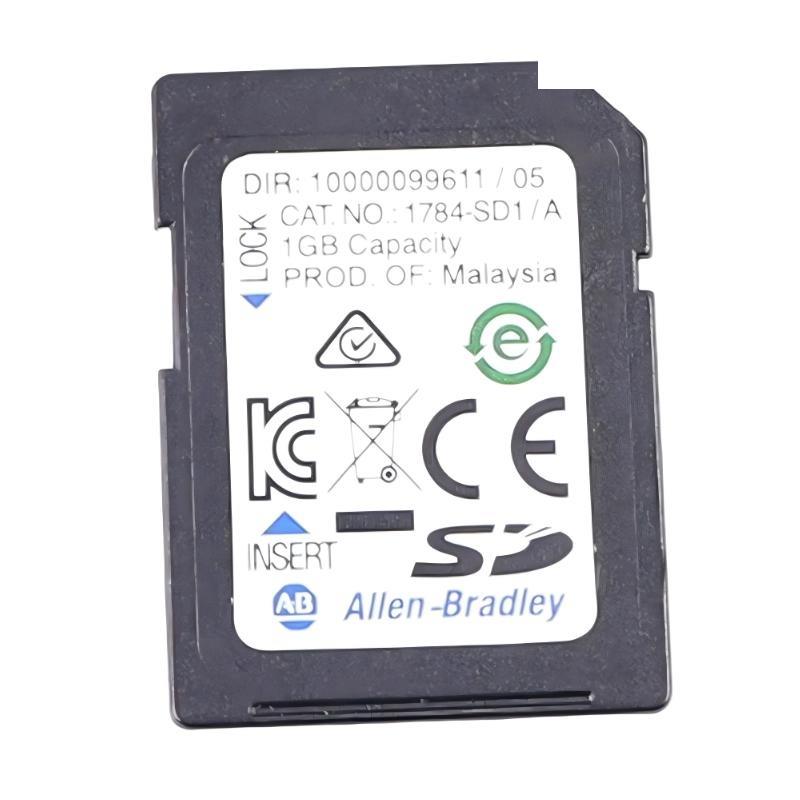

The Allen Bradley 1784-SD1 ControlLogix Secure Digital Memory Card is a removable industrial storage device designed for modern ControlLogix and CompactLogix controllers. Produced by Rockwell Automation under the Allen-Bradley product family, this Secure Digital (SD) card provides reliable non-volatile memory for storing controller programs, firmware files, and configuration data.
With 1 GB storage capacity, the 1784-SD1 is specifically designed for use with ControlLogix 5570 (L7) and CompactLogix 5370 controllers. It allows engineers to quickly back up projects, transfer programs between controllers, and simplify system recovery procedures in industrial automation systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Secure Digital Memory Card |
| الشركة المصنعة | Rockwell Automation |
| العلامة التجارية | Allen-Bradley |
| Compatible Controllers | ControlLogix 5570 (L7), CompactLogix 5370 |
| Storage Capacity | 1 GB |
| Memory Type | Secure Digital (SD) Non-Volatile Flash |
| Application | Program Storage and Backup |
| Data Retention | Non-volatile storage without power |
| Installation Type | Controller Slot Installation |
| Industrial Compatibility | Designed for ControlLogix and CompactLogix platforms |
| Dimensions | 60 × 20 × 50 mm |
| الوزن | 0.1 kg |
Applications
• Controller program storage, enabling ControlLogix and CompactLogix controllers to store ladder logic, function blocks, and configuration files.
• Backup and recovery, allowing engineers to restore control programs quickly after controller replacement or maintenance.
• Firmware storage, supporting controller firmware updates and version management.
• System commissioning, helping engineers quickly deploy identical configurations across multiple controllers.
• Data logging and configuration archiving, storing operational information or machine setup data for reference.
• Machine builder deployments, simplifying program duplication across multiple production machines.
Advantages
• Reliable non-volatile memory, ensuring programs and configuration data remain stored even when power is removed.
• 1 GB storage capacity, providing sufficient space for large control programs and firmware files.
• Quick program transfer, allowing engineers to duplicate controller configurations easily.
• Designed for ControlLogix and CompactLogix platforms, ensuring compatibility with modern Rockwell automation systems.
• Compact and lightweight design, minimizing space requirements inside controller hardware.
• Improved maintenance efficiency, reducing downtime during controller replacement or recovery procedures.
