Introduction

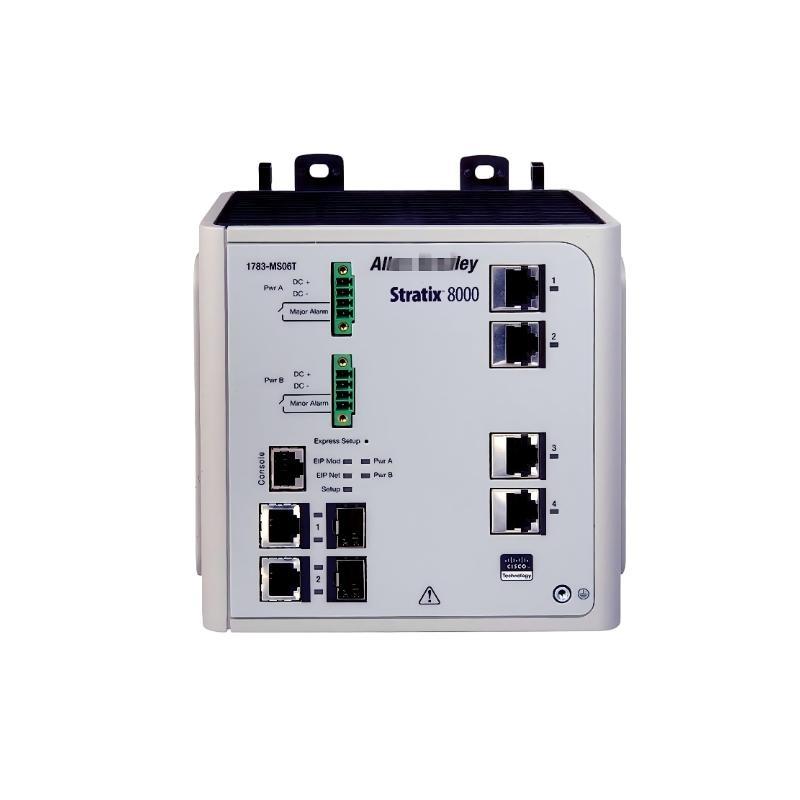

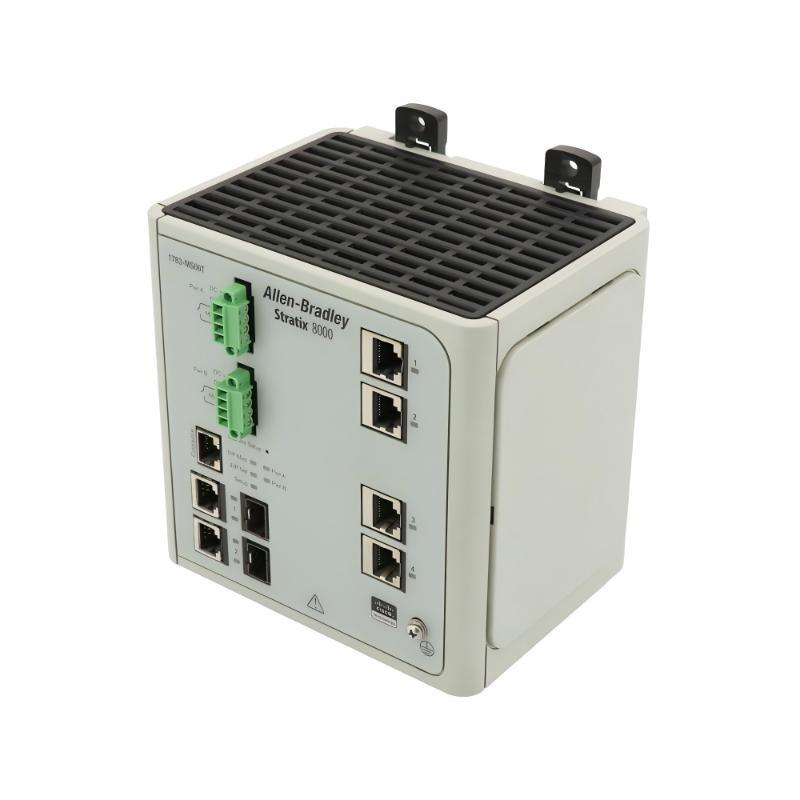

The Allen Bradley 1783-MS06T is a Layer-2 managed Ethernet switch module tailored for industrial automation networks. Built under the Stratix 8000 family, this module delivers six Ethernet switching ports and two dual-purpose SFP/copper uplinks, enabling seamless integration من control systems, I/O devices and enterprise networks. Its architecture supports deterministic communications, network diagnostics, and modular expansion—ideal for demanding industrial environments where uptime and data integrity are paramount.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز Number | 1783-MS06T |
| Module Type | Managed Ethernet Switch Module |
| Switch Port Count | 6 base copper ports + 2 dual-purpose uplink ports |
| Data Rate | 10/100/1000 Mbps on uplinks (depending on variant) |
| Input Voltage Range | 18–60 V DC (nominal) |
| Inrush Current | Max ~2 A at start-up |
| Power Dissipation | ≈ 15.1 W typical |
| Isolation Voltage | 75 V (continuous) basic insulation between power and network channels |
| Operating Temperature | –40 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions (H × W × D) | 147 mm × 152 mm × 112 mm (approximate mounting size) |
| الوزن | ≈ 2.56 kg |
| Mounting | DIN-rail or panel mount (industrial control cabinet) |
Applications
-
Deployment in factory automation networks requiring robust Ethernet deterministic communication for PLCs, HMIs, and I/O devices.
-
Industrial settings where modular managed switches enable redundancy, network segmentation (VLANs) and diagnostic visibility.
-
Expansion من control cabinets in process plants, discrete manufacturing, or infrastructure where connectivity and reliability are critical.
-
Integration in modernized control systems seeking both Ethernet/IP compatibility and legacy ease من use.
-
Networks operating in high-EMI or harsh environments requiring wide temperature and rugged design.
Advantages
-
Industrial-grade reliability: Wide temperature range, strong isolation, low power dissipation and robust design support long-term continuous operation.
-
Managed switch functionality: Enables traffic control, VLANs, diagnostics and improved network visibility—beneficial for control engineers and IT alike.
-
Flexible network integration: Dual-purpose uplink ports support copper or SFP fiber for long-haul or high-speed links.
-
Compact and panel-ready: Standard DIN-rail mount and moderate footprint make it suitable for control cabinets.
-
العلامة التجارية ecosystem compatibility: Seamless integration with Allen Bradley / Rockwell Automation architecture simplifies system design and support.
