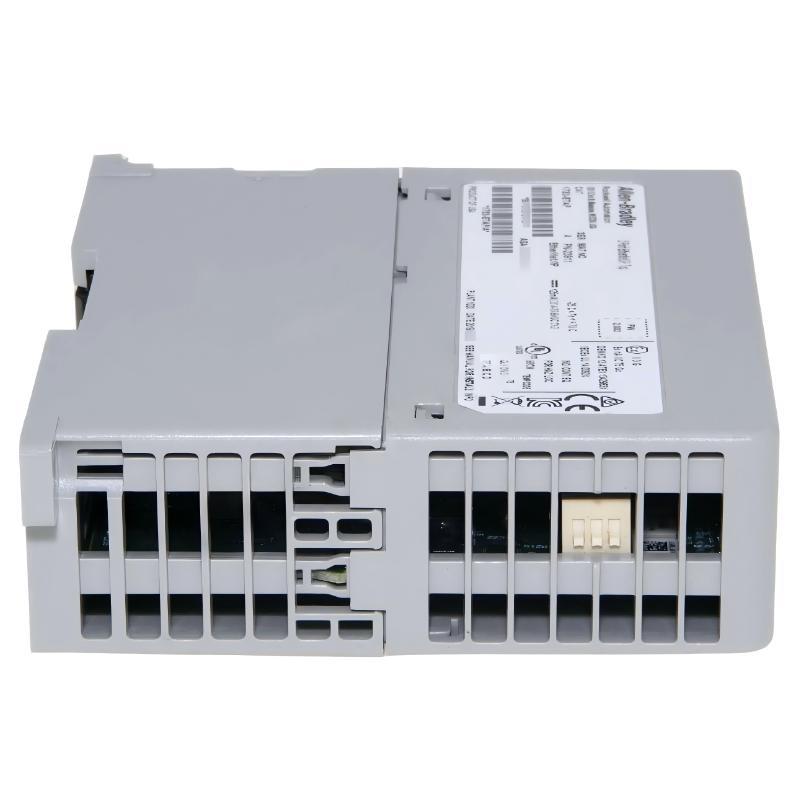

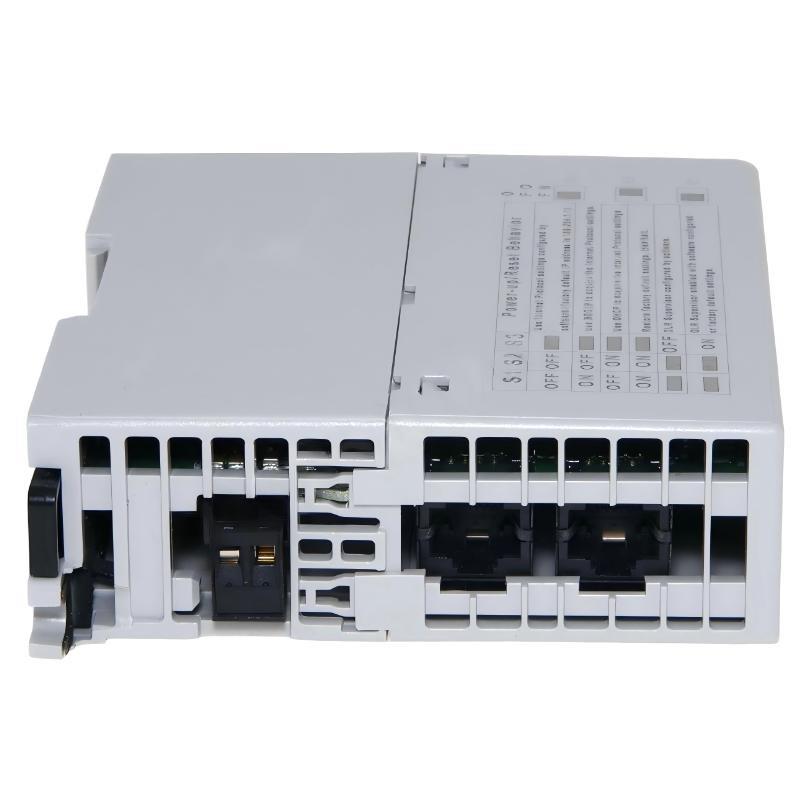

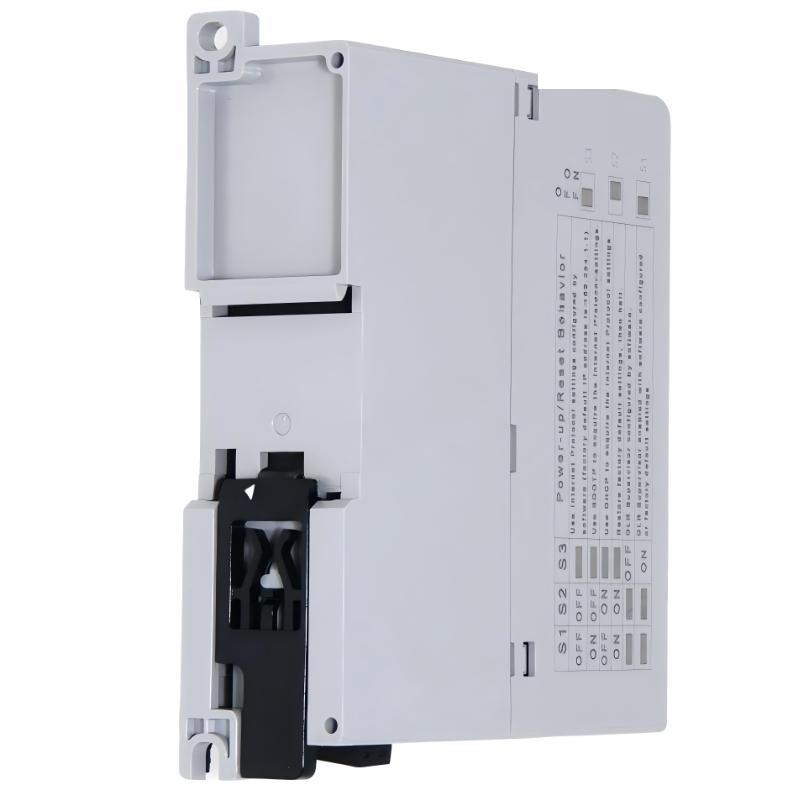

Product Introduction
The Allen-Bradley 1783-ETAP EtherNet/IP Tap is an industrial network device designed to support Device Level Ring (DLR) topology within EtherNet/IP automation networks. It allows non-DLR devices to be connected to a ring network while maintaining reliable industrial Ethernet communication. The module is part من the Allen-Bradley Stratix Industrial Networking Portfolio, which provides networking solutions for modern industrial automation systems.
The device acts as an Ethernet tap, enabling standard Ethernet devices such as PLCs, HMIs, drives, and industrial computers to participate in a DLR network architecture. By connecting through the ETAP module, these devices can benefit from the network resiliency provided by ring topology while maintaining standard Ethernet connectivity.
With its compact DIN rail mount design and industrial-grade enclosure, the 1783-ETAP is widely used in manufacturing environments, machine automation systems, and industrial networks where high network availability and fast fault recovery are essential.
Product Specifications
| Parameter | Specification |
|---|---|
| الطراز | 1783-ETAP |
| العلامة التجارية | Allen-Bradley |
| Product Type | EtherNet/IP Tap |
| Network Protocol | EtherNet/IP |
| Ethernet Speed | 10/100 Mbps Copper |
| Power Supply | 24 VDC |
| Current Consumption | 200 mA |
| Power Consumption | 4.8 W |
| Mounting Method | DIN Rail (Top Hat Rail) |
| Enclosure Rating | IP20 |
| Operating Temperature | –13 to 158 °F |
| Application Type | Device Level Ring network integration |
| Dimensions | 131.57 × 35.05 × 104.9 mm |
| الوزن | 0.18 kg |
Applications
• Device Level Ring (DLR) industrial networks
Allows standard Ethernet devices to participate in DLR ring network topologies used in automation systems.
• Industrial automation communication
Connects PLCs, drives, HMIs, and distributed I/O devices within EtherNet/IP networks.
• Manufacturing system networking
الدعمs resilient communication infrastructure in production lines and automated equipment.
• Machine-level control networks
Enables machine devices to connect to a fault-tolerant ring network architecture.
• Industrial control cabinet installations
Compact DIN rail design allows integration inside automation panels and network cabinets.
Advantages
• DLR network integration
Allows non-DLR devices to connect into Device Level Ring industrial networks.
• Improved network resiliency
الدعمs ring topology that provides fast network recovery in case من cable faults.
• Industrial Ethernet compatibility
الدعمs 10/100 Mbps EtherNet/IP communication for automation systems.
• Compact DIN rail mounting design
Small footprint allows easy installation inside industrial control cabinets.
• Reliable industrial construction
Designed for stable operation in demanding industrial environments.
• Low power consumption
Efficient design with minimal power usage for continuous network operation.
