Product Introduction

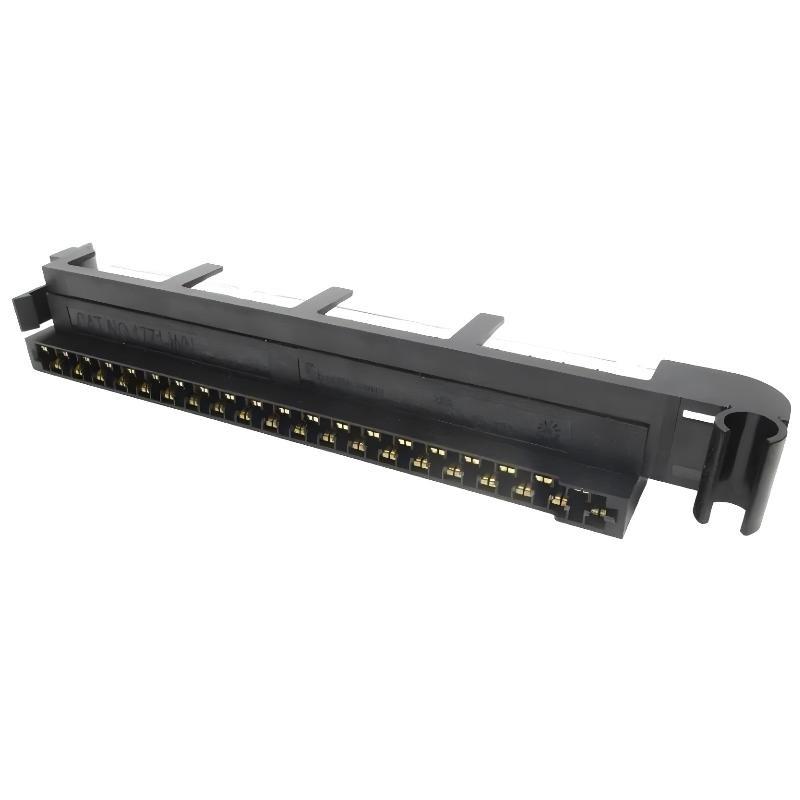

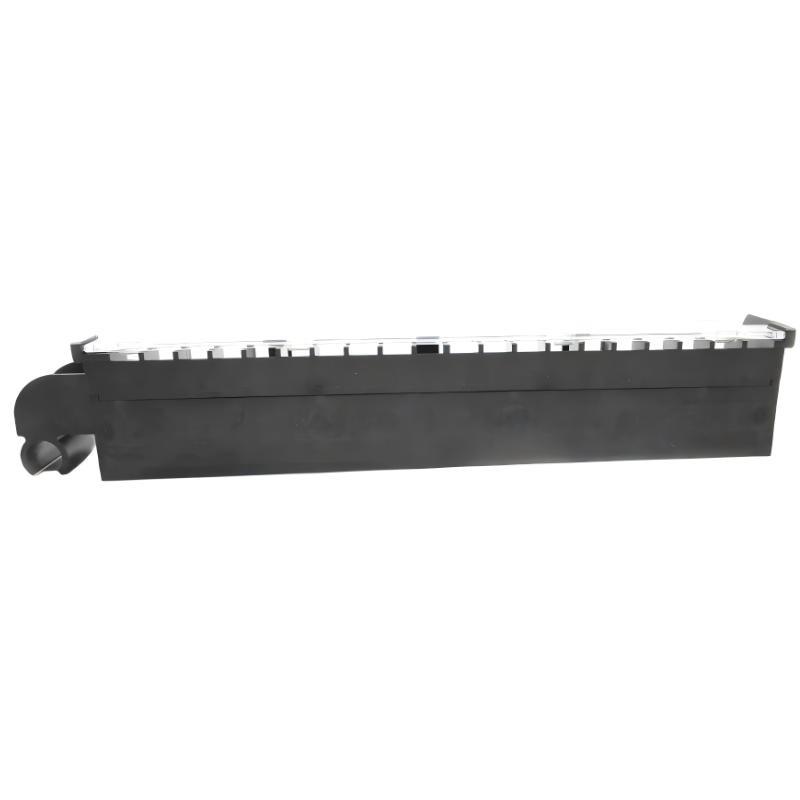

The Allen-Bradley 1771-WN Field Wiring Arm is a field wiring accessory developed for the Allen-Bradley 1771 PLC-5 I/O System. It provides a structured interface between PLC modules and external field devices, enabling efficient and organized wiring in industrial automation systems.

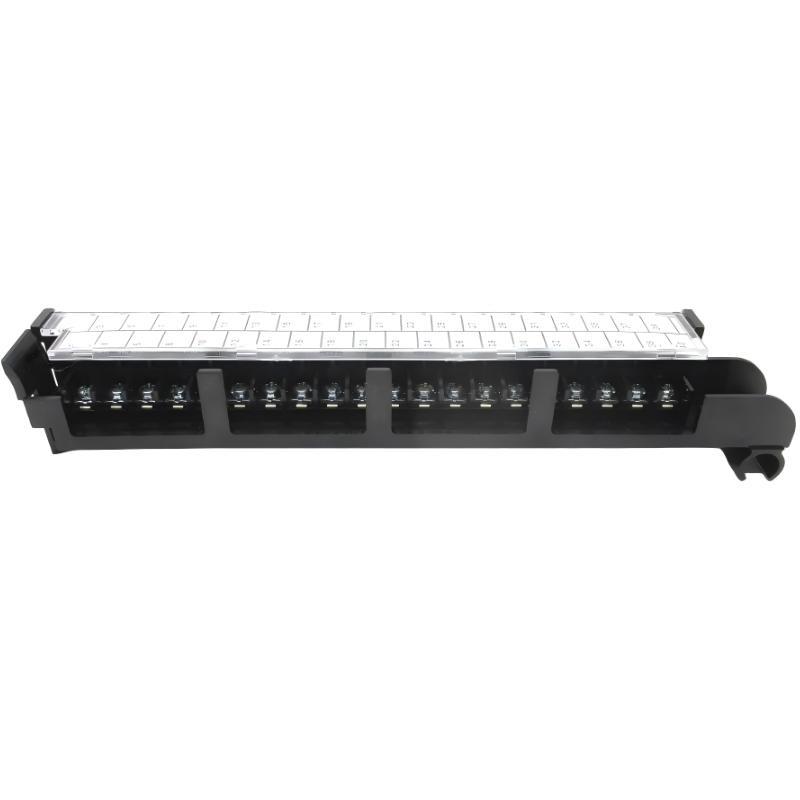

The wiring arm is designed with a 40-pin connection interface and 32 field wiring terminals, allowing reliable connection between PLC modules and external equipment such as sensors, switches, and actuators. Its design simplifies installation while ensuring secure electrical contact for stable signal transmission.
The 1771-WN is commonly used in industrial control cabinets, automation systems, and process control installations, where well-organized wiring and reliable connectivity are essential for maintaining system performance and simplifying maintenance tasks.
Product Specifications
| Parameter | Specification |
|---|---|
| الطراز | 1771-WN |
| العلامة التجارية | Allen-Bradley |
| Module Type | Field Wiring Arm |
| Series | 1771 PLC-5 I/O Series |
| Connector Type | 40-Pin Interface |
| Number من Terminals | 32 |
| Installation Method | 1771 I/O Chassis Mount |
| Application Type | Field wiring interface for PLC modules |
| Dimensions | 100 × 25 × 80 mm |
| الوزن | 0.23 kg |
Applications
• PLC module field wiring interface
Provides a reliable interface between PLC I/O modules and field devices, ensuring stable signal transmission.
• Industrial automation systems
Used to connect sensors, limit switches, actuators, and control devices to PLC racks.
• Process control installations
Facilitates wiring for systems managing valves, pumps, and monitoring instruments.
• Control cabinet wiring organization
Helps maintain structured and organized wiring layouts inside industrial control panels.
• System maintenance and troubleshooting
Simplifies identification من field wiring connections, making diagnostics and service tasks more efficient.
Advantages
• High-density terminal design
Provides 32 terminals to accommodate multiple field wiring connections.
• 40-pin interface compatibility
Ensures reliable integration with compatible 1771 PLC modules.
• Improved wiring organization
Centralizes field connections, reducing clutter and improving accessibility.
• Reliable industrial connectivity
Designed to maintain stable electrical connections in demanding automation environments.
• Simplified installation
Attaches directly to compatible PLC modules, reducing wiring complexity.
• Efficient maintenance support
Structured terminal layout allows faster troubleshooting and easier wiring modifications.
