مقدمة المنتج

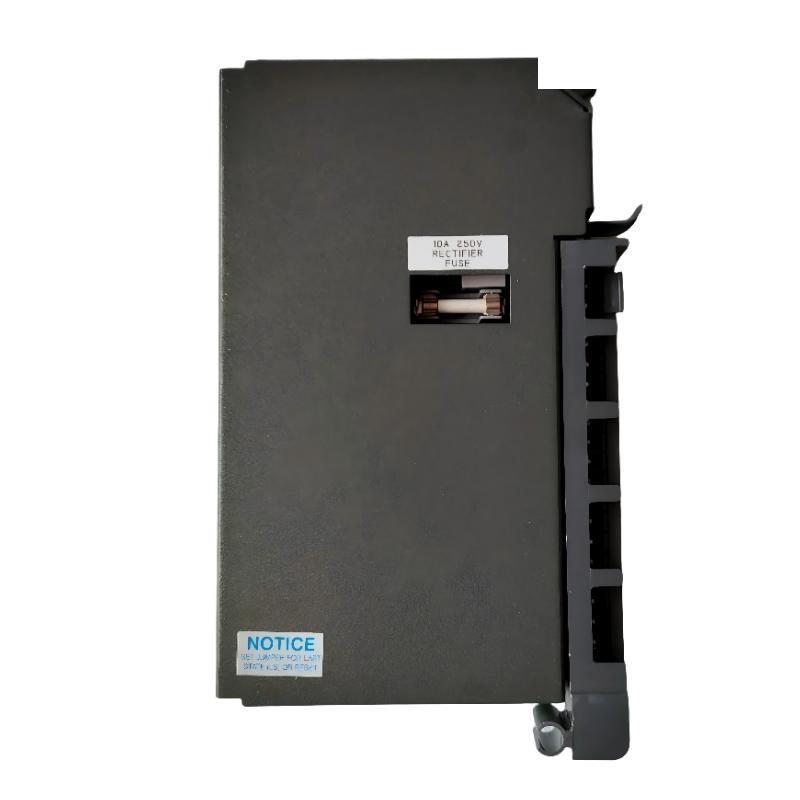

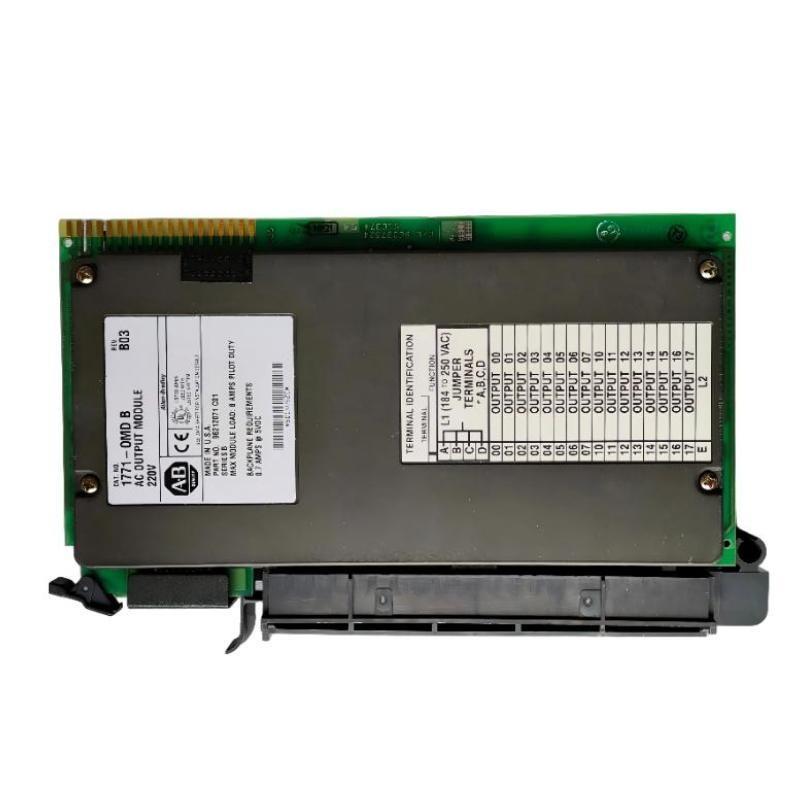

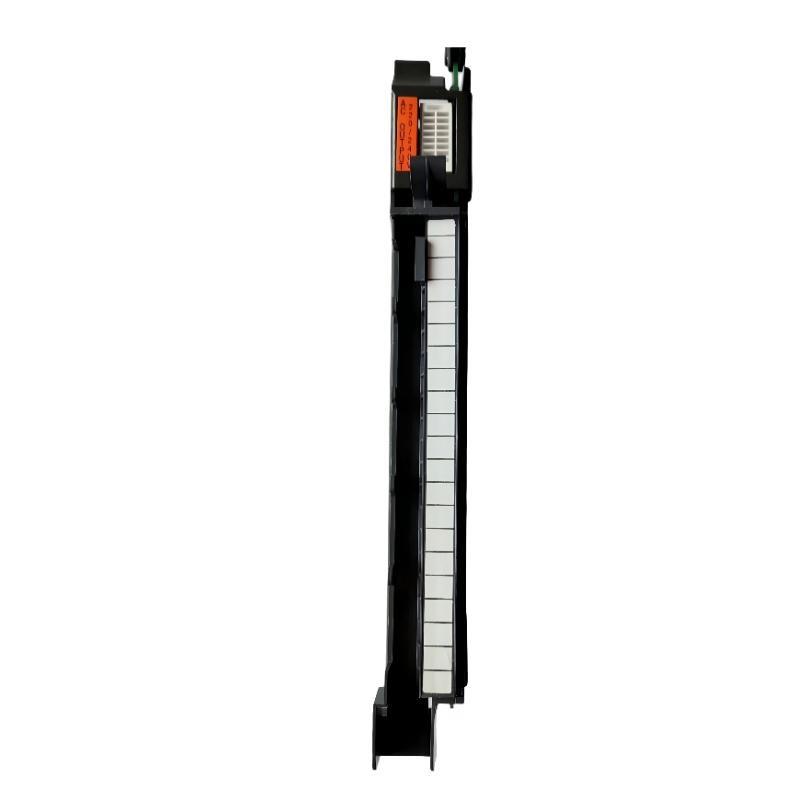

The Allen-Bradley 1771-OMD/B Digital DC Output Module is a 16-point output module designed to provide reliable DC switching for industrial PLC applications. It is capable من driving field devices at higher voltage levels up to 220 V AC, supporting pilot-duty loads and discrete control من relays, solenoids, indicators, and other DC actuators.
This module is engineered for rack-mounted installation within 1771 I/O systems, delivering consistent and robust operation in industrial environments. Its design ensures channel-to-backplane isolation, overcurrent protection, and safe switching من pilot-duty loads, making it suitable for process automation, machinery control, and other critical industrial applications.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | 1771-OMD/B |
| Product Type | Digital DC Output Module |
| Number من Points | 16 |
| Output Voltage | 220 V AC (pilot duty) |
| Maximum Output Current (Pilot Duty) | 8 A per module |
| Output Type | Digital DC, discrete switching |
| Channel Isolation | Channel-to-backplane isolation |
| Protection | Overcurrent and short-circuit protection per channel |
| Mounting | Rack-mountable (1771 I/O rack) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 85°C |
| Dimensions | 165 x 51 x 89 mm |
| الوزن | 0.748 kg |
| Load Type | Pilot duty discrete devices |
| Reliability | Industrial-grade, continuous operation capable |
Product Applications
-
Switching pilot-duty DC loads in industrial automation systems
-
Controlling solenoids, relays, and small actuators in manufacturing and process control
-
Driving indicator lights, alarms, and low-power devices in control panels
-
Digital output interface for PLC-controlled machinery and sequential processes
-
Rack-mounted I/O configurations requiring reliable high-voltage discrete outputs
-
Applications where channel isolation and protection are critical to system integrity
-
Continuous operation in harsh industrial environments with electrical noise
Product Advantages
-
High Channel Density: 16 discrete output points reduce the number من modules required.
-
Pilot-Duty Capability: Can switch high-voltage devices up to 220 V AC safely.
-
Built-in Protection: Overcurrent and short-circuit protection for each channel safeguards module and field devices.
-
Rack-Mountable Design: Standard 1771 form factor enables easy integration into existing PLC racks.
-
Reliable Operation: Designed for continuous industrial use with stable switching performance.
-
Channel Isolation: Protects PLC backplane and prevents cross-channel interference.
-
Versatile Application: الدعمs relays, solenoids, indicators, and other discrete field devices.
