مقدمة المنتج

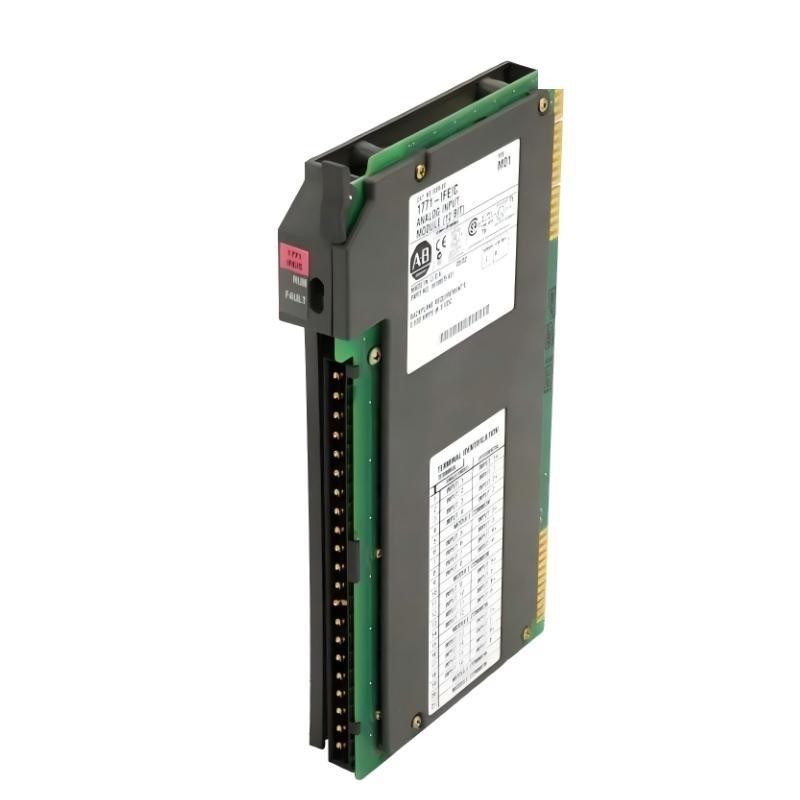

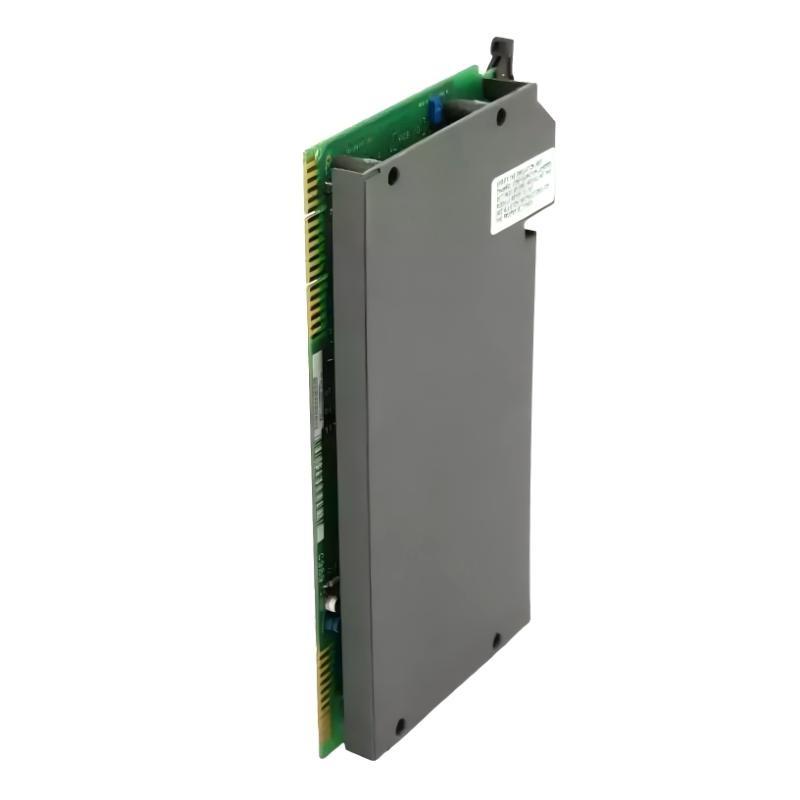

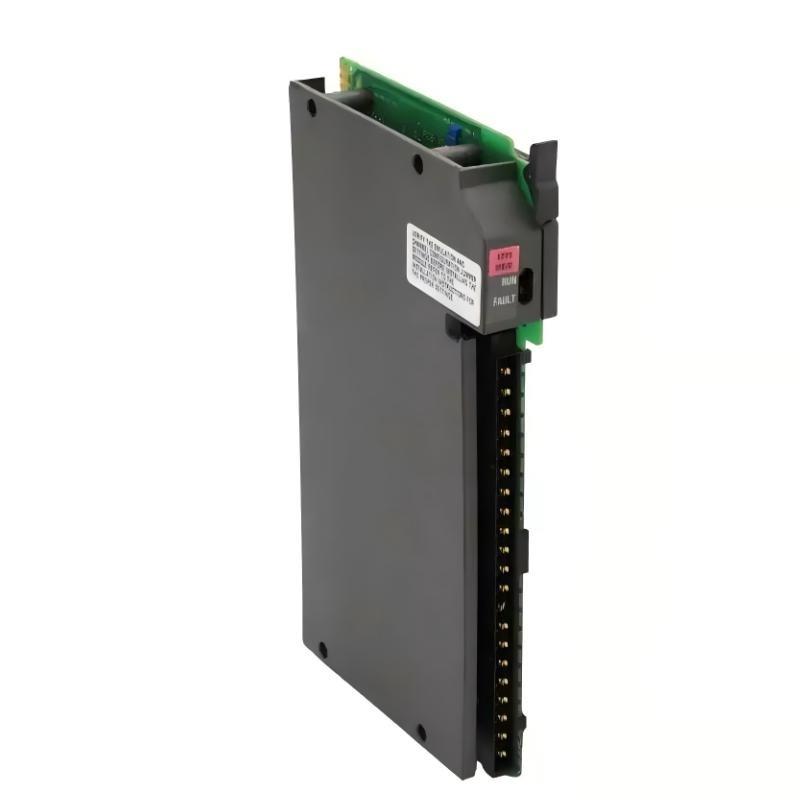

The Allen-Bradley 1771-IFE Analog Input Module is a high-density analog input card designed for 16-point signal acquisition in PLC systems. It converts field-level analog signals into digital data for processing by the PLC. The module supports multiple industrial sensors and transducers, providing accurate and reliable measurement من voltage or current signals.
Its 12-bit resolution ensures precise signal conversion, while the 5 V DC backplane power supply allows seamless integration into standard 1771 I/O racks. The module is designed for industrial applications where consistent signal integrity and rack-mounted configuration are required.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | 1771-IFE |
| Product Type | Analog Input Module |
| Number من Channels | 16 |
| Resolution | 12-bit |
| Input Type | Voltage or current (configurable) |
| Input Current | 0.75 A (total for module) |
| Input Voltage | 0–5 V DC |
| Power Supply | 5 V DC (backplane) |
| Accuracy | ±0.1% من full scale typical |
| Conversion Method | Successive Approximation (SAR) |
| Isolation | Channel-to-backplane isolation |
| Mounting | Rack mountable (1771 I/O rack) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 85°C |
| Dimensions | 165 x 51 x 89 mm |
| الوزن | 0.45 kg |
Product Applications
-
Acquisition من analog signals from temperature, pressure, flow, and level sensors
-
Voltage or current monitoring from industrial process equipment
-
Signal input for control loops in PLC-based automation
-
Analog signal interface for SCADA and monitoring systems
-
Batch and sequence control requiring multiple simultaneous analog measurements
-
Industrial machinery, pumps, compressors, and process monitoring
Product Advantages
-
High Channel Density: 16 analog inputs per module optimize rack space.
-
12-bit Resolution: Provides accurate digital representation من analog signals.
-
Standardized Rack Mounting: Fits in Allen-Bradley 1771 I/O racks for easy system integration.
-
Reliable Conversion: Successive Approximation (SAR) ensures stable and fast conversion.
-
Backplane Power Supply: Eliminates need for external voltage supply.
-
Wide Industrial Compatibility: Suitable for a broad range من industrial sensors and process applications.
-
Robust Design: Operates reliably under standard industrial temperature and environmental conditions.
