مقدمة المنتج

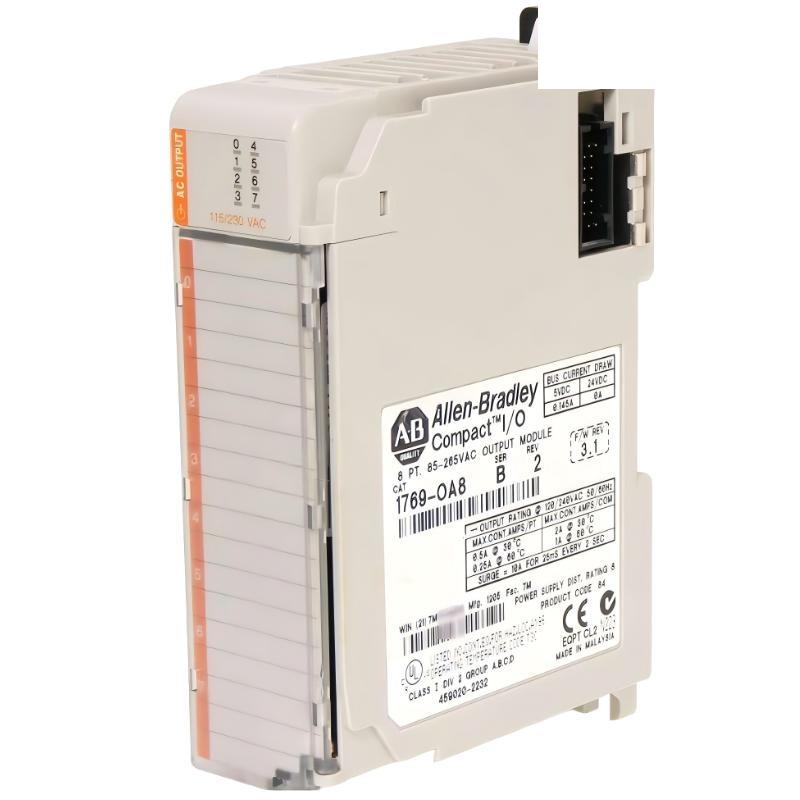

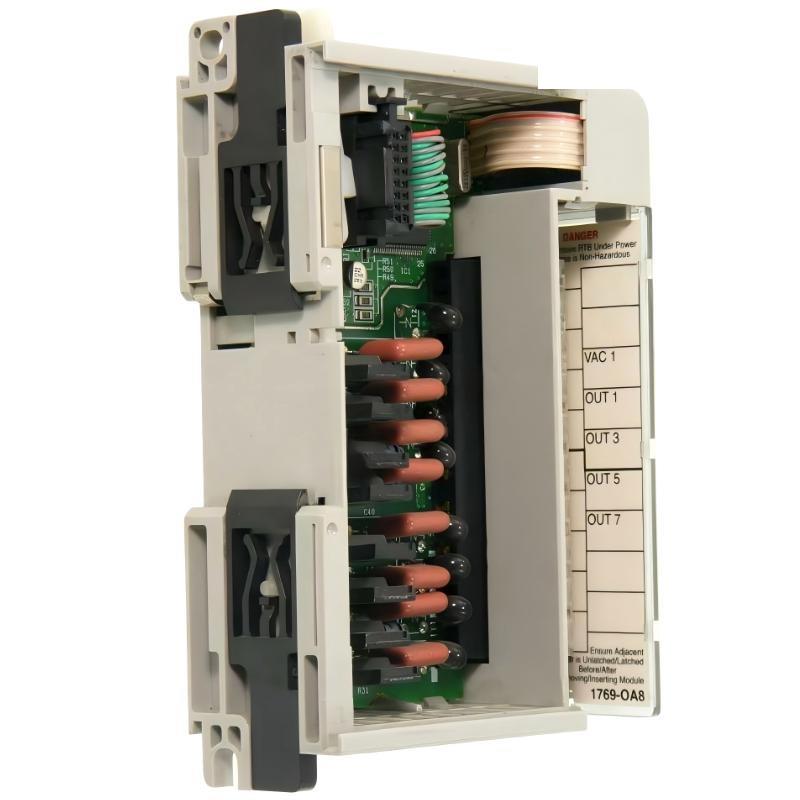

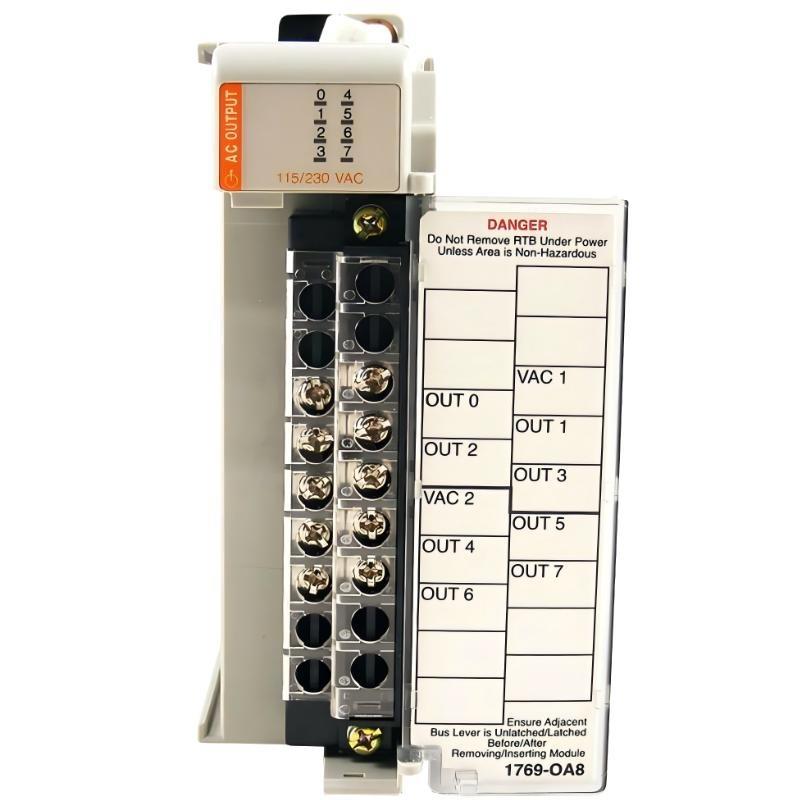

The Allen Bradley 1769-OA8 CompactLogix AC Solid-الولاية Output Module is a reliable and compact output module designed for the CompactLogix family من controllers. It provides 8 AC solid-state output points, organized in two groups من 4 outputs, for switching AC loads such as motors, solenoids, lights, and other industrial devices. The module is optimized for automation systems that require fast switching, high reliability, and minimal mechanical wear.
Operating within a voltage range من 85–265 VAC and a frequency من 47–63 Hz, the module is suitable for various industrial AC environments. Its fast turn-on/turn-منf delay من 0.5 cycles ensures precise control من AC loads. The module draws a maximum bus current من 145 mA at +5 VDC (1.125 W), consuming minimal power from the CompactLogix backplane, and has a heat dissipation من 2.12 W, maintaining stable performance during continuous operation.
The 1769-OA8 is ideal for modern industrial applications requiring precise AC control, including OEM machinery, process automation, and distributed control systems. Its solid-state design ensures high reliability, low maintenance, and consistent operation under typical industrial conditions.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Product الطراز | 1769-OA8 |
| Product Type | CompactLogix AC Solid-الولاية Output Module |
| Voltage الفئة | 85–265 VAC |
| Frequency | 47–63 Hz |
| Number من Outputs | 8 (2 groups من 4) |
| Turn-on/Turn-منf Delay | 0.5 cycle each |
| Bus Current Draw, Max | 145 mA at +5 VDC (1.125 W) |
| Heat Dissipation | 2.12 W |
| Mounting Method | DIN Rail / Panel Mount |
| Dimensions | 118 × 35 × 87 mm |
| الوزن | 0.2 kg |
Applications
• Industrial AC load control
Switches motors, solenoids, lights, and other AC-powered devices in automated systems.
• Compact automation systems
Optimized for OEM machinery and small control panels that require multiple AC outputs.
• Process control
Manages sequential operations, timing, and coordinated control من industrial equipment.
• Fast switching applications
Ideal for processes requiring rapid and repetitive AC load switching without mechanical wear.
• Distributed I/O systems
Can be combined with other I/O modules to expand control capabilities in larger automation networks.
Advantages
• Solid-state AC outputs
Provides fast, reliable switching with minimal mechanical wear for long-term operation.
• Wide operating voltage range
Operates from 85–265 VAC, suitable for various industrial power environments.
• Fast response time
Turn-on/turn-منf delay من 0.5 cycles ensures accurate and timely control من AC devices.
• Low bus current consumption
Consumes only 145 mA at +5 VDC, reducing load on the controller and improving energy efficiency.
• Flexible integration
الدعمs solid-state outputs in small cabinets or OEM machinery and can work with multiple modules in distributed systems.
