مقدمة المنتج

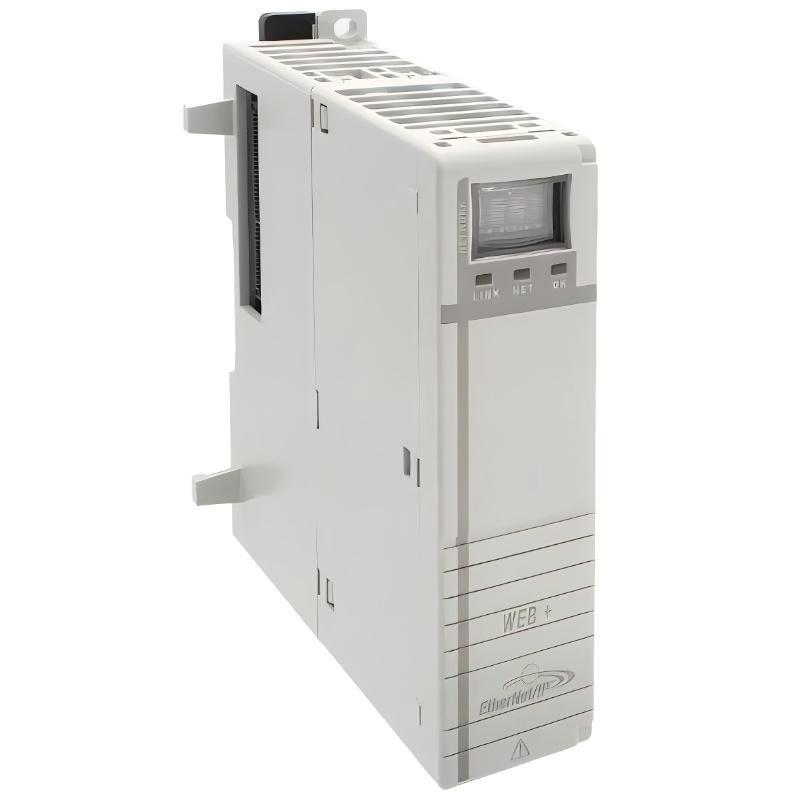

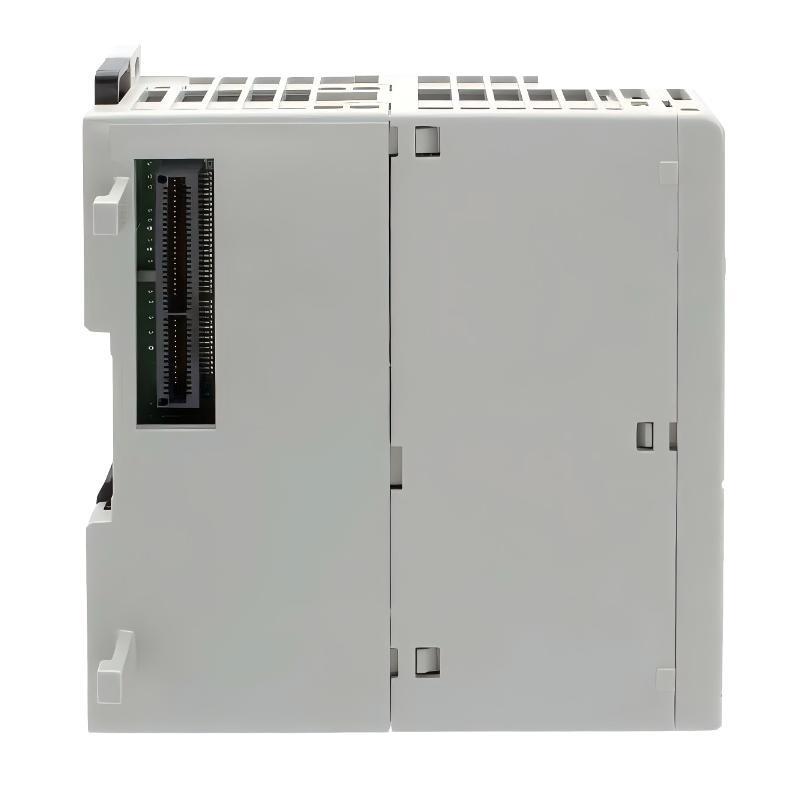

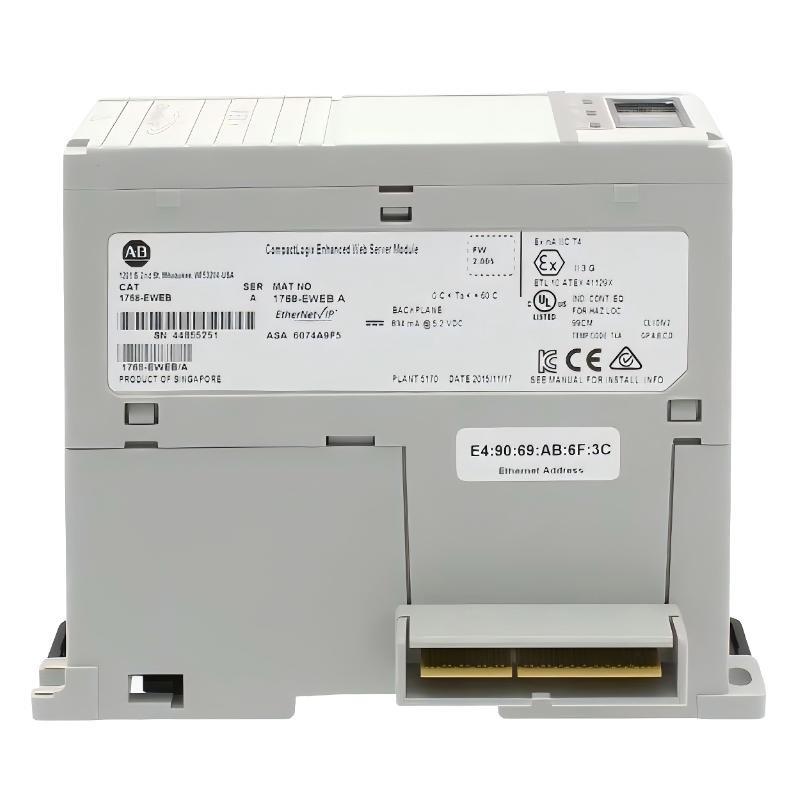

The Allen Bradley 1768-EWEB CompactLogix Ethernet/IP Enhanced Web Server Module is a specialized communication and monitoring module designed for CompactLogix control systems. This module provides integrated Ethernet/IP connectivity and an embedded web server interface that allows engineers and system operators to access controller data, diagnostics, and custom web pages through standard web browsers.
In modern industrial automation environments, remote monitoring and system transparency are increasingly important. The 1768-EWEB module enables plant personnel to monitor system performance, retrieve diagnostic information, and access process data through Ethernet networks without requiring dedicated engineering sمنtware. This capability improves operational visibility and supports faster troubleshooting in distributed control environments.
One من the key features من this module is its onboard storage capability. With integrated memory, the module can host web pages, documentation files, system logs, and other operational resources. Engineers can create customized web interfaces to display system parameters, alarm conditions, or production data, allowing operators to monitor key information in real time through a simple browser-based interface.
The module supports up to 128 Logix connections, providing a high-capacity communication channel for data exchange between the CompactLogix controller and other devices on the network. This makes it suitable for systems that require extensive data communication with HMIs, SCADA platforms, remote monitoring tools, and engineering workstations.
Designed to operate reliably in industrial environments, the 1768-EWEB module functions within a wide operating temperature range and provides durable performance in control cabinets used in manufacturing, energy, transportation, and process industries. Its compact design allows seamless integration into the CompactLogix 1768 platform while expanding the system’s communication and web-based monitoring capabilities.
Overall, the 1768-EWEB module enhances the accessibility and usability من CompactLogix control systems by combining Ethernet/IP communication with embedded web server functionality, enabling efficient data visualization, remote diagnostics, and simplified system management.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product Name | Ethernet/IP Enhanced Web Server Module |
| الطراز Number | 1768-EWEB |
| Series | CompactLogix 1768 Series |
| الشركة المصنعة | Allen Bradley |
| Communication Protocol | EtherNet/IP |
| Integrated Web Server | الدعمed |
| Onboard Storage | 2 MB |
| الدعمed Logix Connections | Up to 128 connections |
| Network Interface | Ethernet communication interface |
| Data Access | Web browser access to controller data |
| Diagnostics | Built-in system monitoring and diagnostic capabilities |
| System Integration | Compatible with CompactLogix control systems |
| Operating Temperature | 32 to 140 °F (0 to 60 °C) |
| Storage Temperature | −40 to 185 °F (−40 to 85 °C) |
| Dimensions | 132 x 56.7 x 105.1 mm |
| الوزن | 0.23 kg |
Applications
• Industrial system monitoring – Provides browser-based access to controller data, allowing operators and engineers to monitor system status, alarms, and process variables remotely through Ethernet networks.
• Manufacturing automation systems – Used in automated production lines to provide real-time visibility into controller operations and production parameters through web-based interfaces.
• Remote diagnostics and maintenance – Enables maintenance personnel to access diagnostic data and system information without direct physical connection to the controller.
• SCADA and plant monitoring networks – الدعمs communication with supervisory systems and facilitates the exchange من operational data across industrial Ethernet networks.
• Process industry control systems – Applied in sectors such as chemical processing, oil and gas, and water treatment where reliable access to process information is essential.
• Industrial data visualization solutions – Allows engineers to create customized web pages that display operational parameters, machine status, and performance indicators.
Advantages
• Integrated web-based monitoring – The built-in web server allows users to access controller data and system information through standard web browsers without additional sمنtware.
• High connection capacity – With support for up to 128 Logix connections, the module can manage communication with multiple devices across the automation network.
• Onboard data storage capability – The integrated 2 MB storage enables the hosting من custom web pages, system documentation, and configuration resources.
• Simplified remote access – Engineers and operators can easily access system information from remote locations, improving maintenance efficiency and operational transparency.
• Reliable Ethernet/IP communication – Provides stable and high-speed communication across industrial Ethernet networks used in modern automation systems.
• Improved troubleshooting efficiency – The ability to quickly access diagnostics and system information through web interfaces helps reduce system downtime.
• Compact system integration – Designed specifically for CompactLogix platforms, allowing easy installation within existing control architectures.
