مقدمة المنتج

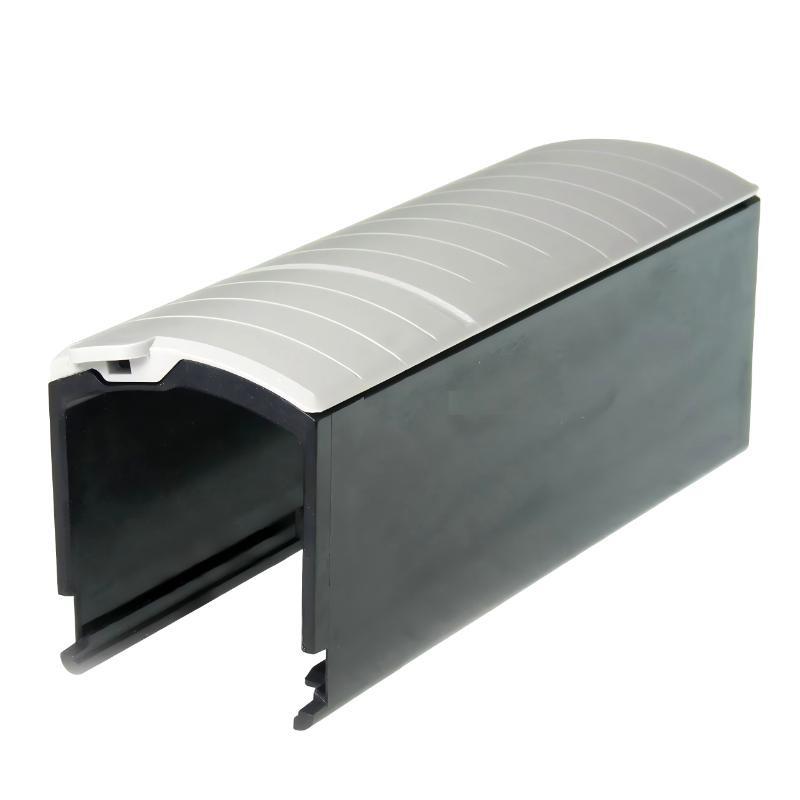

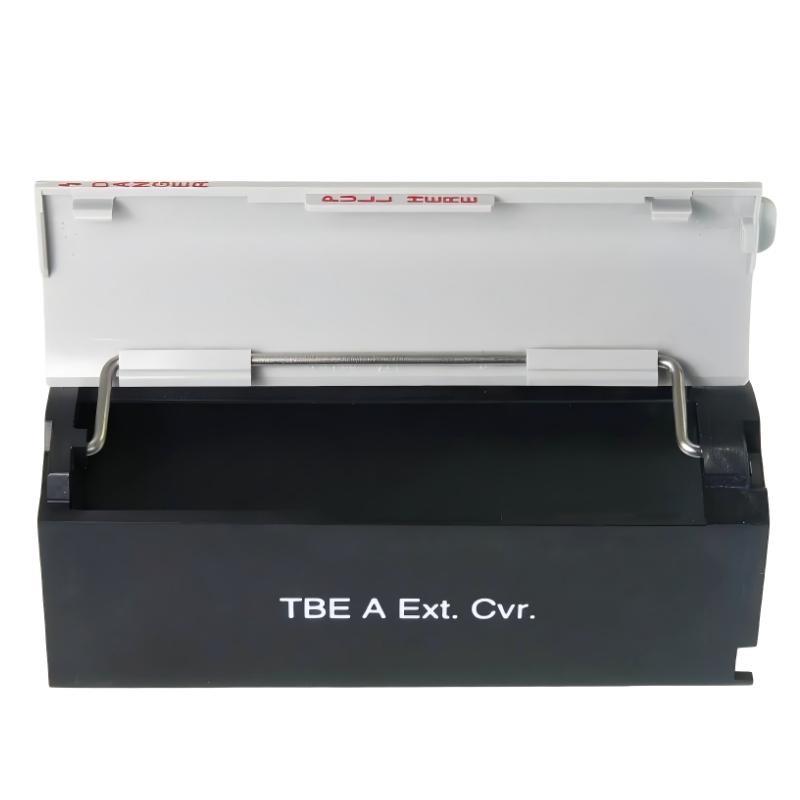

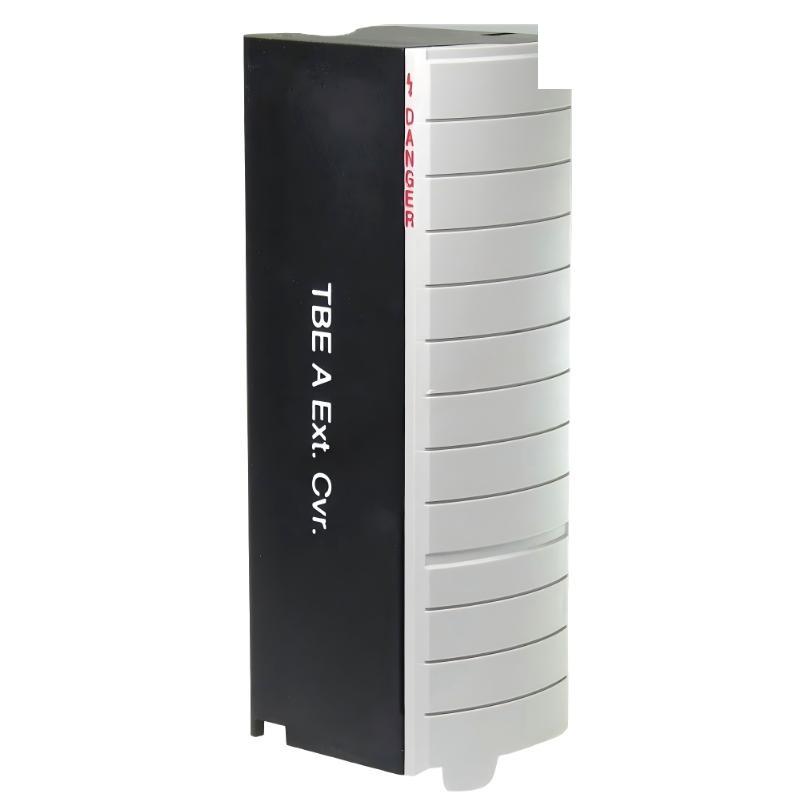

The Allen Bradley 1756-TBE ControlLogix Extended Depth Terminal Block Housing is designed to provide a robust and flexible interface for field wiring in ControlLogix I/O applications. The extended depth housing allows for easier wire routing, especially when handling multiple or larger conductors, without compromising the secure cage-clamp connection.
This terminal block housing is compatible with a variety من ControlLogix I/O modules and simplifies installation in control cabinets by منfering additional wire space. Its modular design enables fast installation and removal, facilitating maintenance or module replacement without disturbing existing field wiring.
The 1756-TBE is constructed with industrial-grade materials to ensure durability, stable electrical connections, and long-term performance in standard factory and process environments. Its design reduces wiring congestion and improves accessibility, making it an ideal solution for high-density I/O applications.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Product Name | 1756-TBE ControlLogix Extended Depth Terminal Block Housing |
| الشركة المصنعة | Allen-Bradley |
| Series | ControlLogix |
| Terminal Type | Extended Depth Cage-Clamp Housing |
| Wire Type – Single Conductor | 22–14 AWG |
| Wire Type – Double Conductor | 22–16 AWG |
| Pin Capacity | Compatible with standard ControlLogix terminal blocks |
| Installation Style | Front-mounted removable terminal housing |
| Operating Temperature | 0 to 60 °C |
| Material Construction | Industrial-grade thermoplastic |
| Maintenance Requirement | No retightening required |
| Vibration Resistance | Industrial rated |
| Dimensions | 132 x 54 x 110 mm |
| الوزن | 0.1 kg |
Applications
• ControlLogix I/O modules requiring extended wire routing space for dense wiring layouts.
• Industrial automation cabinets where accessibility and wire management are important.
• Process control systems with multiple conductors or larger gauge wires.
• OEM machinery panels needing reliable, removable terminal connections.
• High-density I/O environments to reduce wiring congestion and improve maintenance access.
• Industrial facilities that require quick module replacement without rewiring.
• Factory automation systems for organized and reliable electrical connections.
Advantages
• Extended Depth Design
Provides additional wire routing space, simplifying installation for high-density wiring.
• Cage-Clamp Secure Connection
Ensures stable electrical contact without periodic retightening.
• Removable Housing
Allows modules to be replaced or serviced without disturbing field wiring.
• Flexible Wire Accommodation
Accepts 22–14 AWG single wires and 22–16 AWG double wires.
• Industrial-Grade Materials
Durable construction maintains performance in standard operating conditions.
• Compact Footprint
Optimized dimensions save cabinet space while providing wire accessibility.
• Reduced Maintenance Effort
Long-term connection stability eliminates frequent checks.
