مقدمة المنتج

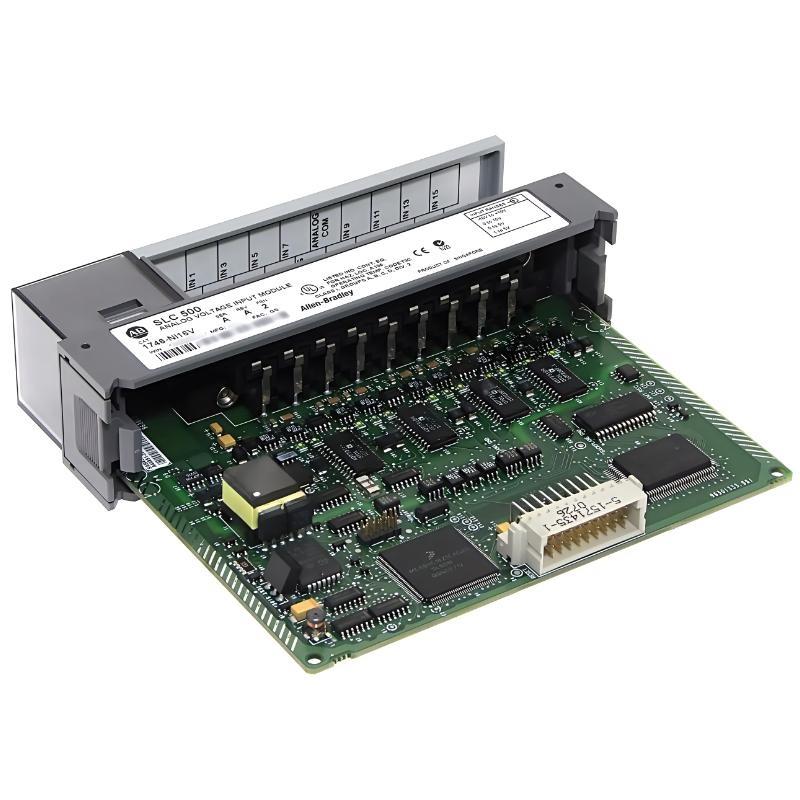

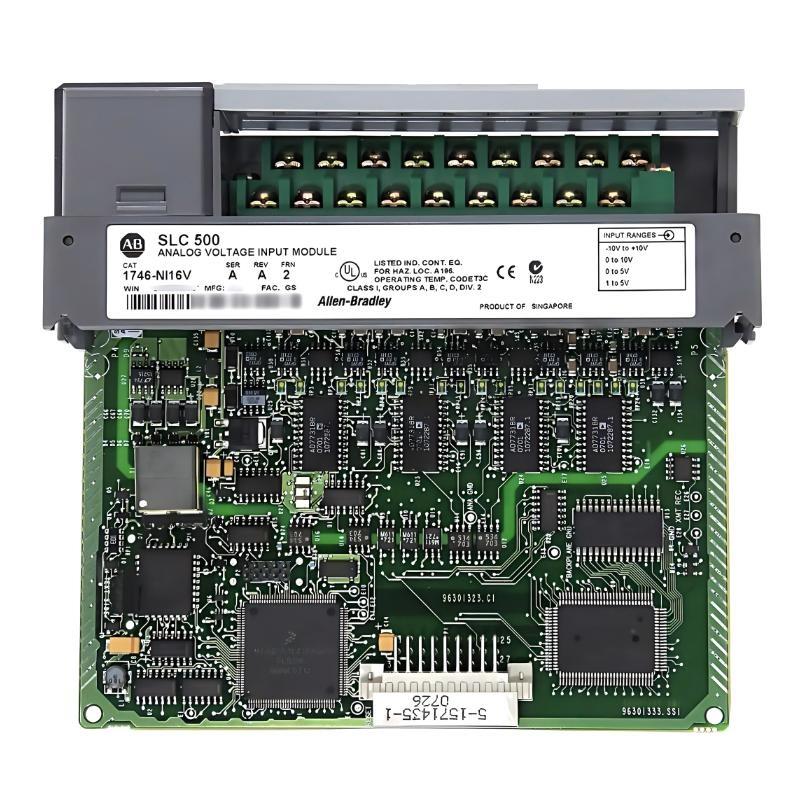

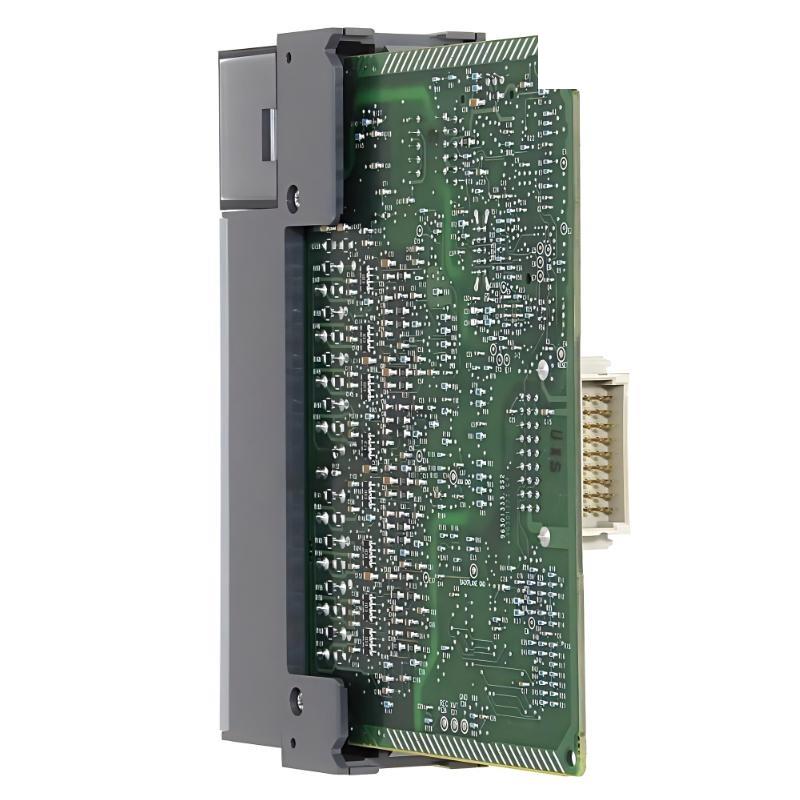

The Allen-Bradley 1746-NI16V is a high-density analog input module designed for the SLC 500 programmable controller system. It provides precise acquisition من voltage-based analog signals and converts them into digital data for processing within the PLC, making it suitable for applications requiring accurate measurement and control.
This module supports 16 single-ended analog input channels, allowing efficient integration من multiple field signals within a compact footprint. It is specifically designed for ±10V DC input ranges, making it ideal for interfacing with transmitters, sensors, and instrumentation devices that output voltage signals.
A key feature من the 1746-NI16V is its sمنtware configurability, enabling flexible channel configuration and scaling directly through the PLC program. This reduces the need for external signal conditioning and enhances system adaptability. The module is widely used in industrial automation systems where high channel density and reliable analog performance are required.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الشركة المصنعة | Allen-Bradley |
| Series | SLC 500 |
| Module Type | Analog Input Module |
| Catalog Number | 1746-NI16V |
| Module Classification | High-Density Analog Input |
| Number من Channels | 16 Channels (Single-ended) |
| Input Type | Voltage |
| Input Range | ±10V DC |
| Resolution | 16-bit |
| Input Impedance | High impedance (typical >1 MΩ) |
| Conversion Method | Sigma-Delta Conversion |
| Update Time | Approx. 8–10 ms (all channels) |
| Accuracy | ±0.3% من full scale (typical) |
| Non-linearity | ±0.01% |
| Backplane Current Consumption | Approx. 0.135 A |
| Isolation | No channel-to-channel isolation |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Installation | SLC 500 Chassis |
| Wiring الفئة | الفئة 1 |
| Configuration | Sمنtware configurable |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| الوزن | 0.38 kg |
Applications
● Process Variable Monitoring
Used for acquiring voltage signals from sensors such as pressure, flow, temperature, and level transmitters in industrial processes.
● Data Acquisition Systems
Enables high-density signal collection in systems where multiple analog inputs must be monitored simultaneously.
● Energy and Power Systems
Suitable for voltage monitoring in power distribution and energy management applications.
● Test and Measurement Equipment
Used in industrial testing environments where precise voltage signal acquisition is required.
● Machine Automation Systems
Provides real-time analog feedback for control loops, improving system accuracy and responsiveness.
Advantages
● High Channel Density
الدعمs 16 analog inputs in a single module, reducing rack space requirements and system cost.
● Wide Voltage Input Range
Handles ±10V DC signals, making it compatible with a wide range من industrial sensors and transmitters.
● High Measurement Accuracy
Offers precise signal conversion with stable performance suitable for critical monitoring applications.
● Sمنtware Configurable Operation
Allows flexible configuration and scaling through programming, eliminating the need for hardware adjustments.
● Efficient Signal Processing
Provides fast update times for multiple channels, ensuring timely data acquisition.
● Seamless System Integration
Fully compatible with SLC 500 systems, enabling easy installation and expansion.
