مقدمة المنتج

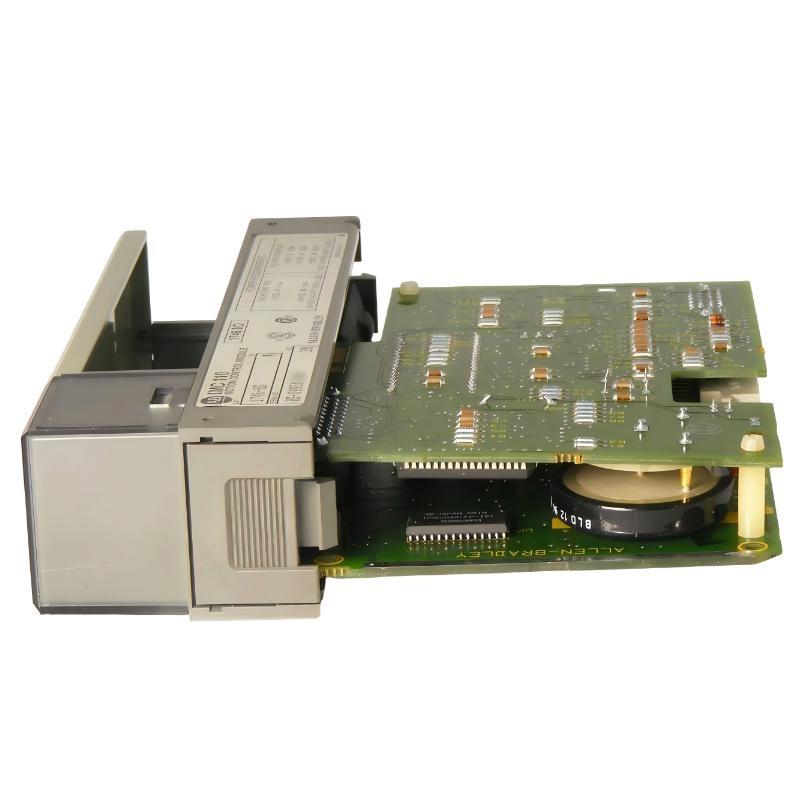

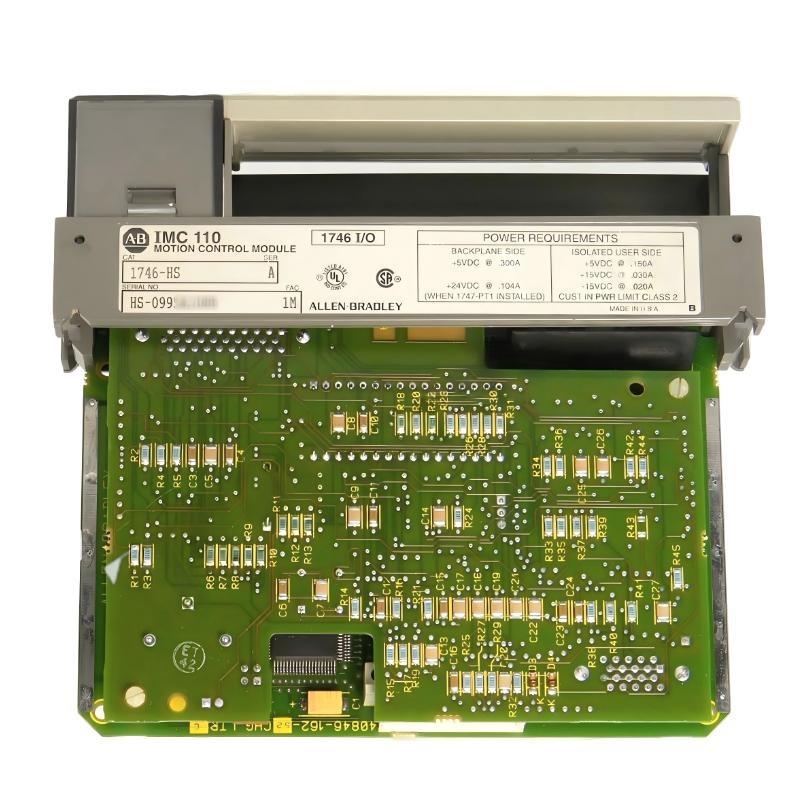

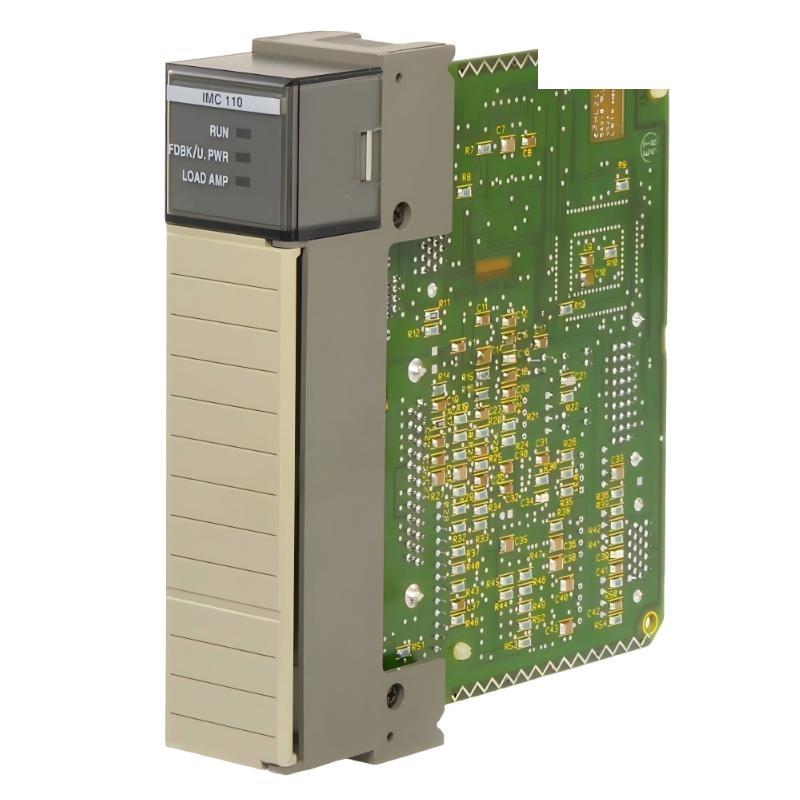

The Allen-Bradley 1746-HS Motion Control Module is a high-performance module designed for precise motion and positioning control in SLC 500 programmable controller systems. It provides isolated and regulated power outputs for motion control applications, allowing the integration من sensors, actuators, and other user-side devices with accurate voltage and current specifications.
This module enables industrial machines to execute coordinated motion, high-speed indexing, and precise positioning tasks. Its isolated user-side outputs protect connected devices while maintaining reliable signal integrity. The 1746-HS is ideal for automated manufacturing systems, robotics, and other applications requiring precise motion control.
The module integrates directly into the SLC 500 backplane, منfering compact installation and seamless communication with the SLC 500 CPU and other I/O modules.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product Type | Motion Control Module |
| الشركة المصنعة | Allen-Bradley |
| Series | SLC 500 |
| الطراز Number | 1746-HS |
| User-Side Voltage Outputs | 5 VDC – 0.300 A; 24 VDC – 0.104 A; Isolated User Side: 5 VDC – 0.150 A; 15 VDC – 0.030 A; 15 VDC – 0.20 A |
| Function | Motion Control and Positioning |
| Isolation | Isolated User-Side Outputs |
| Mounting Type | SLC 500 Backplane / Control Cabinet |
| Operating Environment | Industrial Automation Systems |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| الوزن | 0.141 kg |
Applications
• Coordinated motion control, enabling precise positioning من machinery and robotic systems
• High-speed indexing, supporting automated production lines and material handling
• Sensor and actuator integration, utilizing isolated user-side outputs for reliable operation
• Industrial robotics, providing power and control for servo or stepper motor drives
• Machine automation, allowing accurate and repeatable motion sequences
• SLC 500 system expansion, integrating seamlessly with CPUs and I/O modules
Advantages
• Isolated user-side outputs, protecting connected devices and reducing electrical interference
• Multi-voltage support, providing 5 VDC, 15 VDC, and 24 VDC outputs for diverse devices
• Compact SLC 500 integration, allowing space-efficient installation
• Reliable motion control, supporting precise, repeatable positioning tasks
• Low power consumption, optimized for industrial automation efficiency
• High system compatibility, fully integrated with SLC 500 controllers and I/O modules
