مقدمة المنتج

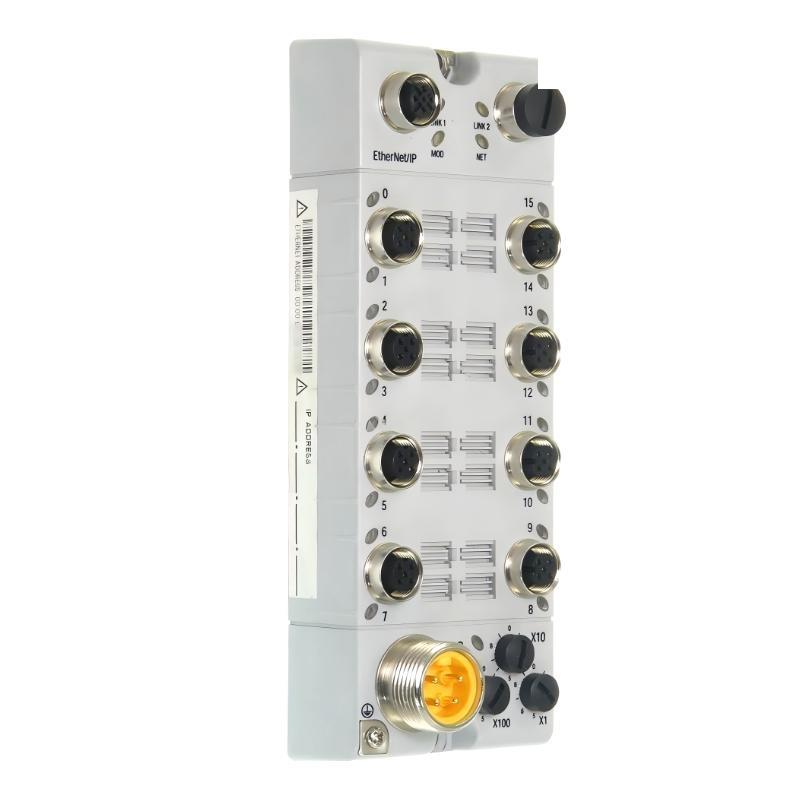

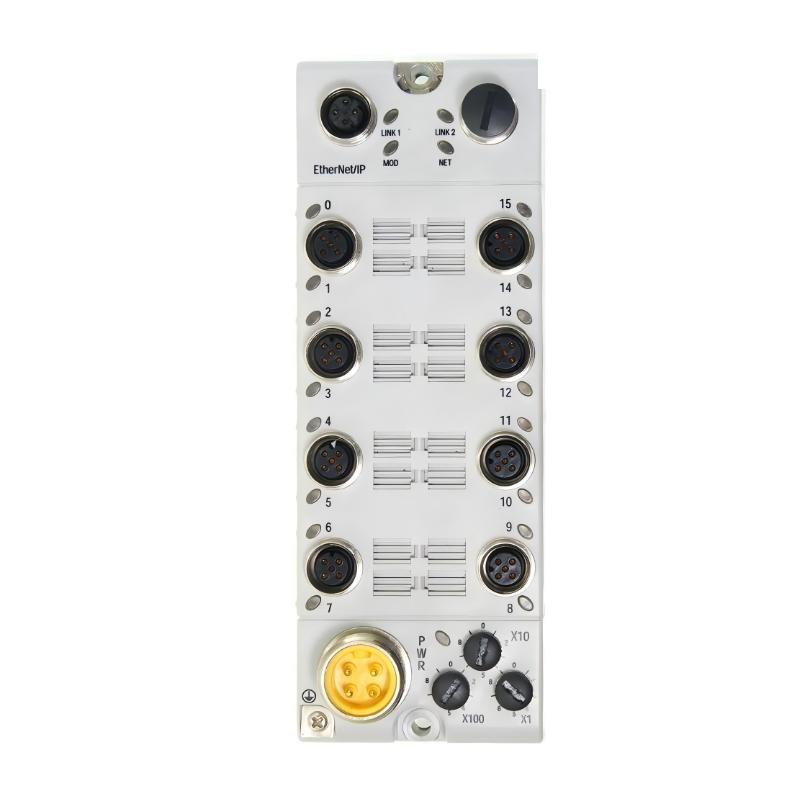

The Allen Bradley 1732E-IB16M12R Ethernet/IP ArmorBlock I/O Module is a distributed 24 V DC digital input module designed for EtherNet/IP-based industrial automation systems. It provides 16 sinking-type digital input channels, enabling reliable acquisition من field signals from sensors, switches, and other discrete devices.
This module is part من the ARMORBLOCK I/O family and features a dual-port EtherNet/IP interface with Device Level Ring (DLR) support for network redundancy. Its sealed housing with IP67/IP69K protection allows installation directly on machines, even in harsh or washdown environments. The use من M12 connectors simplifies wiring and enhances reliability in distributed I/O architectures.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | Allen Bradley 1732E-IB16M12R |
| Product Type | Digital Input I/O Module |
| I/O Type | Discrete DC Input |
| Number من Digital Inputs | 16 |
| Input Type | Sinking |
| Input Voltage Type | DC |
| Permitted Input Voltage Range | 11 – 30 V DC |
| Supply Voltage | 24 V DC |
| Communication Protocol | EtherNet/IP |
| Dual-Port Ethernet | Yes |
| DLR الدعم | Yes |
| Connector Type | M12 input connectors, M12 Ethernet connectors |
| Degree من Protection | IP67 / IP69K |
| Operating Temperature | -20 to +60 °C |
| Storage Temperature | -40 to +85 °C |
| Max. Ambient Humidity | 95 % RH (non-condensing) |
| Suitable for Safety Functions | No |
| Dimensions | 179 × 65 × 43.25 mm |
| الوزن | 0.34 kg |
Applications
• Distributed EtherNet/IP I/O Systems
Used for remote digital signal acquisition in networked automation architectures.
• Industrial Machinery
Connects proximity sensors, limit switches, and photoelectric sensors directly at the machine level.
• Harsh Environment Installations
Suitable for washdown areas, outdoor installations, and high-humidity locations.
• Packaging and Assembly Lines
الدعمs fast and reliable detection من discrete machine states.
• Process Automation
Provides stable digital input signals for monitoring and control logic execution.
Advantages
• 16-Channel Digital Input Density
Allows high signal concentration in a compact distributed I/O module.
• Dual-Port EtherNet/IP with DLR
Ensures network redundancy and fast recovery in ring topologies.
• M12 Connector Design
Improves wiring reliability and installation efficiency in the field.
• IP67 / IP69K Protection
Enables direct-on-machine mounting without additional enclosures.
• ARMORBLOCK Integration
Seamlessly integrates into modular distributed I/O architectures.
• Industrial-Grade Diagnostics
الدعمs input and communication status monitoring for efficient troubleshooting.
