مقدمة المنتج

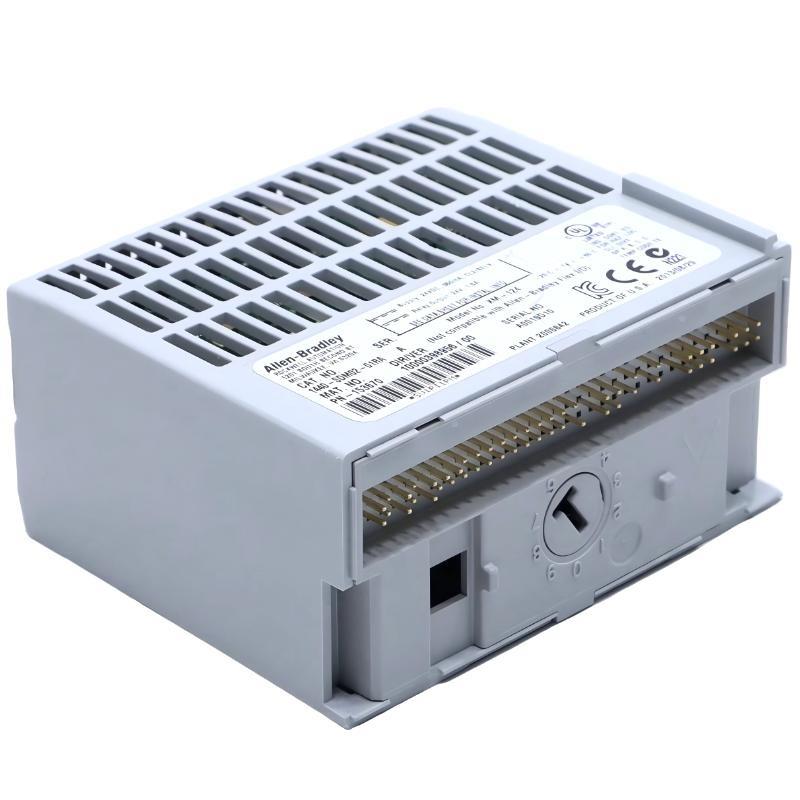

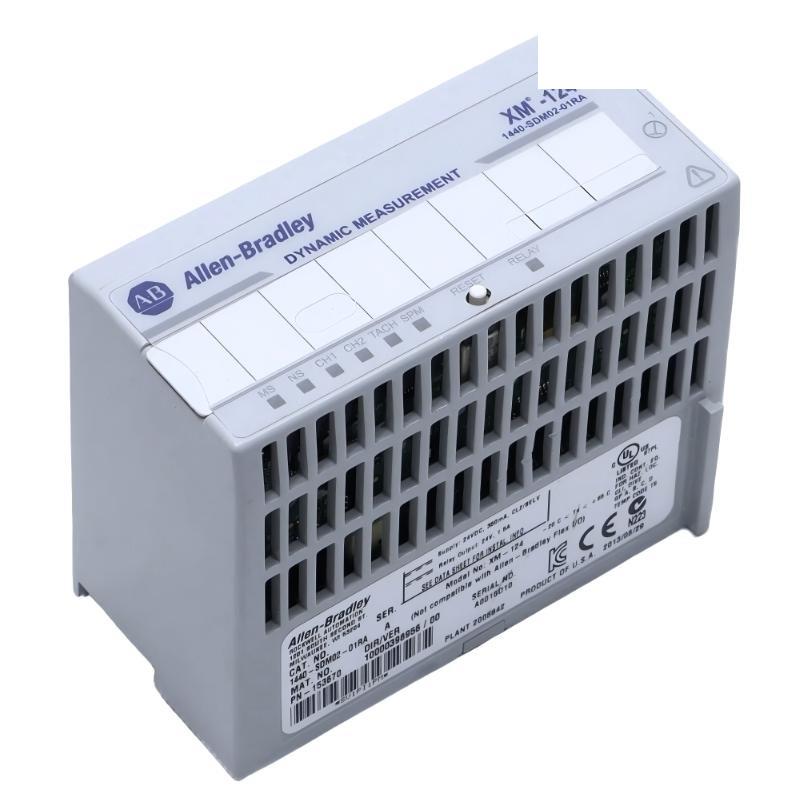

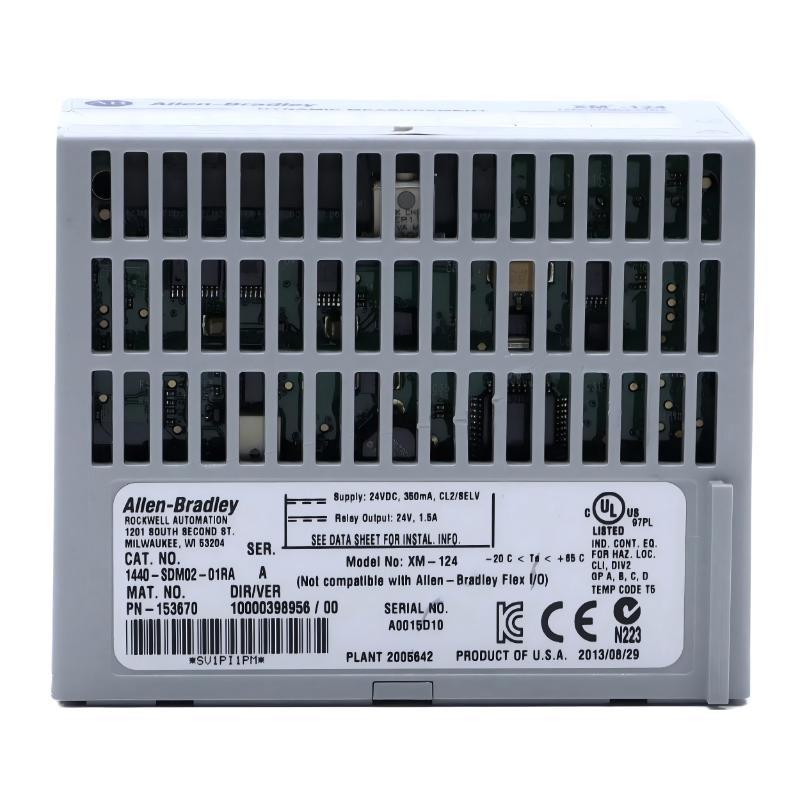

The Allen-Bradley 1440-SDM02-01RA XM-124 Standard Dynamic Measurement Module is a dedicated condition monitoring module designed for capturing and processing dynamic signals in industrial environments. It is commonly used in machinery monitoring systems where vibration, pressure, and strain data are critical for assessing equipment health and performance.
As part من the XM series, this module is tailored for integration into predictive maintenance systems. It enables continuous monitoring من rotating equipment such as motors, pumps, and turbines, allowing operators to detect early signs من mechanical issues. By providing accurate dynamic measurement capabilities, it helps reduce unplanned downtime and supports more efficient maintenance planning.
In addition to dynamic inputs, the module also supports a tachometer channel and a static measurement input, making it a versatile solution for applications that require both motion-related and positional data. Its robust design ensures stable operation even in demanding industrial conditions, making it a reliable component in long-term monitoring systems.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز | 1440-SDM02-01RA |
| الشركة المصنعة | Allen-Bradley |
| Product Type | XM-124 Dynamic Measurement Module |
| Measurement Type | Dynamic and static signal monitoring |
| Dynamic Channels | 2 Channels |
| Tachometer Channel | 1 Channel |
| الدعمed Measurements | Vibration, pressure, strain, thrust, shaft position |
| Power Supply | 240 V DC |
| Current Consumption | 360 mA |
| Relay Output | 24 V DC, 1.5 A |
| Power Dissipation | 8.7 W |
| Operating Temperature | Down to -20°C |
| Connection Type | Screw connection |
| Application Role | Machinery condition monitoring |
| System Integration | XM series monitoring systems |
| Dimensions | 97 × 94 × 94 mm |
| الوزن | 0.172 kg |
Applications
• Rotating machinery condition monitoring
Used to capture vibration and dynamic signals, enabling early detection من faults in motors, pumps, and turbines.
• Predictive maintenance systems
الدعمs continuous equipment diagnostics, helping reduce unexpected downtime and maintenance costs.
• Industrial process monitoring
Provides real-time measurement من pressure and strain, improving operational visibility.
• Speed and position tracking
The tachometer channel enables accurate speed monitoring, while static input supports shaft position or thrust measurement.
• Critical asset protection
Ensures reliable monitoring من high-value equipment, preventing severe damage through early warning signals.
Advantages
• Multi-parameter measurement capability
Combines dynamic and static measurement functions, reducing the need for multiple modules.
• Accurate and reliable data acquisition
Designed to provide stable and precise signal processing for condition monitoring applications.
• Integrated tachometer support
Enables synchronous speed measurement, enhancing diagnostic accuracy.
• Robust industrial design
Operates reliably in harsh environments, including low-temperature conditions.
• Flexible system integration
Easily integrates into XM monitoring systems, supporting scalable solutions.
• Efficient maintenance support
Helps identify issues early, enabling planned maintenance and reduced downtime.
