ABB XC08L1 1SBP260102R1001 Configuring Input/Output Mode

Product Overview

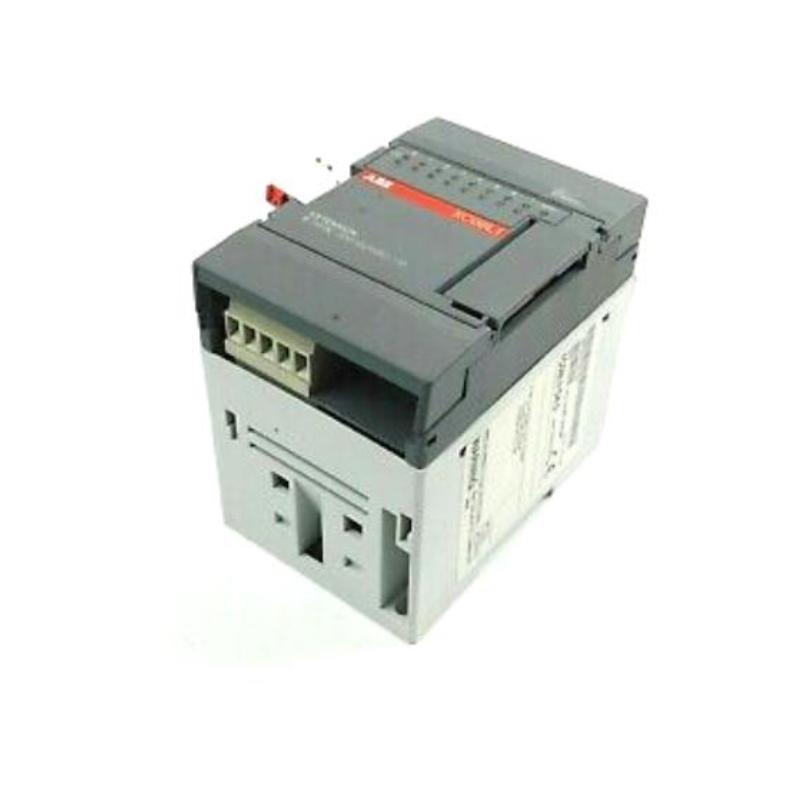

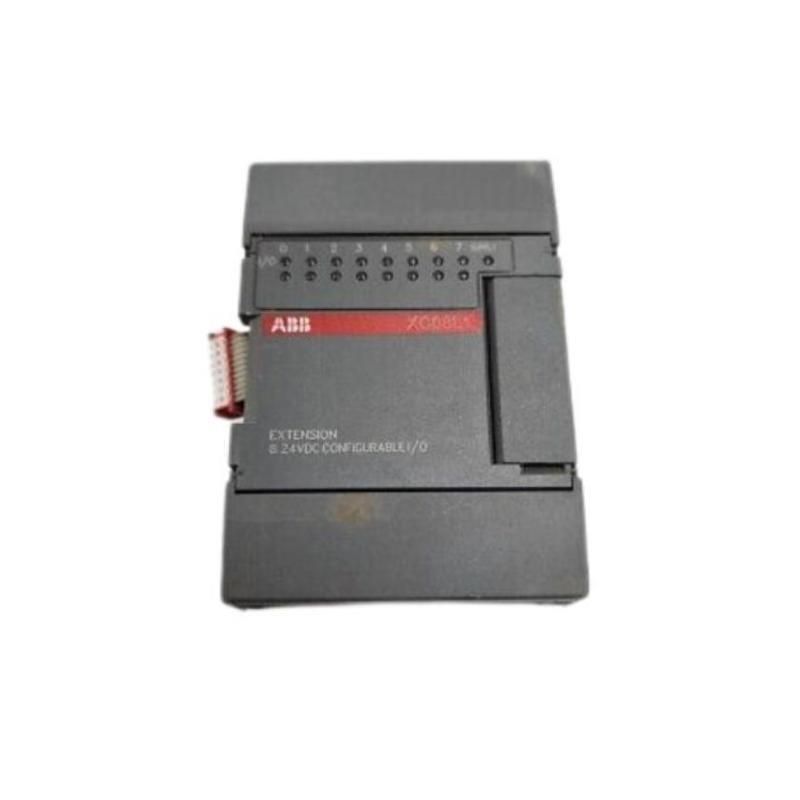

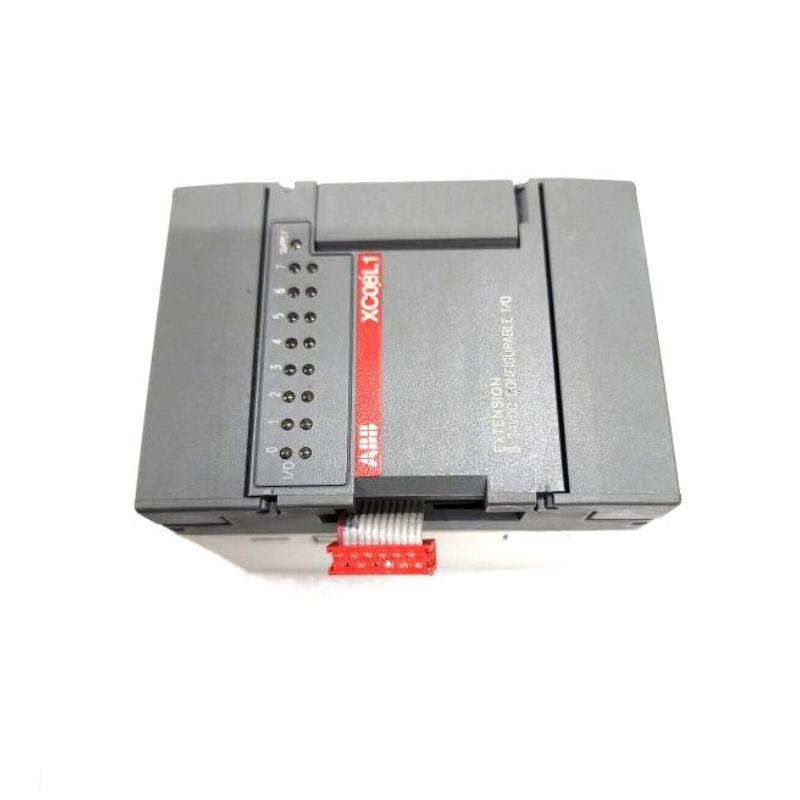

The ABB XC08L1 (رقم القطعة. 1SBP260102R1001) is a high-performance configurable I/O module designed for flexible signal processing and adaptation in industrial automation systems. This وحدة allows users to select between input and output modes for each channel, streamlining system integration and reducing the need for separate I/O modules. It is part من ABB’s XC series designed to simplify wiring and expand control capabilities in distributed automation environments.

With robust design, real-time signal processing, and full integration into ABB’s AC500 PLC platforms, the XC08L1 is an ideal solution for advanced control applications across various industries.

Key Features

• 8 configurable digital channels – Each channel can be set as input or output

• DIN rail mountable – Compact and modular installation

• Seamless integration with ABB AC500 automation systems

• Built-in diagnostics for channel fault detection

• Flexible wiring to optimize panel design

• Industrial-grade reliability – Rugged and compact design

• LED indicators for real-time status and diagnostics

• Hot-swap capability when used with proper system support

Technical Specifications

Industry Applications

• Factory Automation – Programmable I/O for flexible production line control

• Building Automation – I/O adaptation for lighting, HVAC, and access systems

• Water & Wastewater – Monitoring and control من sensors and actuators

• Energy Management – Real-time data acquisition and relay control

• Process Control – Ideal for SCADA systems and distributed control networks

• Machine Automation – Compact integration into CNC, robotics, and packaging machines

Advantages

• Flexible Configuration – Reduces part variety by allowing I/O mode selection per channel

• Space-Saving Design – Eliminates the need for separate input and output modules

• Real-Time Diagnostics – Improves system uptime and maintenance efficiency

• Robust Build – Designed for harsh industrial environments

• Quick Integration – Fully compatible with ABB AC500 series and control builders

• LED Indicators – Allow quick visual troubleshooting on the floor

الأسئلة الشائعة (FAQ)

1. What systems is the XC08L1 compatible with?
   It is compatible with ABB AC500 PLC platforms and control systems.

2. How many channels does this module have?
   The XC08L1 has 8 configurable digital channels.

3. Can I use some channels as inputs and others as outputs simultaneously?
   Yes, each channel is independently configurable.

4. Does it support hot-swapping?
   Yes, when integrated with a supporting system configuration.

5. What is the typical response time من the module?
   The typical response time is less than 1 ms.

6. What are the protective features من this module?
   It includes overload protection, short-circuit detection, and wire-break diagnostics.

7. How is the XC08L1 mounted?
   It is designed for standard DIN rail mounting.

8. Does it come with LED indicators?
   Yes, each channel has an LED for status and diagnostics.

9. What is the operating voltage?
   The module operates at 24 VDC.

10. Is the XC08L1 certified for industrial use?
    Yes, it carries CE, RoHS, and cULus certifications.
