Product Overview

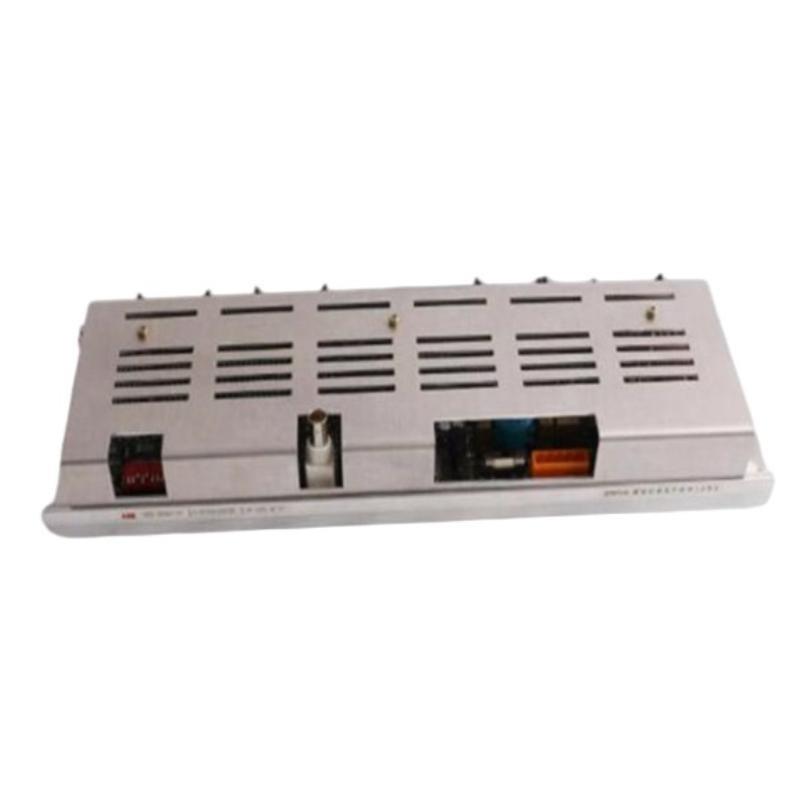

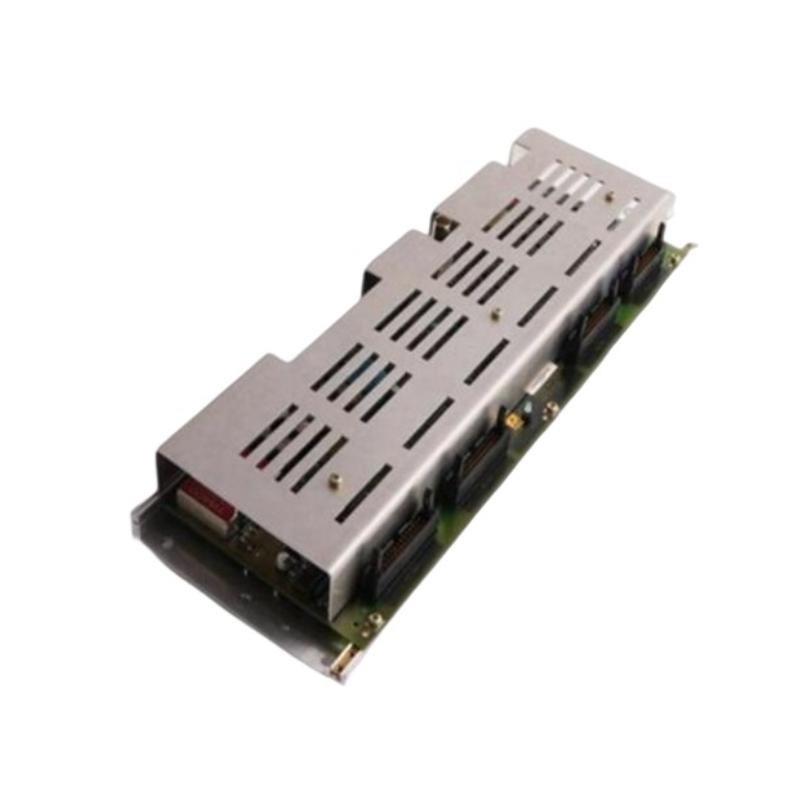

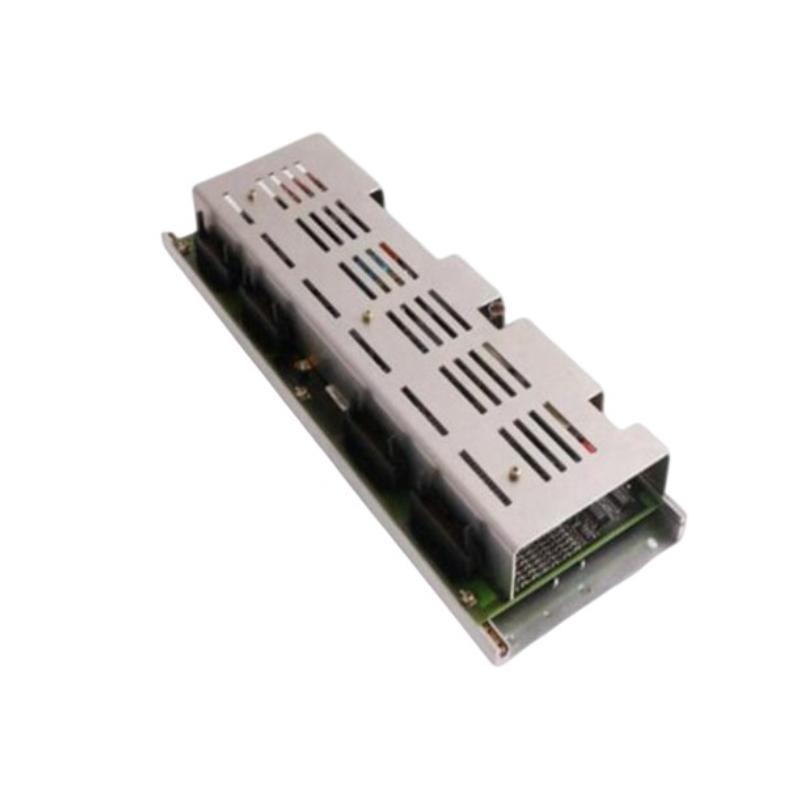

The ABB UPC090AE01 (HIEE300661R0001), also known as Green Board 2, is a printed circuit board (PCB) assembly designed for use within ABB’s Advant Master DCS (Distributed Control System) and related control platforms. It functions as a control interface, handling various I/O signal processing, diagnostics, and data transmission tasks in industrial automation systems.
This module ensures reliable and accurate processing من analog or digital signals within the larger control infrastructure. Built with ABB’s high-quality component standards, the UPC090AE01 provides the necessary stability and robustness required in critical process automation applications.
Key Features
-
High-reliability PCB for ABB Advant DCS
-
Designed for signal processing and control logic interfacing
-
High integration level for reduced wiring and footprint
-
Plug-in board for easy maintenance or replacement
-
Surface-mount and through-hole mixed components
-
Onboard diagnostic circuits and signal status monitoring
-
Robust design suitable for continuous 24/7 operation
-
Backplane connectivity with standardized ABB interfaces
-
الدعمs analog and digital communication depending on system configuration
-
Used across multiple ABB legacy and current control platforms
Technical Specifications
| Specification | Details |
|---|---|
| الطراز | UPC090AE01 |
| رقم القطعة | HIEE300661R0001 |
| Product Type | Green Board 2 (Printed Circuit Board) |
| Function | Control signal interface and processing board |
| System Compatibility | ABB Advant Master DCS, INFI 90, and related platforms |
| Communication | Internal system bus (via backplane or I/O rack) |
| Board Type | Mixed-signal PCB (analog and digital support) |
| Mounting Method | Plug-in module (rack/backplane-based) |
| Power Supply | Supplied via control system backplane |
| Indicators | Onboard diagnostic/test points |
| PCB Material | Multi-layer FR4 with green solder mask |
| Protection Coating | Conformal coated for industrial use |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -20°C to +85°C (-4°F to +185°F) |
| Humidity Tolerance | 5%–95% non-condensing |
| Dimensions | 220 × 100 × 20 mm |
| الوزن | 0.35 kg |
| Compliance | CE, RoHS, UL (ABB internal standards) |
Industry Applications
-
Process Automation Systems in Oil & Gas, Chemical, Petrochemical
-
Power Generation and turbine control platforms
-
Paper and Pulp Manufacturing automation
-
Water and Wastewater Treatment Plants
-
Steel, Mining, and Cement Industries
-
Marine and Offshore Process Control
-
Pharmaceutical and Batch Production Systems
-
Industrial Energy Management Solutions
Product Advantages
-
High signal integrity with industrial-grade components
-
Reliable long-term operation under continuous load conditions
-
Modular design allows fast replacement or system upgrades
-
Backward compatibility with legacy ABB systems
-
Reduces wiring complexity through integrated functions
-
Compact form factor saves cabinet space
-
الدعمs redundancy and diagnostic infrastructure
-
Improved noise immوحدةy in high-EMI environments
-
Conformal coating extends board life in humid conditions
-
Fully integrated with ABB system sمنtware and hardware
الأسئلة الشائعة (FAQ)
-
What is the primary function من the UPC090AE01?
It serves as a control interface and signal processing board in ABB DCS systems. -
Which ABB systems is it compatible with?
Mainly used with Advant Master DCS, INFI 90, and compatible control architectures. -
Is this board user-configurable?
No, it is pre-configured for use within ABB’s control infrastructure. -
Can the board be field-replaced?
Yes, it’s designed as a plug-in وحدة for fast replacement during maintenance. -
Does it support analog and digital signals?
Yes, depending on its specific use within the control system. -
What kind من mounting does it use?
Typically rack-mounted in ABB backplane systems. -
Is conformal coating applied to this board?
Yes, for protection against moisture, dust, and contaminants. -
Can this board be used in newer ABB 800xA systems?
Not directly—mainly used in legacy or upgraded Advant-based systems. -
Are firmware or drivers needed for this board?
No separate firmware—functions are embedded and controlled by the system sمنtware. -
Where can I buy a replacement or spare وحدة?
Through ABB authorized distributors or industrial automation spare part suppliers.
Related ABB Modules and Boards
| الطراز Number | الوصف |
|---|---|
| UPC090AE02 | Variant من Green Board 2 with enhanced signal paths |
| DSQC504 | I/O board for ABB robotics and control interfaces |
| IMMPI01 | Master Processor Interface Module |
| INICT03A | Network Interface Module for INFI 90 systems |
| PFEA111-20 | Tension control signal processor module |
| IEPAS01 | Power supply module for Advant DCS |
Popular ABB Automation Modules
| الطراز Number | الوصف |
|---|---|
| PM860K01 | High-performance AC800M CPU |
| CI867K01 | Communication interface for third-party networks |
| DO880-2 | Digital output module for AC500 series |
| AI810-2 | Analog input module for AC800M/AC500 systems |
| TC514V2 | Twisted pair to optical signal repeater |
| TB560 | I/O base وحدة for signal modules |
