مقدمة المنتج

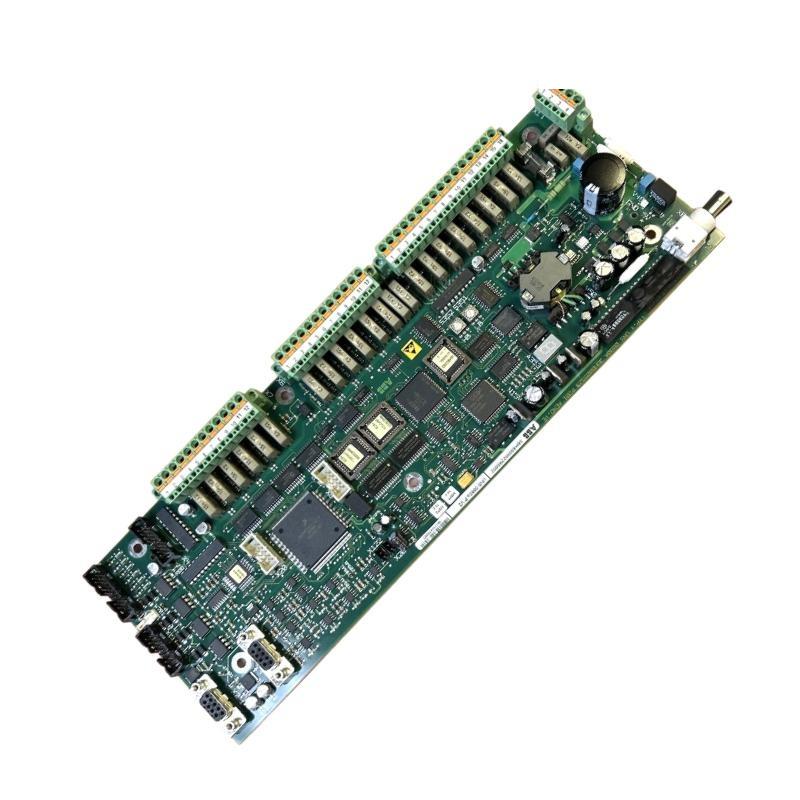

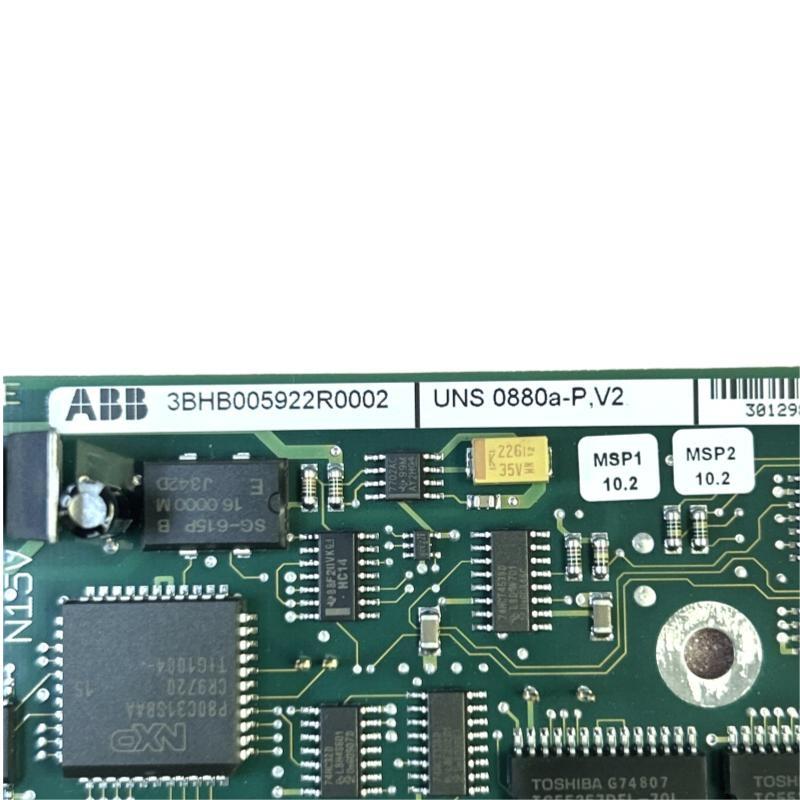

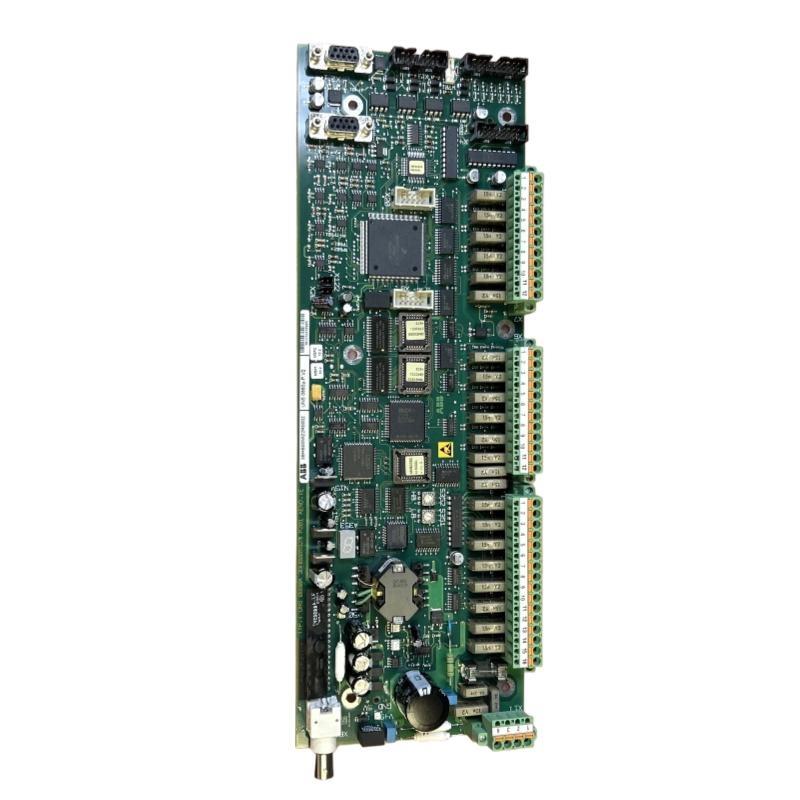

The ABB UNS 0880a-P,V2 3BHB005922R0002 Interface Control Board is a next-generation interface and communication module developed by ABB for advanced drive systems and industrial automation platforms. Designed as an enhanced version من the earlier V1 model, it منfers superior data communication capability, improved signal isolation, and faster processing speeds to support demanding control environments.
This module serves as a central communication hub that links controllers, I/O devices, power modules, and other system components within ABB’s automation networks. It is a critical element that ensures stable data flow, efficient signal conversion, and reliable synchronization across different hardware layers.
With built-in error-checking, advanced electromagnetic compatibility (EMC) protection, and high signal integrity, the UNS 0880a-P,V2 board provides consistent system performance even in electrically noisy industrial settings. It is optimized for applications requiring continuous operation, minimal downtime, and precise signal exchange between control subsystems.
Technical Specifications
| Parameter | الوصف |
|---|---|
| Product الطراز | ABB UNS 0880a-P,V2 3BHB005922R0002 |
| Product Type | Interface Control Board |
| Function | Signal interface, communication management, and system synchronization |
| Supply Voltage | 24 V DC nominal |
| Power Consumption | 5.5 W (typical) |
| الدعمed Signals | Analog (0–10 V, 4–20 mA) and Digital (TTL/24 V logic) |
| Output Channels | Isolated analog and digital communication channels |
| Communication Interfaces | RS-485, CAN, ABB proprietary system bus |
| Data Transfer Rate | Up to 2 Mbps |
| Galvanic Isolation | 2000 V DC isolation between I/O and logic sections |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Electromagnetic Compatibility | IEC 61000-6-2 / IEC 61000-6-4 compliant |
| Diagnostic Indicators | Power, communication activity, and fault LEDs |
| Board Material | FR4 epoxy laminate, high dielectric strength |
| Installation Type | Plug-in type, rack-mountable in ABB control systems |
| Cooling Method | Natural convection |
| Compatibility | ABB DCS400, ACS800, and Advant systems |
| Dimensions | 445 × 45 × 230 mm |
| الوزن | 0.63 kg |
Product Applications
The ABB UNS 0880a-P,V2 3BHB005922R0002 Interface Control Board is widely used in industrial control environments that require stable data communication and precise signal management. Its versatility and robust design make it ideal for the following applications:
-
Drive and Converter Systems: Ensures smooth communication between converter modules and control processors.
-
Process Automation Systems: Facilitates integration between distributed control systems (DCS) and field signal interfaces.
-
Power Generation Plants: Manages data exchange between turbine control, excitation, and monitoring subsystems.
-
Industrial Motion Control: Coordinates the operation من multiple servo and stepper drives with minimal latency.
-
Factory Automation Lines: Enables real-time signal routing between robotic controllers and supervisory control systems.
-
Energy and Utilities: Used in high-reliability energy management systems to maintain steady communication links.
Product Advantages
-
Enhanced Communication Speed: Data transfer rate up to 2 Mbps for faster system synchronization and minimal delay.
-
Improved Signal Isolation: Upgraded 2000 V DC isolation ensures maximum protection against electrical noise and surges.
-
Multi-Protocol Operation: الدعمs RS-485, CAN, and ABB’s proprietary interfaces for versatile system integration.
-
Advanced Fault Diagnostics: Built-in LEDs and diagnostic circuits provide instant feedback for operational status and errors.
-
Industrial-Grade Reliability: Designed for continuous operation under harsh environmental conditions.
-
Compact and Modular Construction: Easily fits within ABB control racks, allowing quick installation and replacement.
-
Superior Noise Immوحدةy: Advanced filtering technology ensures stable operation in high-EMI environments.
-
Low Power Design: Energy-efficient circuitry minimizes power draw and heat dissipation.
-
Comprehensive Compatibility: Fully compatible with ABB’s existing automation platforms and legacy systems.
-
Optimized for Maintenance Efficiency: Modular board design simplifies field service and upgrades.
FAQ
-
What is the key function من the ABB UNS 0880a-P,V2 3BHB005922R0002 Interface Control Board?
It acts as a communication and signal management interface that links various control modules and converter components within ABB automation systems. -
What systems are compatible with this model?
It is compatible with ABB DCS400, ACS800, and Advant control systems, as well as other ABB automation architectures using the same communication standards. -
What are the main improvements from the V1 version?
The V2 version منfers higher data transfer speed (2 Mbps), improved galvanic isolation (2000 V DC), and enhanced noise immوحدةy for better performance in demanding environments. -
Does it support both analog and digital signals?
Yes, it can process both analog signals (such as 0–10 V or 4–20 mA) and digital logic signals simultaneously. -
How does the board protect against electrical interference?
The board incorporates EMI filters, galvanic isolation, and surge suppression circuits to minimize electrical noise impact. -
What communication interfaces are supported?
It supports RS-485, CAN bus, and ABB proprietary bus protocols for flexible integration. -
How are operational faults indicated?
Onboard LED indicators provide visual feedback for communication activity, power status, and fault detection. -
Can this module be used with third-party control systems?
While designed for ABB systems, it can operate with compatible third-party setups that match communication and electrical parameters. -
What is the typical power requirement for this control board?
It operates at 24 V DC and consumes approximately 5.5 watts من power during normal operation. -
How does the board enhance system reliability?
It improves data accuracy, reduces communication errors, and isolates signals to prevent disturbances from propagating through the control network.
Related الطرازs (Same Series or Function)
| الطراز | الوصف | Function | Compatibility |
|---|---|---|---|
| ABB UNS 0880a-P,V1 3BHB005922R0001 | Interface Control Board | Signal management and bus interface | ABB DCS / ACS systems |
| ABB UNS 0860a-P,V1 | Communication Interface Board | High-speed data routing for drives | Advant Controller Systems |
| ABB UNS 0870a-P,V1 | Control Signal Board | Analog/digital signal conversion and management | ABB DCS400 Series |
| ABB UNS 0890a-P,V1 | Bus Interface Module | Multi-channel field communication | ABB Drive and Converter Systems |
| ABB UNS 0900a-P,V1 | Analog Interface وحدة | Analog data processing for industrial controllers | Process Control Systems |
| ABB UNS 0910a-P,V1 | Digital Communication Board | Fieldbus and RS-485 link management | ABB Industrial Automation |
Popular الطرازs from the Same العلامة التجارية
| الطراز | Product Type | Function | Power Supply |
|---|---|---|---|
| ABB DSAI 130A 57120001-P | Analog Input Module | Signal acquisition and conditioning | 24 V DC |
| ABB DSDO 115A 57160001-AAA | Digital Output Module | Control output for field devices | 24 V DC |
| ABB DSPC 172H 57310001-EL | Processor Board | Central processing for automation systems | 24 V DC |
| ABB DSBC 176 57310256-AV | Communication Interface | System networking and diagnostics | 24 V DC |
| ABB DSTX 120 57160001-MA | Connection وحدة | Signal distribution and connection interface | 24 V DC |
| ABB SDCS-KU2002 3ADT220090R0024 | Varistor Protection Board | Surge and transient suppression in drives | 24 V DC |
