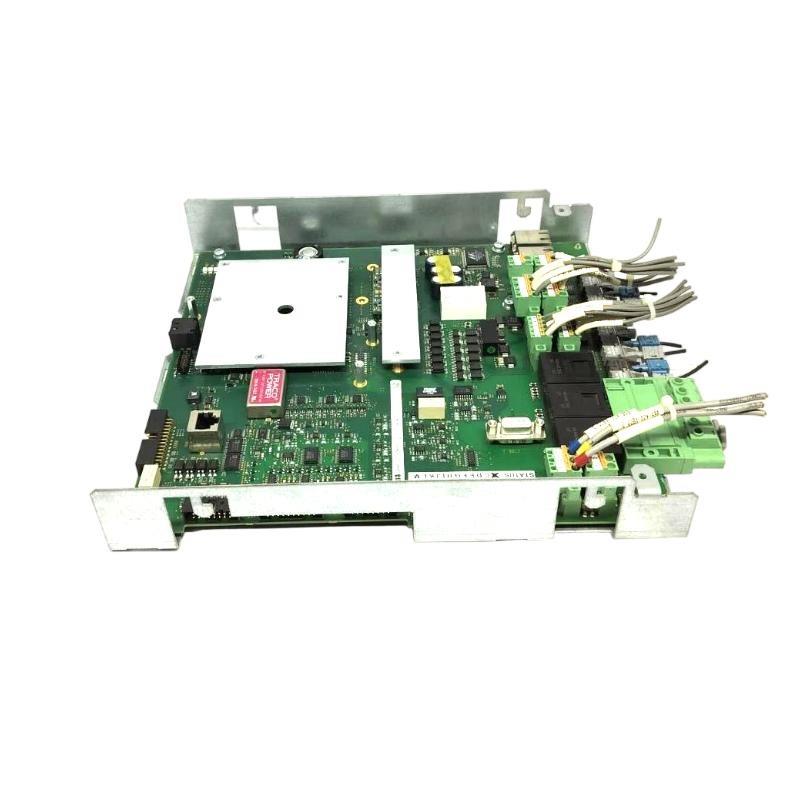

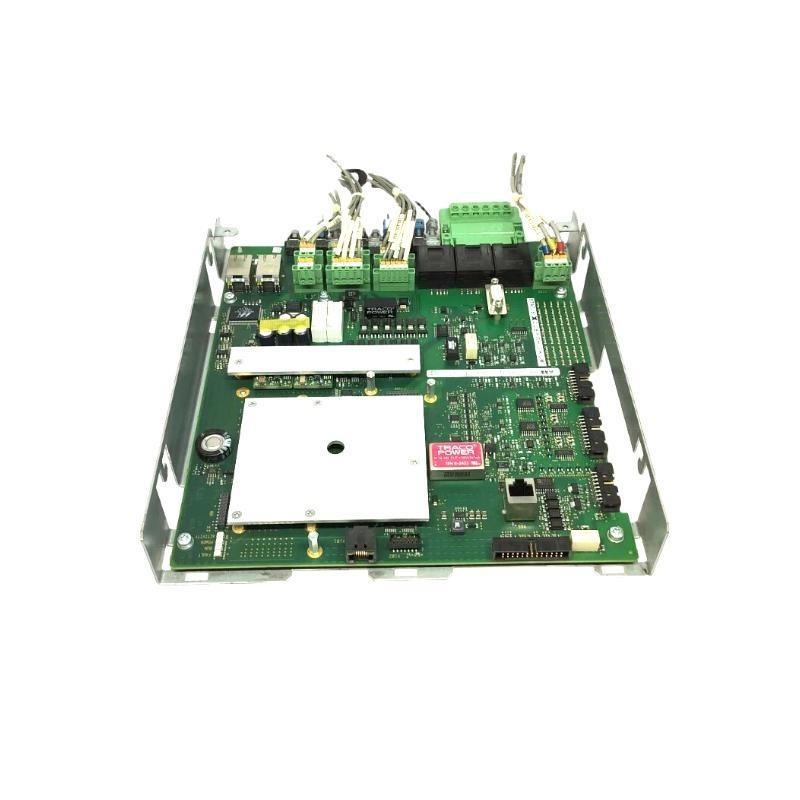

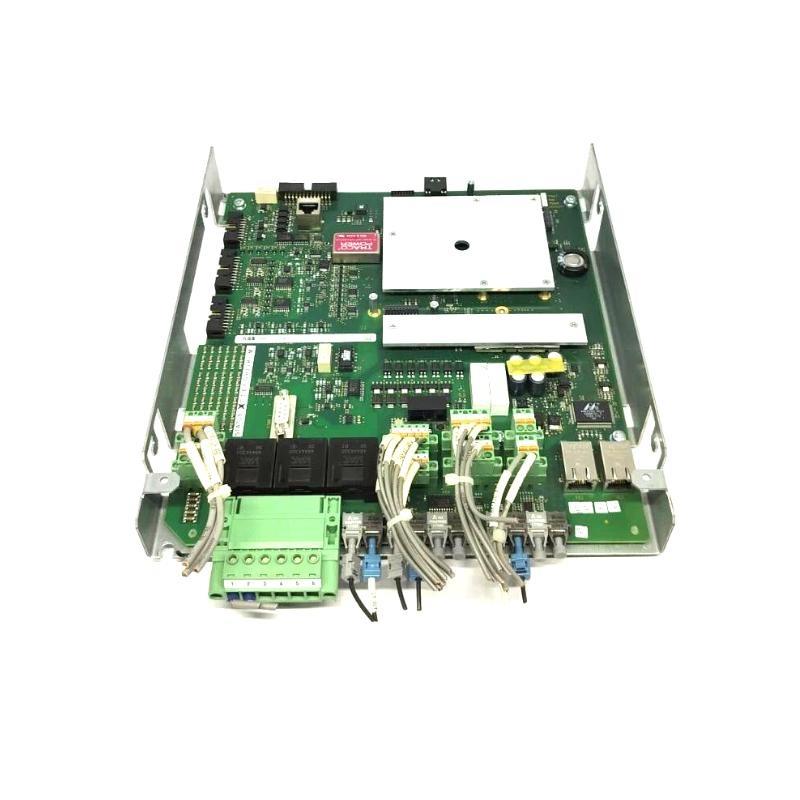

ABB UCD240A01 3BHE022287R0001 Converter Module
A compact industrial converter module from ABB designed to deliver 24 VDC power from a 240 VAC source. It is used in industrial automation systems for stable and reliable power conversion. Its slim design, robust performance, and high efficiency make it ideal for control cabinets and distributed systems.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز Number | UCD240A01 |
| Ordering Code | 3BHE022287R0001 |
| Input Voltage | 240 VAC |
| Output Voltage | 24 VDC |
| Max Output Current | 10 A |
| Output Power | 240 W |
| Efficiency | ≥ 90% |
| Frequency Range | 47–63 Hz |
| Mounting Type | DIN Rail / Panel |
| Cooling Method | Natural Air Cooling |
| Dimensions | 247 × 30 × 270 mm |
| الوزن | 0.92 kg |
Applications
-
Power supply for ABB control systems (e.g. DCS modules)
-
Industrial automation and process control
-
Control cabinets and electrical enclosures
-
Motor control centers
Advantages
-
High-efficiency conversion (≥ 90%)
-
Slim prمنile saves cabinet space
-
Reliable operation in industrial environments
-
Seamless integration into ABB systems
-
Reduced energy loss and heat generation
FAQ
1. What input voltage does the UCD240A01 support?
It supports 240 VAC input.
2. What is the output specification من the module?
It provides a regulated 24 VDC output at up to 10 A.
3. Is it compatible with ABB distributed control systems?
Yes, it is designed for use in ABB control system infrastructure.
4. What is the efficiency rating من this converter?
It operates at an efficiency من ≥ 90%.
5. What are its dimensions and weight?
Dimensions are 247 × 30 × 270 mm; weight is 0.92 kg.
6. What type من cooling does it use?
Natural air convection (no fan required).
7. Where is this module commonly used?
In automation panels, MCCs, and ABB system enclosures.
8. What is the mounting method?
It can be DIN rail or panel mounted.
9. Is it suitable for continuous industrial operation?
Yes, it is built for continuous, rugged industrial use.
10. Does it require external fusing?
External protection (fuse or breaker) is recommended as per system standards.
Related or Same Series الطرازs
| الطراز Number | الوصف | Output Voltage | Dimensions (mm) | الوزن |
|---|---|---|---|---|
| UCD240A01 | Converter Module 240 VAC to 24 VDC | 24 VDC | 247×30×270 | 0.92 kg |
| UCD230A01 | Converter Module 230 VAC to 24 VDC | 24 VDC | 247×30×270 | 0.90 kg |
| UCD120A01 | Converter Module 120 VAC to 24 VDC | 24 VDC | 247×30×270 | 0.88 kg |
| UCD48A01 | Converter Module 48 VDC Input | 24 VDC | 247×30×270 | 0.89 kg |
| UCD24A01 | Converter Module 24 VDC Input | 12 VDC | 247×30×270 | 0.85 kg |
| UCD110A01 | Converter Module 110 VAC Input | 24 VDC | 247×30×270 | 0.87 kg |
Popular ABB الطرازs
| الطراز Number | الوصف | Application Area | Dimensions (mm) | الوزن |
|---|---|---|---|---|
| PM866K01 | CPU وحدة for 800xA System | Control System | 186×120×130 | 1.1 kg |
| DO820 | Digital Output Module (S800 I/O) | Output Signal Processing | 185×59×120 | 0.3 kg |
| AI820 | Analog Input Module (S800 I/O) | Input Signal Monitoring | 185×59×120 | 0.3 kg |
| CI854AK01 | Communication Interface (PROFIBUS) | Fieldbus Communication | 135×50×120 | 0.2 kg |
| PM862K01 | Processor وحدة | AC 800M Controller Systems | 186×120×130 | 1.1 kg |
| TU830V1 | Terminal وحدة | I/O Module Termination | 195×45×110 | 0.25 kg |
