مقدمة المنتج

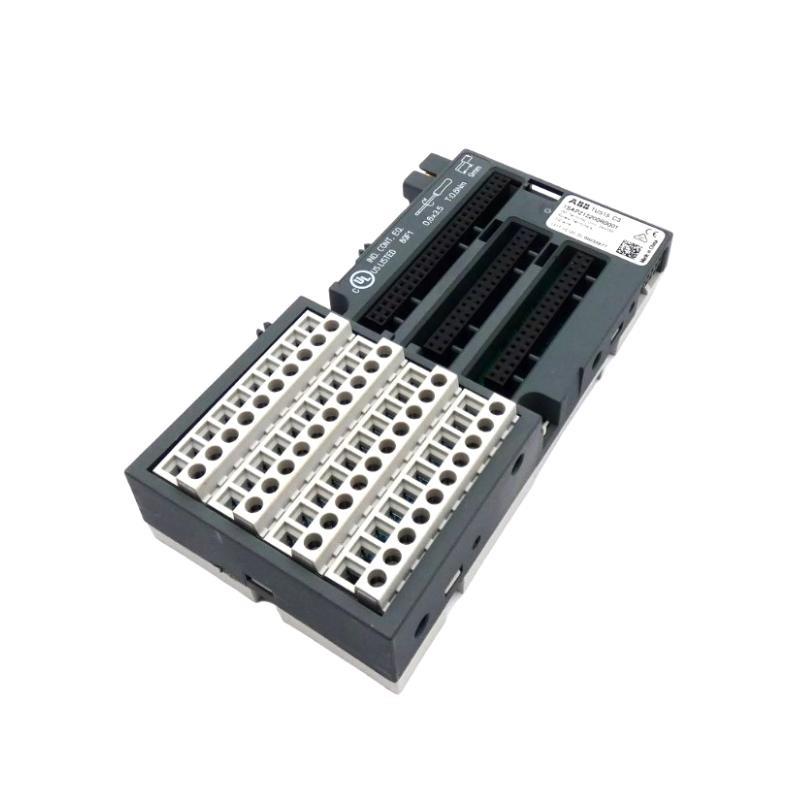

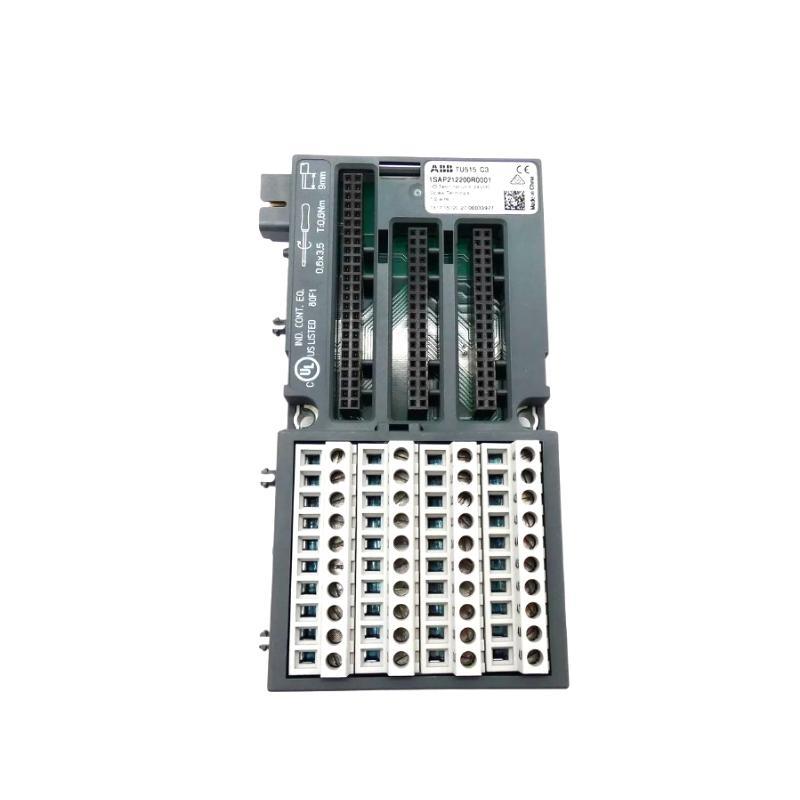

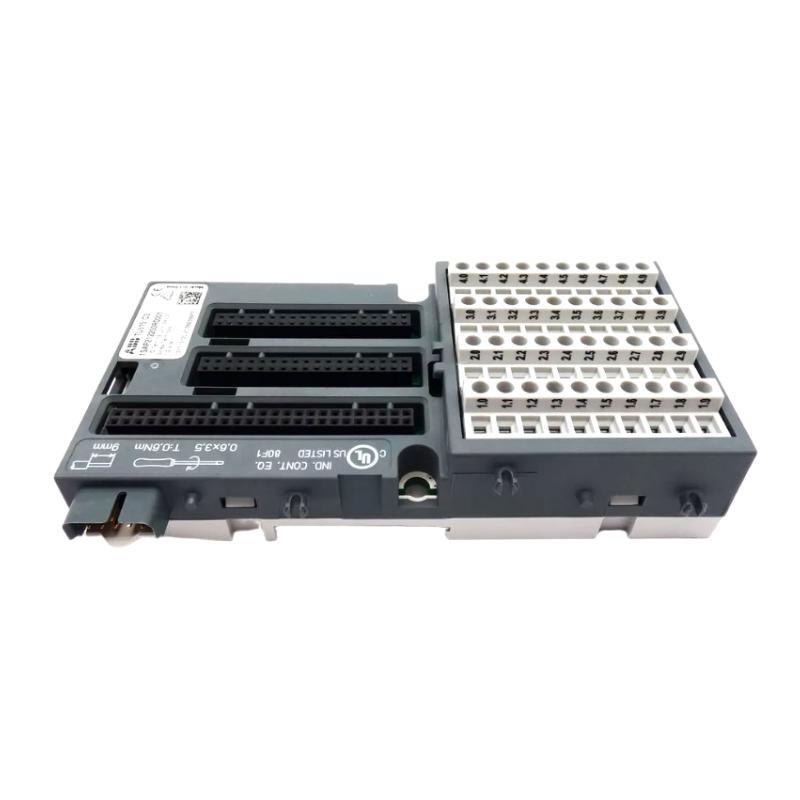

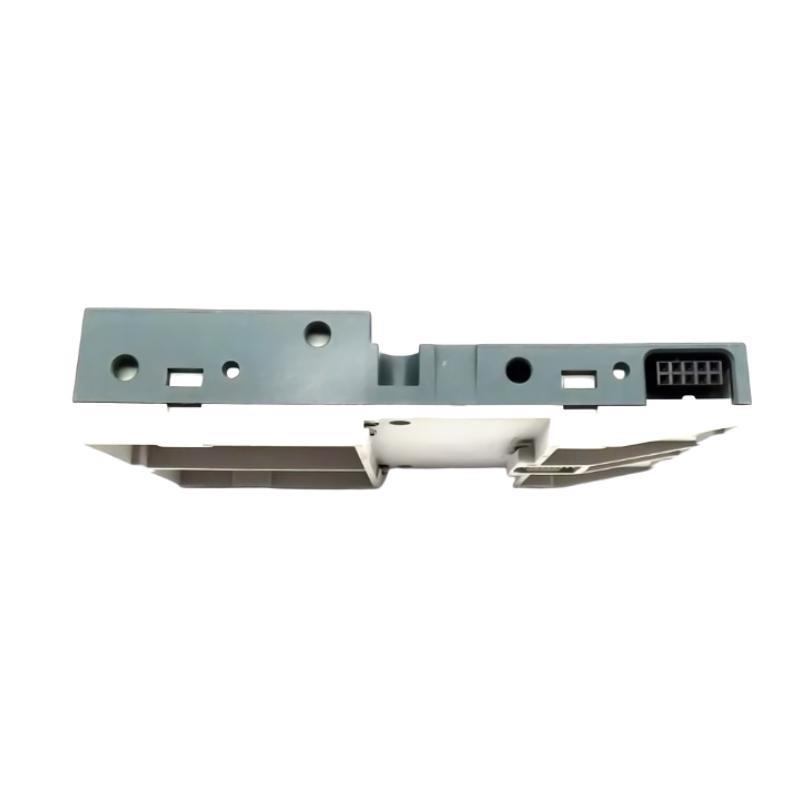

The ABB TU515 (1SAP212200R0001) is an I/O terminal وحدة designed as part من ABB’s renowned AC500 and S500 series automation systems. Functioning as a key interface between process field devices and the control module, the TU515 provides organized and efficient wiring connections for I/O modules. It is primarily used for mounting and interconnecting digital or analog input/output modules with the field wiring.
With its DIN rail mounting and robust structure, the TU515 simplifies the wiring process, reduces installation time, and enhances system modularity. The terminal وحدة supports hot swapping من I/O modules, provides built-in protection circuitry, and ensures signal integrity even in harsh industrial environments.
Its use in industrial automation, building control, energy systems, and machinery applications makes the TU515 a critical piece in scalable and reliable control solutions. The combination من high-quality terminal blocks and modular connection technology ensures ABB’s commitment to precision and performance.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | TU515 |
| Ordering Code | 1SAP212200R0001 |
| Product Type | I/O Terminal وحدة |
| العلامة التجارية | ABB |
| Series | S500 / AC500 Series |
| Number من Terminals | 40 terminals (20 x 2 rows) |
| Connection Type | Screw terminals |
| Mounting | DIN Rail (35 mm standard) |
| Compatible Modules | S500 series I/O modules |
| Color | Grey |
| Insulation Resistance | > 100 MΩ @ 500 VDC |
| Operating Voltage | Max 250 V |
| Dielectric Strength | 2.0 kV AC, 60 sec |
| Temperature Range | -25°C to +70°C |
| Humidity Tolerance | 5% to 95% RH (non-condensing) |
| Material | Flame-retardant plastic |
| Protection Class | IP20 |
| Certifications | CE, RoHS, UL, cULus |
| Dimensions (H × W × D) | 28 x 135 x 67.5 mm |
| الوزن | 0.232 kg |
Product Applications
The TU515 terminal وحدة is used across various automation and control industries where reliability and clean wiring are essential:
-
Industrial Automation: Enables secure connection من sensors, actuators, and control signals in factory automation.
-
Energy & Utilities: Deployed in substations and grid control rooms for I/O interconnection.
-
Water and Wastewater Management: Connects process control وحدةs with level, flow, and pressure sensors.
-
Manufacturing Lines: Facilitates quick integration من control signals in discrete manufacturing environments.
-
Building Automation: Interfaces HVAC, lighting, and security systems with automation modules.
-
Renewable Energy Systems: Used in wind and solar farms to connect I/O modules managing turbines and inverters.
Product Advantages
-
Efficient Wiring Layout: Neat terminal arrangement reduces wiring errors and simplifies troubleshooting.
-
DIN Rail Mounting: Enables fast installation and modular expansion within standard enclosures.
-
Robust and Reliable: Withstands industrial vibration and electromagnetic interference.
-
Hot-Swappable Compatibility: الدعمs safe removal and replacement من I/O modules during operation.
-
Universal Compatibility: Fully compatible with ABB’s S500 and AC500 series I/O modules.
-
Safety-Enhanced Design: Offers insulation and dielectric protection suitable for industrial voltages.
-
Compact Form Factor: حفظs valuable cabinet space while maintaining terminal accessibility.
الأسئلة الشائعة (FAQ)
-
What does the ABB TU515 terminal وحدة do?
It serves as the interface between field devices and ABB S500 series I/O modules, organizing wiring and simplifying connections. -
Is the TU515 compatible with all ABB I/O modules?
It is specifically designed for S500 series I/O modules and AC500 systems. -
Can the terminal وحدة be hot-swapped?
Yes, it allows for hot-swapping من I/O modules under appropriate conditions without shutting down the system. -
What type من terminal connections does it use?
The TU515 uses screw terminal connections for secure and reliable wiring. -
Is it suitable for harsh industrial environments?
Yes, it is rated for a wide temperature range and provides protection against dust and humidity. -
How is it mounted?
It is DIN rail-mountable, suitable for standard control panels. -
What is the maximum operating voltage?
It supports up to 250 V AC, with 2.0 kV dielectric strength. -
Does it meet international certifications?
Yes, the TU515 is CE-marked and compliant with UL, RoHS, and other global standards. -
What is the insulation resistance من the terminals?
It منfers insulation resistance greater than 100 MΩ at 500 VDC. -
What tools are required for installation?
Only standard screwdrivers are needed, making installation simple and fast.
Related الطرازs (Same Series or Function)
| الطراز Number | الوصف | Function |
|---|---|---|
| TU516 (1SAP212300R0001) | I/O Terminal وحدة with extended channels | الدعمs wider I/O range |
| TU518 (1SAP212600R0001) | I/O Terminal وحدة for analog modules | Special analog signal routing |
| TU510 (1SAP212100R0001) | Compact I/O Terminal Base | Space-saving applications |
| TU517 (1SAP212500R0001) | Advanced I/O Terminal with internal fuses | Overcurrent protection built-in |
| TU514 (1SAP212400R0001) | Standard Terminal for S500 I/O modules | General-purpose wiring base |
| TU530 (1SAP250100R0001) | High-density terminal block | High I/O channel density |
Popular ABB الطرازs (Same العلامة التجارية)
| الطراز Number | الوصف | Application |
|---|---|---|
| PM5630 (1SAP131100R0270) | AC500 CPU | Main controller in automation systems |
| AI523 (1SAP250100R0001) | Analog Input Module | 8-channel analog input for sensors |
| DI524 (1SAP250200R0001) | Digital Input Module | 16-channel digital input |
| DO526 (1SAP250300R0001) | Digital Output Module | 16-channel digital output |
| CI531 (1SAP111100R0270) | Communication Module (PROFIBUS) | Enables PROFIBUS DP communication |
| CP600-ECO | HMI Panel Series | Operator interface for control systems |
