Product Overview

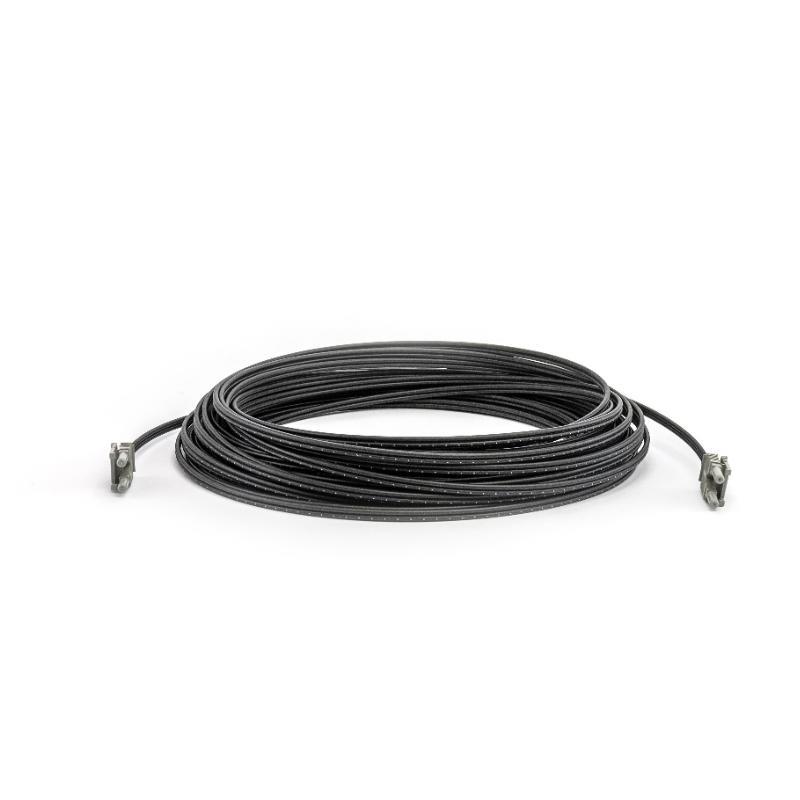

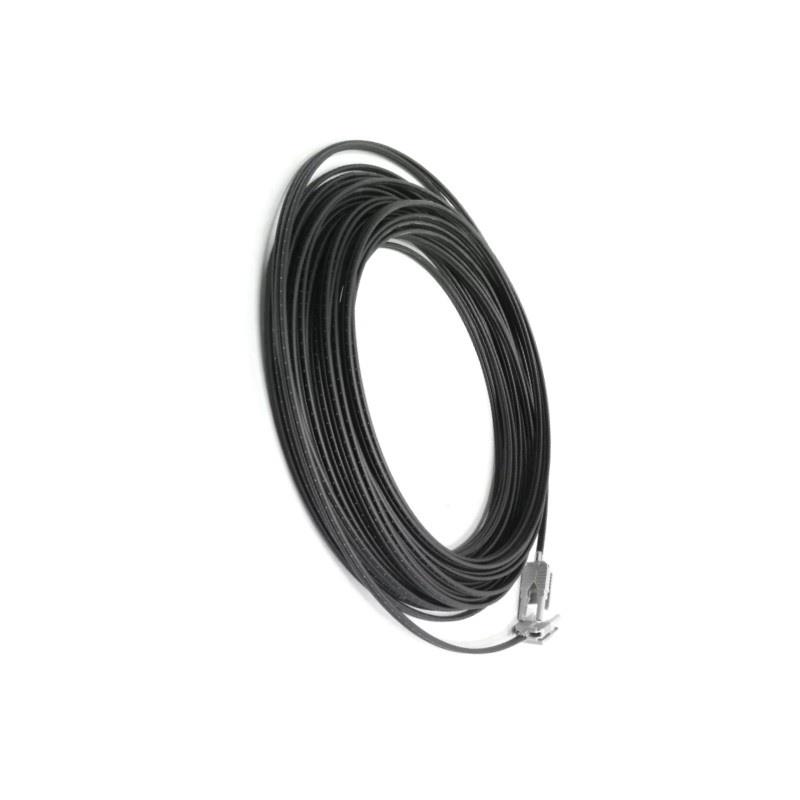

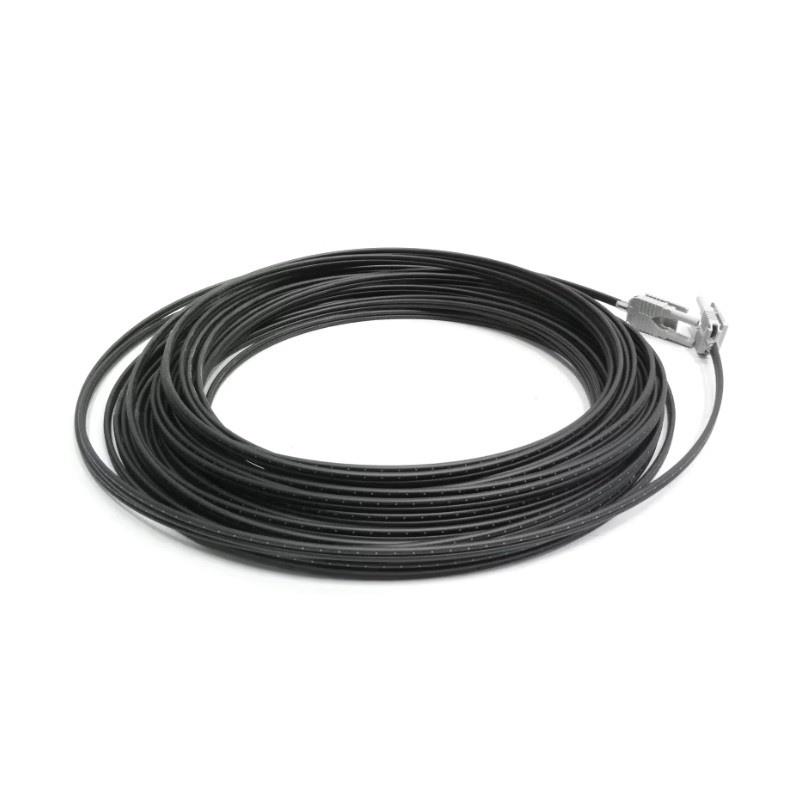

The ABB TK811V150 (3BSC950107R3) is a high-quality, pre-terminated communication cable designed for use in ABB System 800xA and S800 I/O systems. With a length من 150 meters, the TK811V150 is suitable for long-distance signal transmission between Interface Modules (IMs) such as CI810, CI820, CI840, and their corresponding Termination وحدةs (TUs).
This robust, shielded cable provides EMI immوحدةy and signal integrity even in harsh industrial environments. It is factory-tested, pre-assembled, and ready for installation, reducing installation time and minimizing the risk من errors. The TK811V150 is ideal for applications that require extended I/O connectivity in large, distributed automation systems, ensuring reliable communication between system components across significant distances.
Key Features
-
Pre-terminated shielded cable for ABB automation systems
-
150-meter cable length for long-distance connections between I/O modules
-
Designed for TU–IM connections in ABB S800 I/O systems
-
Factory-terminated ABB-standard connectors for easy installation
-
Twisted-pair design with full shielding for superior EMI protection
-
Resistant to mechanical stress, abrasion, and environmental contaminants
-
Halogen-free and flame-retardant cable sheath for safety and compliance
-
Plug-and-play functionality for faster deployment
-
Reduced signal loss and noise interference for reliable communication
-
Ideal for industrial automation in power plants, chemical facilities, and more
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Communication Cable |
| الطراز Number | TK811V150 |
| Ordering Code | 3BSC950107R3 |
| Cable Type | Shielded twisted pair (STP) |
| Cable Length | 150 meters |
| Connector Type | Factory-installed ABB proprietary connectors |
| Voltage Rating | 30 V DC (signal level) |
| Shielding | Braid and foil shield + twisted pair |
| Jacket Material | Halogen-free, flame-retardant PVC or TPU |
| Color | ABB standard (typically gray or black) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Minimum Bending Radius | Approx. 10× outer diameter |
| Outer Diameter | Approx. 6–8 mm |
| Dimensions | Length:15m |
| الوزن | 0.125 kg |
| Compliance Standards | CE, RoHS, IEC 60332-1, EN 50267 |
| Installation Method | Plug-and-play; no field termination required |
Industry Applications
The ABB TK811V150 cable is designed for use in environments requiring long-distance signal transmission, such as:
-
Power Generation: Ideal for interconnecting remote I/O modules in turbine, generator, and substation control systems
-
Oil & Gas: Connects remote monitoring and control وحدةs in منfshore or isolated oil rigs and refineries
-
Chemical & Petrochemical: Provides reliable signal transmission in plant-wide distributed control systems (DCS)
-
Water & Wastewater: Effective for SCADA systems and remote sensor communication in treatment plants
-
Pulp and Paper: For large-scale process automation, where long-distance connections are common
-
Metals & Mining: In mining and smelting plants, ensuring connectivity across long distances between controllers and field devices
Product Advantages
-
Long cable length (150 meters) accommodates large plant layouts and remote device integration
-
Factory pre-terminated with ABB connectors, reducing installation time and minimizing wiring errors
-
High-quality shielding for exceptional noise immوحدةy and signal integrity in electromagnetically noisy environments
-
Halogen-free and flame-retardant for safe operation in critical environments
-
Rugged construction for use in harsh industrial conditions such as high vibration, temperature extremes, and exposure to chemicals
-
Low signal attenuation over long distances ensures accurate data transmission
-
Compatible with various ABB I/O modules in both new and legacy systems
-
Easy integration into ABB System 800xA and S800 I/O systems
-
Minimizes downtime and maintenance by ensuring robust, reliable communication
-
Fully supported by ABB technical services and documentation
الأسئلة الشائعة (FAQ)
1. What is the cable length for the TK811V150?
The cable length is 150 meters, ideal for long-distance installations in large industrial plants.
2. Can this cable be used with any ABB I/O modules?
Yes, it is compatible with ABB S800 I/O systems, including CI810, CI820, and CI840.
3. Is this a shielded cable?
Yes, it is a shielded twisted pair cable providing superior protection against EMI.
4. Is the cable factory-terminated?
Yes, the cable is factory-terminated with ABB connectors for ease من installation.
5. What type من environments is this cable suitable for?
It is designed for harsh industrial environments such as power generation, chemical processing, and oil & gas operations.
6. What is the maximum temperature the cable can withstand?
It can operate in temperatures between -20°C and +70°C.
7. Can the cable be modified after purchase?
No, this cable is pre-terminated and should not be modified in the field.
8. Is this cable compliant with industry safety standards?
Yes, it complies with CE, RoHS, and IEC 60332-1 standards.
9. How can I install this cable?
It is plug-and-play and does not require any special tools or crimping for installation.
10. What is the weight من the cable?
The cable weighs approximately 0.125 kg, depending on the length.
