مقدمة المنتج

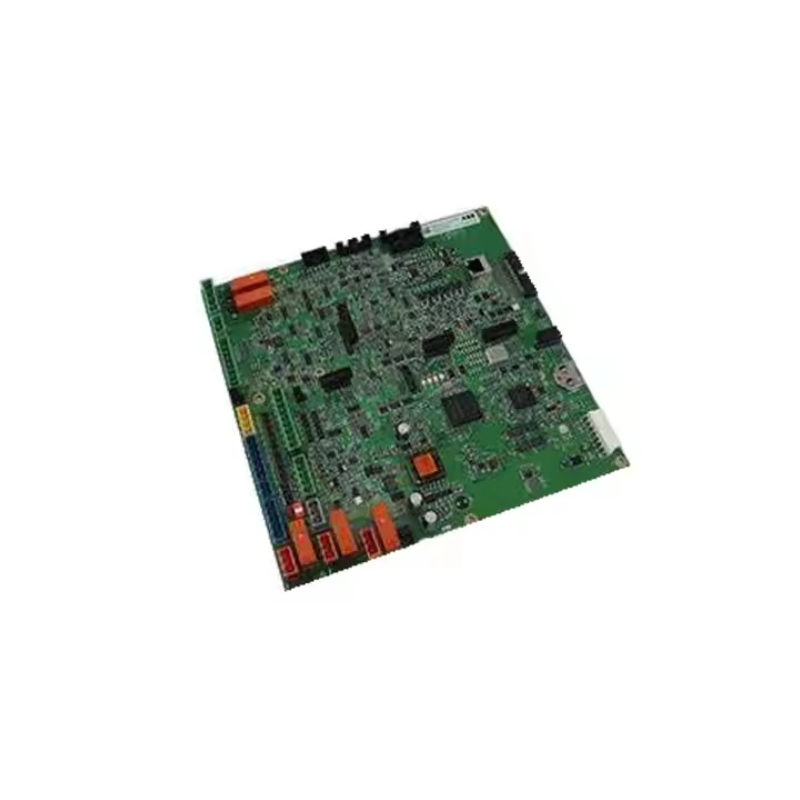

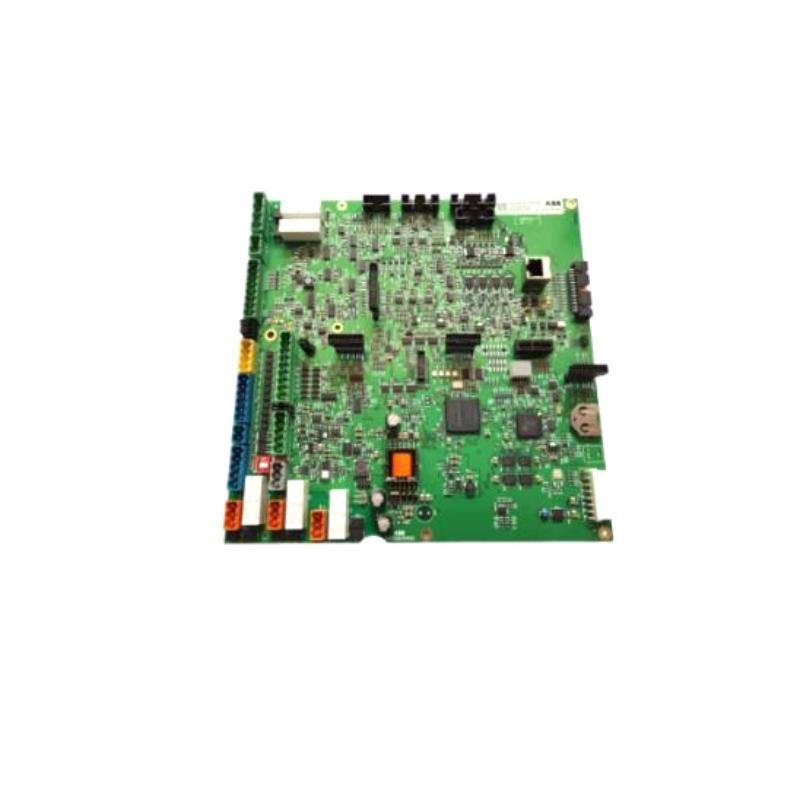

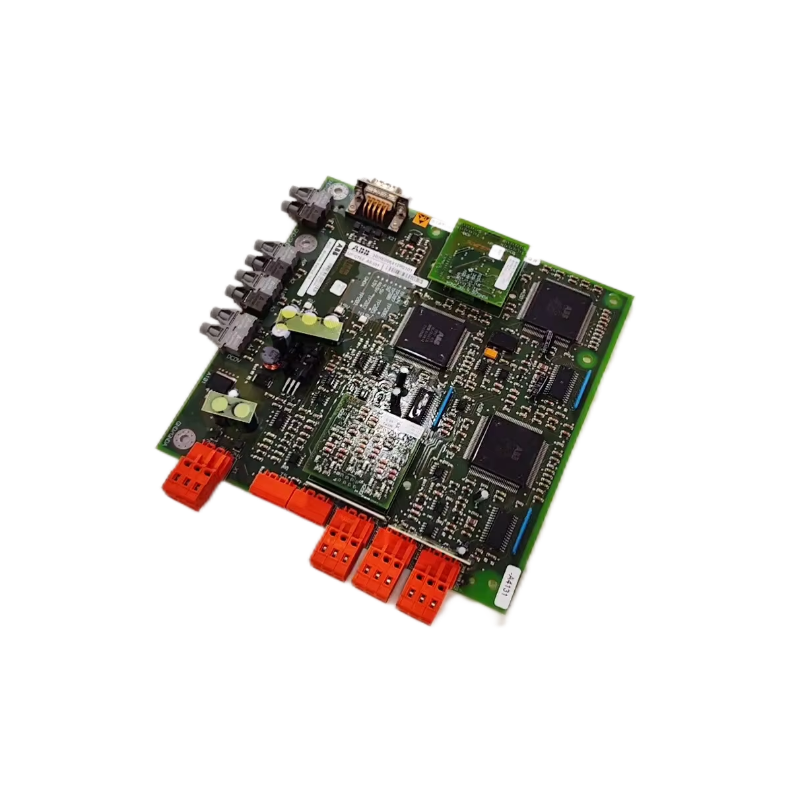

The ABB SDCS-PIN-H01 (3ADT318800R1501) is a Pulse Interface Module designed for use with ABB’s DCS (Drive Control System) series, especially within the DCS500 and DCS600 DC drive platforms. It functions as an interface board between the power electronics and the control system, responsible for processing and delivering the firing pulses to the thyristors. This module ensures high-precision signal timing and galvanic isolation, which are essential for the reliable operation من high-performance DC drives in industrial automation environments.
Its design adheres to ABB’s high standards for safety, signal fidelity, and durability. With robust input/output compatibility, it plays a critical role in managing triggering signals to the thyristor bridge circuits, making it an integral component in drive and motor control applications across a wide range من industries.
Product Advantages
-
Reliable Pulse Transmission: Provides high-integrity triggering signals for precise thyristor control.
-
Galvanic Isolation: Ensures complete electrical isolation between control and power sections.
-
Compact Design: Suitable for integration in tight installation spaces without performance compromise.
-
Long Service Life: Designed for continuous operation in harsh industrial conditions with minimal failure rates.
-
Seamless Integration: Fully compatible with ABB DCS systems and easy to retrمنit.
-
EMC Optimized: High resistance to electromagnetic interference for noise-sensitive environments.
-
Easy Maintenance: Modular layout and clear diagnostics make replacements and testing straightforward.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | SDCS-PIN-H01 |
| Product Code | 3ADT318800R1501 |
| Function | Pulse Interface Module for DCS Drives |
| Compatible Drives | DCS500, DCS600 series |
| Pulse Output Channels | 6-channel firing pulse interface |
| Insulation Type | Galvanic Isolation |
| Cooling Method | Natural convection |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Mounting | Plug-in card (rack-mount supported) |
| Dimensions | 265 x 282 x 40 mm |
| الوزن | 0.45 kg |
| Supply Voltage | Derived internally from DCS rack supply |
| Standards Compliance | CE, RoHS, UL (as per ABB DCS series requirements) |
Product Applications
The ABB SDCS-PIN-H01 is widely used in industrial environments where DC motor drives are essential. Typical application areas include:
-
Metallurgical Industries (rolling mills, furnaces)
-
Pulp & Paper Plants
-
Plastic Extrusion Lines
-
Cement Plants
-
Textile Manufacturing
-
Mining Operations
-
Marine Propulsion Systems
-
Elevator and Crane Control Systems
Its primary function is to deliver timing-critical pulses that control thyristors within DCS500/DCS600 drives.
Installation Guidelines
-
Power Down the System: Ensure the main drive is completely powered منf before handling the module.
-
Observe Anti-static Precautions: Use grounding wrist straps and anti-static mats to avoid electrostatic damage.
-
Insert into Proper Slot: Plug the module into the designated SDCS slot in the control rack من the drive.
-
Secure the Module: Once inserted, ensure it is locked in place using the rack retention clips.
-
Check LED Indicators: Verify status indicators once powered on to confirm successful pulse transmission.
-
Functionality Testing: Perform signal tests before initiating the full drive operation.
الأسئلة الشائعة (FAQ)
Q1: What is the main function من the SDCS-PIN-H01 module?
A1: Its primary function is to transmit precise firing pulses to the thyristors in DC drive systems like DCS500/DCS600.
Q2: Can this module be used in non-ABB systems?
A2: It is optimized for ABB systems and may not function properly in non-ABB environments.
Q3: Is it possible to use SDCS-PIN-H01 in both DCS500 and DCS600?
A3: Yes, the module is compatible with both DCS500 and DCS600 series drives.
Q4: Does this module require separate power supply?
A4: No, it draws power directly from the drive’s control supply.
Q5: What happens if the pulse interface fails?
A5: Failure can prevent correct thyristor triggering, leading to motor malfunction or shutdown.
Q6: Are any sمنtware configurations needed post-installation?
A6: Typically no, unless your system requires customized logic or pulse adjustments.
Q7: Can this module be hot-swapped?
A7: No, always power down the system before removing or inserting the module.
Q8: How to identify if the module is working correctly?
A8: LED indicators on the module show pulse status and faults.
Q9: What are common signs من a faulty SDCS-PIN-H01?
A9: Symptoms include irregular drive performance, absence من firing pulses, or error codes from the DCS.
Q10: How منten should this module be replaced?
A10: Under normal operation, it can last for many years. Replacement is typically only needed upon failure or during system upgrades.
Recommended Related or Same-Series الطرازs
-
ABB SDCS-PIN-3 – Pulse interface module for lower voltage systems.
-
ABB SDCS-IOB-21 – Input/Output board for DCS drives.
-
ABB SDCS-CON-4 – Control board used in DCS500/DCS600.
-
ABB SDCS-POW-1 – Power board that works alongside SDCS-PIN modules.
-
ABB SDCS-FEX-1 – Field exciter control module.
-
ABB SDCS-COM-8 – Communication module used with SDCS drive systems.
Popular ABB Drive Modules (Same العلامة التجارية)
| الطراز Number | الوصف | Dimensions (mm) | الوزن (kg) | Voltage Range |
|---|---|---|---|---|
| SDCS-CON-2C | Control board for DCS drives | 240 x 190 x 40 | 0.85 | 24V DC (internal) |
| SDCS-IOB-2 | I/O Board for DCS600 | 200 x 150 x 38 | 0.65 | 24V DC |
| SDCS-POW-1 | Power Supply Interface | 220 x 160 x 42 | 1.10 | 115–230V AC |
| SDCS-COM-5 | Communication Interface Module | 225 x 180 x 40 | 0.95 | 5V logic level |
| SDCS-PSU-1 | Power Supply وحدة | 260 x 210 x 60 | 1.35 | 115V AC |
| SDCS-FEX-1 | Field Exciter Module | 210 x 180 x 45 | 1.20 | Field Rated |
