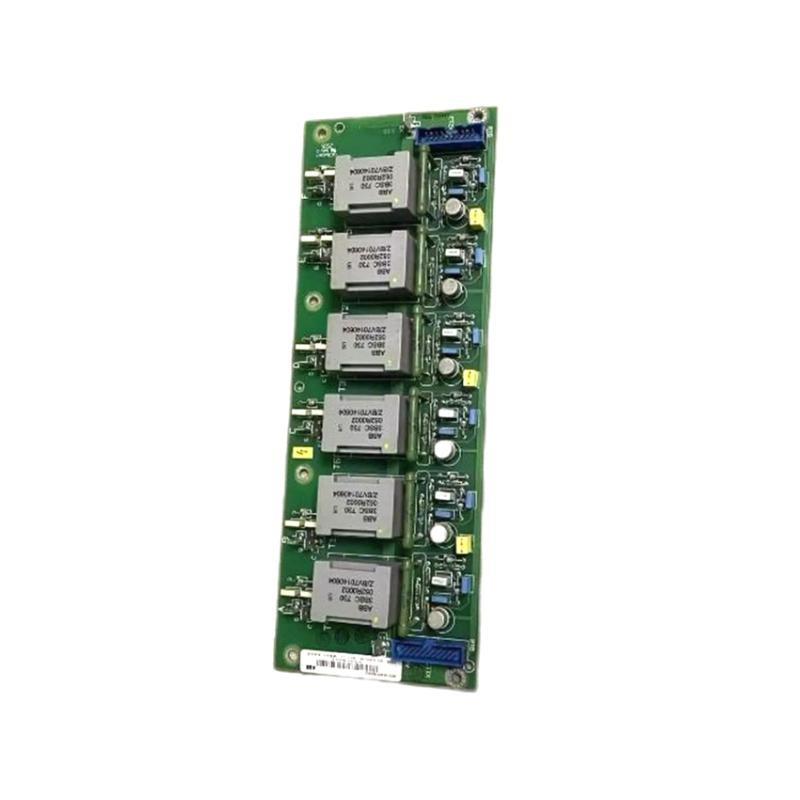

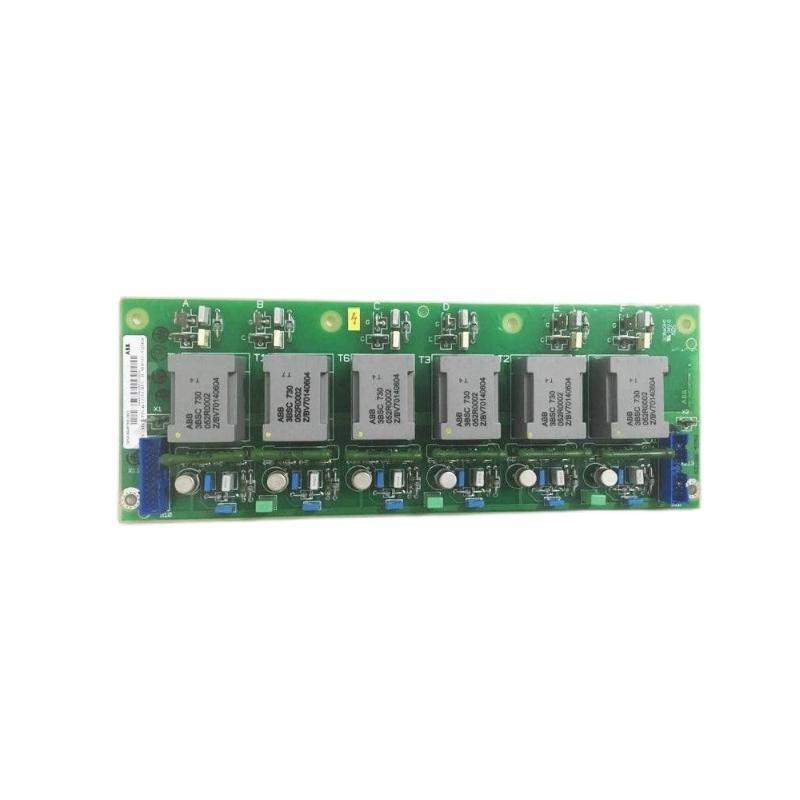

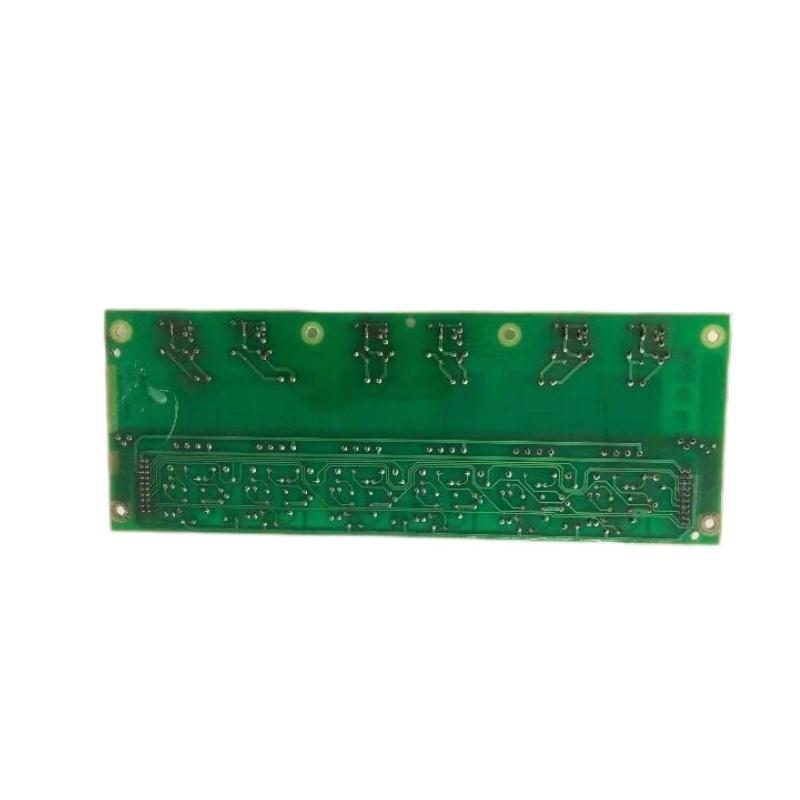

ABB SDCS-PIN-46 3BSE004939R1003 Pulse Transformer Board

مقدمة المنتج

The ABB SDCS-PIN-46 (رقم القطعة: 3BSE004939R1003) is a high-performance pulse transformer interface board developed specifically for ABB’s DCS 400 series DC drive systems. This board plays a pivotal role in the safe and precise delivery من firing pulses from the control electronics to power semiconductors such as thyristors or IGBTs.

By incorporating galvanic isolation between the control and power stages, the SDCS-PIN-46 ensures reliable signal integrity, electrical safety, and system efficiency. Designed for high-reliability environments, it helps mitigate electrical noise, eliminates ground loop issues, and allows for more robust switching control. This makes it a critical component in high-demand industrial settings like metal manufacturing, paper processing, cranes, and marine propulsion.

This specific version, 3BSE004939R1003, is known for its consistent performance, plug-and-play compatibility with other ABB modules, and low maintenance requirements.

مواصفات المنتج

Applications

The SDCS-PIN-46 (3BSE004939R1003) is primarily used within ABB’s DCS 400 drive platforms and related automation solutions to provide electrically isolated gate firing pulses. This board is crucial wherever electrical separation between control and power circuits is required to protect sensitive electronics.

Typical application sectors include:

• Metallurgy & Steel Plants – Precision motor control in rolling and extrusion machines

• Paper & Pulp Industry – Drives used in synchronized paper machine sections

• Marine & Offshore – Propulsion drives and automated motor handling systems

• Heavy Industry – Large conveyor, lift, and winding applications requiring stable motor switching

• Cranes and Hoists – Smooth acceleration and braking control

• Automated Manufacturing Lines – High-reliability pulse transmission in robotic systems

Product Advantages

• High Electrical Isolation
  Provides over 2.5 kV galvanic isolation, ensuring control systems are shielded from power fluctuations and noise.

• Improved Drive Reliability
  Prevents false firing and enhances thyristor performance with accurate pulse delivery.

• Fully Compatible with ABB DCS 400 Systems
  Engineered to work seamlessly with SDCS-CON, SDCS-IOB, and SDCS-POW components.

• Space-Saving Design
  Compact form factor allows for efficient cabinet design and easy system expansion.

• Fast Installation and Replacement
  Plug-in modular design makes it user-friendly for field technicians.

• Long Lifecycle
  Built for long-term operation with industrial-grade components and minimal maintenance.

الأسئلة الشائعة (FAQ)

1. What is the function من the ABB SDCS-PIN-46 board?
   It transmits isolated pulse signals from the control وحدة to power semiconductors like thyristors.

2. Is 3BSE004939R1003 different from other SDCS-PIN-46 versions?
   This part number refers to a specific factory configuration but منfers the same pulse transformer functionality as other variants.

3. Is this board hot-swappable?
   Yes, in most ABB-certified DCS systems, it can be swapped while the system is powered down without full disassembly.

4. Can this board be used with non-ABB drives?
   While designed for ABB systems, it may technically work with other systems if signal and connector specifications match.

5. Does this board include any firmware or sمنtware?
   No, it is a hardware-only module with no programmable elements.

6. How can I tell if the board is faulty?
   Symptoms include missing firing pulses, failure to start motors, or drive system errors related to pulse communication.

7. What safety certifications does it hold?
   It complies with CE and RoHS standards when integrated into ABB-certified systems.

8. Is there a need for regular calibration?
   No, the board does not require calibration under normal operation.

9. What’s the expected lifespan?
   With proper usage, it can exceed 10 years in industrial conditions.

10. How is it installed within the system?
    It slides into a designated slot in the drive cabinet and connects via ABB’s standard backplane.
