Product Overview

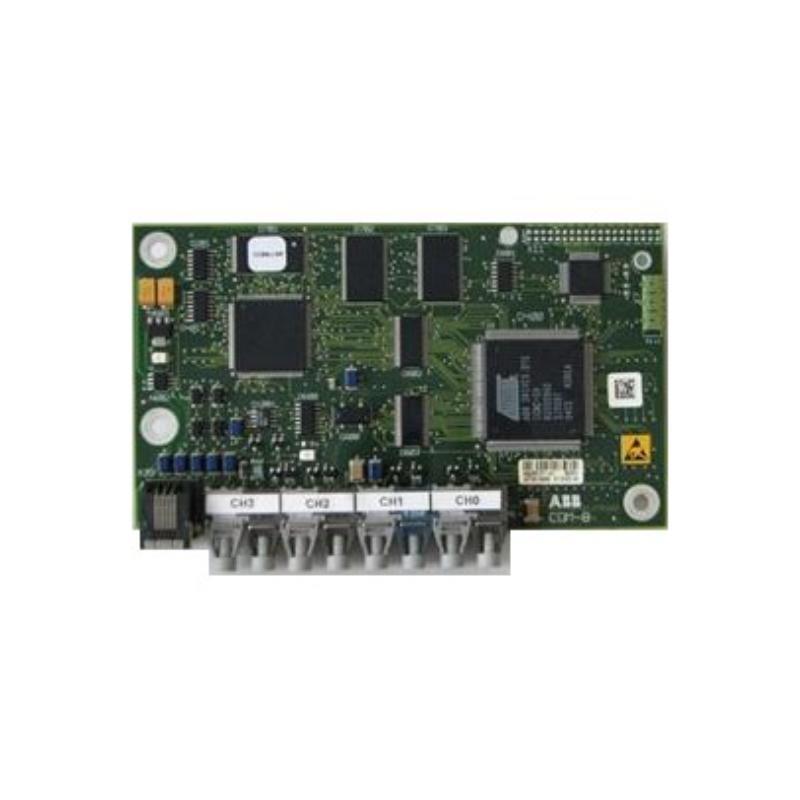

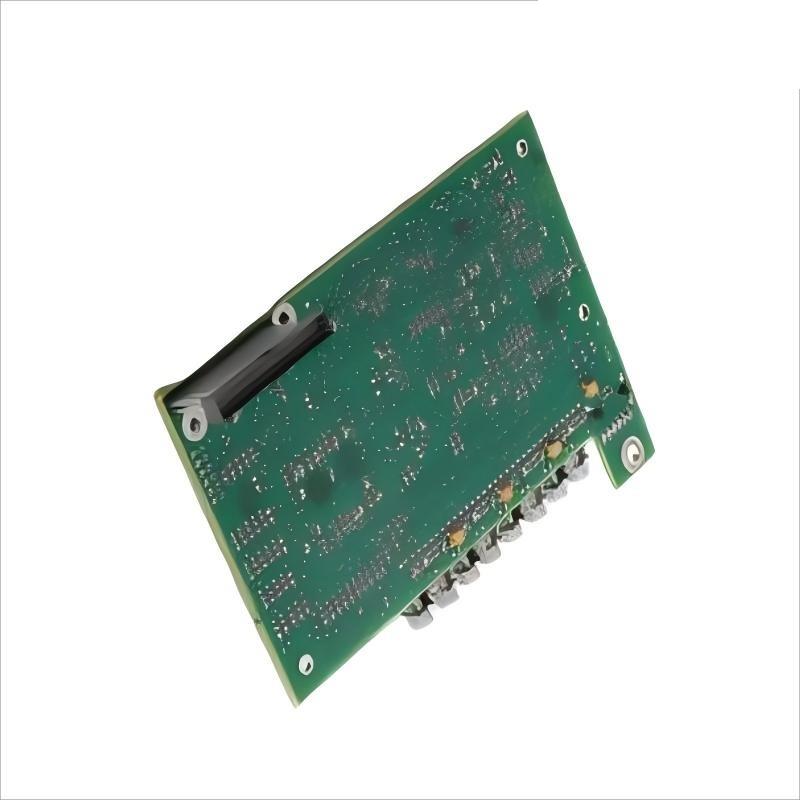

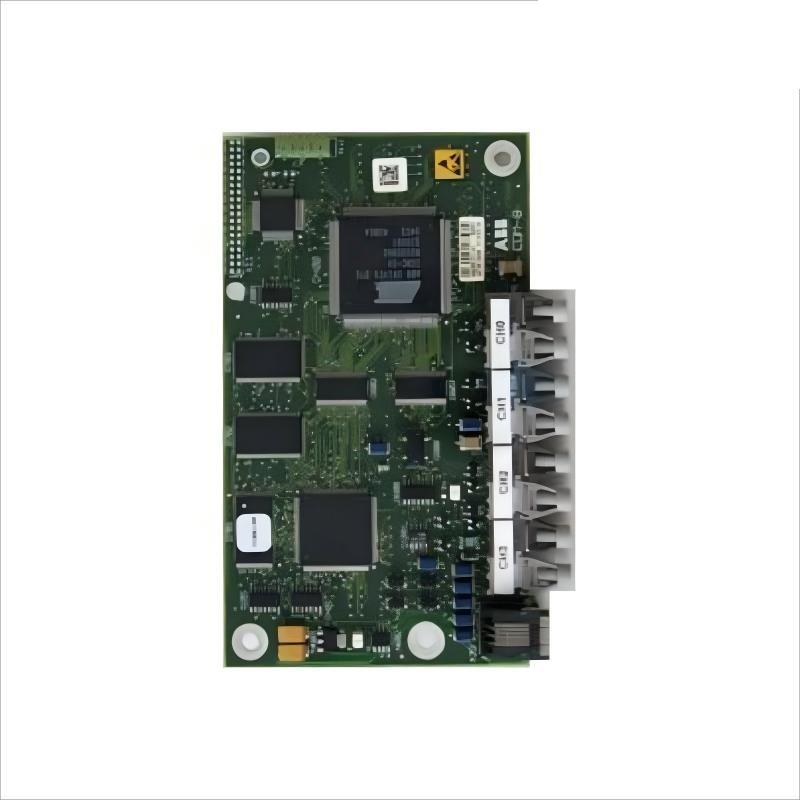

The ABB SDCS-COM-82 3ADT220134R0002 Communication Board is a communication interface module designed for ABB DCS800 DC drives. It enables reliable, high-speed data transfer between drives and external control systems, ensuring smooth integration in industrial automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | SDCS-COM-82 |
| رقم القطعة | 3ADT220134R0002 |
| Product Type | Communication Board |
| Compatible Drives | ABB DCS800 series |
| Dimensions (W x H x D) | 225 × 50 × 150 mm |
| الوزن | 0.5 kg |
| Communication Protocol | DDCS (Drive-to-Drive Communication System) |
| Mounting Type | Plug-in Module |
| Operating Temperature | 0 to +50 °C |
| Storage Temperature | -40 to +70 °C |
Applications
-
DC motor control in production lines
-
Communication interface in process automation
-
Part من ABB DCS800 single and multi-drive systems
-
Common in industries such as metals, paper, mining, and marine
Advantages
-
Stable, high-speed communication with minimal latency
-
Simple plug-in installation for quick maintenance
-
Compact form factor conserves panel space
-
Full compatibility with ABB DCS800 drives
-
Designed for rugged industrial environments
FAQ
Q1: What does the SDCS-COM-82 do?
A1: It enables communication between ABB DCS800 drives and external controllers via DDCS protocol.
Q2: Can it be installed while the system is powered?
A2: No, the system must be powered down before installation or removal.
Q3: Which drives are supported?
A3: It is compatible with ABB DCS800 drive systems.
Q4: Is additional configuration needed?
A4: Yes, basic configuration via the drive’s interface is required.
Q5: Can it be used in non-ABB systems?
A5: No, it is specifically designed for ABB DCS800 systems.
Q6: What temperature range can it operate in?
A6: From 0 °C to +50 °C.
Q7: How should it be stored?
A7: Store in dry, dust-free conditions between -40 °C and +70 °C.
Q8: Is hardware mounting included?
A8: No separate hardware is needed; it plugs into the drive.
Q9: Does it resist vibration?
A9: Yes, when properly installed it meets industrial vibration standards.
Q10: Is it maintenance-free?
A10: It requires no maintenance other than periodic inspection.
