مقدمة المنتج

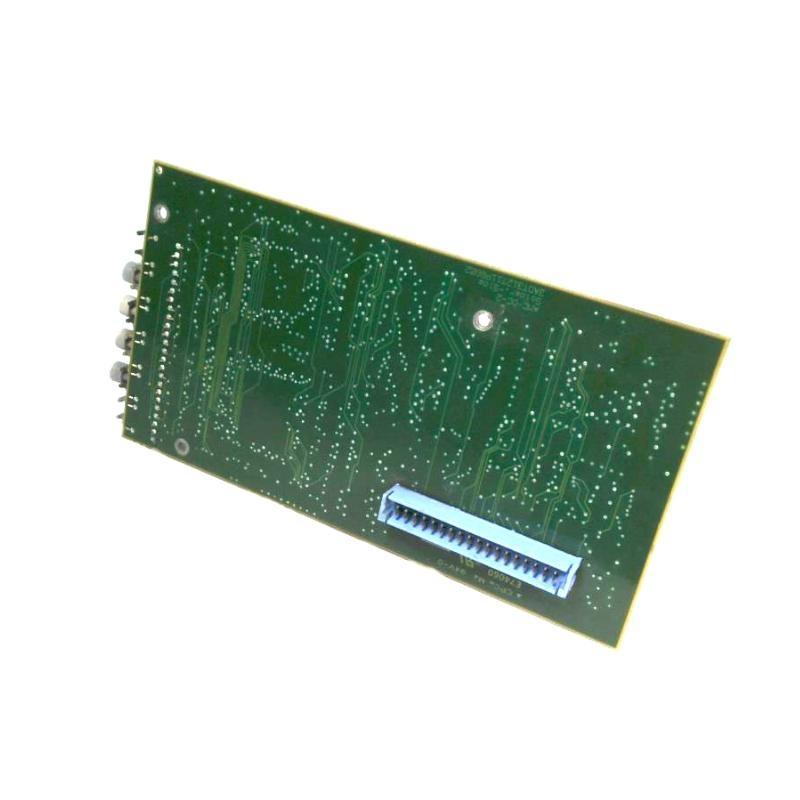

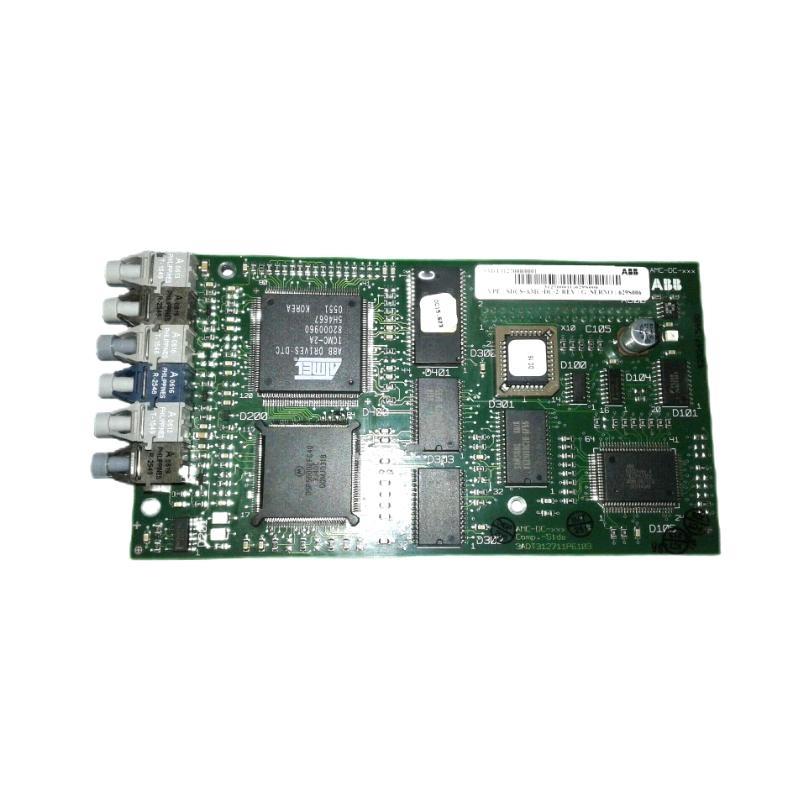

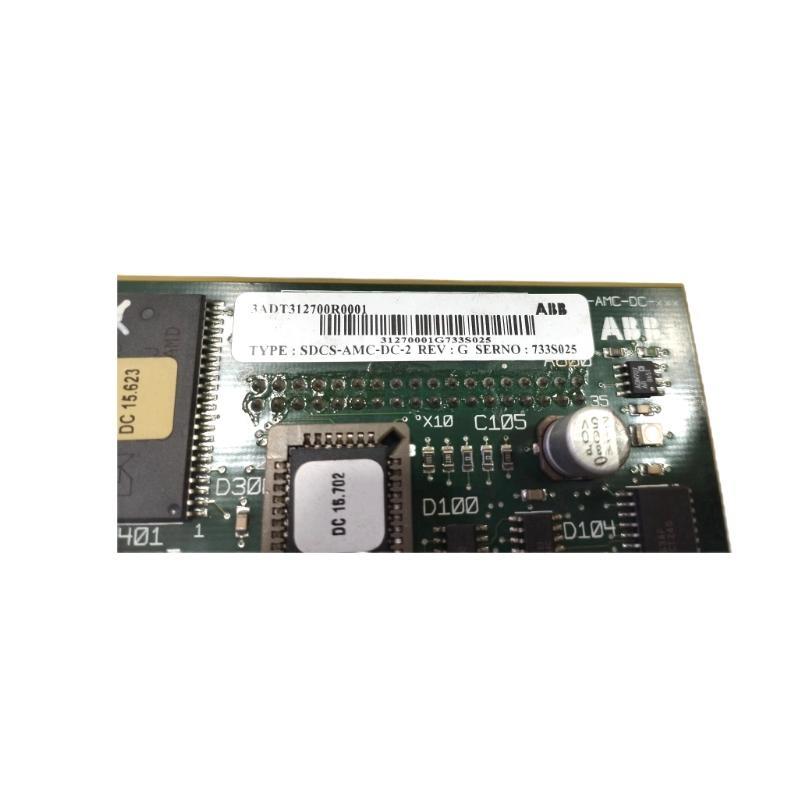

The ABB SDCS-AMC-DC-2 (رقم القطعة. 3ADT312700R0001) is a high-performance control board designed for ABB’s legacy DC drive systems, particularly the DCS600 series. This control وحدة serves as the central processing component, managing drive operations, motor control, and communication interfaces. Engineered for reliability and precision, the SDCS-AMC-DC-2 ensures optimal performance in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | SDCS-AMC-DC-2 |
| رقم القطعة | 3ADT312700R0001 |
| الشركة المصنعة | ABB |
| Product Type | DC Drive Control Board |
| Compatible Drive Systems | DCS600 Series |
| Input Voltage | 120 – 240 V AC |
| Output Frequency | 50 – 60 Hz |
| Processor | 32-bit microcontroller |
| Communication Interfaces | RS-485 Modbus RTU |
| Input Channels | 8 |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -25°C to +70°C |
| Humidity Rating | <95%, non-condensing |
| Protection Rating | Enclosed within drive system enclosure |
| Board Dimensions (L x W x H) | 132 x 53 x 65 mm |
| الوزن | 0.09 kg |
| Compliance | IEC 61131-3 |
| Country من Origin | Sweden |
Product Applications
The SDCS-AMC-DC-2 control board is utilized in various industrial applications, including:
-
Steel and Metal Processing – Managing rolling mills and processing lines.
-
Pulp and Paper Industry – Controlling paper machine drives and winders.
-
Power Generation – Regulating auxiliary systems and exciters.
-
Cement Manufacturing – Operating kiln and mill drives.
-
Mining Operations – Managing hoists, crushers, and conveyors.
-
Marine Applications – Controlling propulsion and auxiliary systems.
Product Advantages
-
Robust Performance: Designed for high-reliability in demanding environments.
-
Advanced Processing: Equipped with a 32-bit microcontroller for precise control.
-
Versatile Communication: الدعمs RS-485 Modbus RTU for seamless integration.
-
Compact Design: Space-efficient dimensions facilitate easy installation.
-
Global Compliance: Meets international standards, including IEC 61131-3.
-
ABB Quality Assurance: Backed by ABB’s reputation for excellence in industrial automation.
الأسئلة الشائعة (FAQ)
-
What is the primary function من the SDCS-AMC-DC-2 control board?
It serves as the main control وحدة for ABB’s DCS600 series DC drives, managing motor control and communication interfaces. -
Which drive systems are compatible with this control board?
The SDCS-AMC-DC-2 is designed for use with ABB’s DCS600 series drives. -
What are the input voltage requirements?
The board operates on an input voltage من 120 – 240 V AC. -
Does the board support Modbus communication?
Yes, it supports RS-485 Modbus RTU communication protocol. -
What is the operating temperature range?
The board operates reliably within a temperature range من 0°C to +55°C. -
Is the SDCS-AMC-DC-2 suitable for marine applications?
Yes, it is used in marine environments for controlling propulsion and auxiliary systems. -
What are the dimensions and weight من the board?
The board measures 132 x 53 x 65 mm and weighs 0.09 kg. -
Does the board comply with international standards?
Yes, it complies with IEC 61131-3 standards. -
Where is the SDCS-AMC-DC-2 manufactured?
The board is manufactured in Sweden. -
Can the board be used in new installations?
While designed for legacy systems, it can be integrated into new installations requiring compatibility with DCS600 series drives.
Related الطرازs (Same Series or Functionality)
| الطراز | الوصف | Compatible Drives |
|---|---|---|
| SDCS-AMC-DC | Original version من the control board | DCS600 Series |
| SDCS-CON-2 | Communication interface board | DCS600 Series |
| SDCS-FEX-2 | Fiber optic expansion module | DCS600 Series |
| SDCS-COM-81 | Communication board with fieldbus options | DCS600 Series |
| SDCS-POW-1 | Power board supplying logic and sensors | DCS600 Series |
| SDCS-PIN-41 | Analog/Digital input interface | DCS600 Series |
