Product Overview

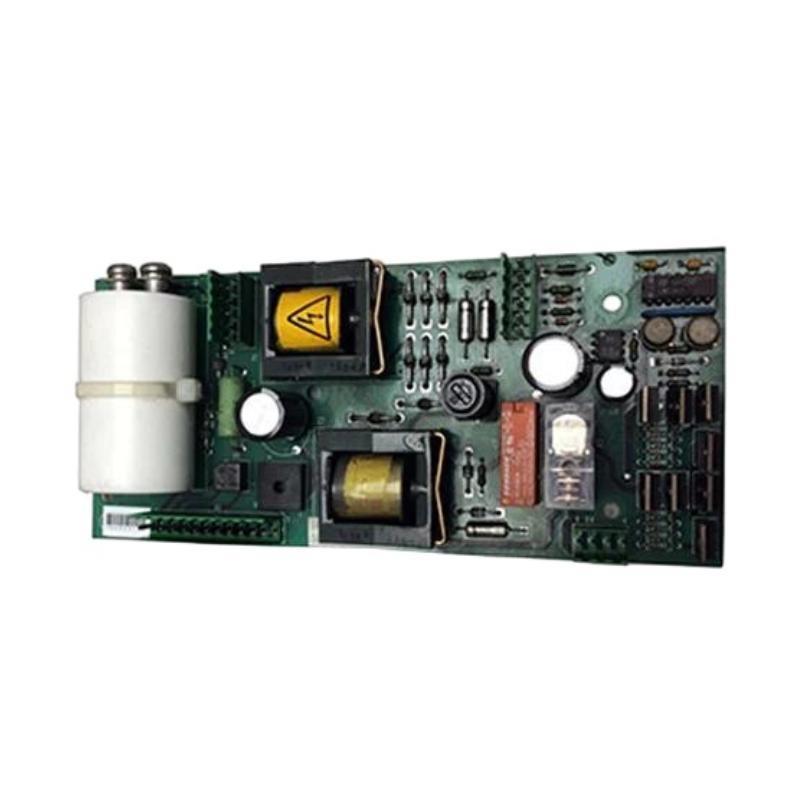

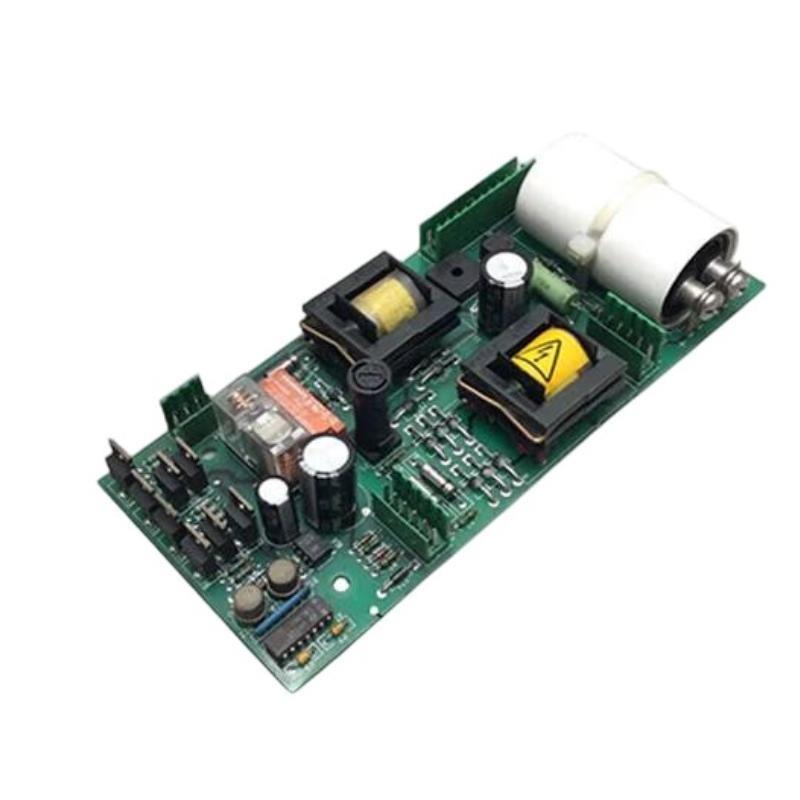

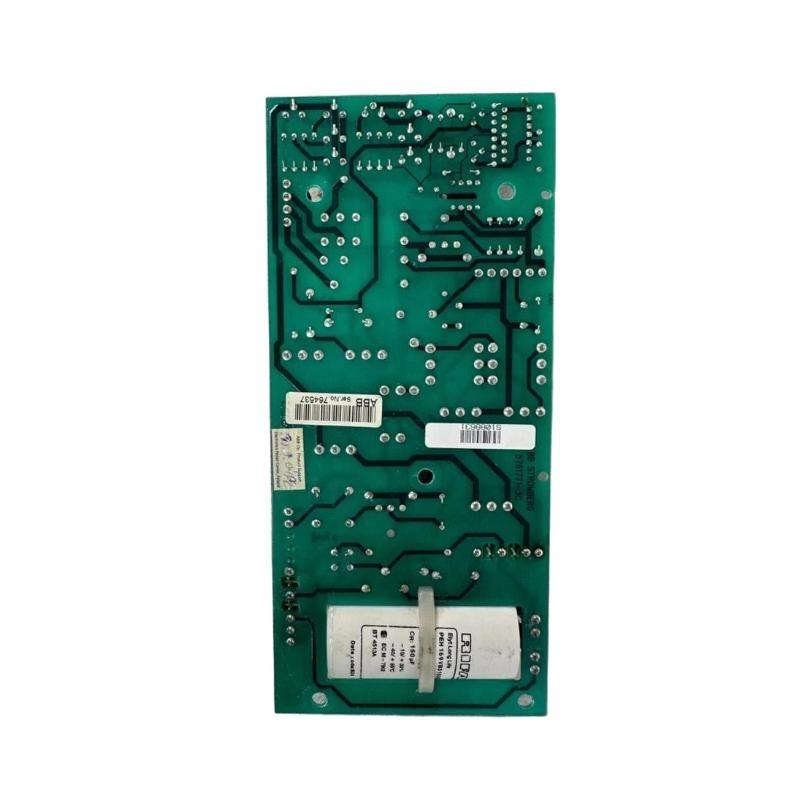

The ABB SAFT190APC Power Connection Board is a high-performance power distribution component designed for industrial control and automation systems. It provides secure, organized connections for power circuits, ensuring efficient energy distribution, reliability, and ease من installation in ABB control panels and modular systems.
Key Features
-
High-quality power connection board for industrial applications
-
الدعمs multiple power circuits with organized wiring
-
Provides secure and reliable electrical connections
-
Compatible with ABB control panels and modular assemblies
-
Compact and space-saving design
-
Easy installation and maintenance
-
Durable construction for long-term operation
-
Safe for high-current and industrial power distribution
Technical Specifications
| Item | Specification |
|---|---|
| الشركة المصنعة | ABB |
| رقم القطعة | SAFT190APC |
| Product Type | Power Connection Board |
| Dimensions | 200 × 100 × 50 mm |
| الوزن | 0.34 kg |
| Material | Flame-retardant thermoplastic housing with metal busbars |
| Rated Current | Up to 63 A |
| Rated Voltage | 600 V AC/DC |
| Connection Type | Screw terminals for multiple wire sizes |
| Wire Size | 1–16 mm² (solid or stranded) |
| Mounting | DIN rail or panel mounting |
| Operating Temperature | –40 °C to +105 °C |
| Certifications | UL, CE, IEC compliant |
| Applications | Power distribution in control panels, industrial automation, energy management |
Industry Applications
-
Industrial control panels and automation systems
-
Power distribution and switchgear assemblies
-
Motor control centers
-
Renewable energy and power generation systems
-
Oil, gas, and petrochemical facilities
-
Factory and process automation
-
Electrical maintenance and upgrades
الأسئلة الشائعة (FAQ)
Q1: What is the rated current من the SAFT190APC?
It supports up to 63 A.
Q2: What wire sizes are compatible with this board?
1–16 mm², solid or stranded wires.
Q3: What is the rated voltage?
Up to 600 V AC/DC.
Q4: How is the board mounted?
It can be mounted on DIN rails or panels.
Q5: Is it compatible with ABB modular systems?
Yes, designed for integration with ABB control panels and modular assemblies.
Q6: What is the operating temperature range?
It operates from –40 °C to +105 °C.
Q7: What materials are used in construction?
Flame-retardant thermoplastic housing with high-conductivity metal busbars.
Q8: Can it handle high-current applications?
Yes, suitable for industrial power distribution and high-current loads.
Related ABB Modules
| الطراز | الوصف |
|---|---|
| SAFT174TBC | Terminal block, 24 A rated |
| SAFT190AP | Power connection board, alternative configuration |
| SAFT192APC | Power distribution board with extended busbars |
| SAFT196APC | High-current power connection board |
| SAFT198APC | Industrial power connection module |
| SAFT200APC | Compact power connection board |
Popular ABB Modules
| الطراز | الوصف |
|---|---|
| SAFT190APC | Power connection board, 63 A |
| SAFT174TBC | 24 A terminal block |
| SAFT176TBC | 32 A terminal block |
| SAFT180TBC | 35 A terminal block |
| SAFT192APC | Power distribution board |
| SAFT196APC | High-current power board |
