مقدمة المنتج

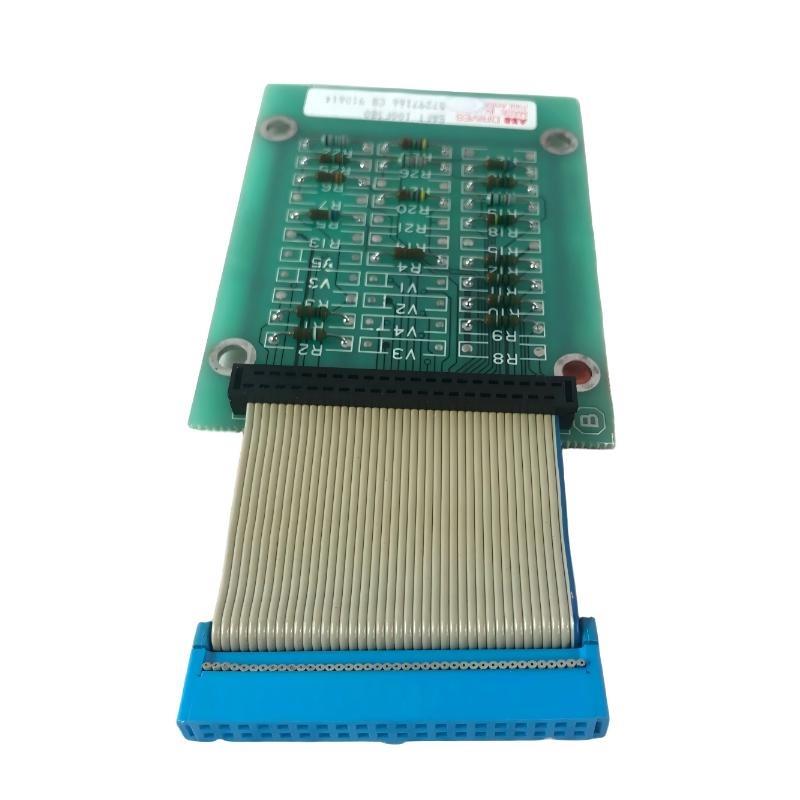

The ABB SAFT 100F380 57297166 PCB Matching Card is a precision-engineered component designed for seamless integration into industrial control and automation systems. It functions as a matching interface card, ensuring proper electrical and signal compatibility between connected modules. Its robust PCB layout, high-quality materials, and precise component placement guarantee reliable performance under high-frequency switching and dynamic load conditions.
This module is widely used in applications where signal integrity, electromagnetic compatibility, and reduced noise coupling are critical. It is engineered to withstand typical industrial environmental conditions, including temperature fluctuations, vibration, and electrical disturbances, ensuring long-term stable operation.
The card’s compact design allows for efficient installation in constrained spaces without compromising performance, while its lightweight structure minimizes mechanical stress on supporting boards and connectors.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | SAFT 100F380 57297166 |
| Type | PCB Matching Card |
| Function | Signal matching / interface |
| Operating Voltage | 24 VDC nominal |
| Operating Current | 0.5 A maximum |
| Temperature Range | -20°C to +70°C |
| Connector Type | Standard PCB edge connector |
| Material | FR4 PCB, copper traces |
| Signal Compatibility | TTL / CMOS / Industrial Logic |
| EMI/RFI Protection | Integrated suppression |
| Dimensions | 160 × 100 × 20 mm |
| الوزن | 0.28 kg |
Applications
• Industrial Control Systems: Ensures precise signal matching between PLC modules and peripheral devices.
• Automation Equipment: Provides reliable interfacing in robotic controllers and automated assembly lines.
• Power Distribution وحدةs: Facilitates proper communication and monitoring between protective relays and measurement modules.
• High-Frequency Switching Circuits: Maintains signal integrity in fast switching and pulse environments.
• Electromechanical Devices: Compatible with motors, drives, and field devices requiring precise interface cards.
• Testing and Calibration Rigs: Used in laboratory setups for signal conditioning and equipment validation.
Advantages
• High Signal Integrity: Maintains clean and stable electrical signals across multiple modules.
• Compact and Lightweight Design: Minimizes space requirements and reduces mechanical stress.
• Industrial-Grade Reliability: Withstands vibration, temperature fluctuations, and electrical noise.
• Plug-and-Play Installation: Standard edge connector simplifies module replacement and maintenance.
• Electromagnetic Compatibility: Integrated EMI/RFI suppression reduces interference in sensitive circuits.
• Versatile Applications: Compatible with a wide range من industrial logic, control, and measurement systems.
